10L0L Golf Cart Turn Signal Kit with Horn Button, Blinker Switch, Brake Light Pad Switch, Only Fits Light Kit with 9-Pin Plug Upgrade Wiring Harness - 12V Operation

Brand: 10L0L

Color: Black

Features:

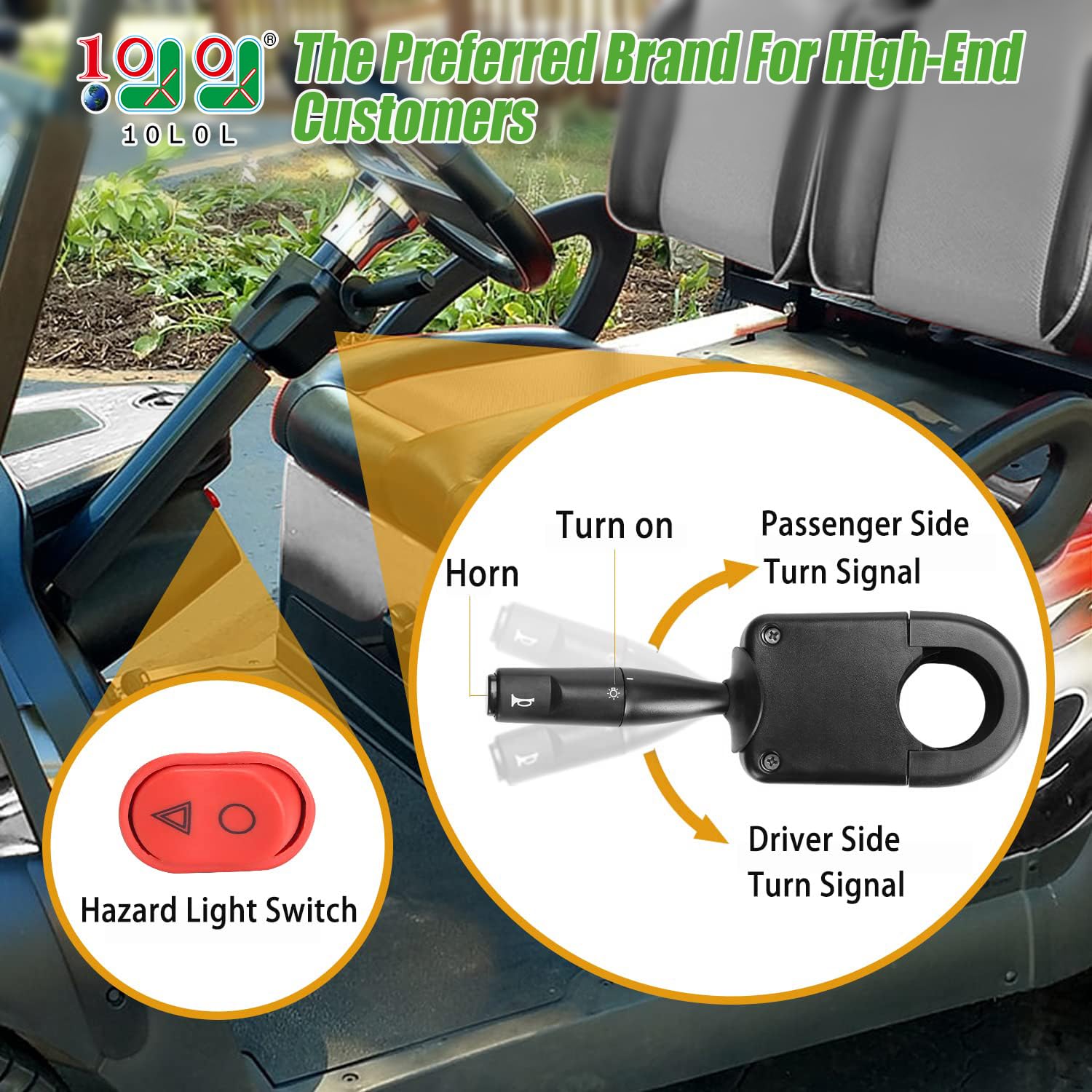

• Upgrade kit make your golf cart has turn signal, horn, hazard flashing, brake lights functions, fits golf cart light kit with 9-pin plug wiring harness

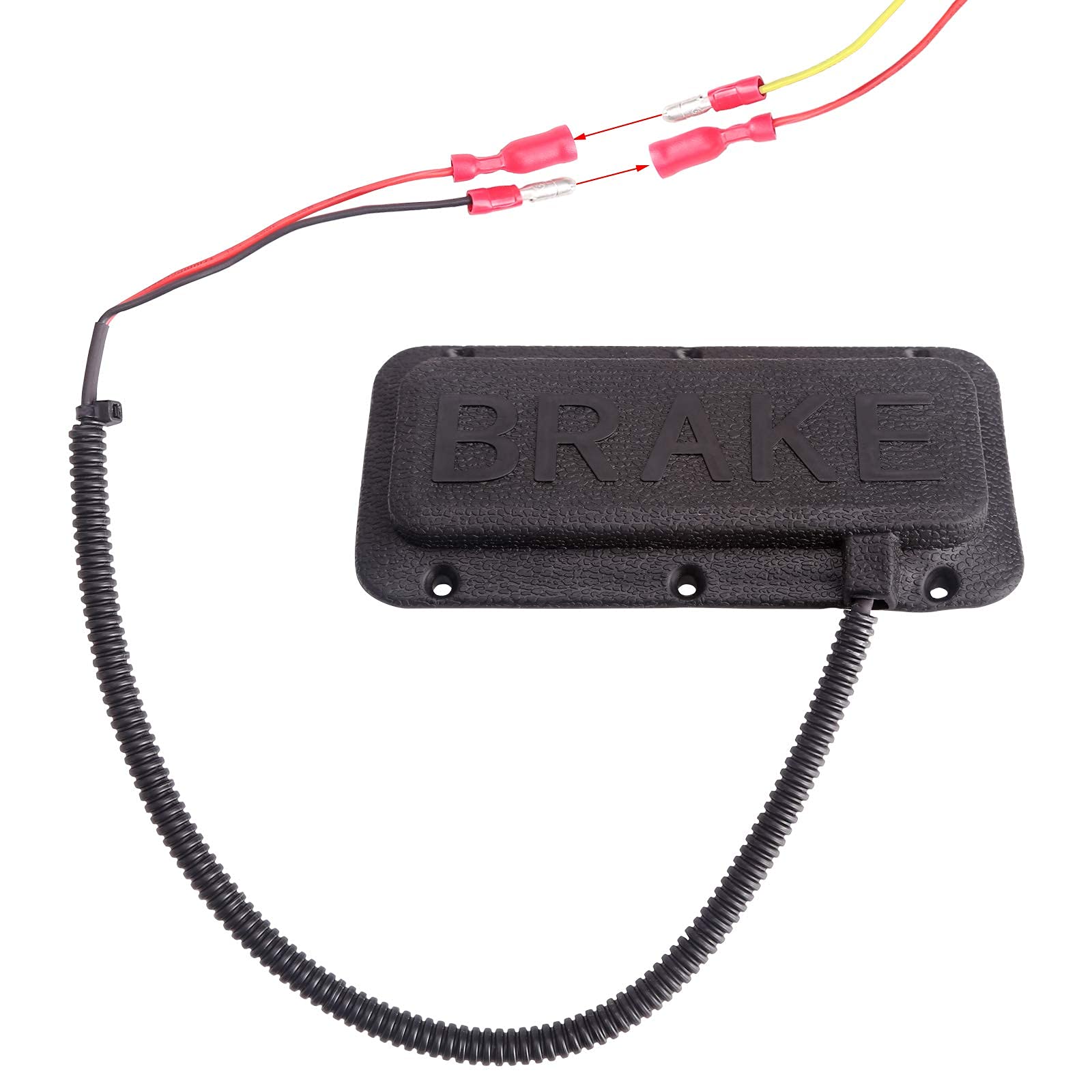

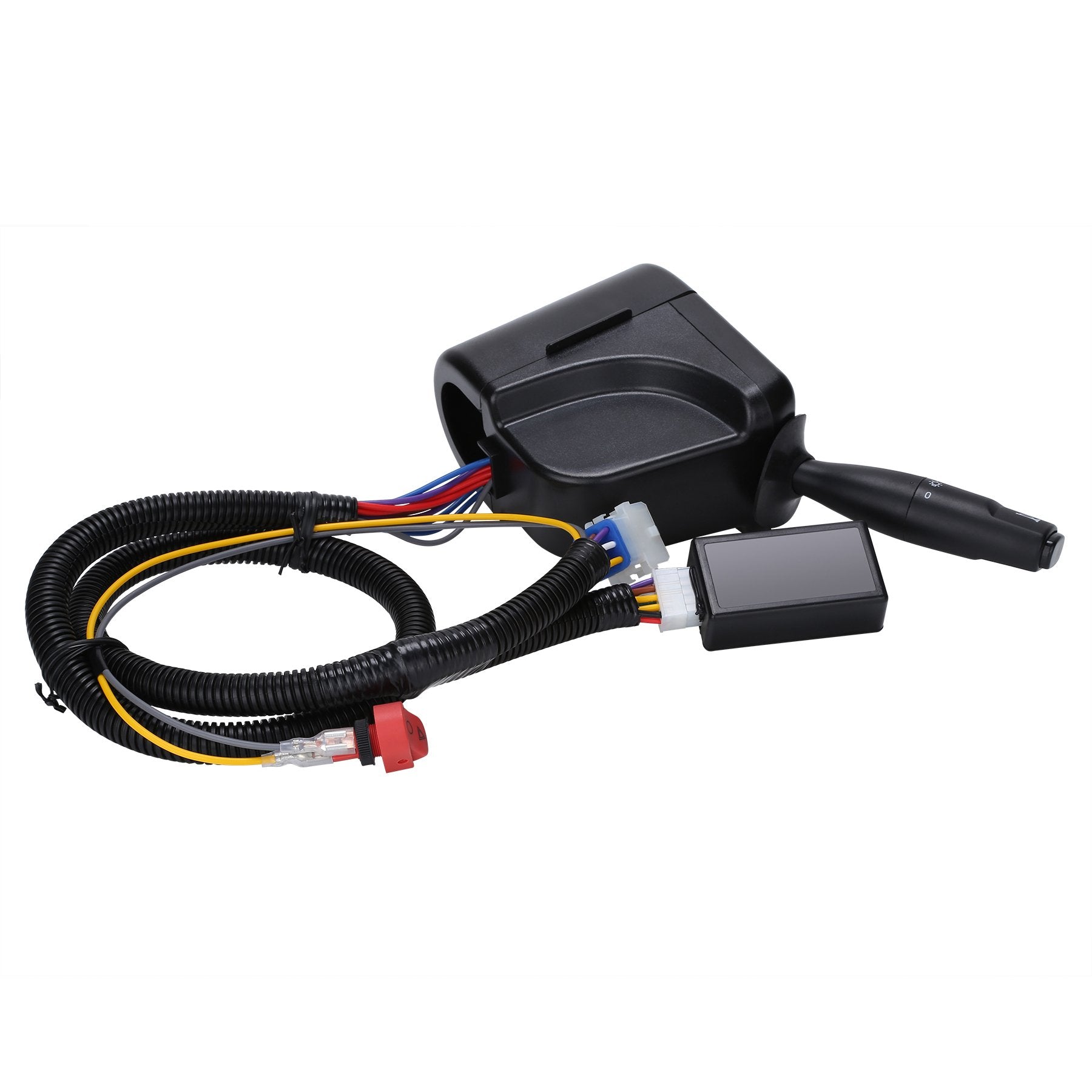

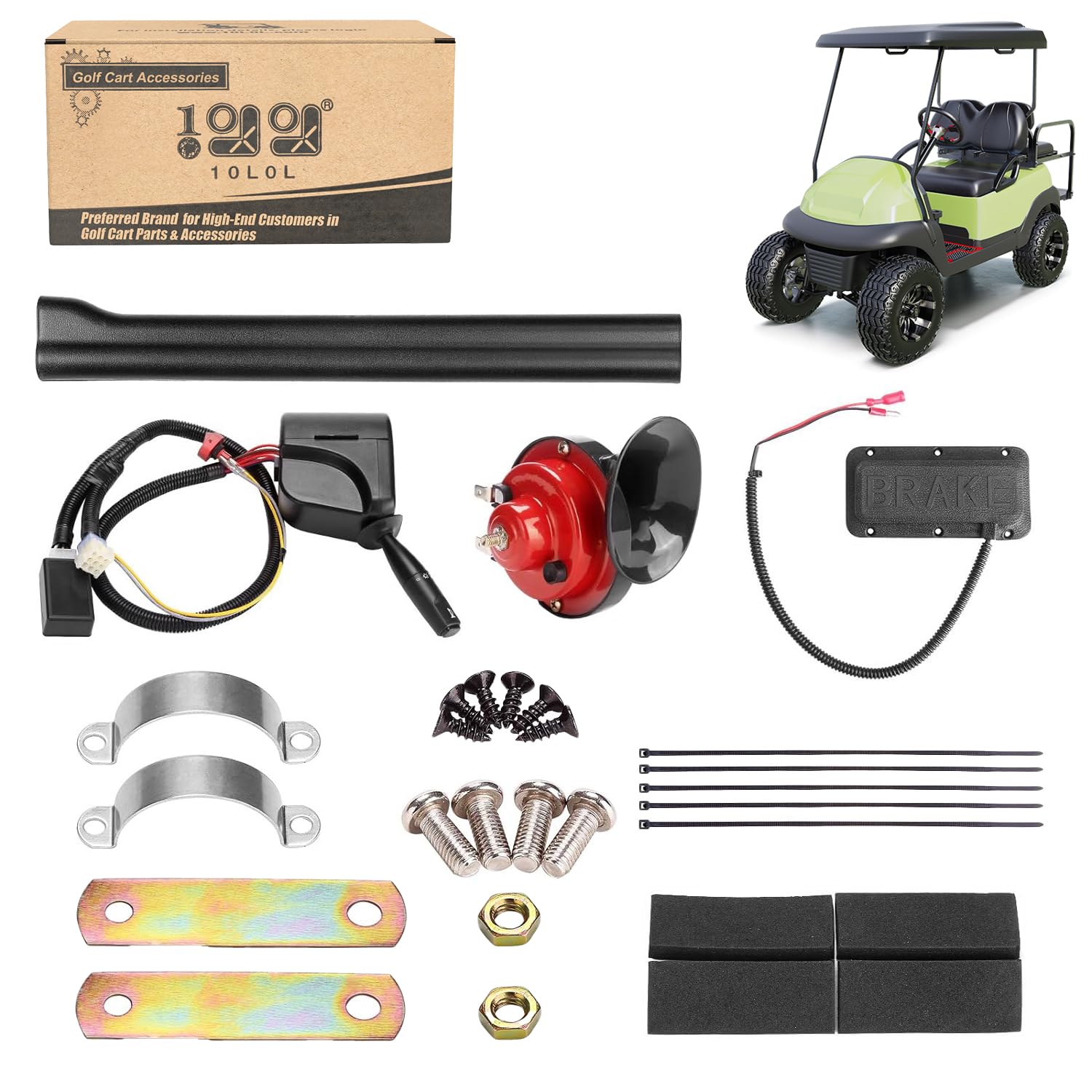

• Kit includes: turn signal lever with headlight/horn switch & 9-Pin wiring harness, hazard flashing switch, controller box, steering column cover, brake pad, horn, clamps and screw set, wiring diagram instruction

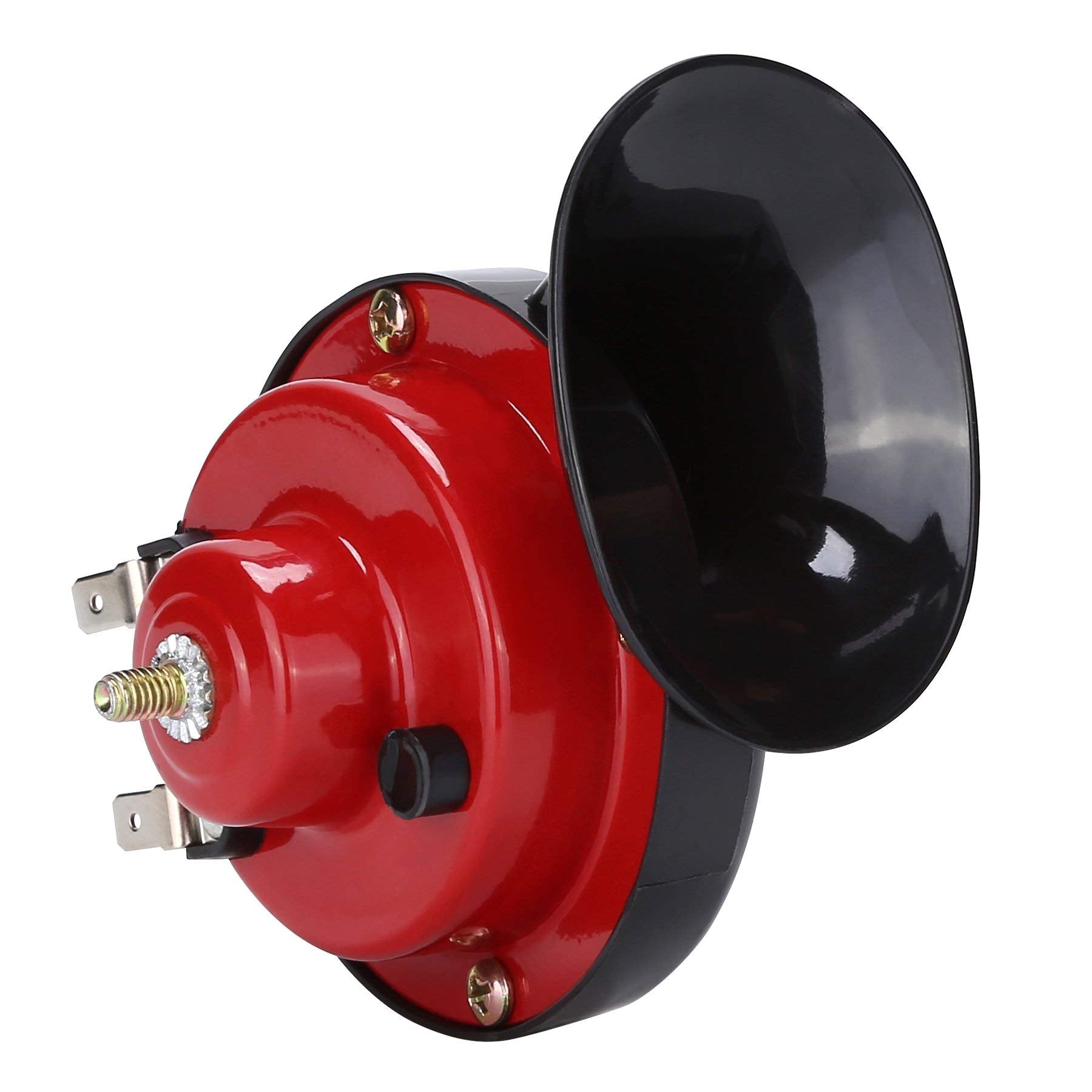

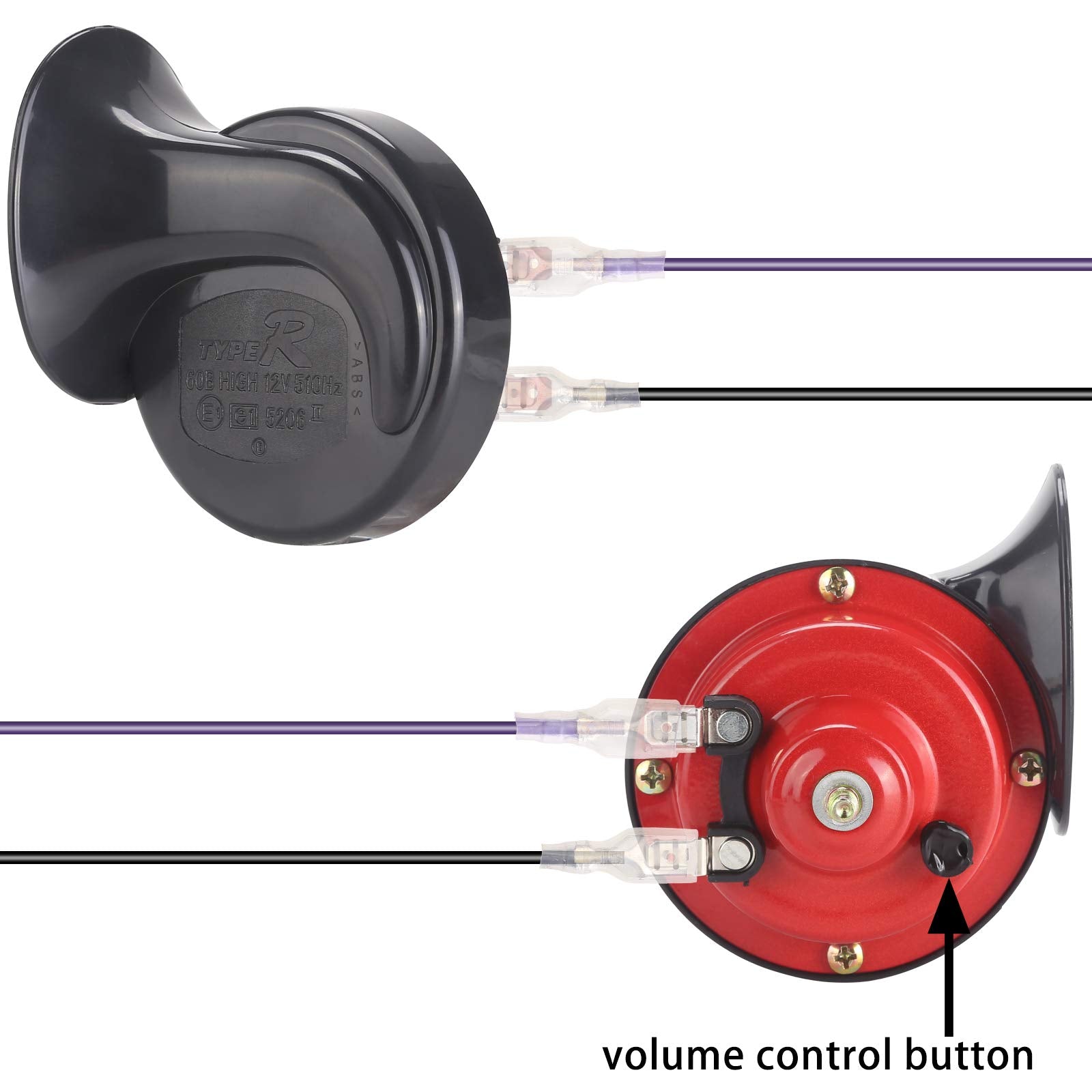

• 12 Volt operation(voltage reducer is required on 36v/48v), the black button on horns backside is for volume control could adjust it when power connected
• The kit must be used with a universal wiring harness (NOT the original harness) and a 9-pin plug. If you unsure if it is a universal harness, please compare the wiring harness and its definition with your harness on the left wiring diagram
• 100% Satisfaction guarantee, 1 year refund or replacement. Worry-free installation with instructions and technician guidance.

model number: 10L0L-[other numbers or letters]

Part Number: 00560

Details: 10L0L Golf Cart Turn Signal Kit with Horn Brake Hazard Blinker Light Switch, Only Fits 9-Pin Plug on Universal Upgrade Wiring Harness - 12V Operation

Make your cart street legal, and will have turn signal, horn, hazard flashing, brake lights etc.

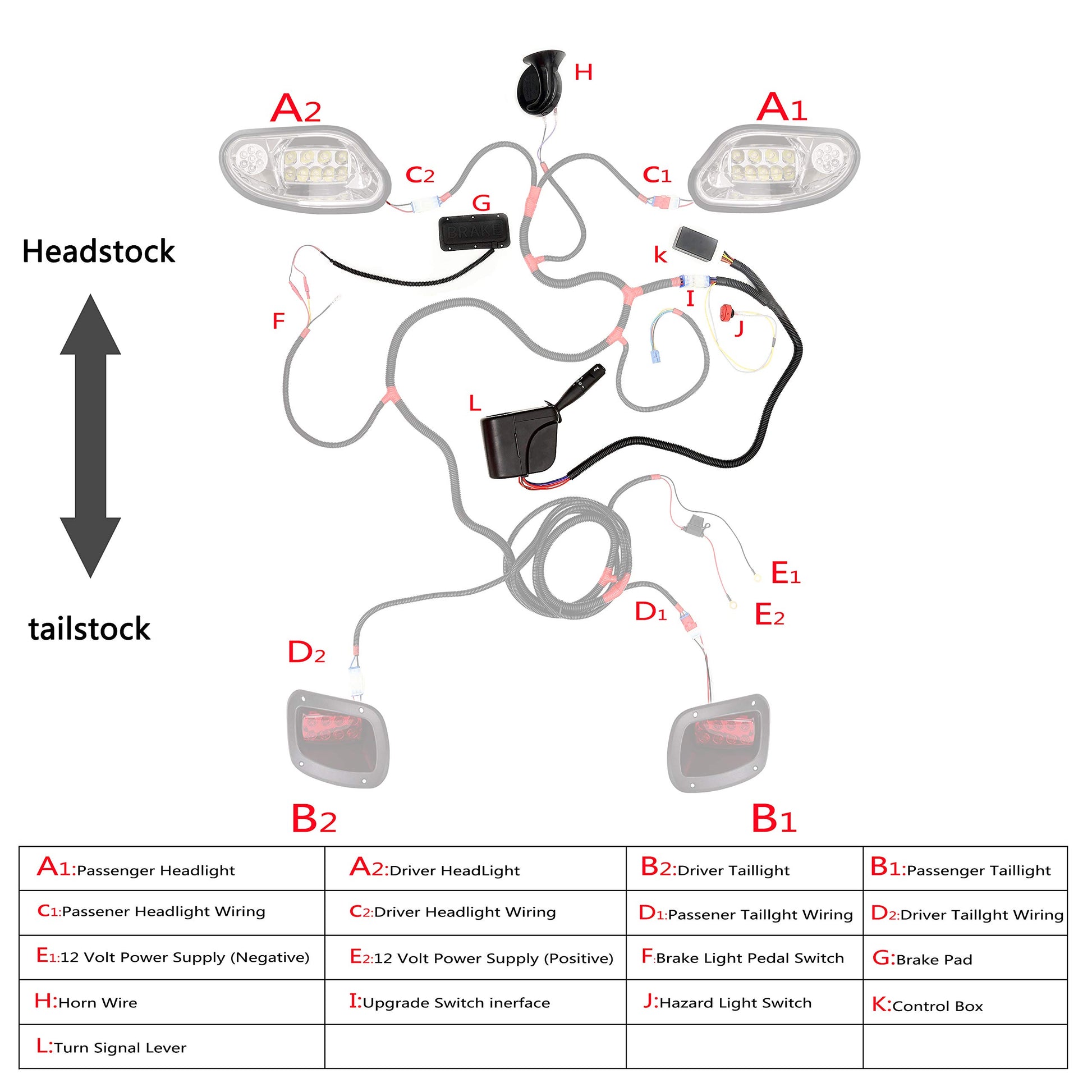

The kit is connected to the light unit via a 9-pin plug. If your original or OEM light wiring harness is not a 9-pin plug, refer to the wiring diagram. It is not recommended to purchase this lamp kit if you confirm that you are not able to modify the line yourself.

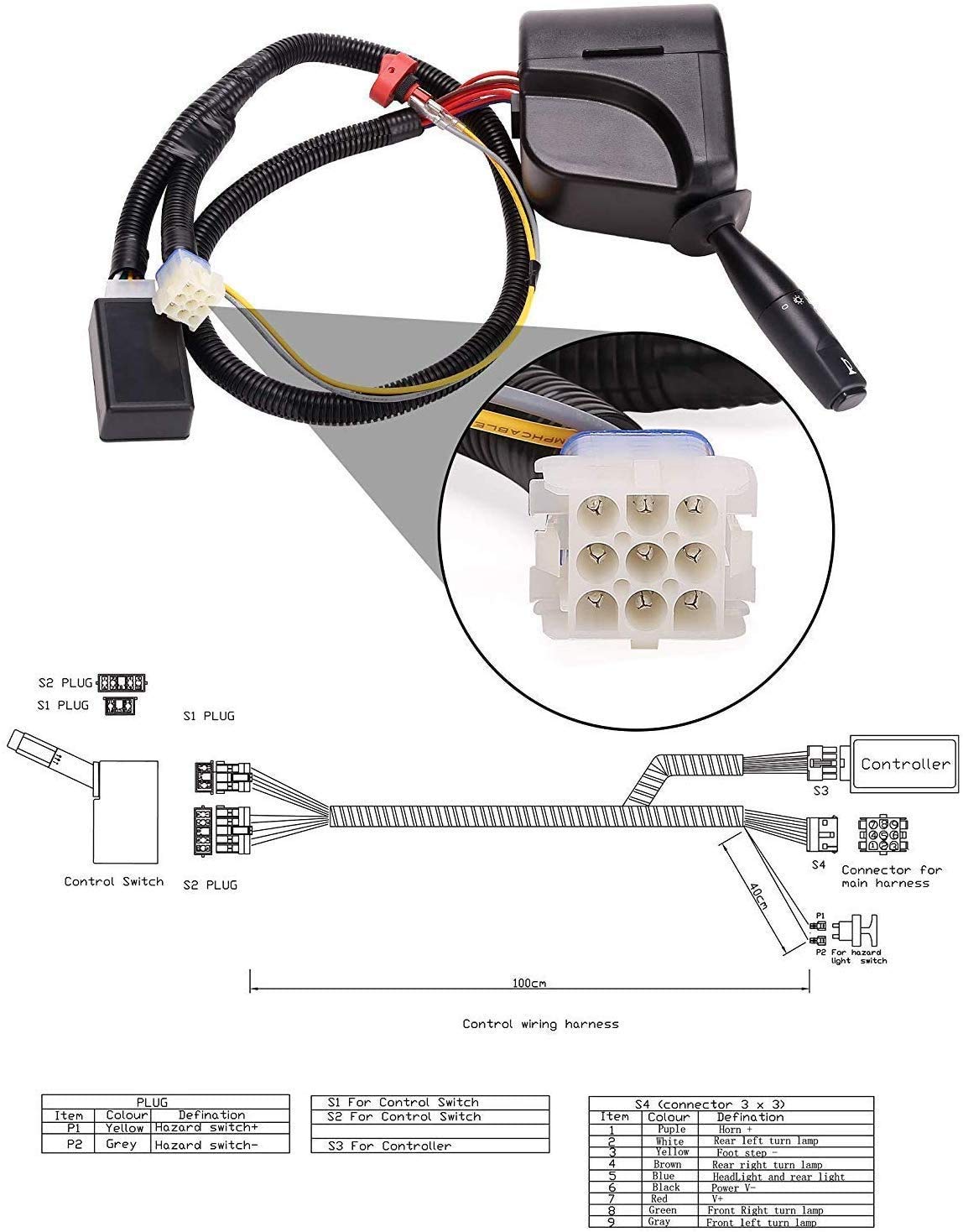

9-Pin plug Inerface:
Puple: Horn+
White: Rear left turn lamp
Yellow: Foot step-
Brown: Rear right turn lamp
Blue: Headlight and rear light
Black: Power V-
Red: Power V+
Green: Front Right turn lamp
Gray: Front left turn lamp

EAN: 0688209789324

Package Dimensions: 17.5 x 5.5 x 5.0 inches
