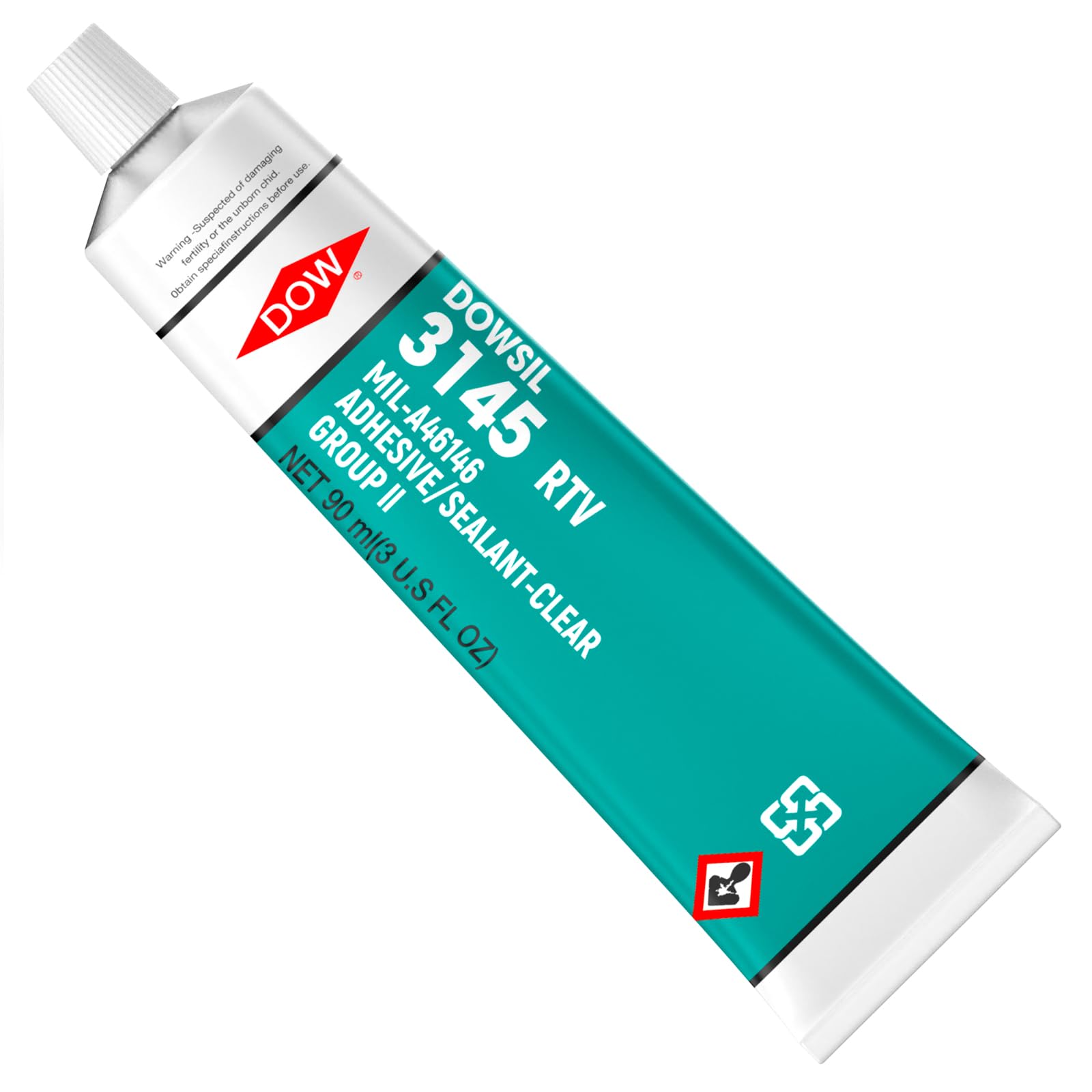

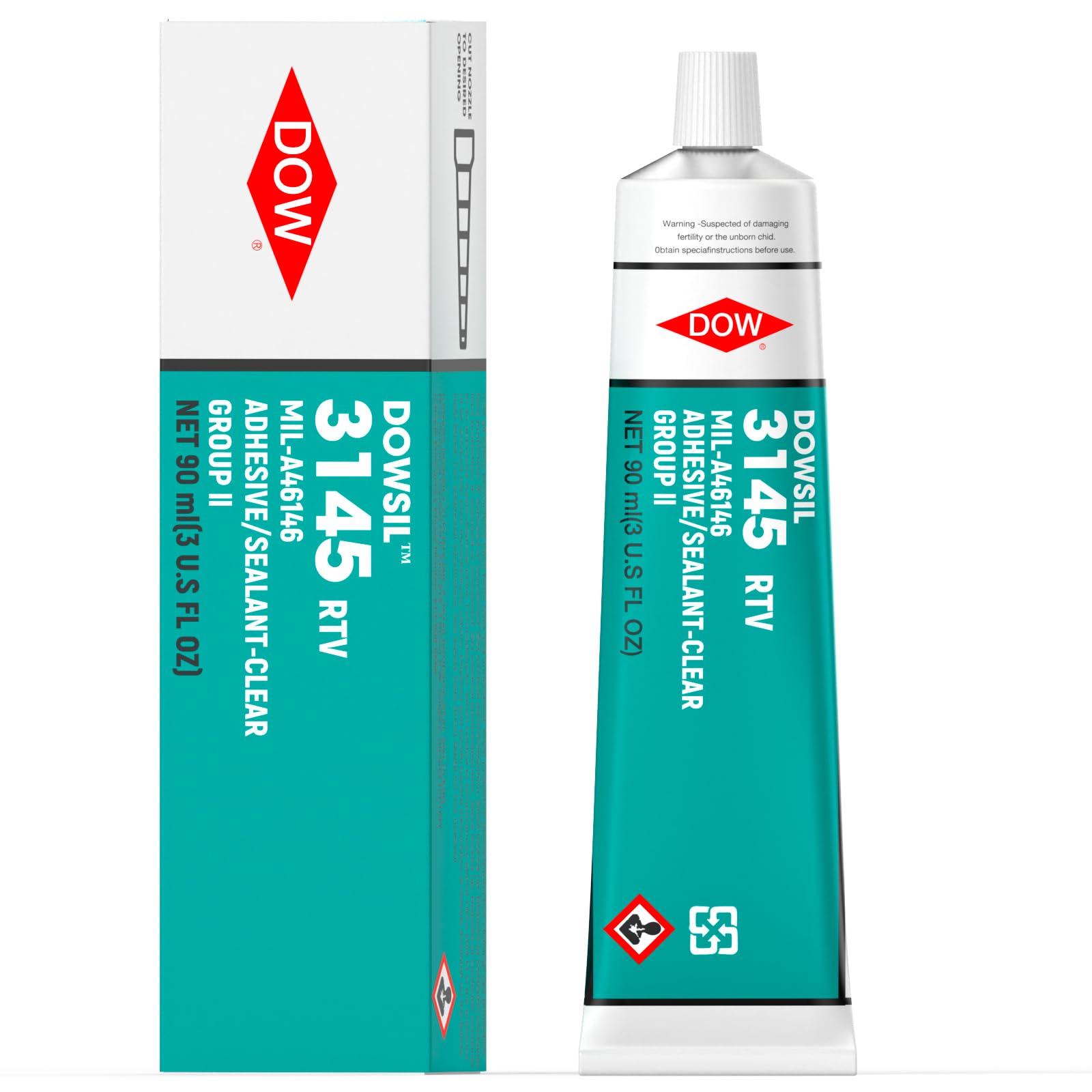

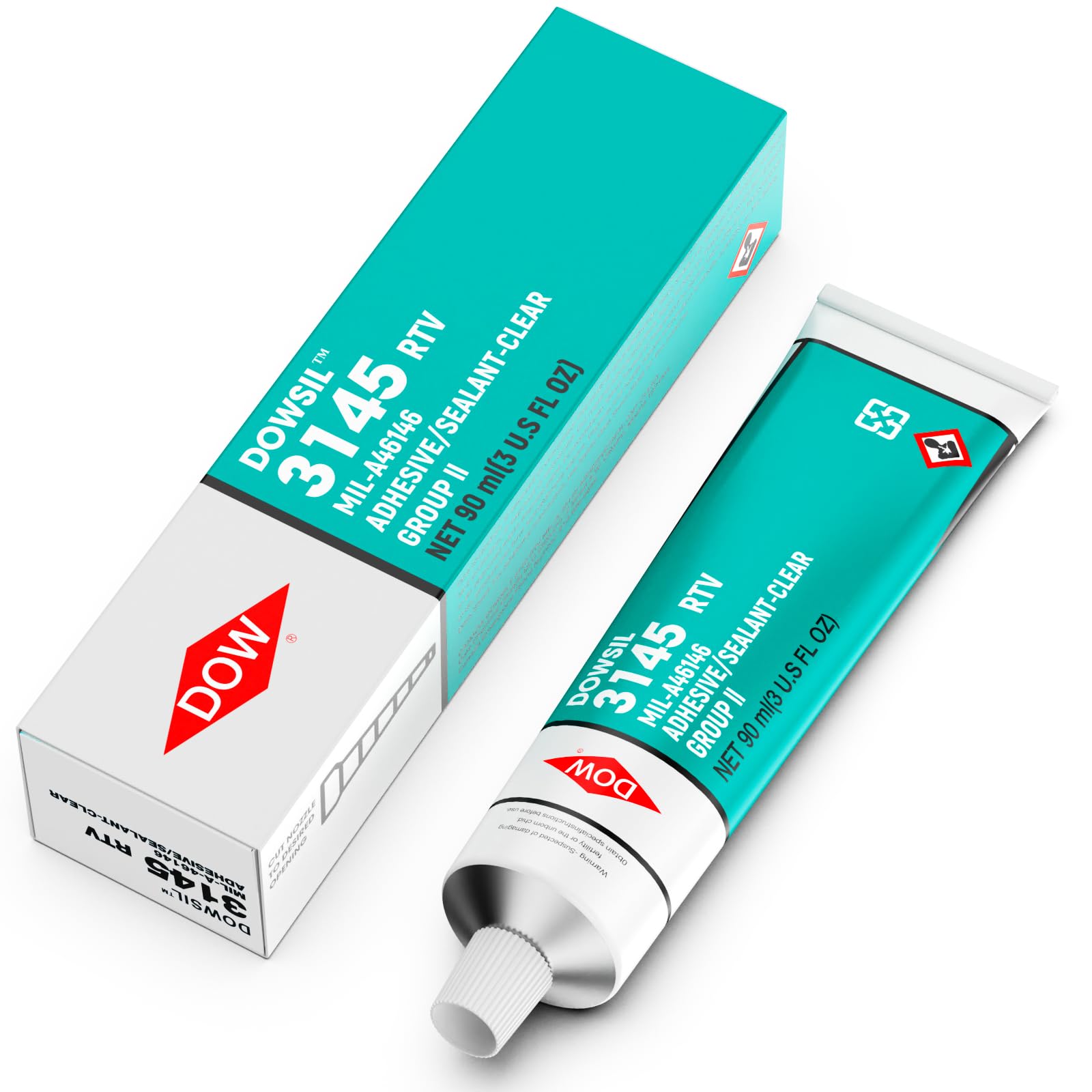

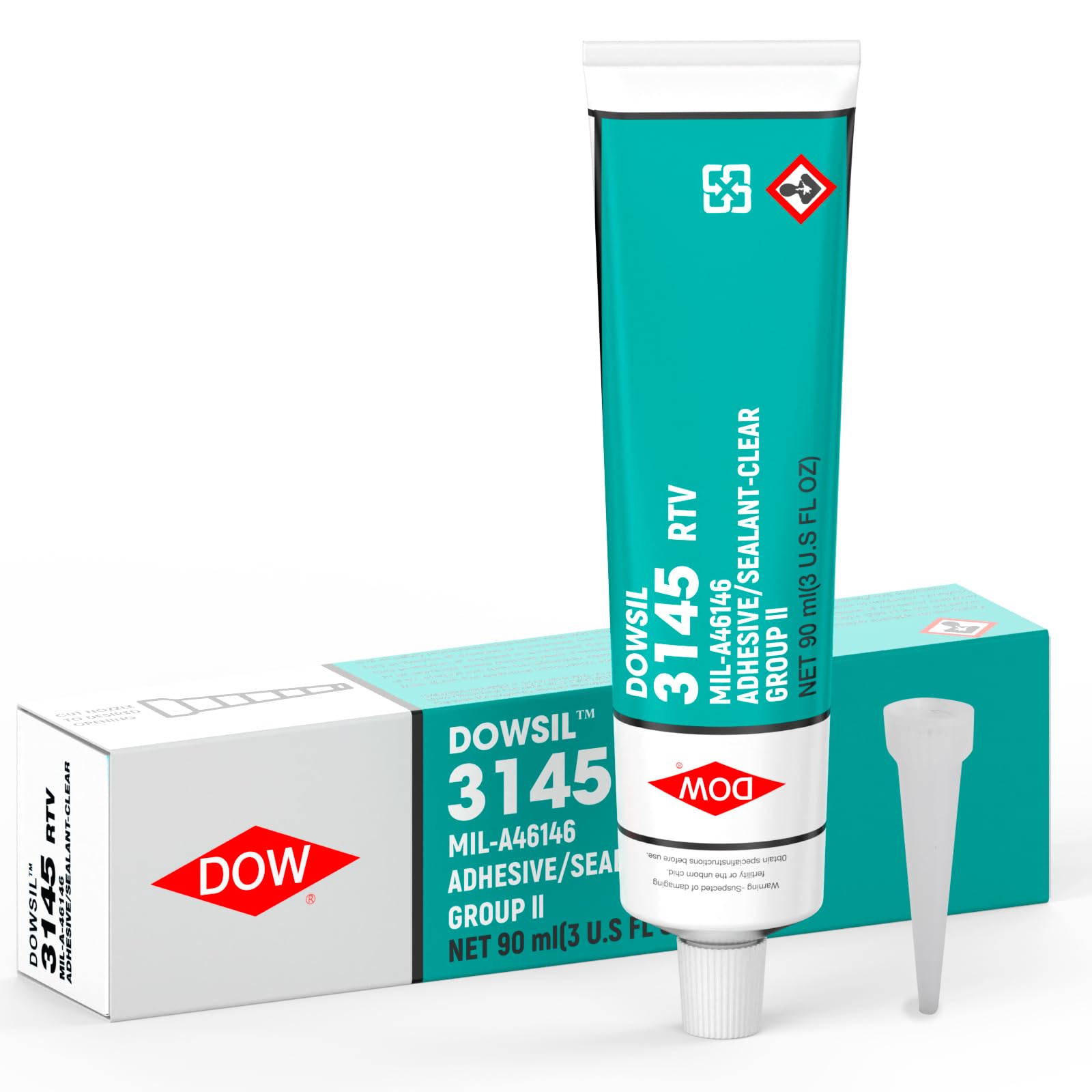

3145 RTV 90ml 3oz Clear Adhesive Sealant Mil-A-46146 Electrical Battery Board Housing Moisture Sealing Non Flow Primerless Adhesion High Strength Group II/III (3145 Clear 90ml)

Brand: HushOil

Features:

• 3145 RTV, 90ml 3oz one Tube. Clear / Gray. One-part, moisture RTV, non-flow, high strength, Adhesive Sealant. Sealing, Assembly of components on PWBs, Electrical use

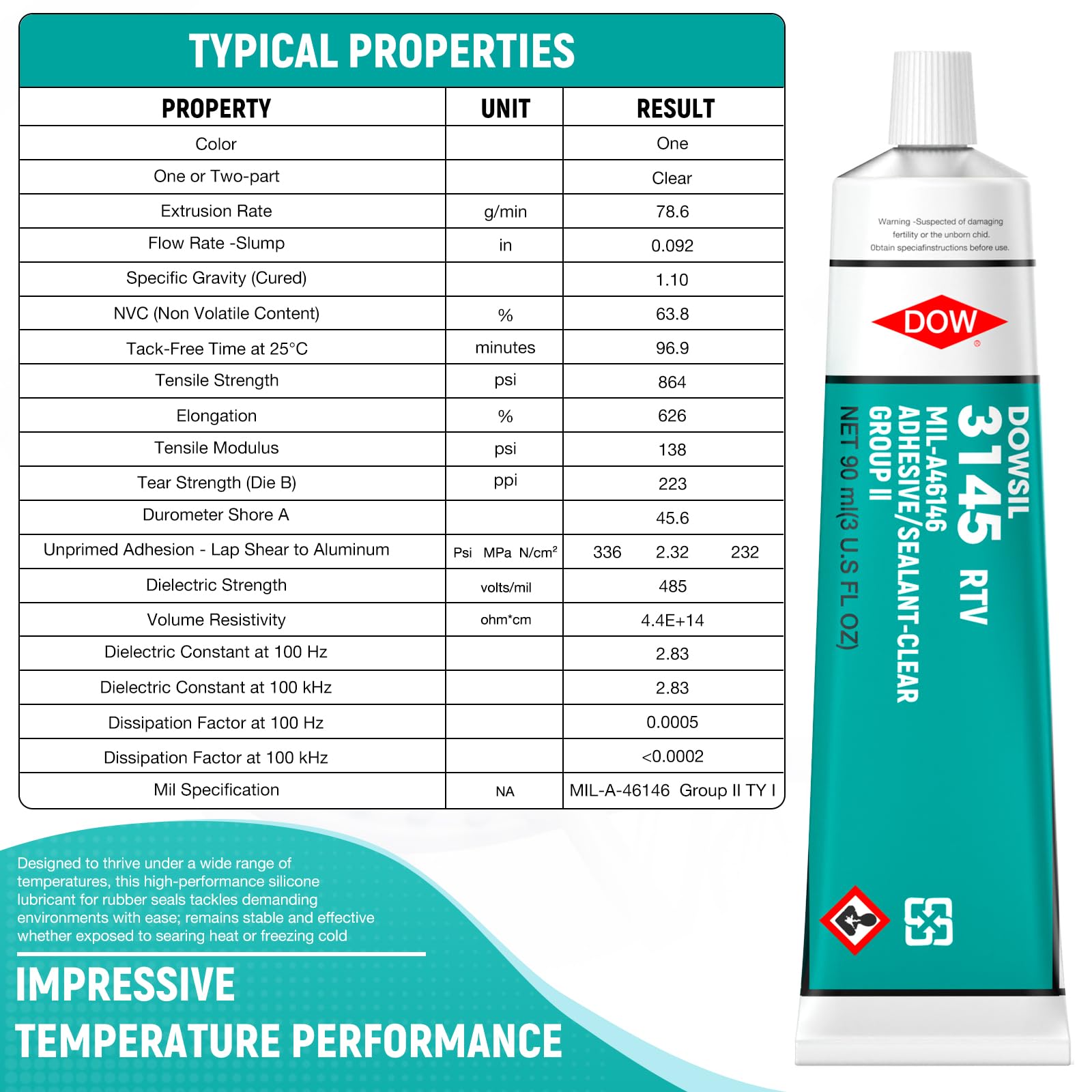

• Color: Clear, Grey. Dielectric Constant at 100 Hz: 2.83. Dielectric Strength: 500 volts per mil v/mil. Dissipation Factor at 100 Hz: < 0.001. Durometer - Shore A: 45. Elongation: 660% Linear CTE: 370 µm/m/Deg C. Shelf Life: 360 Days. Specific Gravity: 1.1 @ 25°C. Tensile Strength: 940 psi. Volume Resistivity: 4.4e+014 Ω·cm.
• Sealing. Battery Pack, Boards and Assemblies, Components, Housings. Electrical Use. PWBs
• Non-flowing. High tensile strength and elongation. Enhanced thermal stability. Water Resistant. Non-Slump. Primerless Adhesion

Part Number: 016

Details: 3145 RTV Sealant Clear or Gray Available MIL-A-46146 Dow 3145 Adhesive Sealant 90ml one Tube One-part, moisture RTV, non-flow, high strength, UL and Mil Spec. Uses Sealing openings in modules and housings. Adding mechanical stability to individual components. Assembly of components on PWBs. Sealing in and around wired and electrical leads. Temperature Range: -45 °C ~ 200 °C Benefits Non-flowing High tensile strength and elongation Enhanced thermal stability MIL-A-46146 Group II/III, TY I No mixing required Room temperature cure, no ovens required Faster in-line processing with optional heat acceleration Can be considered for uses with Mil Spec requirements Application Benefits Non-Slump Primerless Adhesion Use: Battery Pack, Boards and Assemblies, Components, Housings Water Resistant Certifications & Standards Regulatory Approvals: MIL Spec Product Use and Formulating Cure Characteristics: Room Temperature Long Working Time > 10 min Cure Type: Alkoxy Cure, Condensation Cure, Methoxy Cure Number of Parts: 1 part Room Temperature Cure: 48 Hours Tack-Free Time-50% RH: 55 Minutes Typical Properties Adhesion to: Glass, Nylon 6/6 Color: Clear, Grey Dielectric Constant at 100 Hz: 2.83 Dielectric Constant at 100 kHz: 2.83 Dielectric Strength: 500 volts per mil v/mil Dissipation Factor at 100 Hz: <0.001 Durometer - Shore A: 45 Elongation: 660% Linear CTE: 370 µm/m/Deg C Nonflowable: Yes Shelf Life: 360 Days Specific Gravity: 1.1 @ 25°C Tensile Strength: 940 psi Volume Resistivity: 4.4e+014 Ω·cm

Package Dimensions: 6.8 x 1.9 x 1.4 inches
