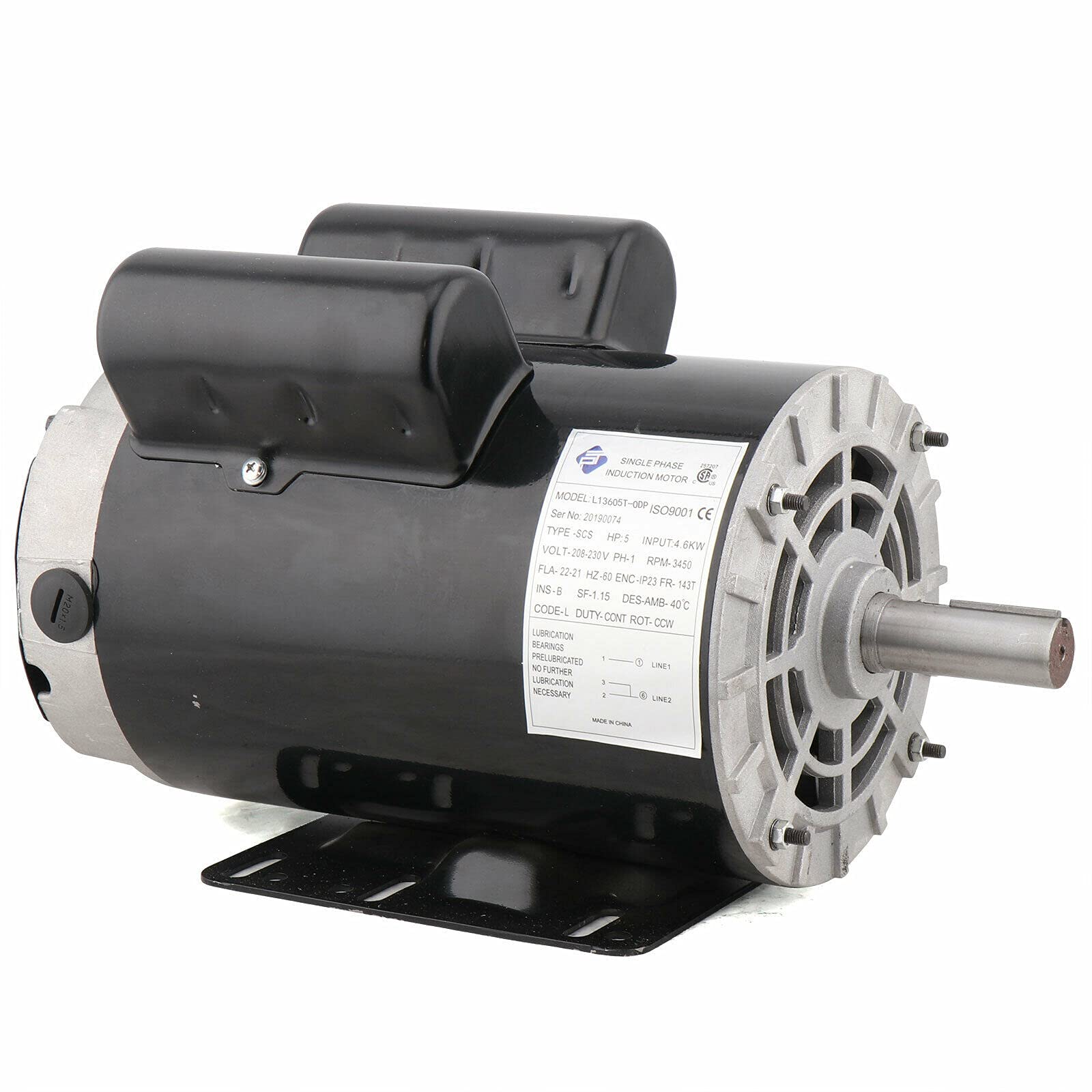

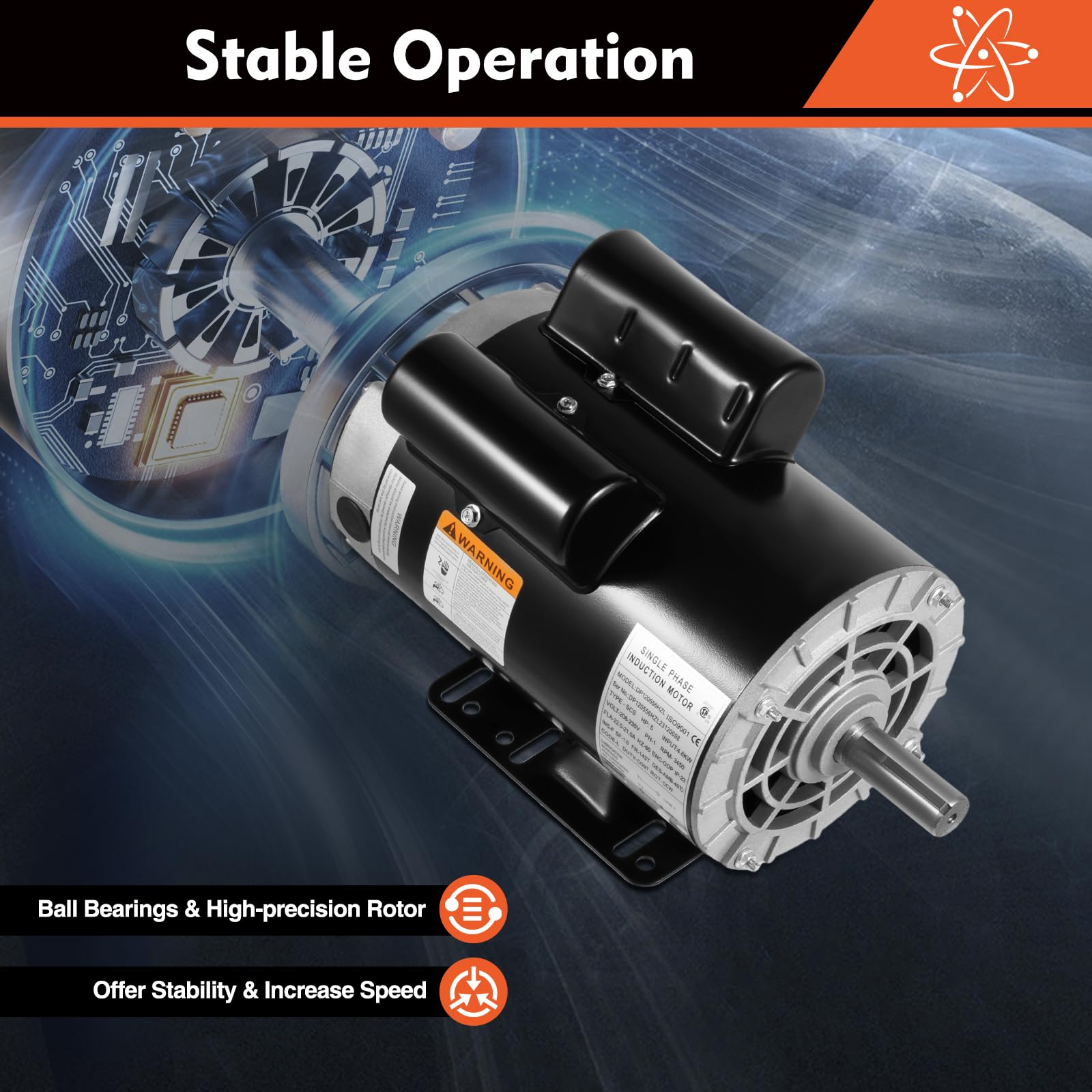

5HP Single Phase 143/5T Frame Electric Air Compressor Electric Motor 7/8 inch Shaft 3450RPM 208-230 Volts 60HZ

Brand: TUQI

Features:

• ★Reduced starting amperage design to ensure the reduced voltage starting at rated load.
• ★Equipped Manual thermal overload, capacitors and high quality ball bearings to ensure the lifetime.

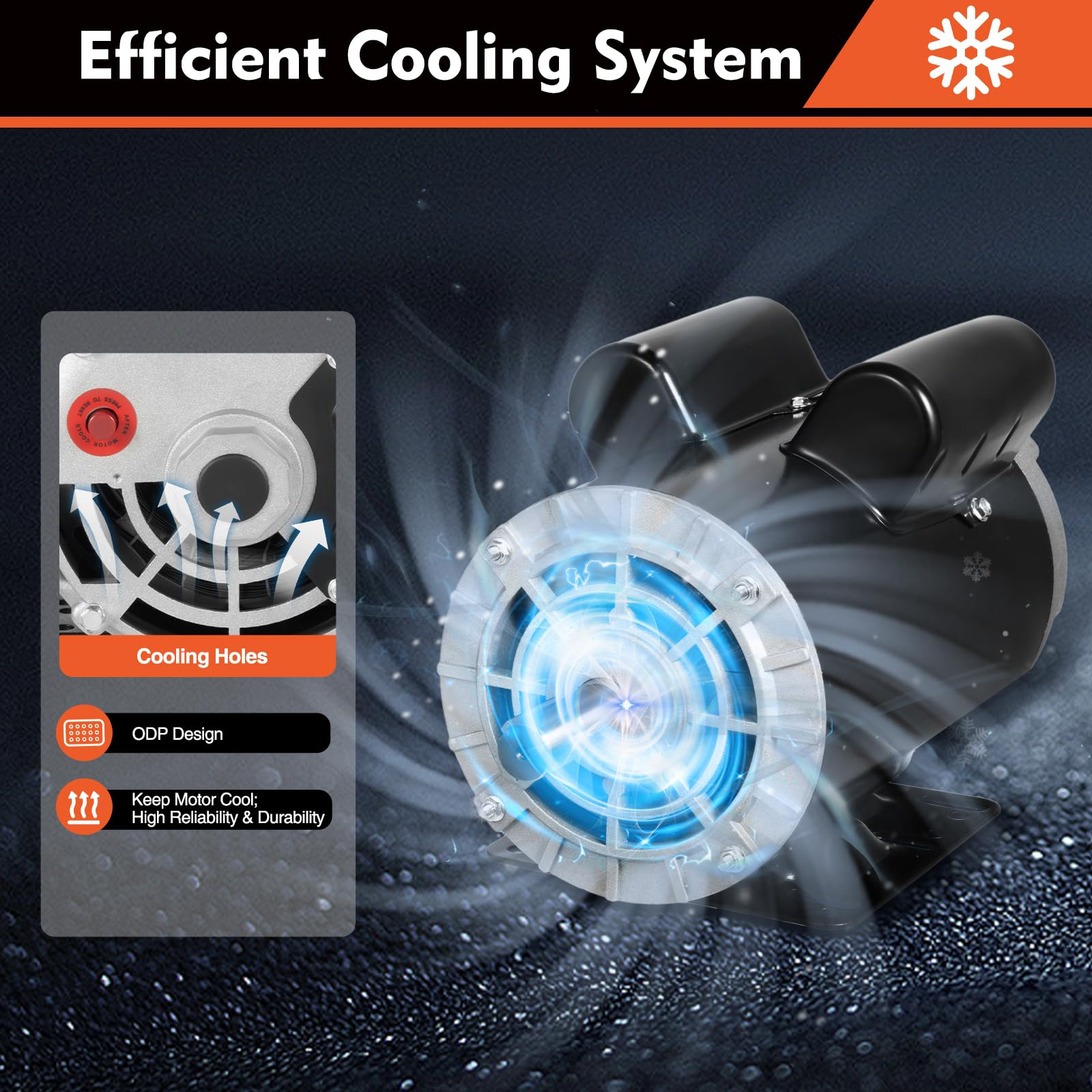

• ★Open drip-proof is better used in environment that are relatively clean and dry environments. Special design for Air Compressor duty. CCW only.
• ★Special design for Air Compressor duty.
• ★Motor is Non-Reversible CCW (Counter Clockwise) ONLY.

Binding: Tools & Hardware

Part Number: AC-YC-MOTOR

Details: Specifications:

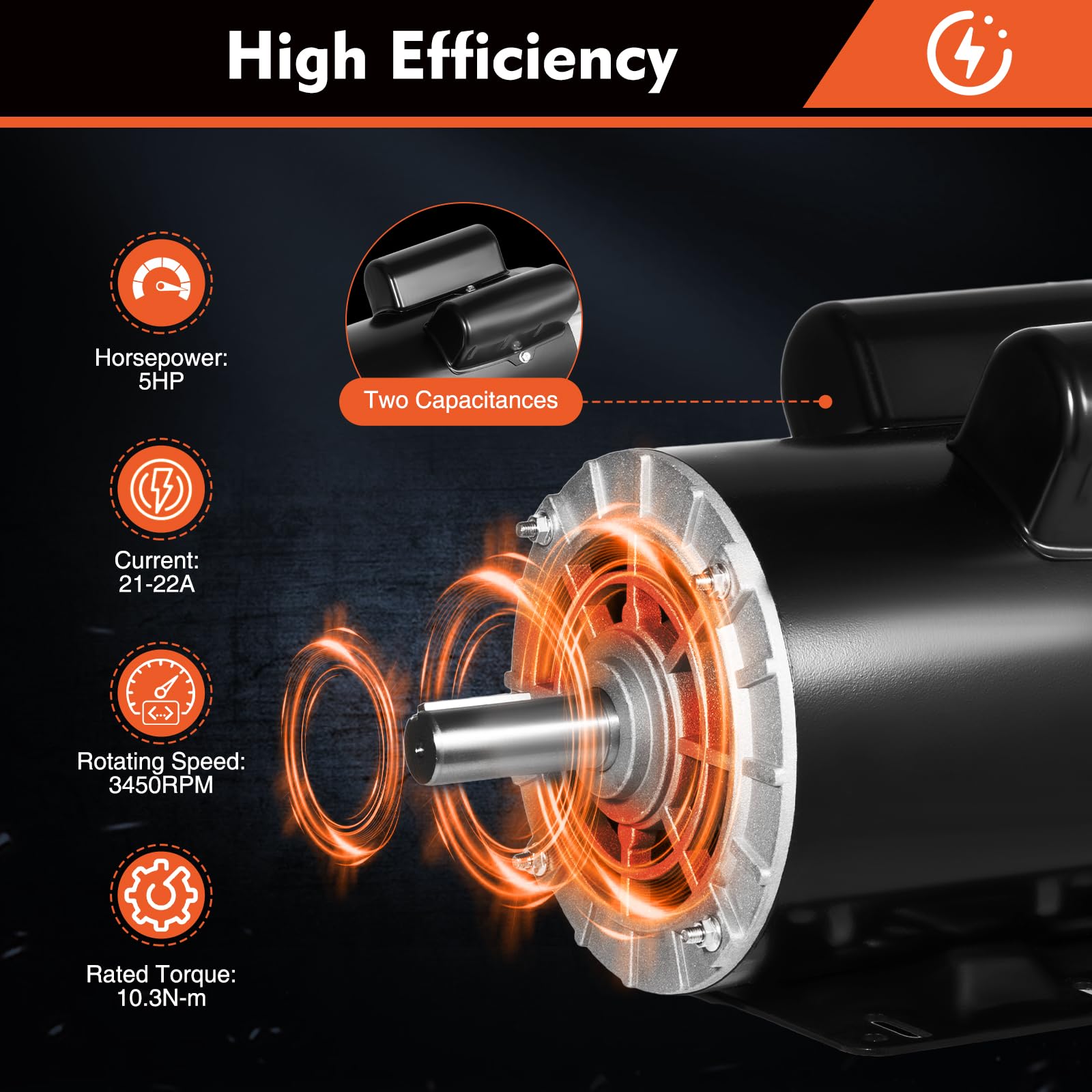

Horsepower (HP): 5 Hp
AC Frequency Rating: 60 Hz
Frame Size: 143/5T
Base RPM: 3450
Volt: 208-230V
INPUT: 4.6kW
Service Factor: 1.15
Full Load Amps: 22-21

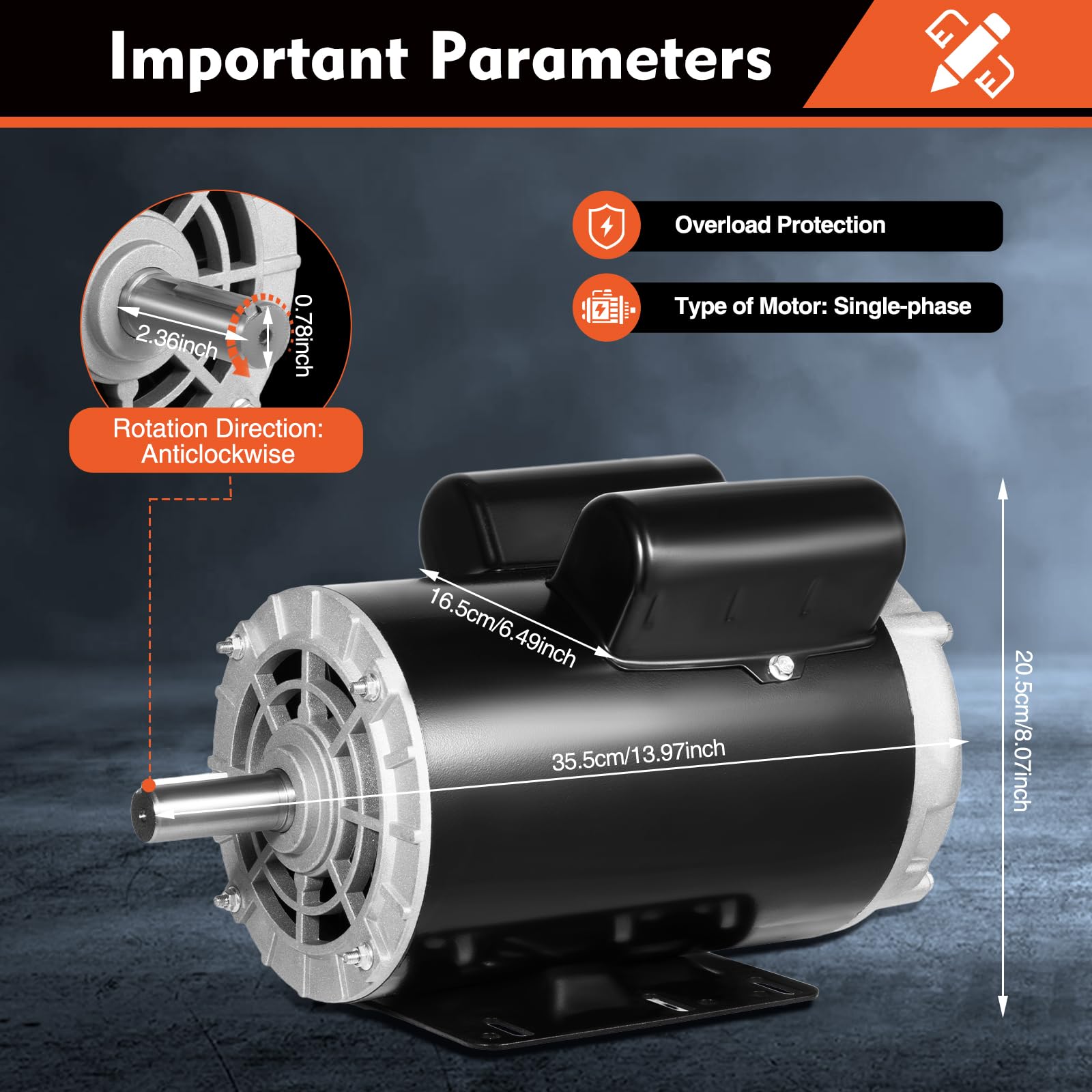

Shaft Diameter: 7/8 inch
Shaft Length: 2.25in
Shaft Type: Keyed
ENC: IP23
FR: 143T
AC Phase: Single Phase
Reversible/Non-Reversible: Non-Reversible
ROT: CCW

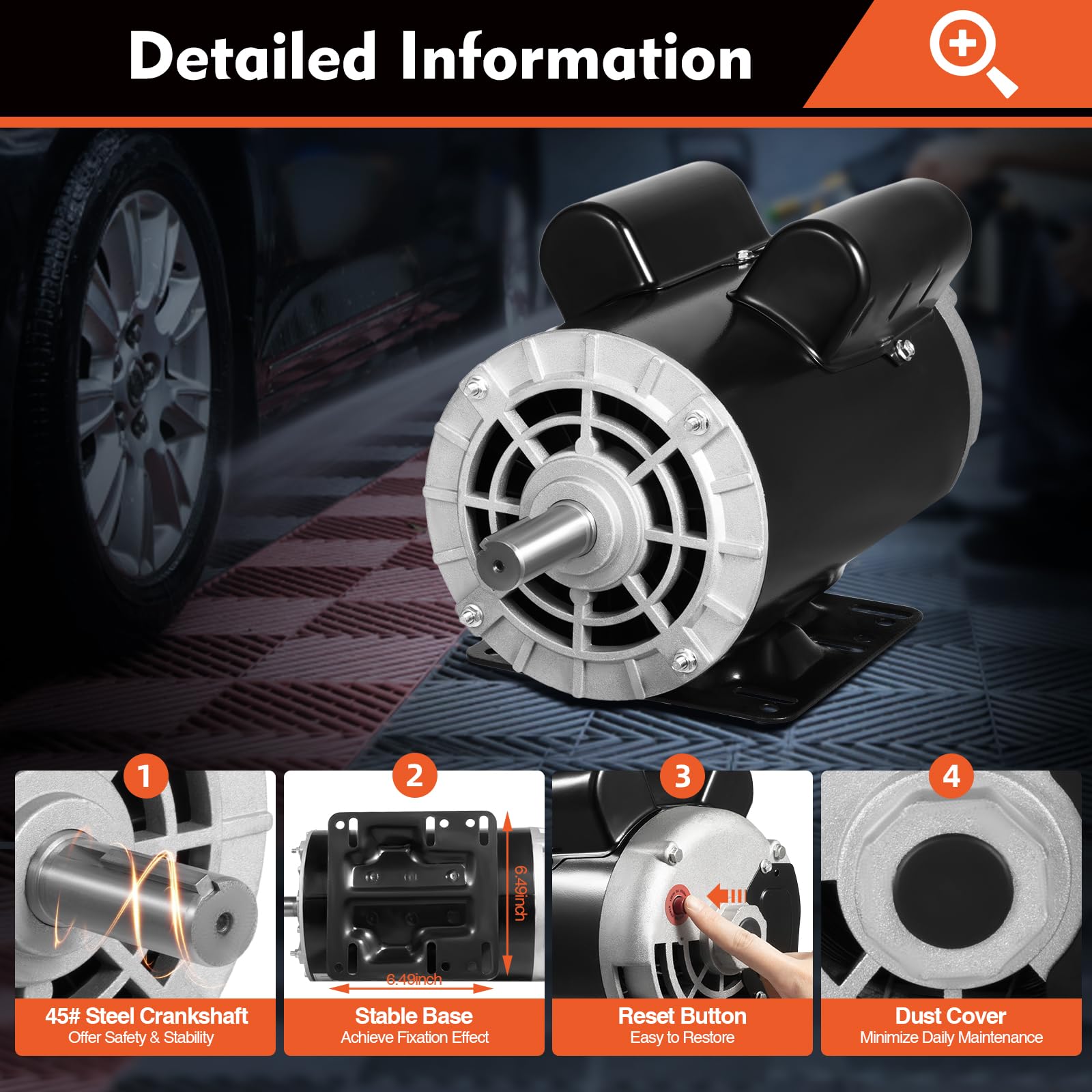

Overload: Yes / Manual reset button
Additional Product information: Rigid Base - CL B Insulation 40 C / 104 F Ambient Temp

Package includes:
1*Air Compressor Motor

Attention:
Not all 5 hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All of the information you need to know can be found right on your electric motors nameplate/sticker, which usually can be found on the side of the motor.

Note:
1: Amperage
This is your electric motors TRUE power rating. HP ratings have been made suspect over the years by large retailers who like to use "peak HP" or " SPL " in their terminology. The Motor's amp rating does not lie. Please make sure your FL amp (FULL LOAD) rating on the motor you're replacing is within 10% of the FL Amp rating of the motor you intend to buy.
Example : If your current motor says 21 FL amps at 230VAC. Then you would be safe replacing your motor with a 19FL amp thru 23 FL amp electric motor 230volt.

2: Frame Size
The frame not only constitutes the bolt pattern, it also depicts the overall size and torque. The larger the frame, the stronger the motor. If your current motor you're replacing shows 56, 143T or 145T on the nameplate. Its extremely important that you replace it with that frame size. Improperly sized motors will inevitably result

Package Dimensions: 15.6 x 11.2 x 9.8 inches
