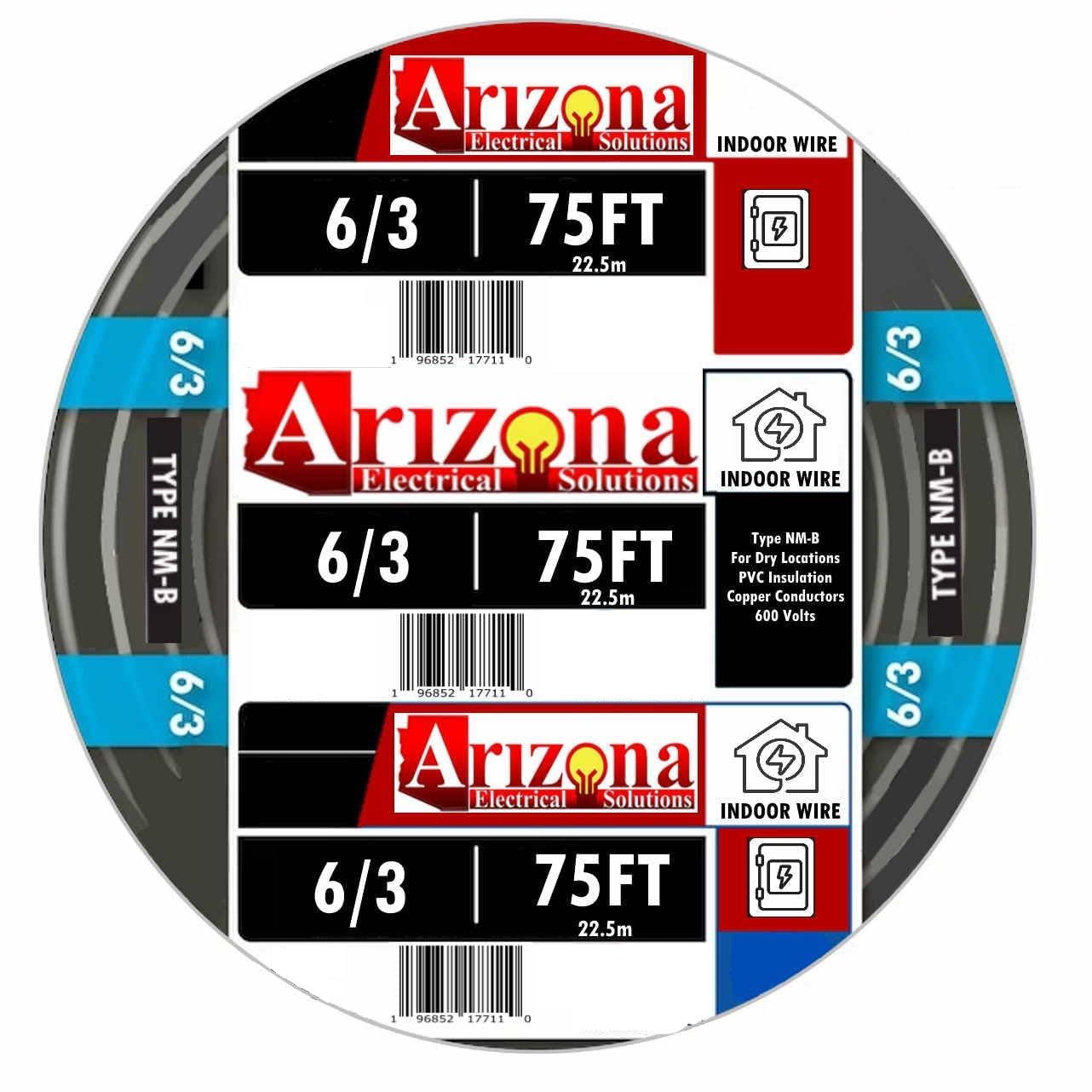

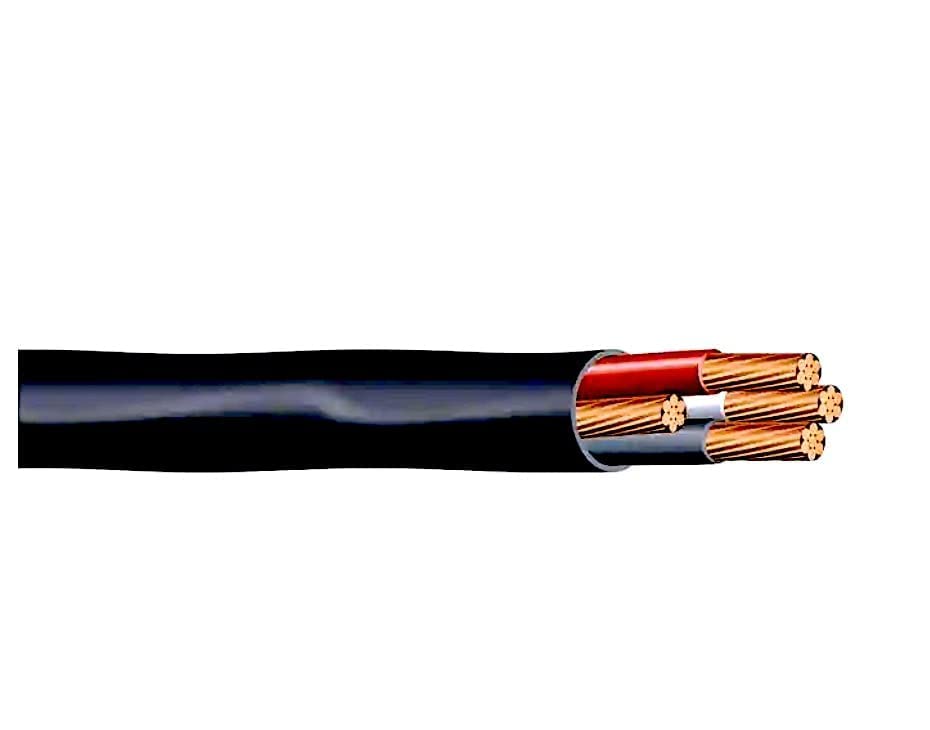

75 FEET 6/3 Type NM-B Copper. #6 AWG, 3 Conductor with Ground. Insulated Jacket Black

Brand: ARIZONA ELECTRICAL SOLUTIONS

Color: Black

Features:

• 6/3 Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket. (Conductor Construction) ASTM B-3 and B-8 Federal Specification A-A-59544 National Electrical Code, NFPA 70 REACH/RoHS Compliant

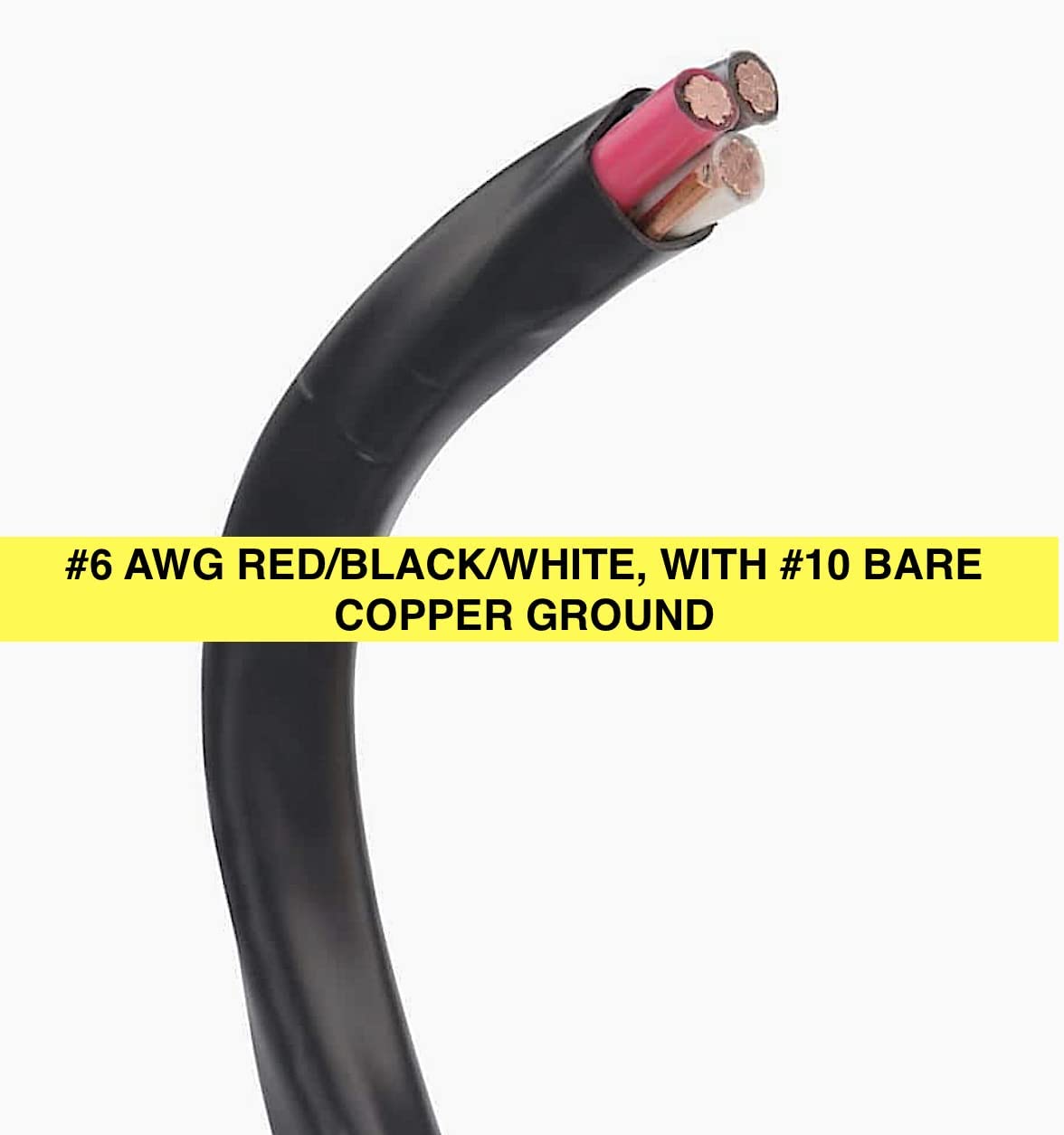

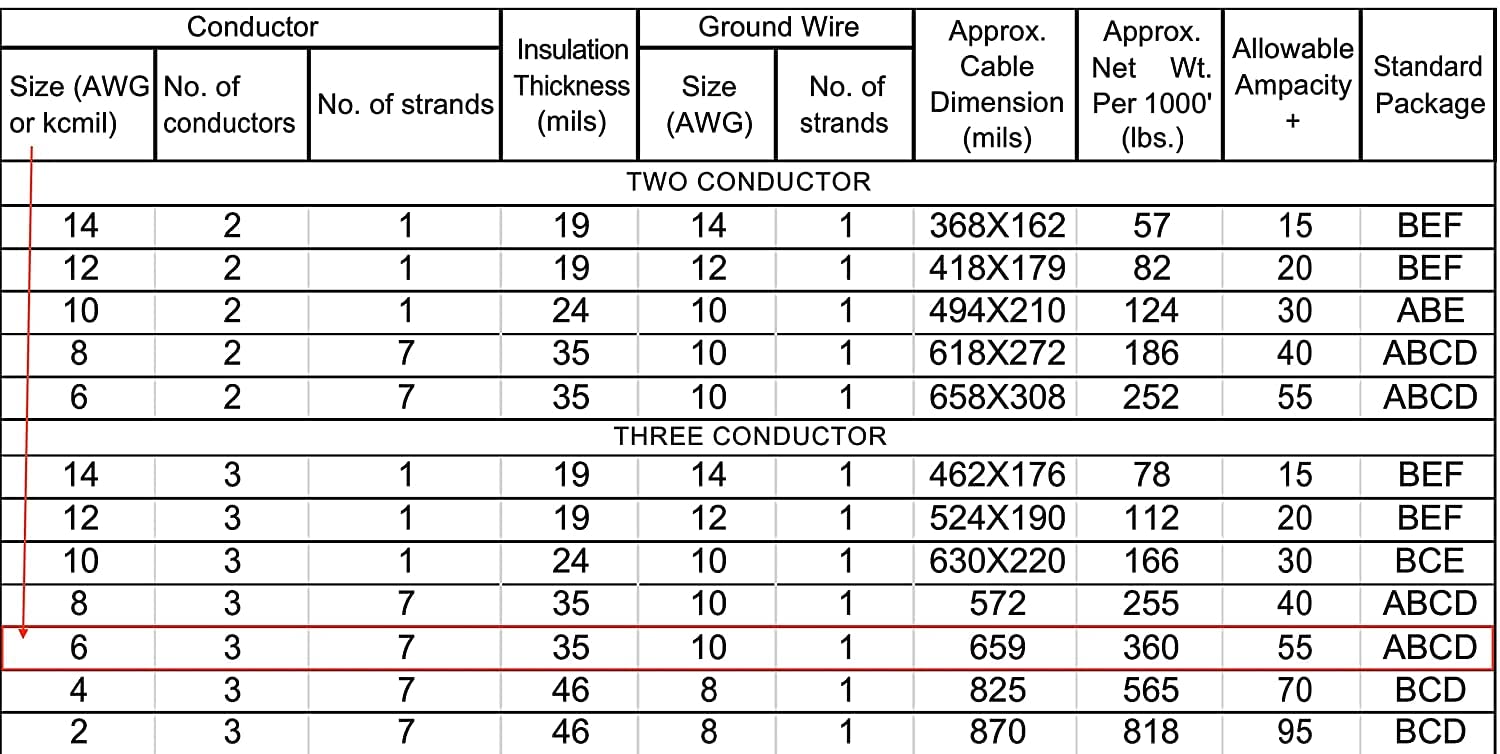

• 6 Gauge, 3 Conductors With Ground, 75 Feet Per Roll
• Number of Strands: 7
• Number of conductors: 3
• Number of Ground wires: 1
• The Cable Jacket I Color-Coded For Quick Size Identification.

Part Number: 196852177110

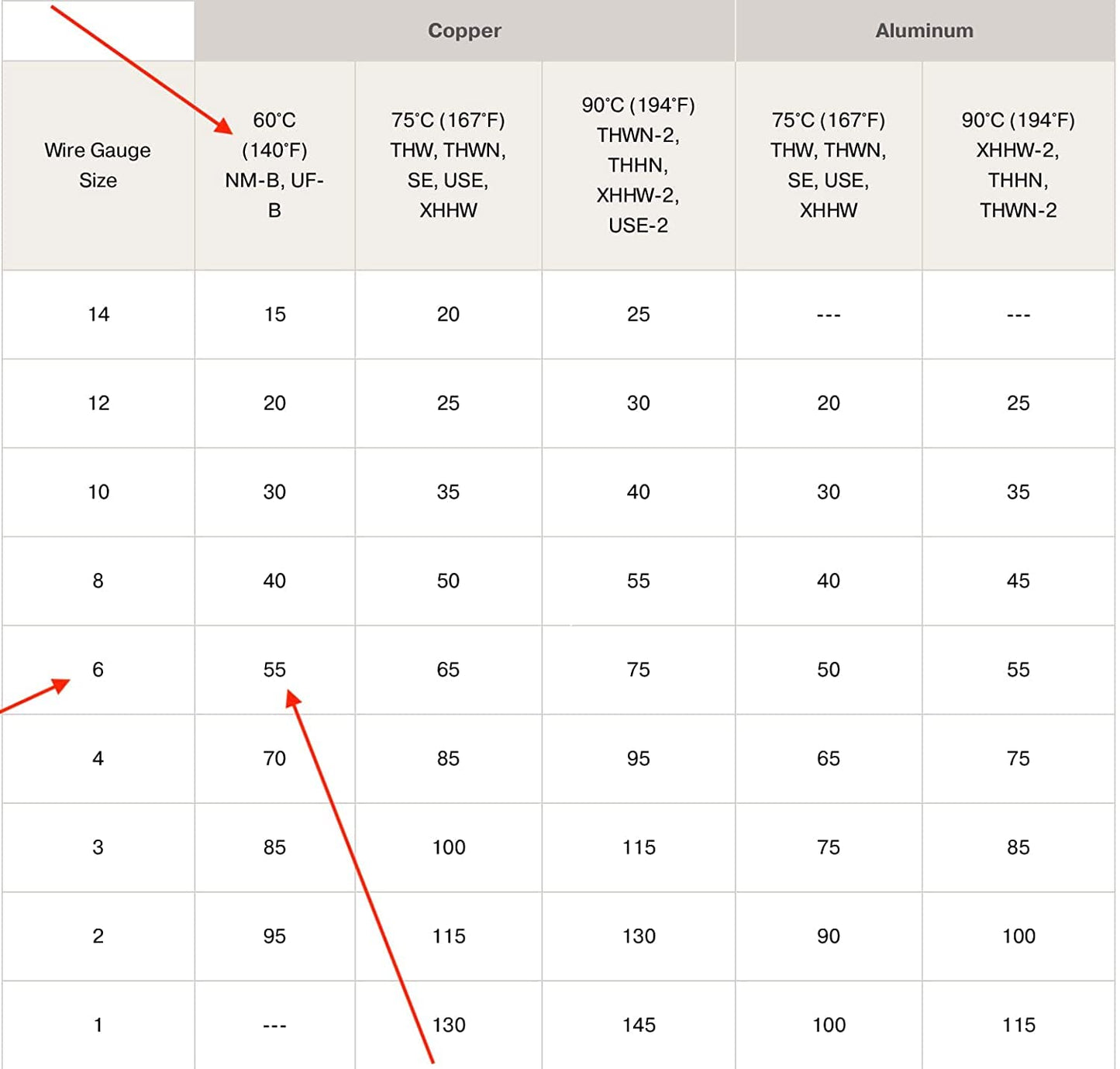

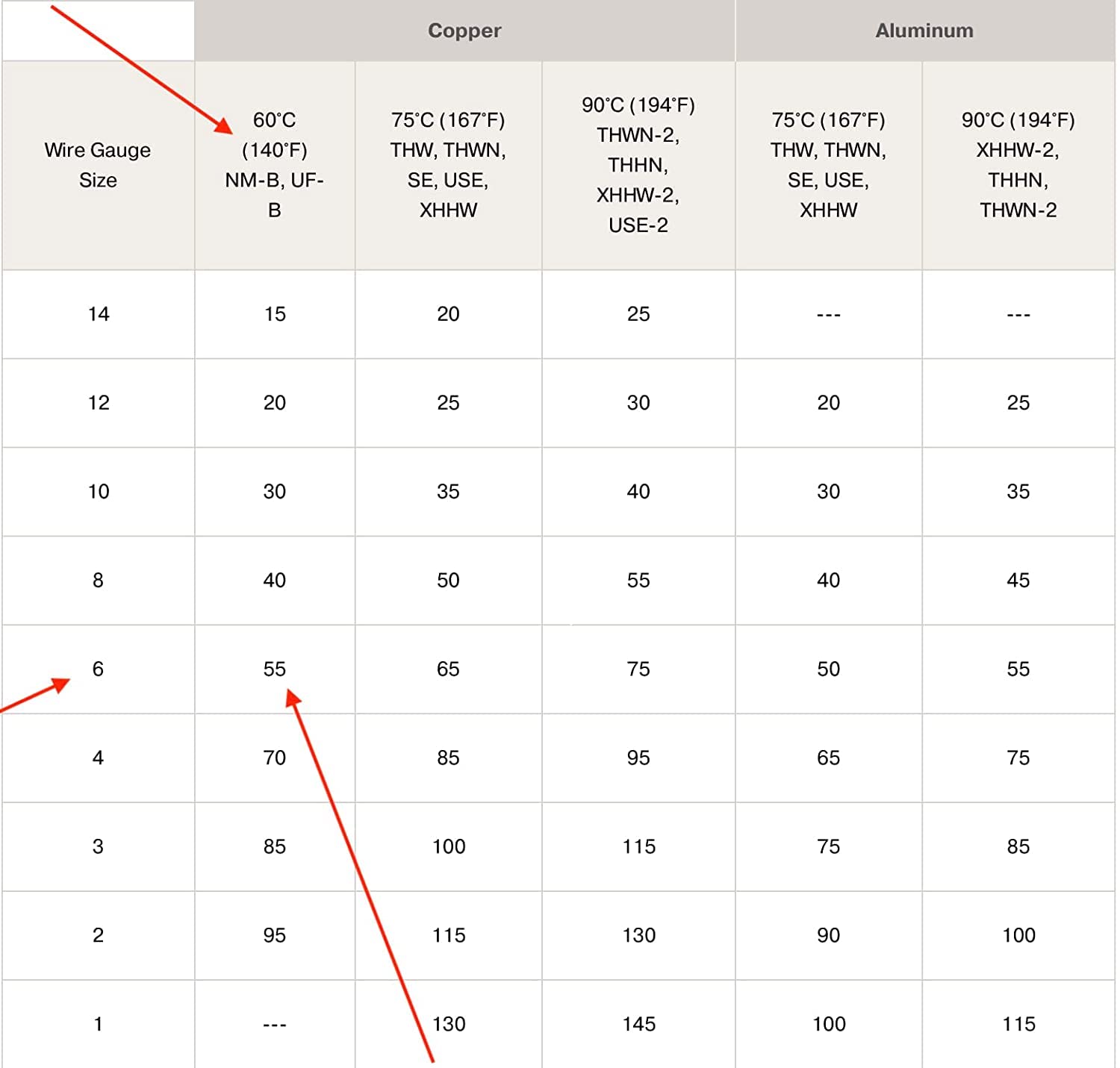

Details: 75 Feet of 6/3 NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.

EAN: 0196852177110

Package Dimensions: 13.0 x 13.0 x 4.0 inches
