6/3 Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket.

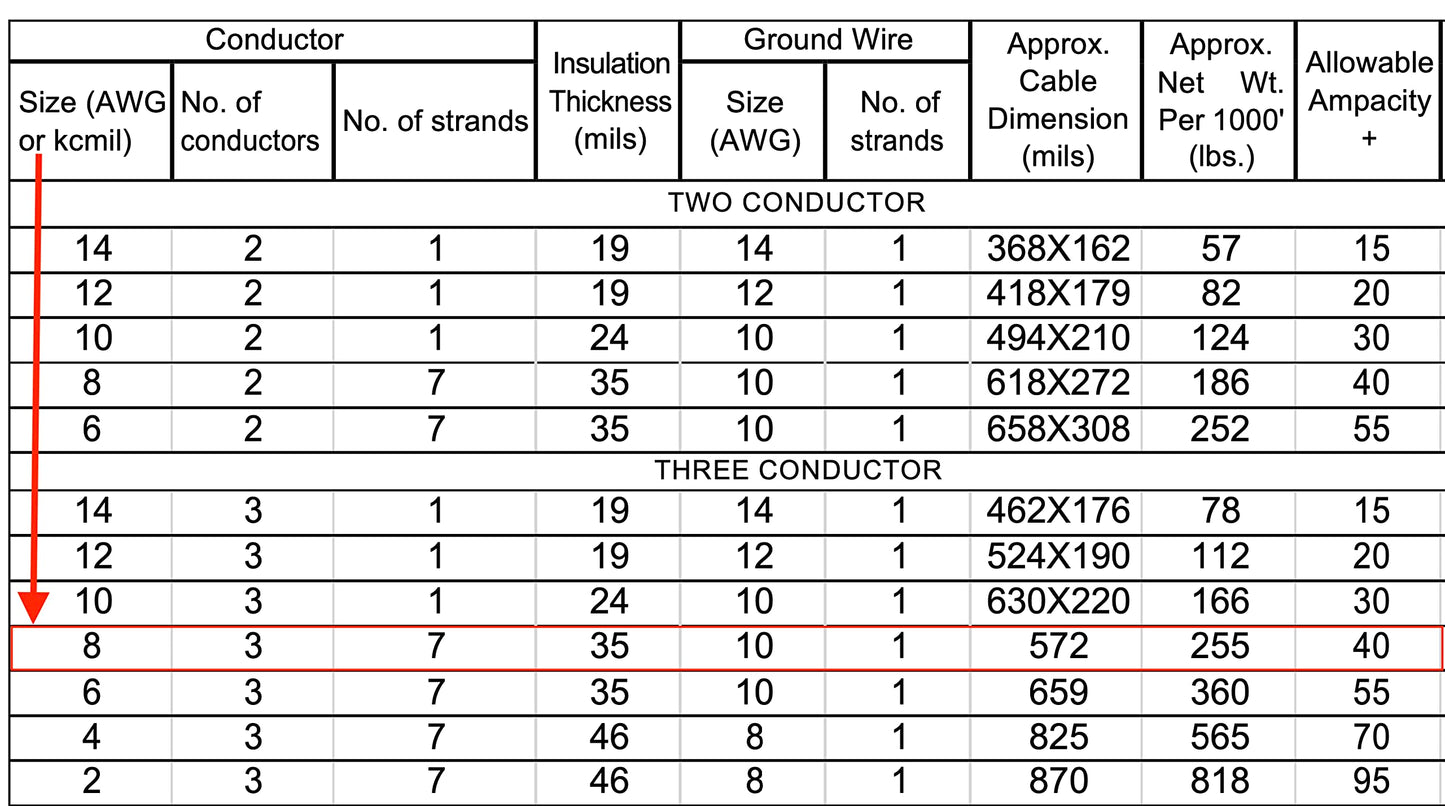

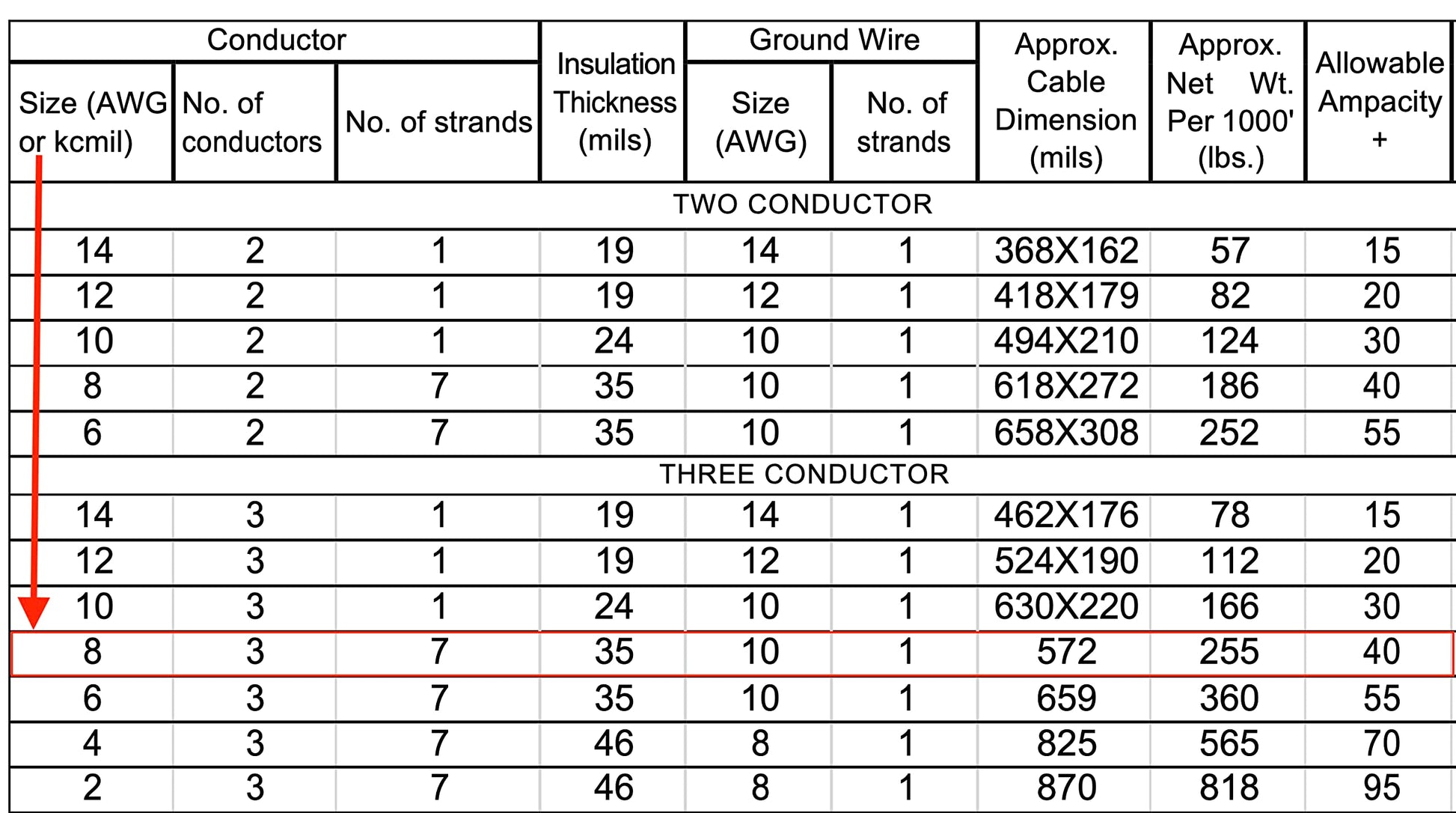

NO. OF CONDUCTORS: 3
NO. OF STRANDS: 7
NO. OF GROUNDS: 1

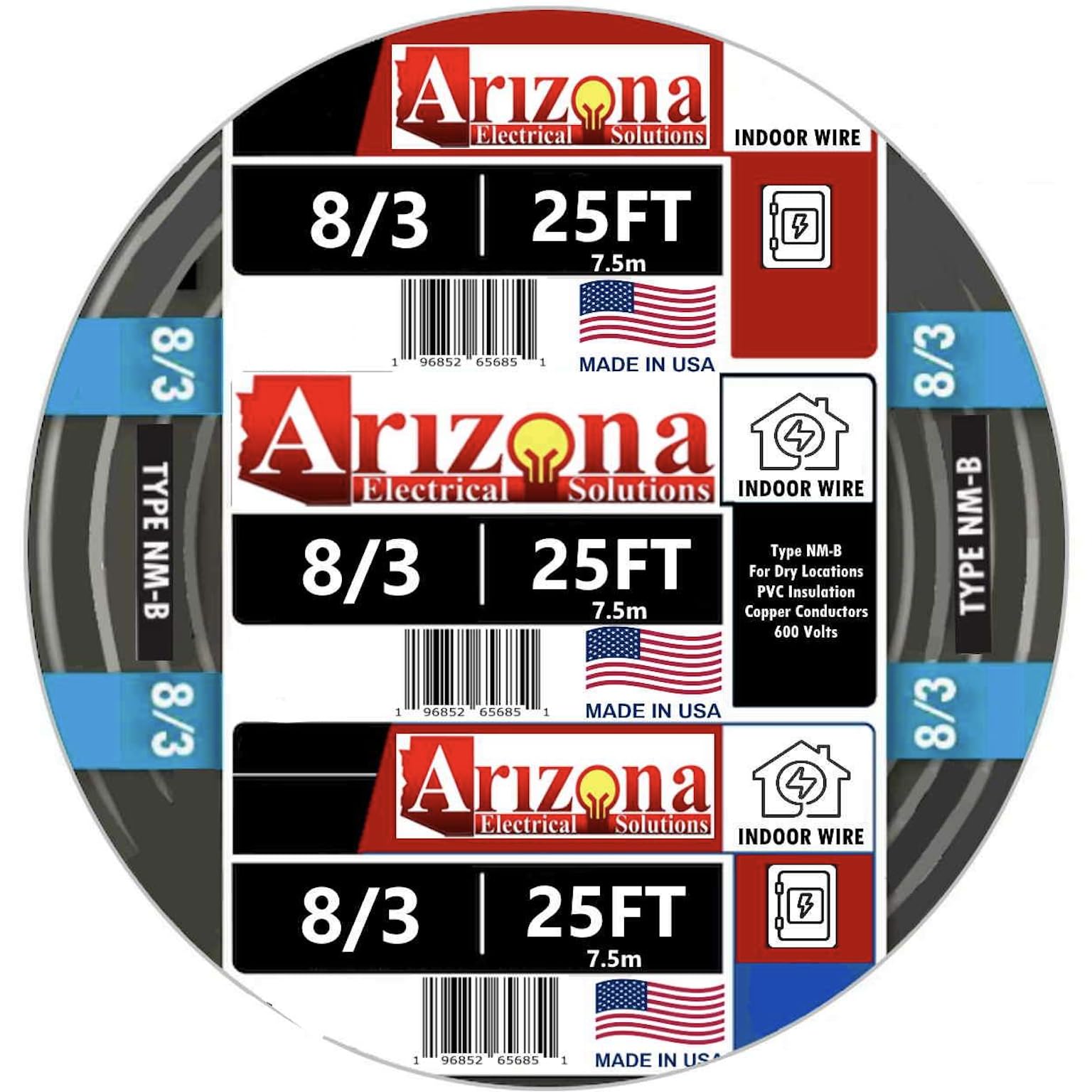

8 gauge, 3 conductors with ground, 25' per roll
The cable jacket is color-coded for quick size identification
model number: 196852656851
Part Number: 196852656851

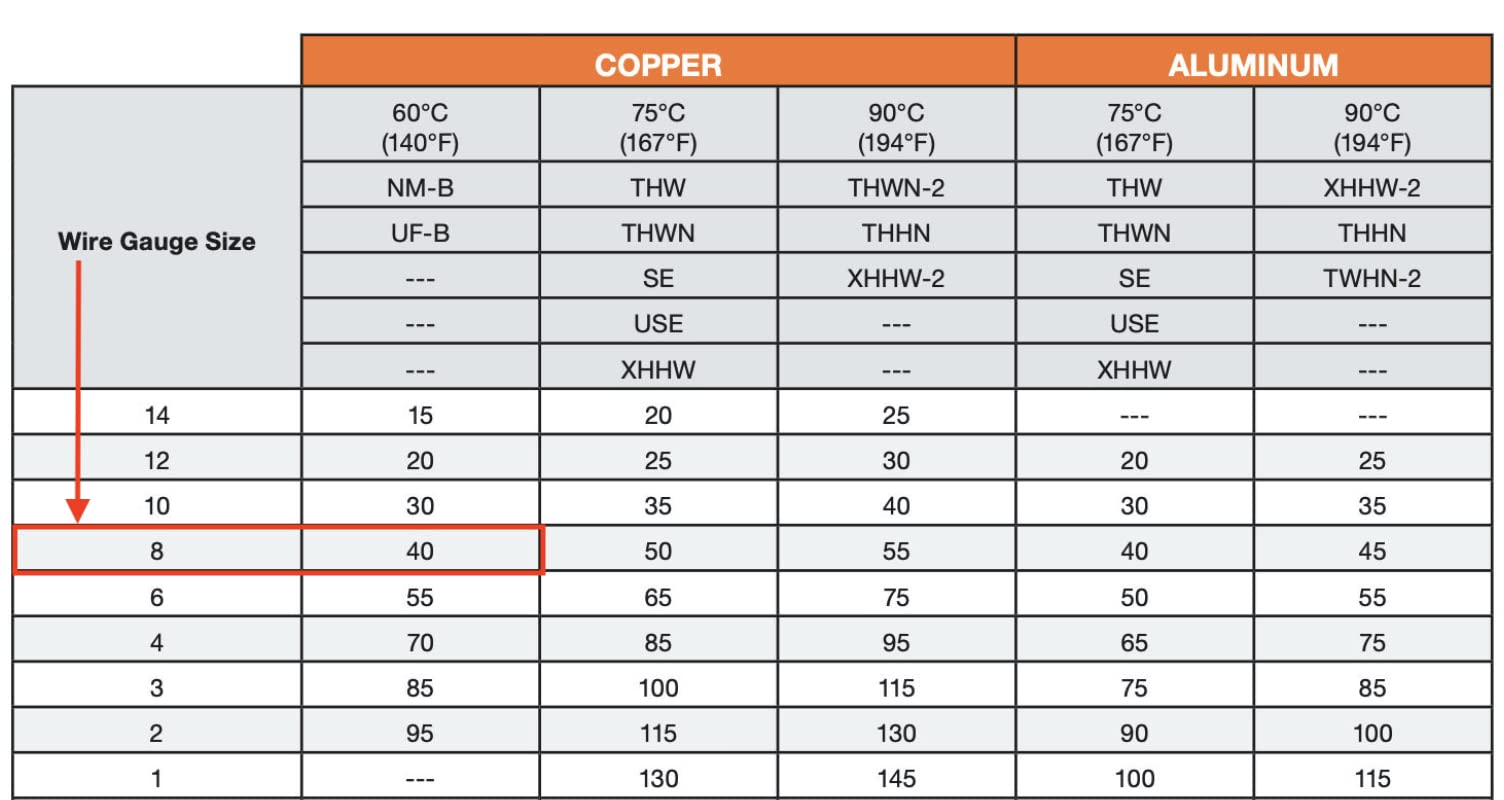

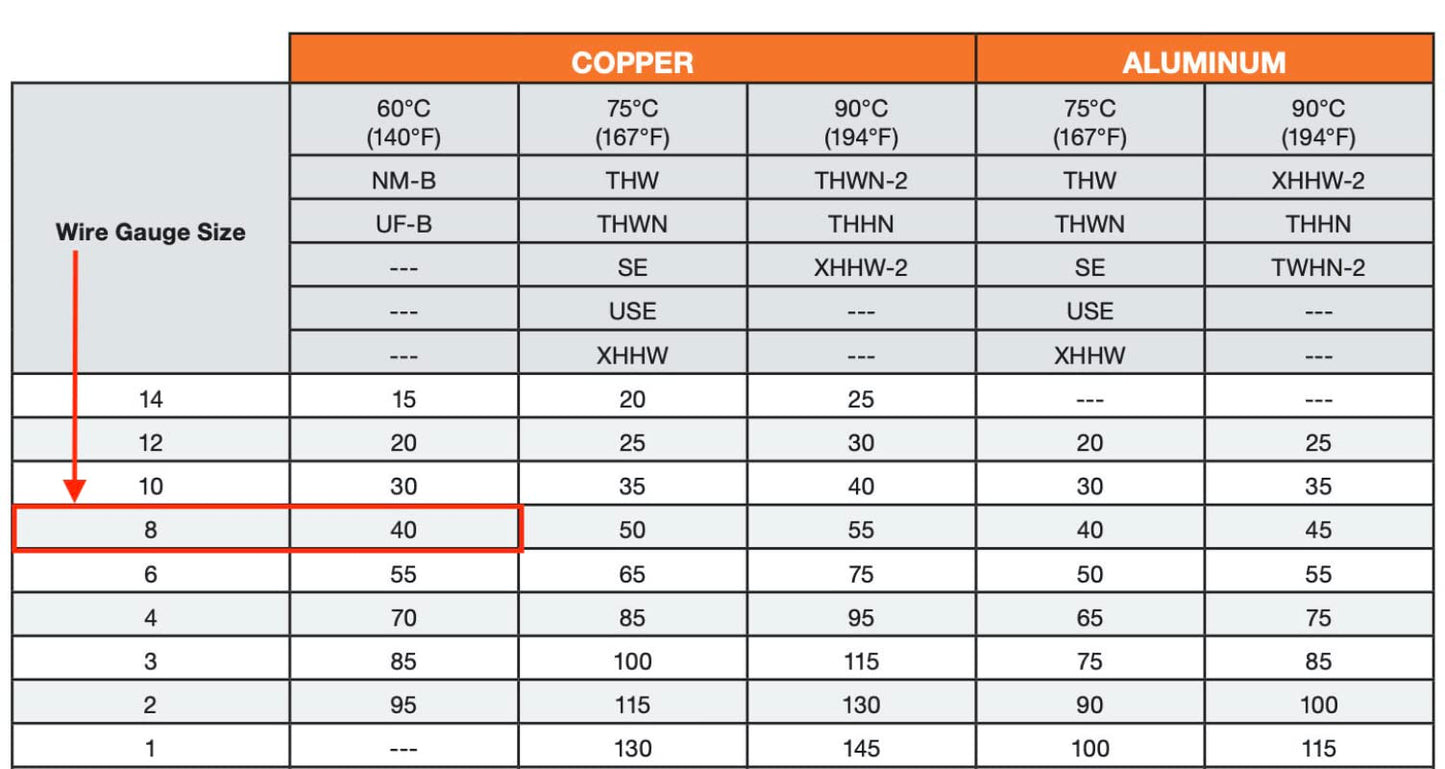

Details: 8/3 NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
