AC 100-240V 2A Dual Output Alternating Flasher Module

Brand: OONO

Features:

• This is a simple and practical dual output alternating flasher module, the OUT-1 and the OUT-2 duration can be adjusted separately. The blinking flasher module is suited for both resistive and slightly inductive loads: lightbulbs, hazard lights, warning signs, safety beacons, wirewound transformers for halogen lighting... (Note: the module no rectification, voltage step-up or step-down function, not suitable for DC lamps)
• Operating voltage AC 100 to 240V(47 to 63Hz). Maximum current: 2 Amp (each output). Maximum load 2x 230 Watts(at AC 115V), 2x 460 Watts(at AC 230V).

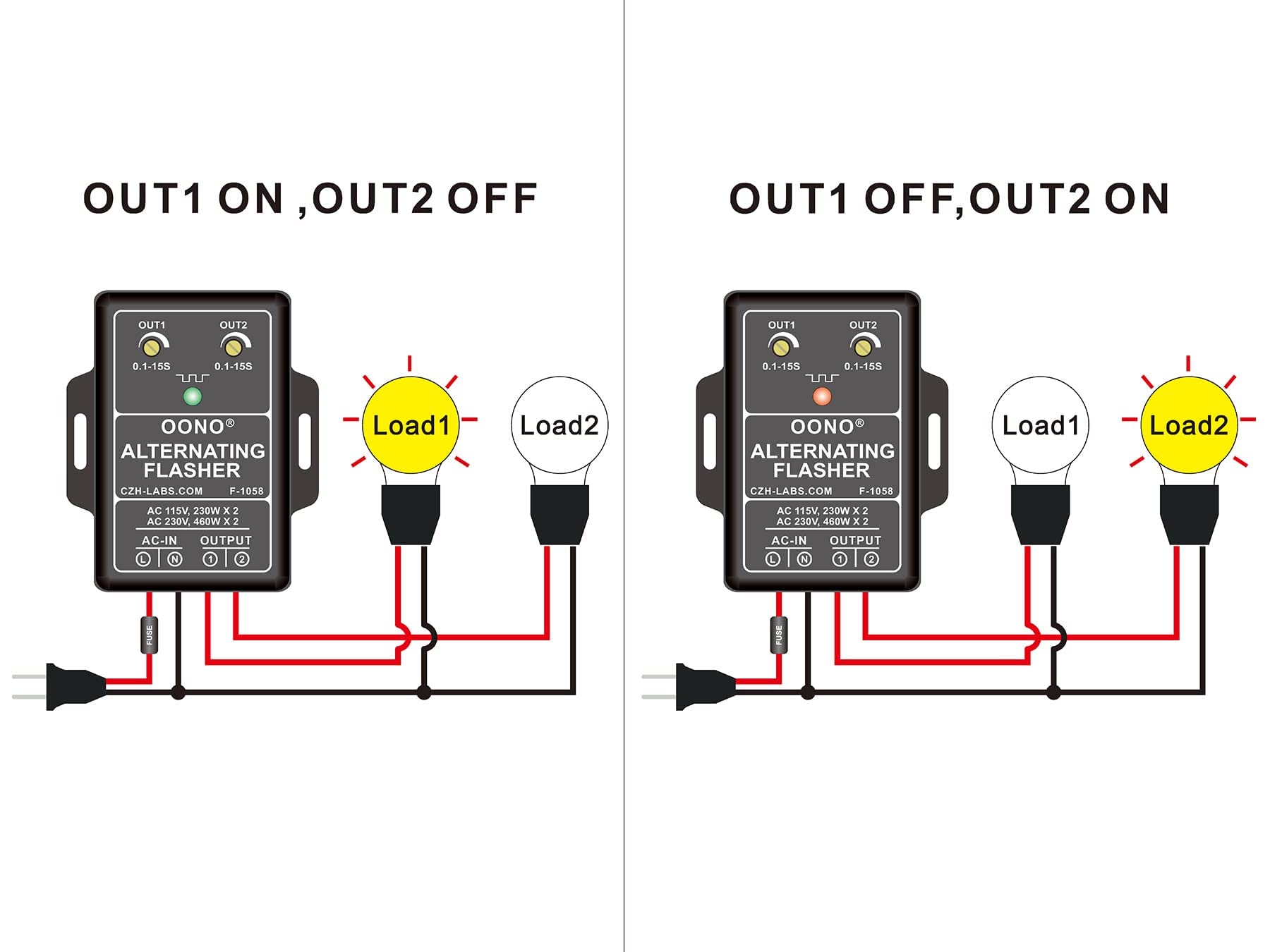

• Output-1 0.1 to 15 seconds and Output-2 0.1 to 15 seconds adjustable. The OUT1 – OUT2 – OUT1 – OUT2… cycle alternates output. (The time to adjust output 1 is also the OFF time of output 2. The time to adjust output 2 is also the OFF time of output 1).

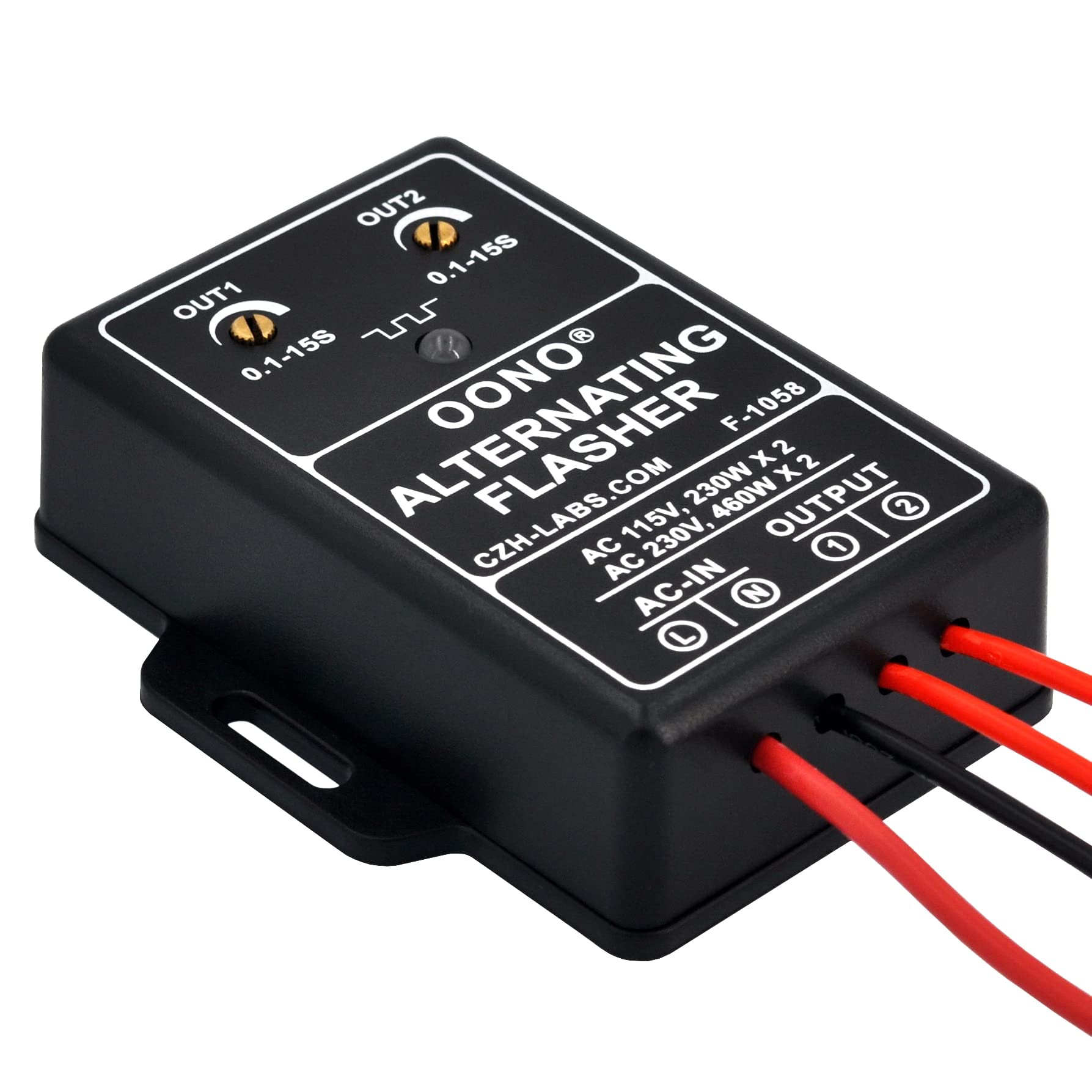

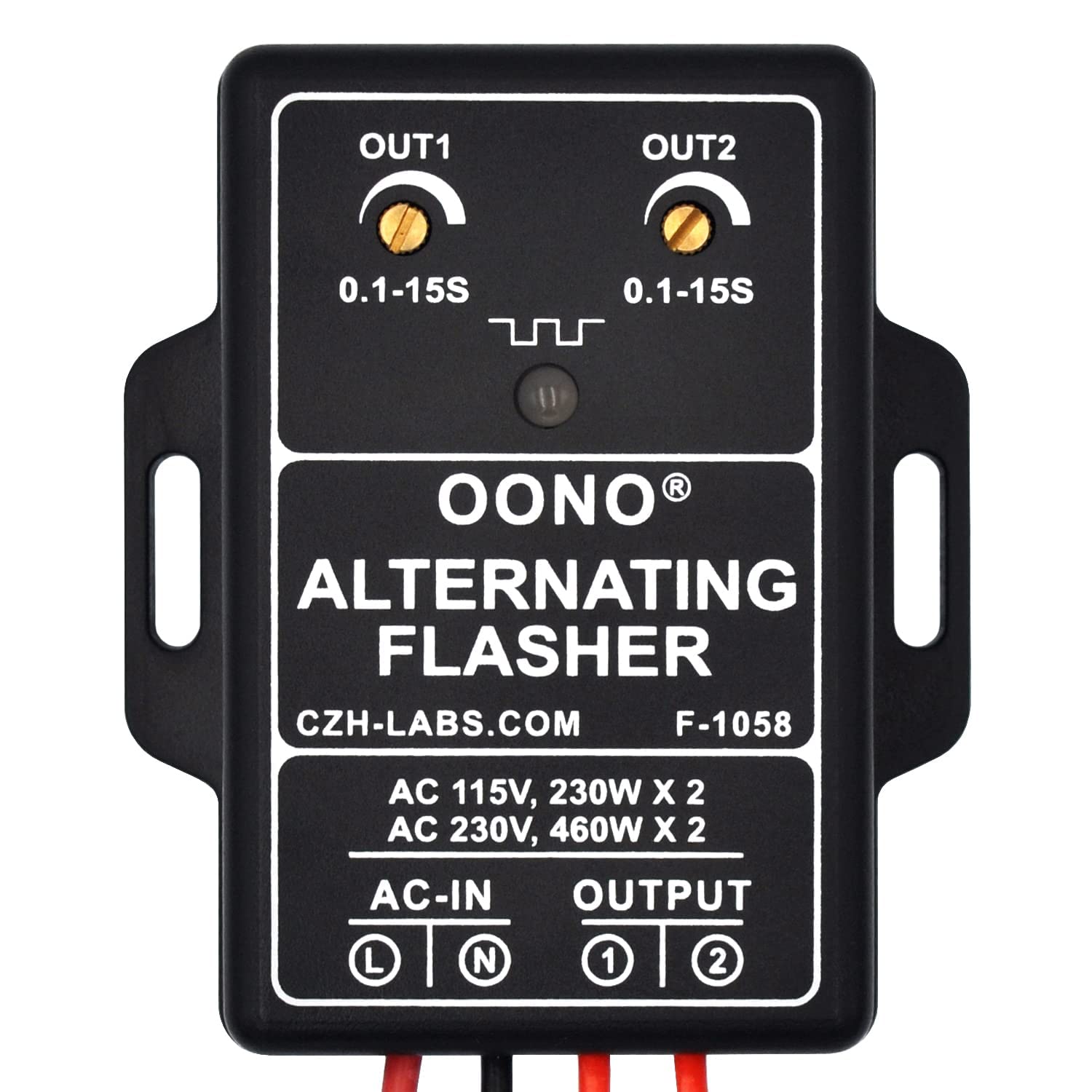

• Two precise 25-turn adjustable potentiometers, you can use a screwdriver to easily adjust the ON and OFF time you need. With LED indication for output status(OUT-1 green, OUT-2 red).

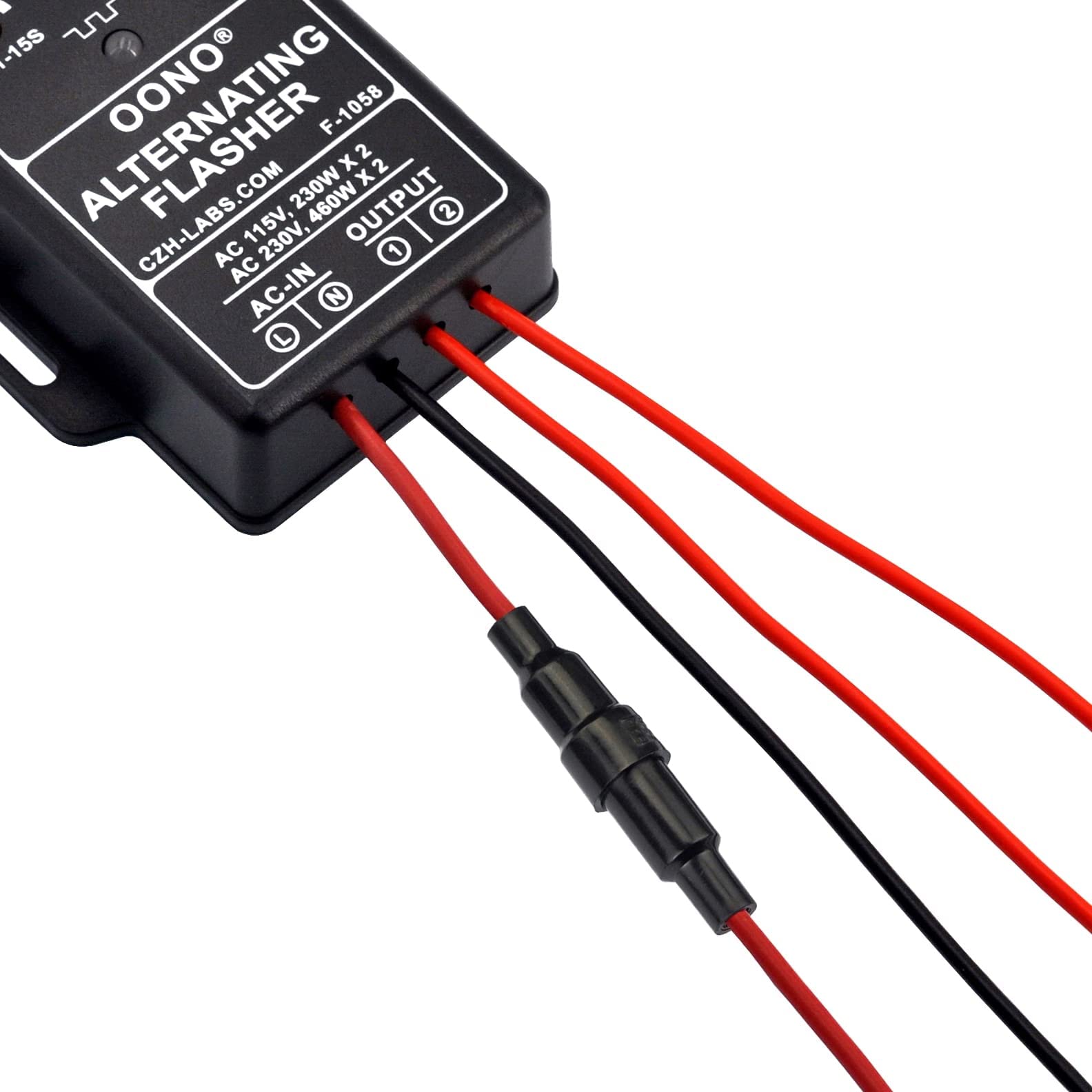

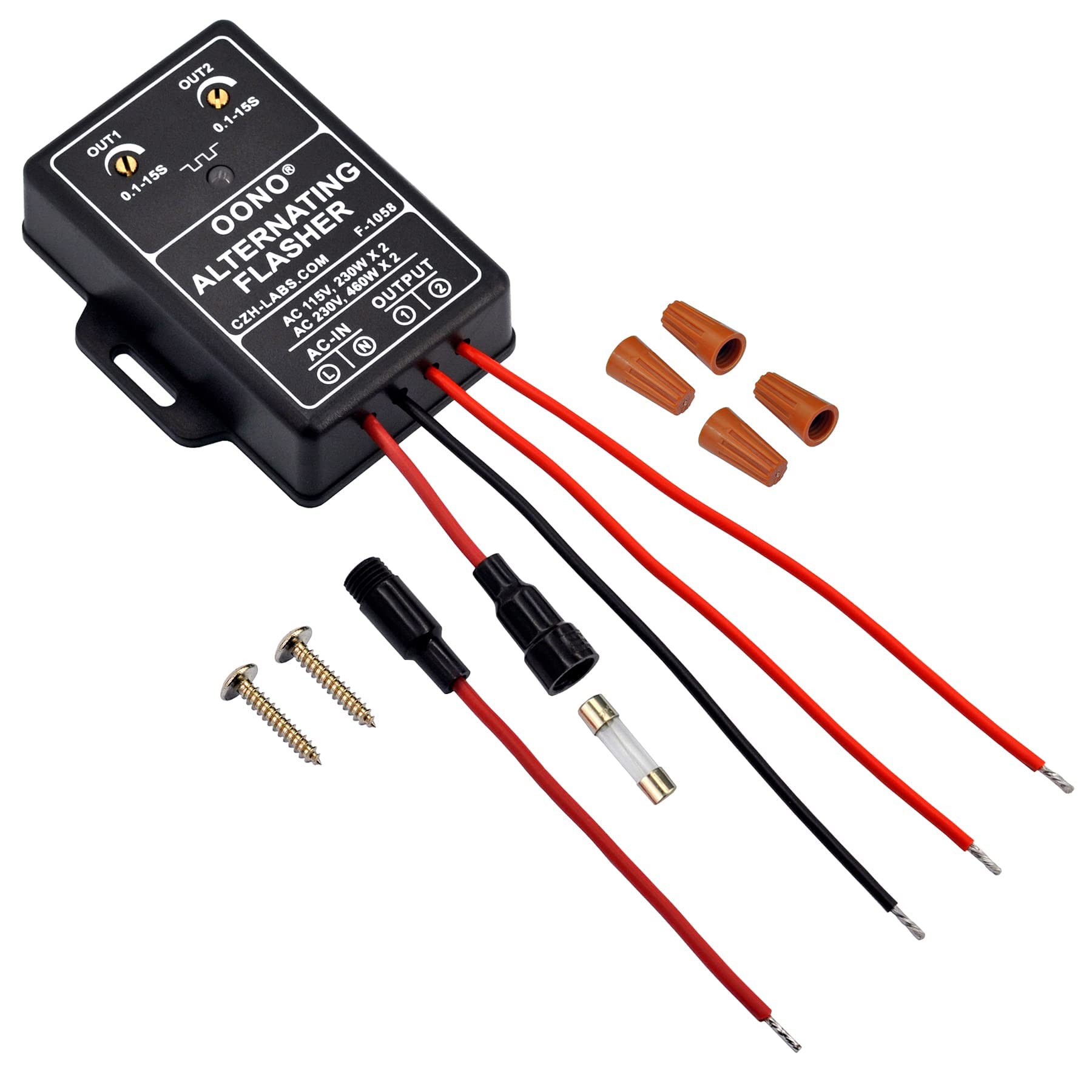

• Compact plastic case and wires connects for easy mount. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.

model number: F-1058

Part Number: F-1058

EAN: 6954525631581

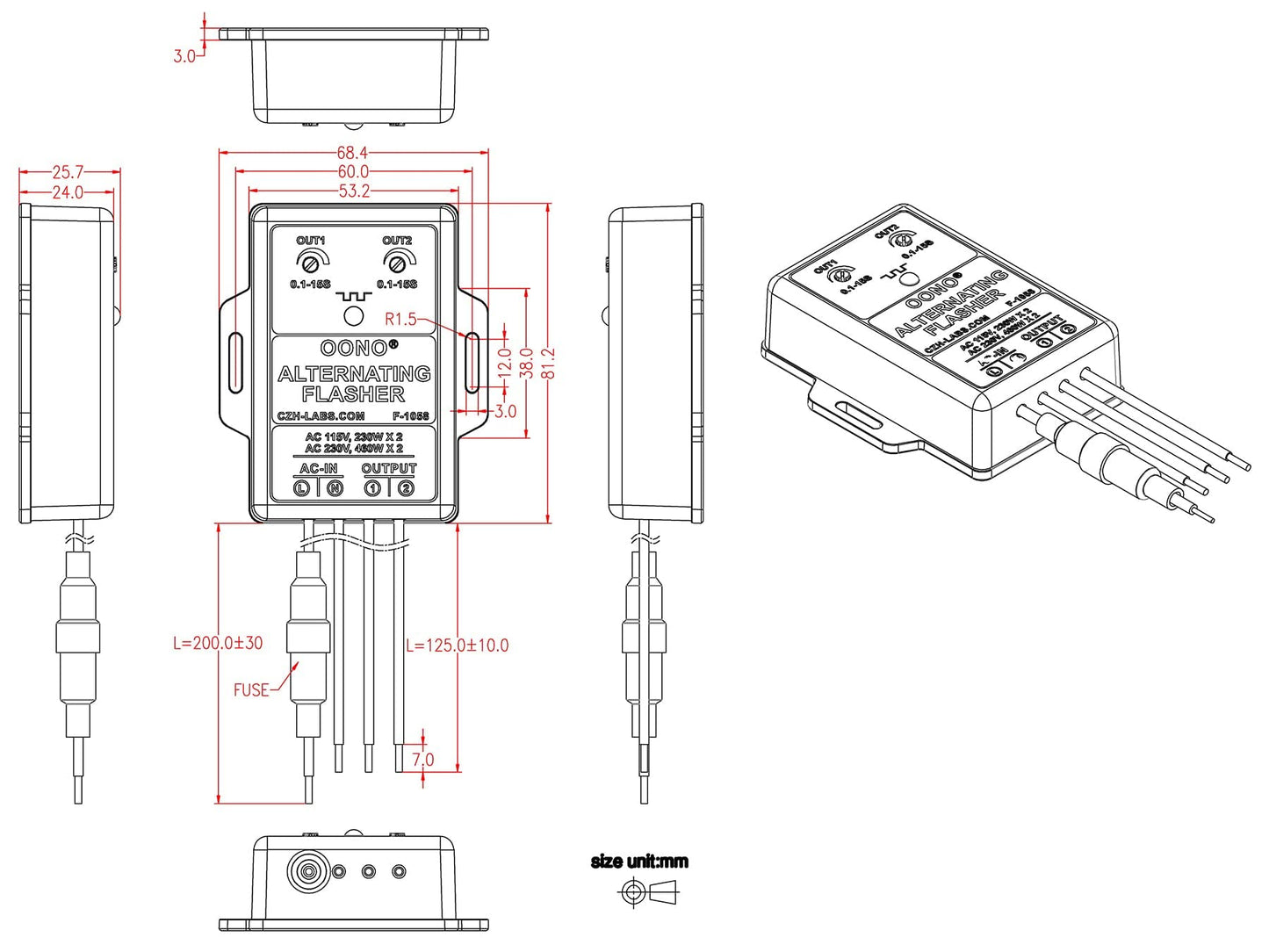

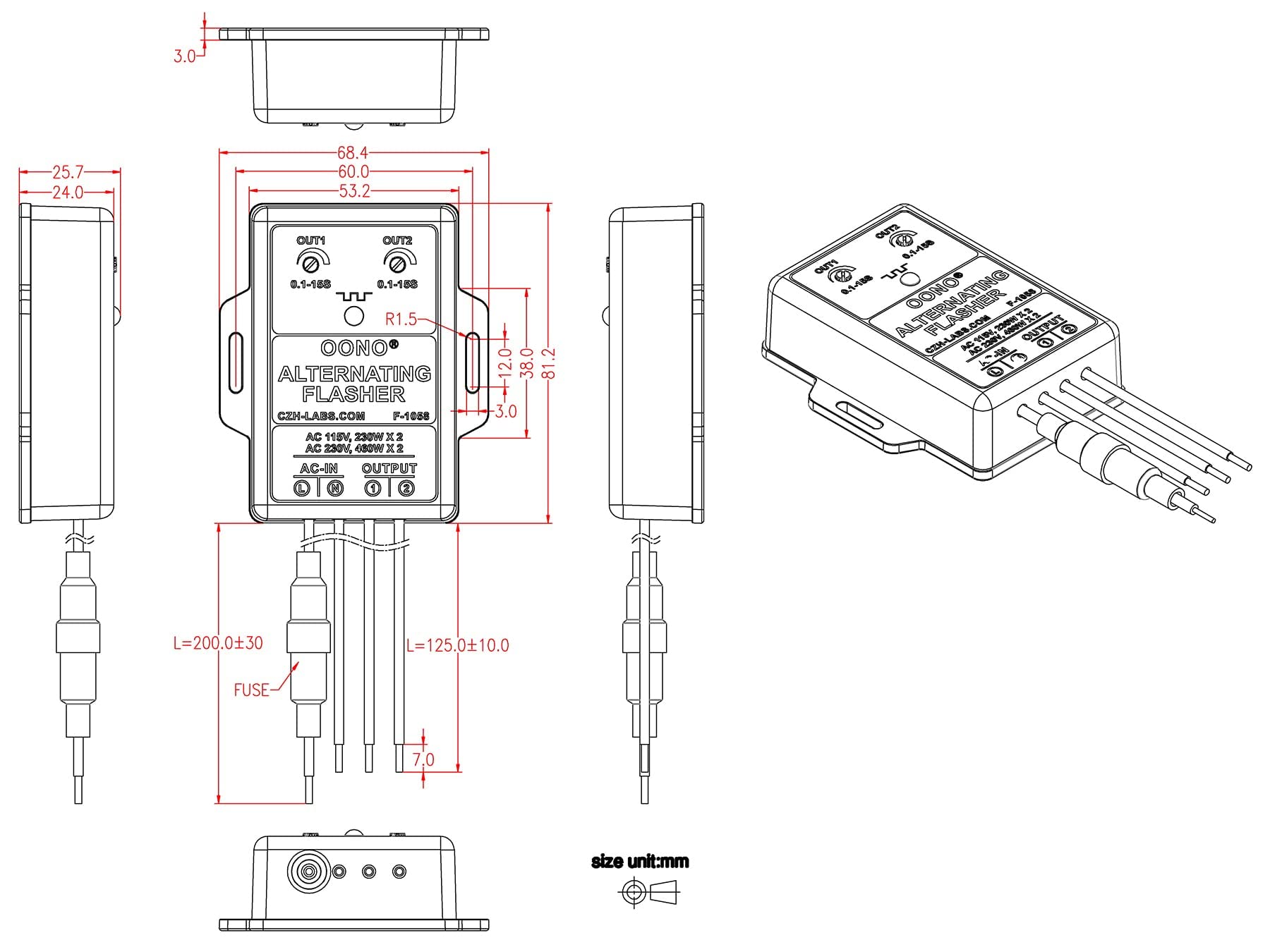

Package Dimensions: 5.0 x 3.3 x 1.6 inches
