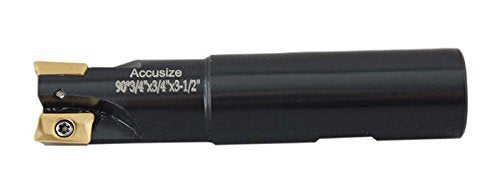

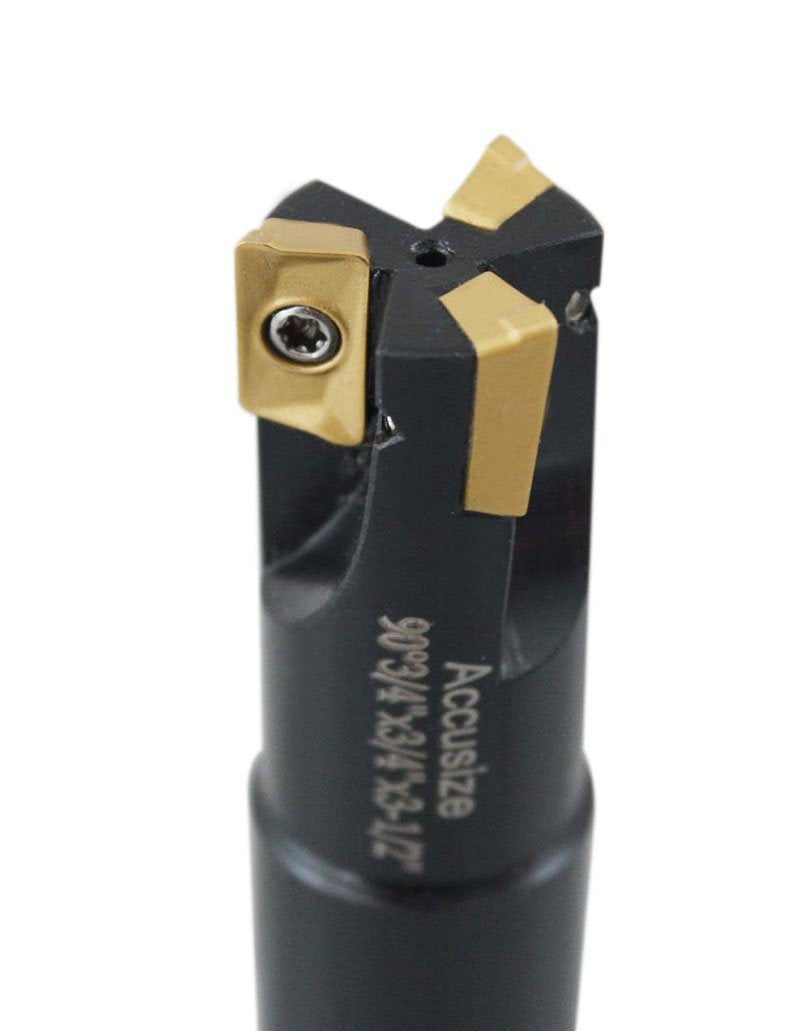

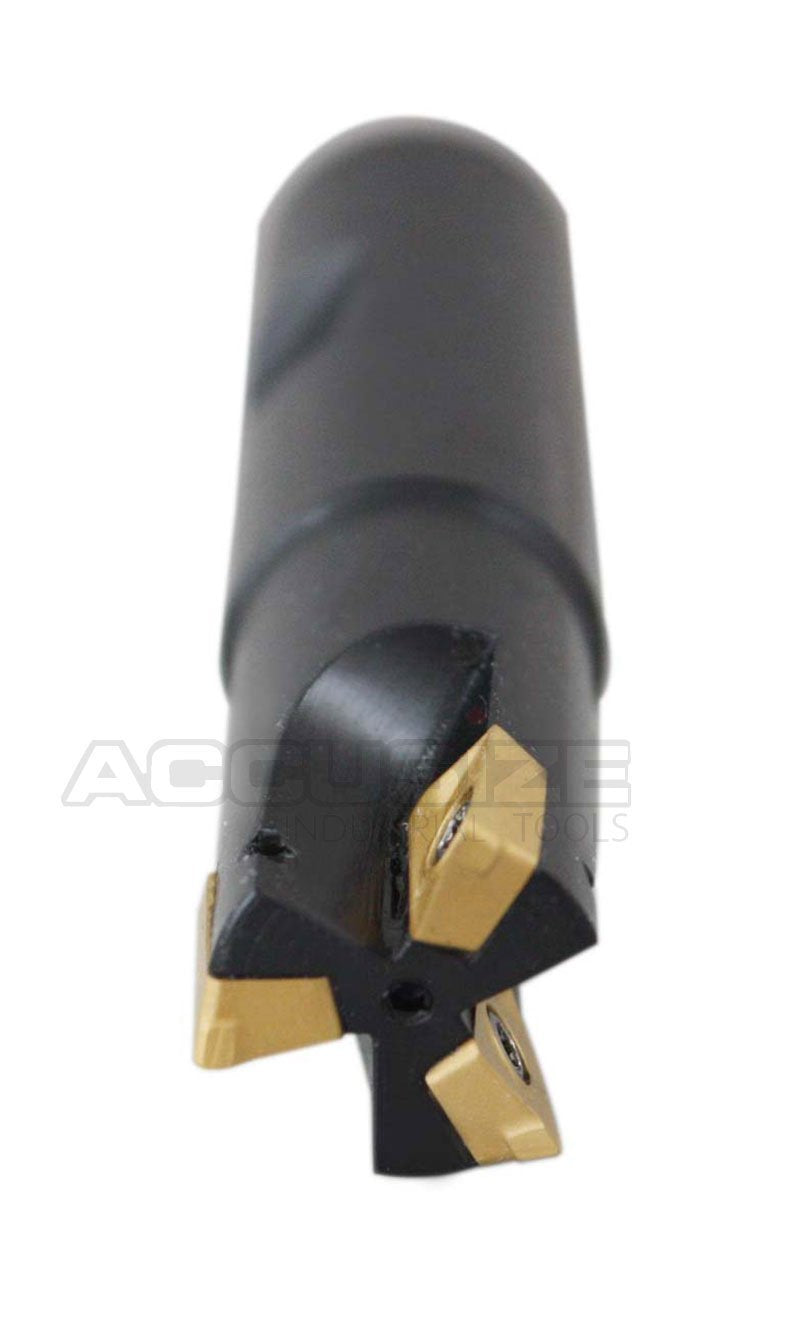

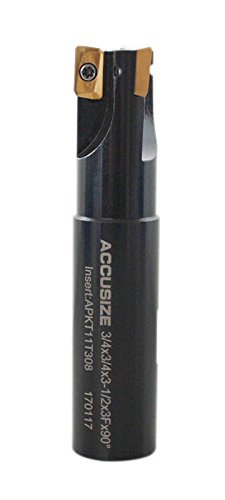

Accusize Industrial Tools 3/4'' 90 Deg Square Shoulder Indexable End Mill, 3-1/2'' Overall Length, Apkt11t3 Carbide Inserts, 3 Flute, 0056-0917

Brand: Accusize Industrial Tools

Features:

• 90Degree Cutting angle. Screw down insert. Radial rake angle: -10Degree. Axial rake angle: +7Degree
• All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, cast irons and aluminum alloys.
• Fitted with 10Degree positive rectangular insert allow the high depth of cut and feed per tooth. Uses APKT / APHW / APKR_APht / APMT insert (sold separately)
• Cutting Diameter D: 3/4". Shank d1: 3/4". Overall Length: 3-1/2". ap: 0.410". No of Insert: 3.
• Screw: M2.5 x 6.5. Insert: APKT11T308
• Superior 90° Square Shoulder Design: Offers precise square shoulder, side, and slot milling with a 3/4" diameter, suitable for diverse materials.
• 3-Flute Configuration with APKT11T3 Inserts: Enhances metal removal rates with three APKT11T3 TiN coated carbide inserts for efficient machining.
• Versatile Application Range: Ideal for hardwood, MDF, and a variety of metals including low to high-carbon steel, alloy steel, and aluminum alloys.
• Robust Construction Details: Features a 3/4" shank, 3-1/2" overall length, and an optimal 0.433" ap, using M2.5 x 6 screws for secure insert attachment.
• Engineered for Performance: Supports cutting speeds between 394 to 786 SFM and feed rates of 0.002 - 0.004 per tooth, maximizing efficiency and precision.

model number: 0056-0917

Part Number: 0056-0917

EAN: 0641799798008

Package Dimensions: 4.2 x 1.1 x 1.1 inches
