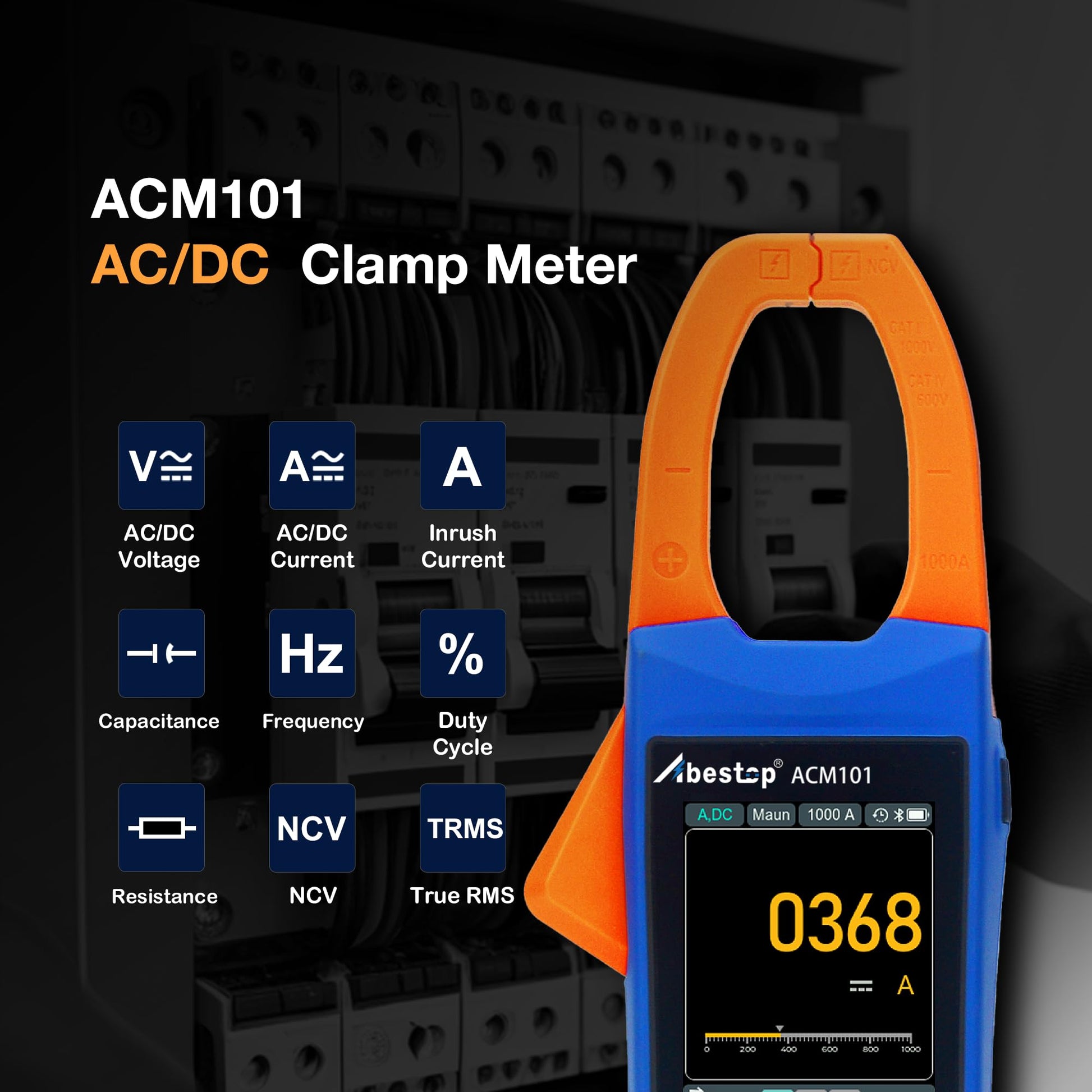

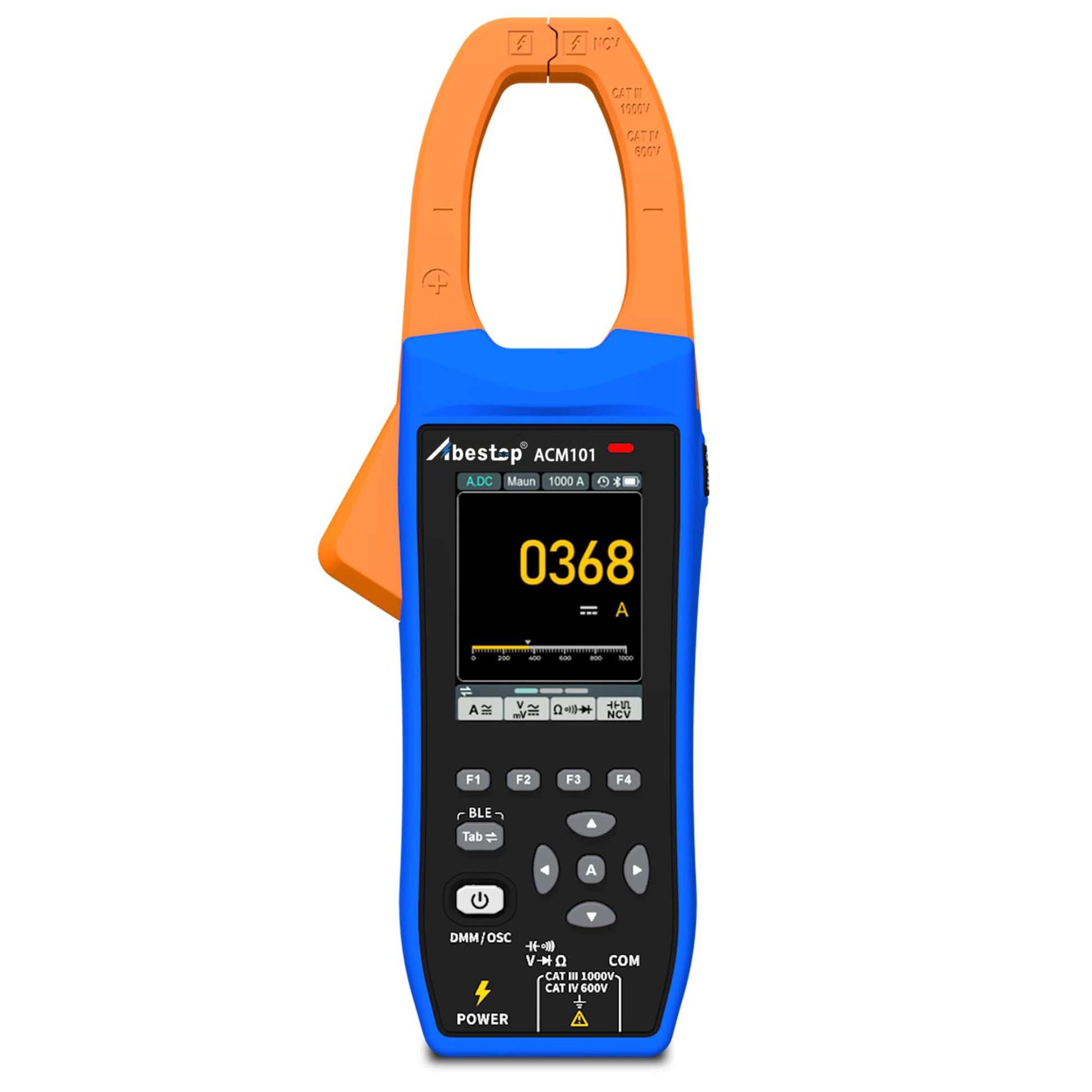

ACM101 Abestop Clamp Meter 1000A Smart 3 in 1 AC/DC Current Clamp with 2.8 inch IPS LCD Display OSC + Record Function

Brand: Abestop

Color: Blue

Features:

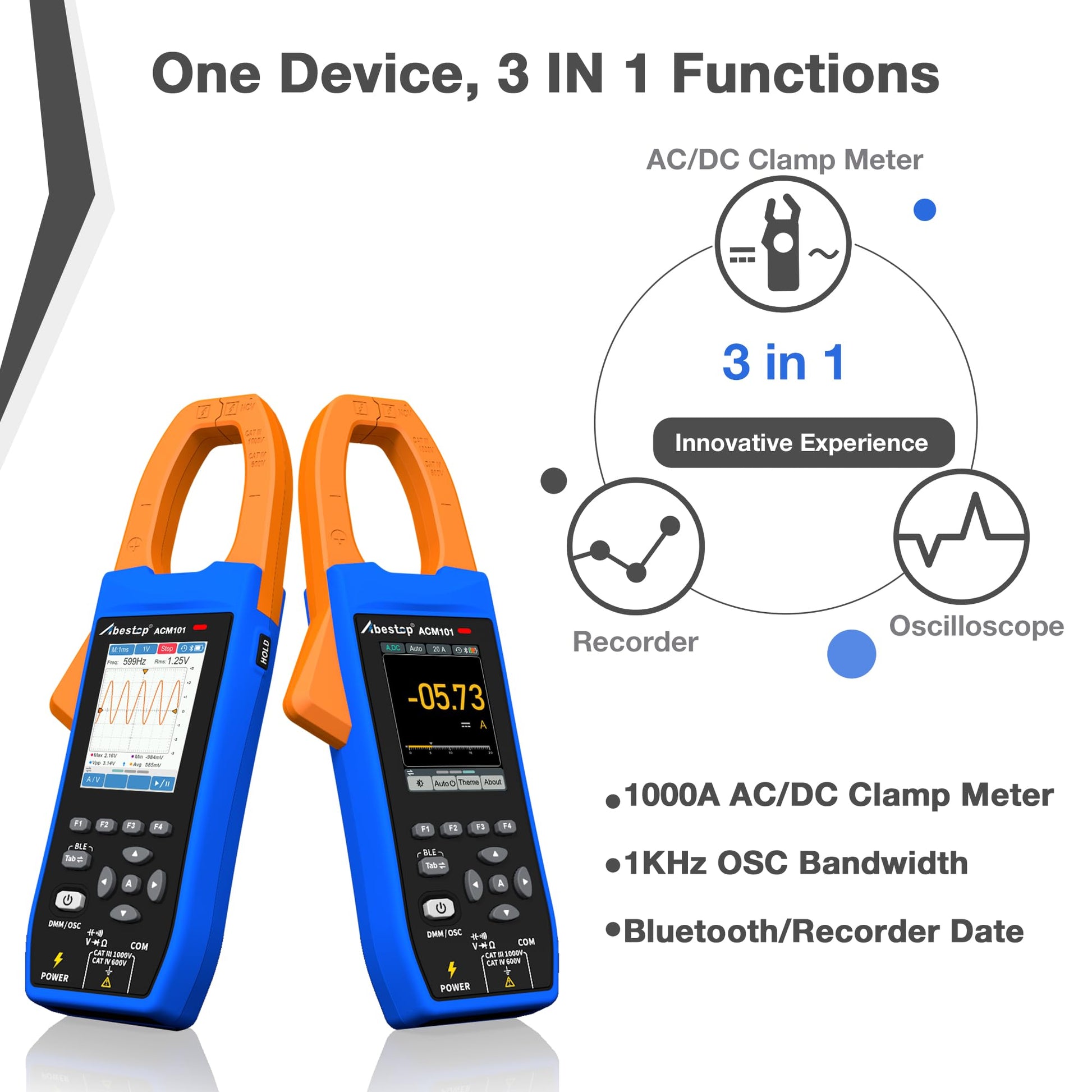

• 3 in 1 Functions: Built-in 1000A DC/AC clamp meter, 1MHz oscilloscope and record functions with Bluetooth, meet your demand; 2.8 inch IPS screen, view clearer; Switch DMM or OSC mode; Switch dual theme display up to your demand

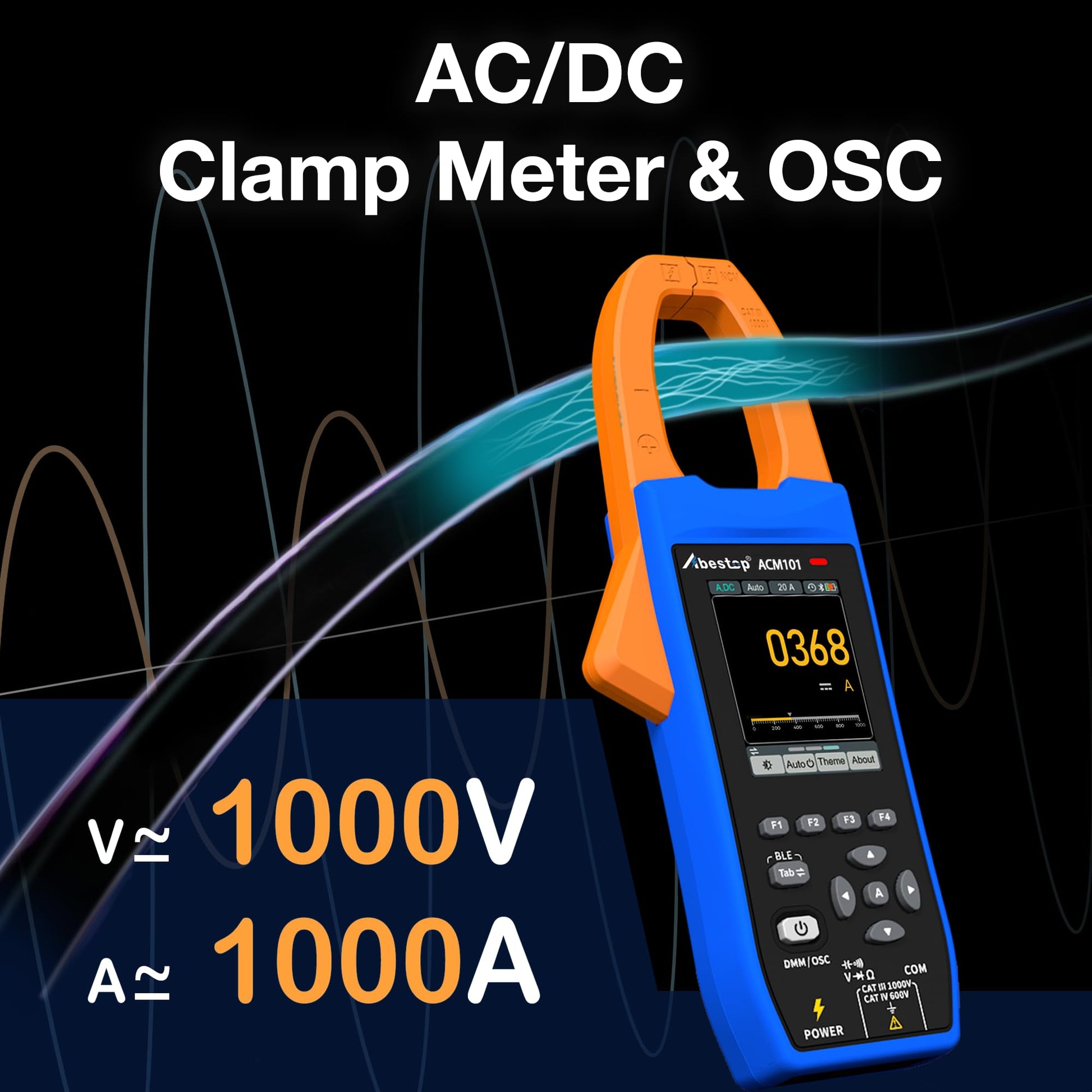

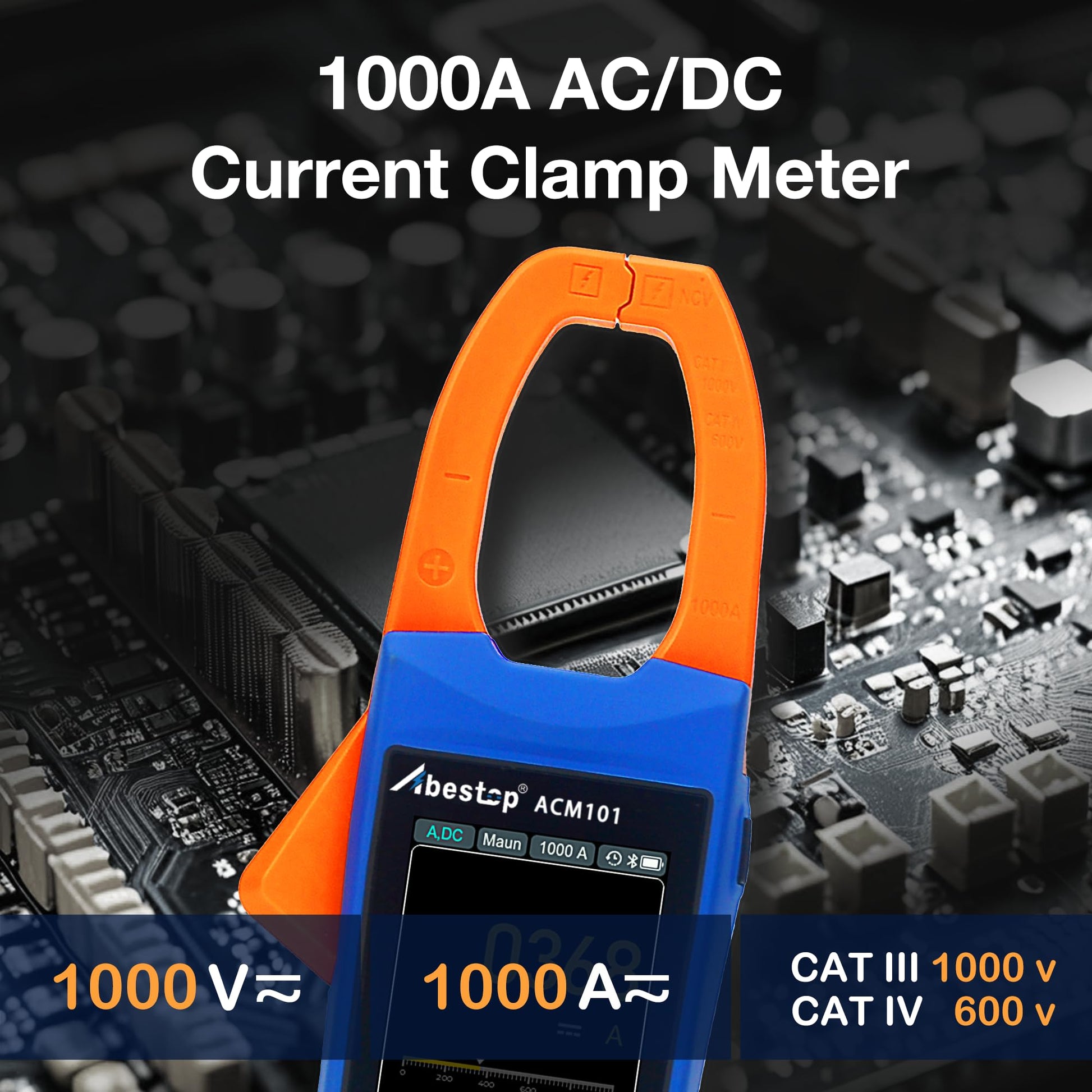

• Clamp Meter: 1000V DC/AC Voltage, 1000A AC/DC Current, 1000A Inrush Current; Support NCV, 100.00MΩ Resistance; 20.00mF Capacitance; 20.000MHz Frequency; 0.1%-99.99% Duty Cycle; 3.0000V Diode; 0~200.0 Ω On-Off
• Oscilloscope: 1MHz Analog Bandwidth (Voltage), 1KHz Analog Bandwidth (Current); 1CH; 5.0MSa/S Sample Rate; ≥10MΩ input impedance, 1000V MAX input voltage, 1000A MAX sample current; Rms、Period, Freq、Max、Min、PK-PK、Avg Measurement value; Auto trigger mode; Trigger type: rise, fall
• Record Function: Support Bluetooth connect your phone and view the date, support perform remote control, display data charts and store the measurement data in CSV format, display in a graph tovisualize trends

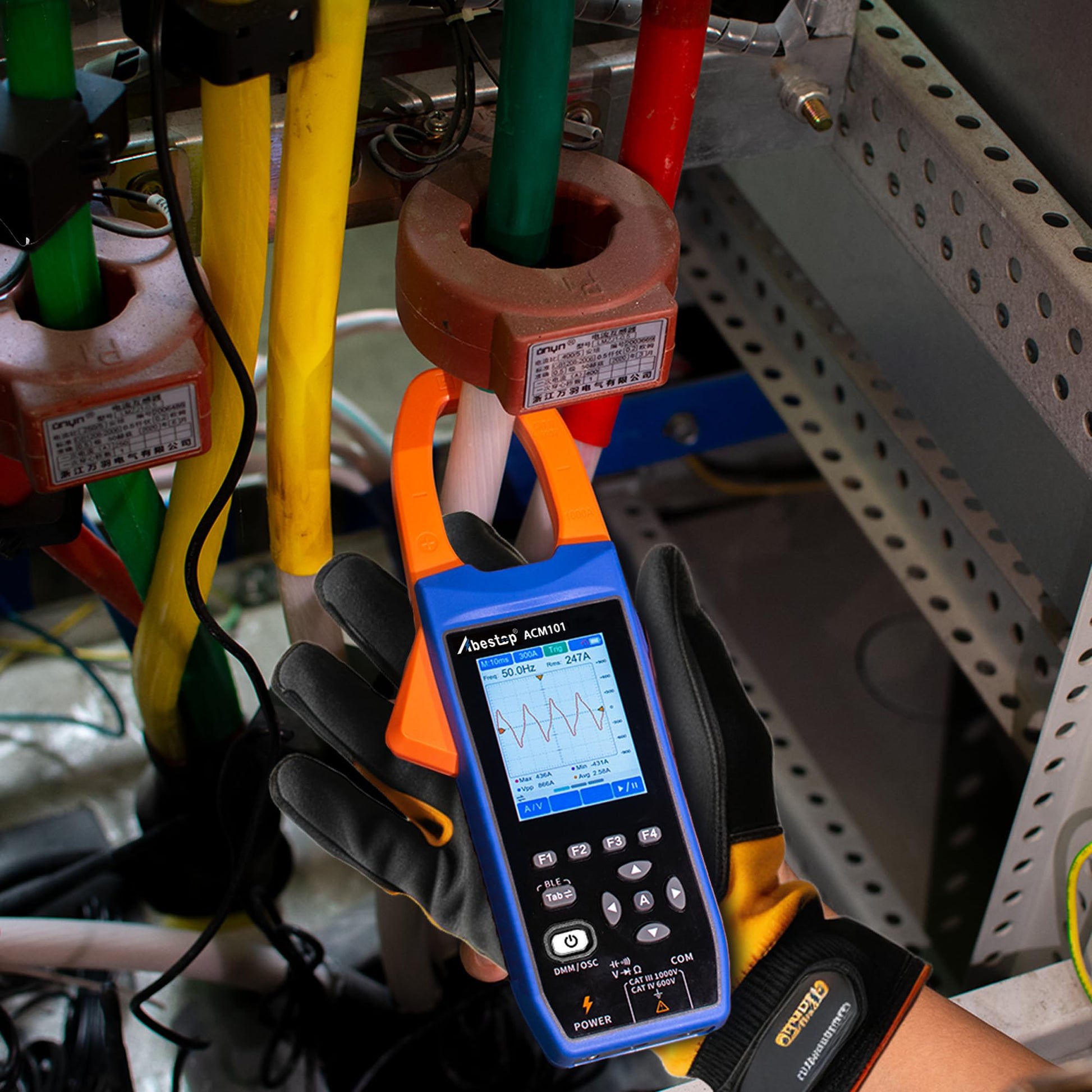

• Applications: AC/DC clamp meter is a versatile device for more usage; Use in Electrical Troubleshooting to identify overloaded circuits, faulty wiring, or inefficient equipment; Use in Motor Maintenance to monitor the current draw of motors during operation, indicate issues like bearing problems, winding faults, or improper loading, allowing for timely maintenance; Clamp meters are used to measure current consumption of individual equipment or entire facilities, OR troubleshoot and maintain electrical components

Part Number: ACM101

Package Dimensions: 12.5 x 5.5 x 3.5 inches
