ASI Boat Lift Switch, Single Phase, Momentary (Spring Return) - for 1HP to 2HP Electric Motors. P0202500S-RH-EKIT

Brand: ASI

Color: Red

Features:

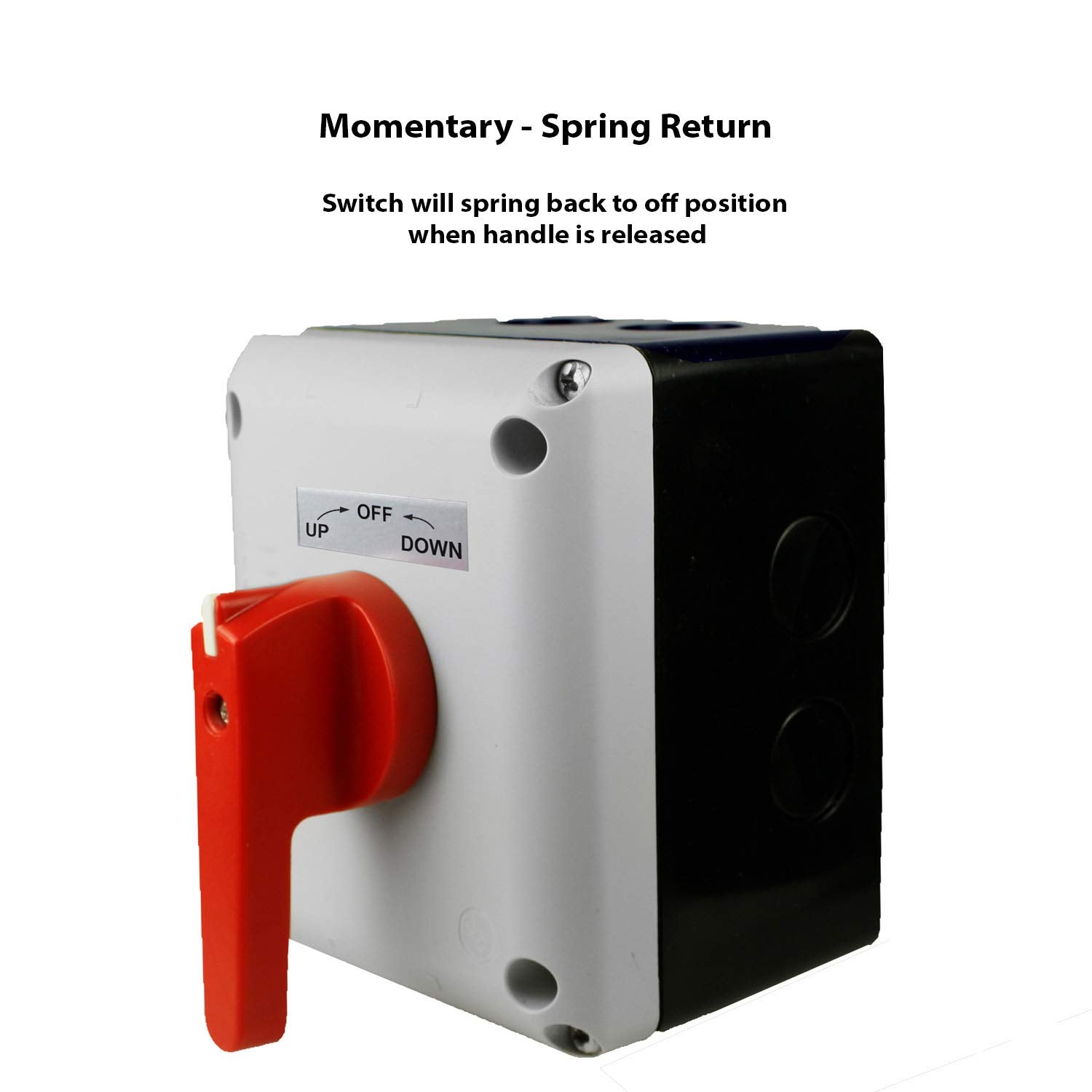

• MOMENTARY SWITCH: (spring action) only engages while the user is pushing the handle. This switch will spring back to off position when handle is released.

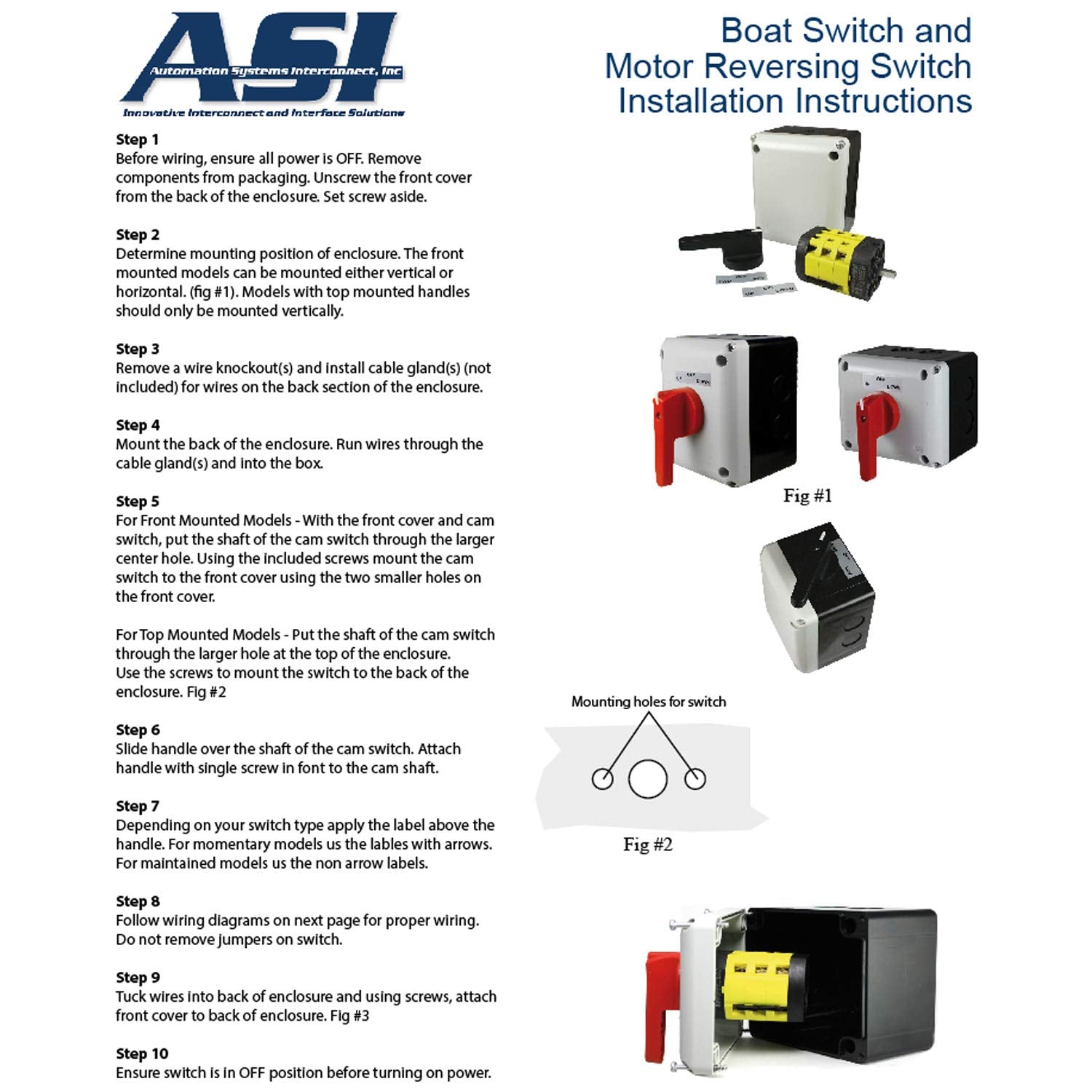

• WIRING: Please refer to your motors wiring instructions on how to wire switch
• Max 1.5 HP at 120Vac Motors or Max 2 HP at 240Vac Motors

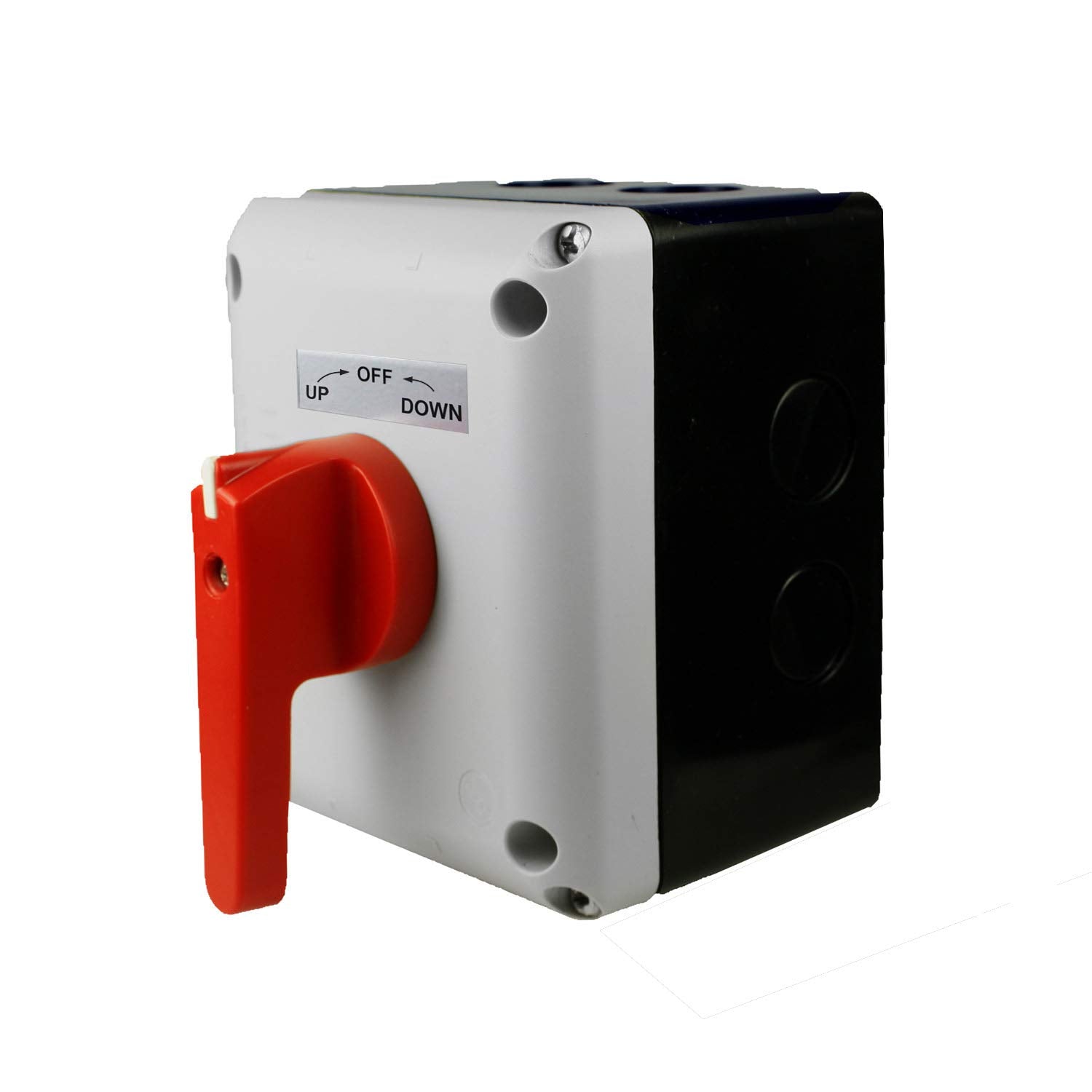

• Highly visible red handle with enclosure that is IP65 rated.

Binding: Tools & Home Improvement

model number: P0202500S-EFRKIT

Part Number: P0202500S-RH-EKIT

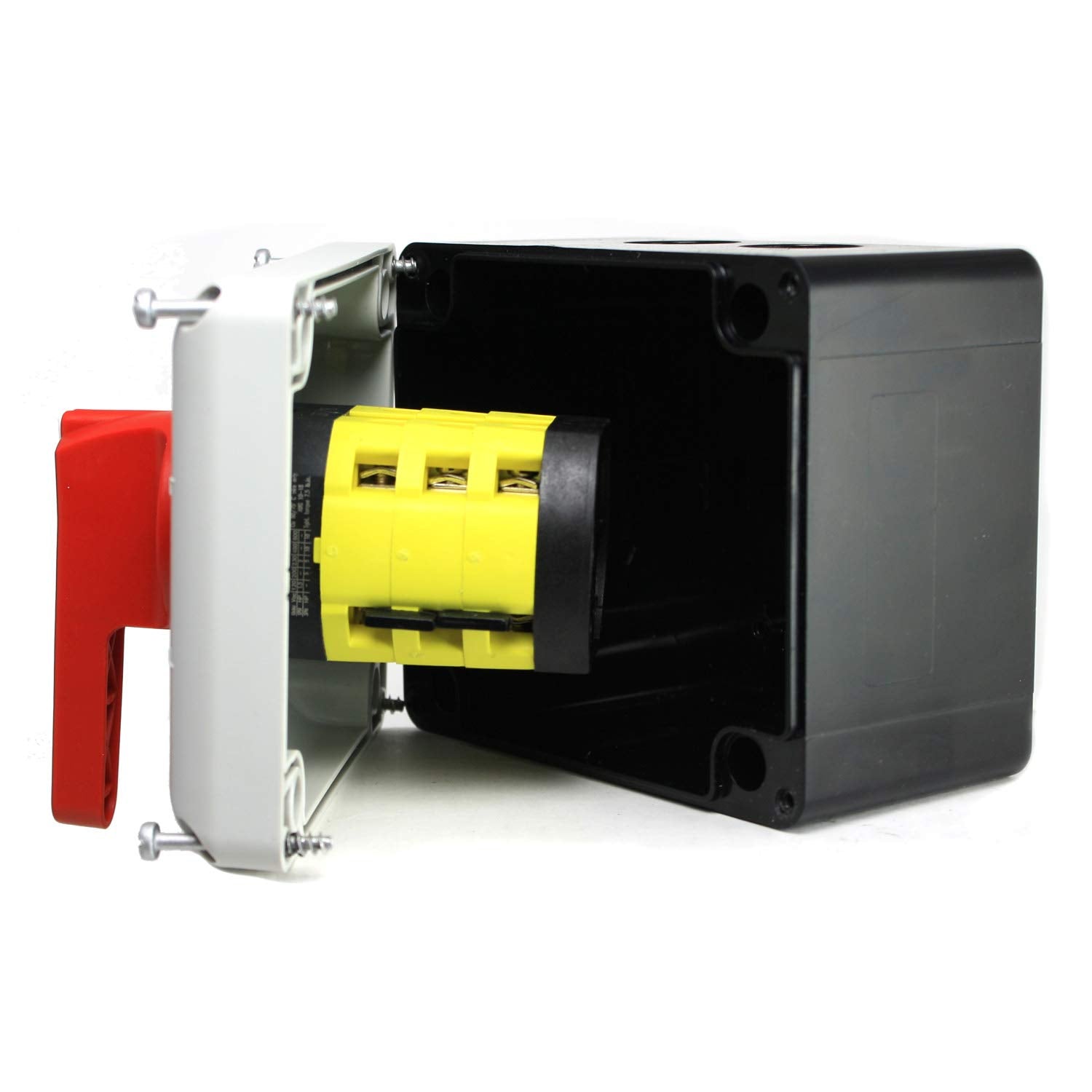

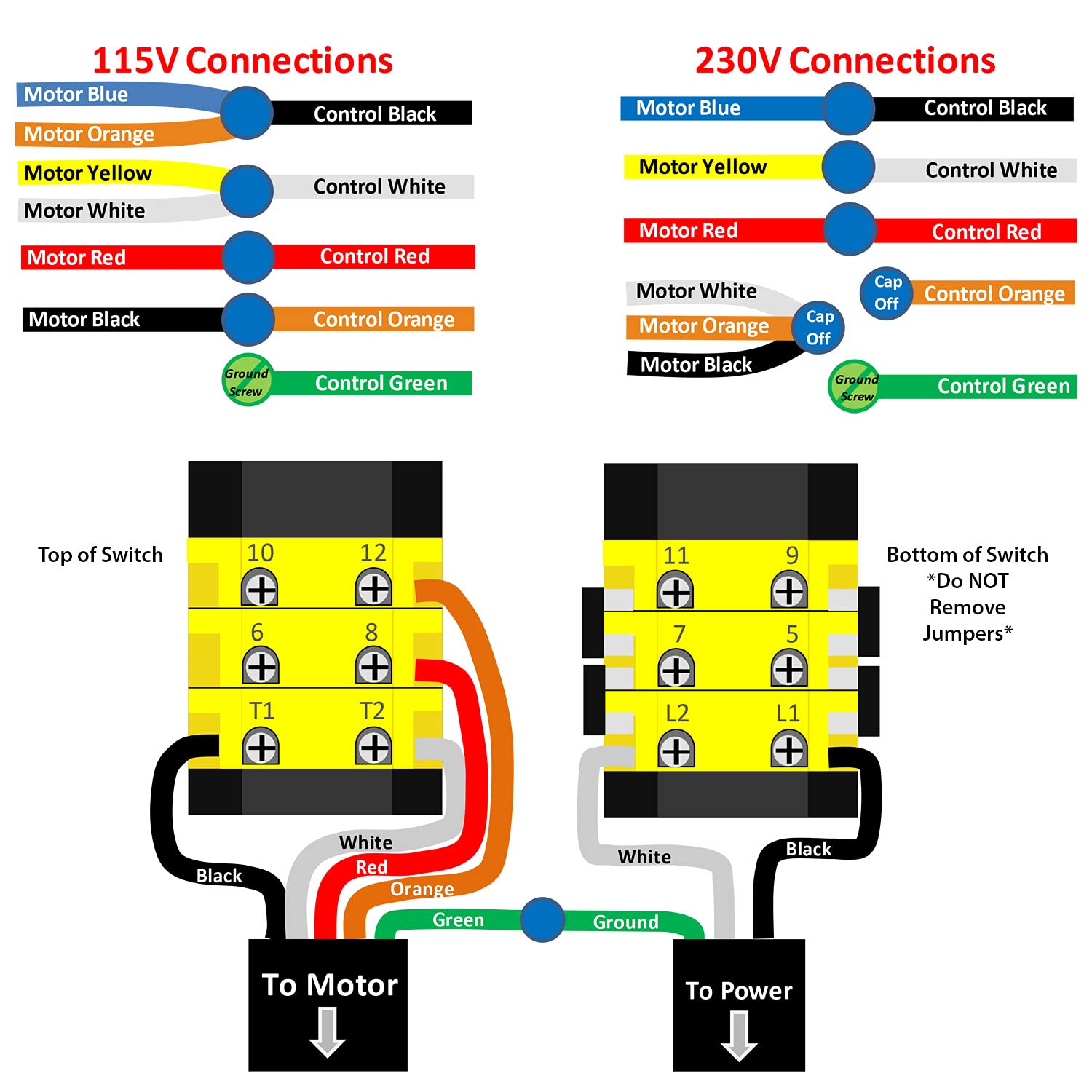

Details: This P0202500S-RH-EKIT single-phase drum switch enclosed in a high impact thermoplastic enclosure. The MOMENTARY SWITCH only engages while the user is activating the handle and will spring to the off position when handle is released. The wire connections are easy to install and are shock hazard proof. A UL508 listing of 600 Vac, 20A this forward and reverse motor switch is ideal for single-phase motors ranging from 0.5 HP to 1.5HP for a 120 Vac motor and from 1 to 2 HP for a 240 motor. This switch features self-cleaning contacts, silver alloy plating, and a UL94V0 thermoplastic housing. This lift switch is a compact design to save space and can be mounted vertical or horizontal, depending on your needs. Includes UP/DOWN and FWD/REV labels. The wiring diagram is provided as a reference for most installations. Please refer to your motor's manual for wiring directions or contact a certified electrician.

EAN: 0810009761051

Package Dimensions: 5.2 x 4.6 x 4.4 inches
