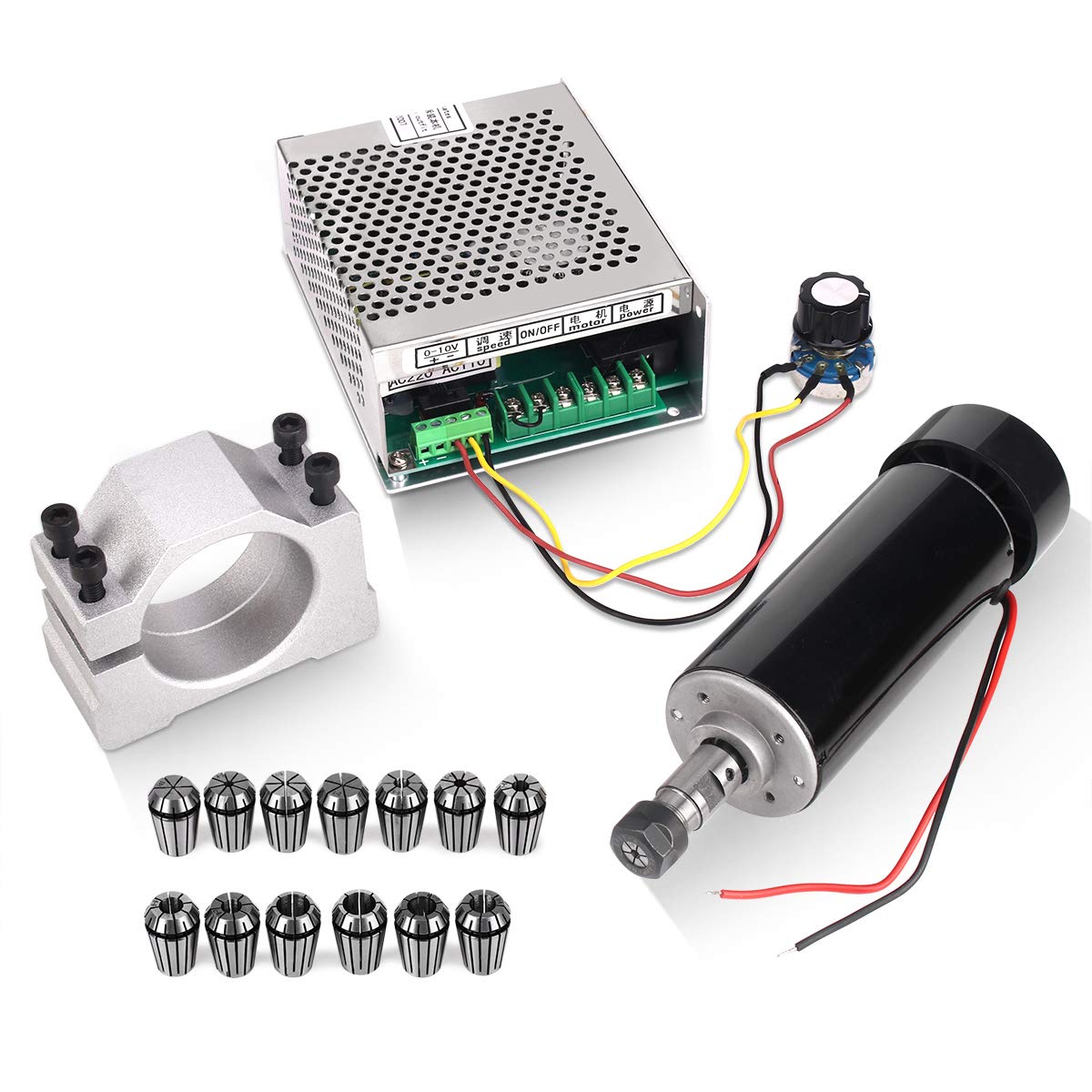

🛠️【CNC Spindle kit 500W】- 1 x 500W Air-Cooled Spindle Motor, 1 x AC110V/220V Speed Governor with MACH3, 1 x 52mm Mount bracket, 13 x ER11 collect, 10 x V Bit Cutter, 4 x Screws(free).

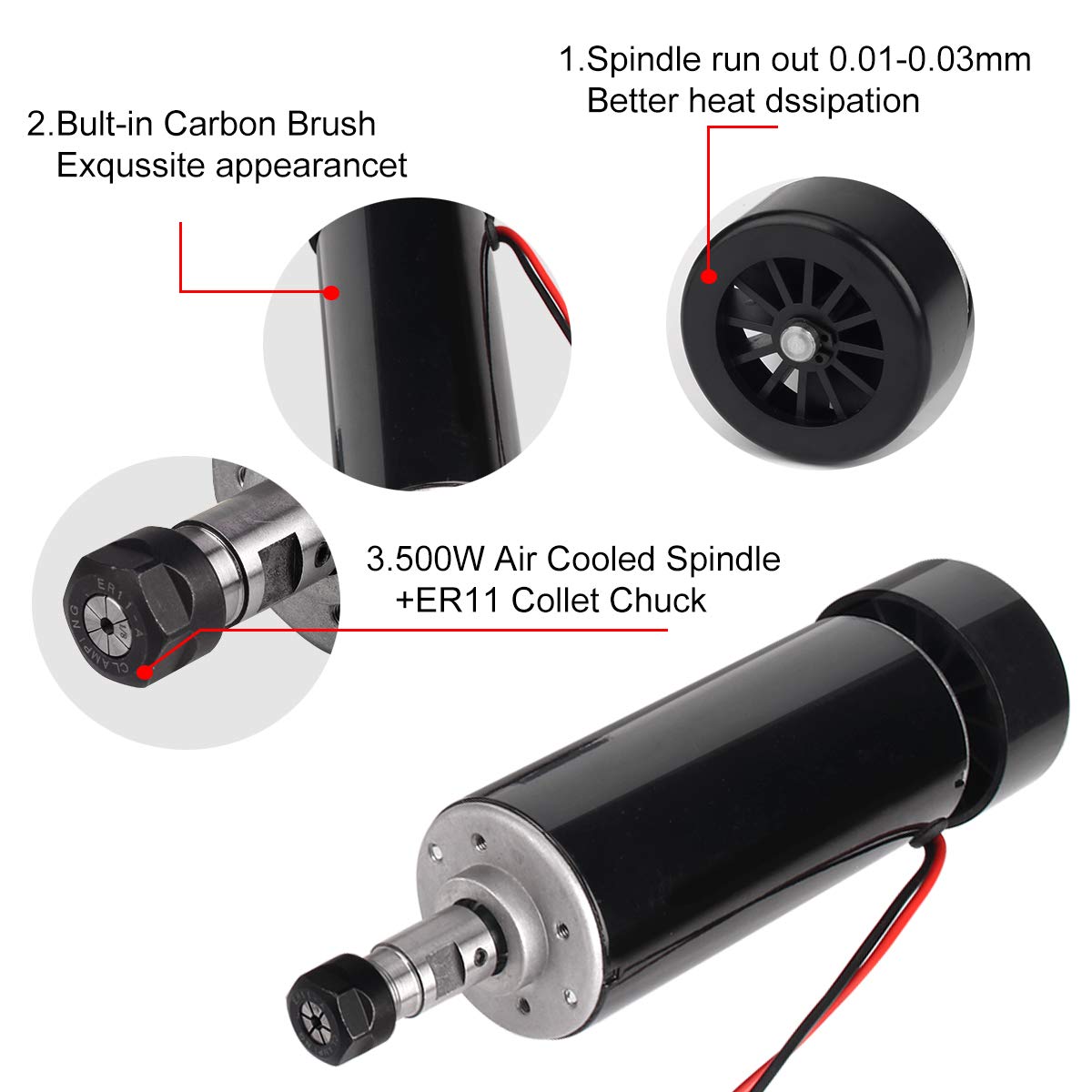

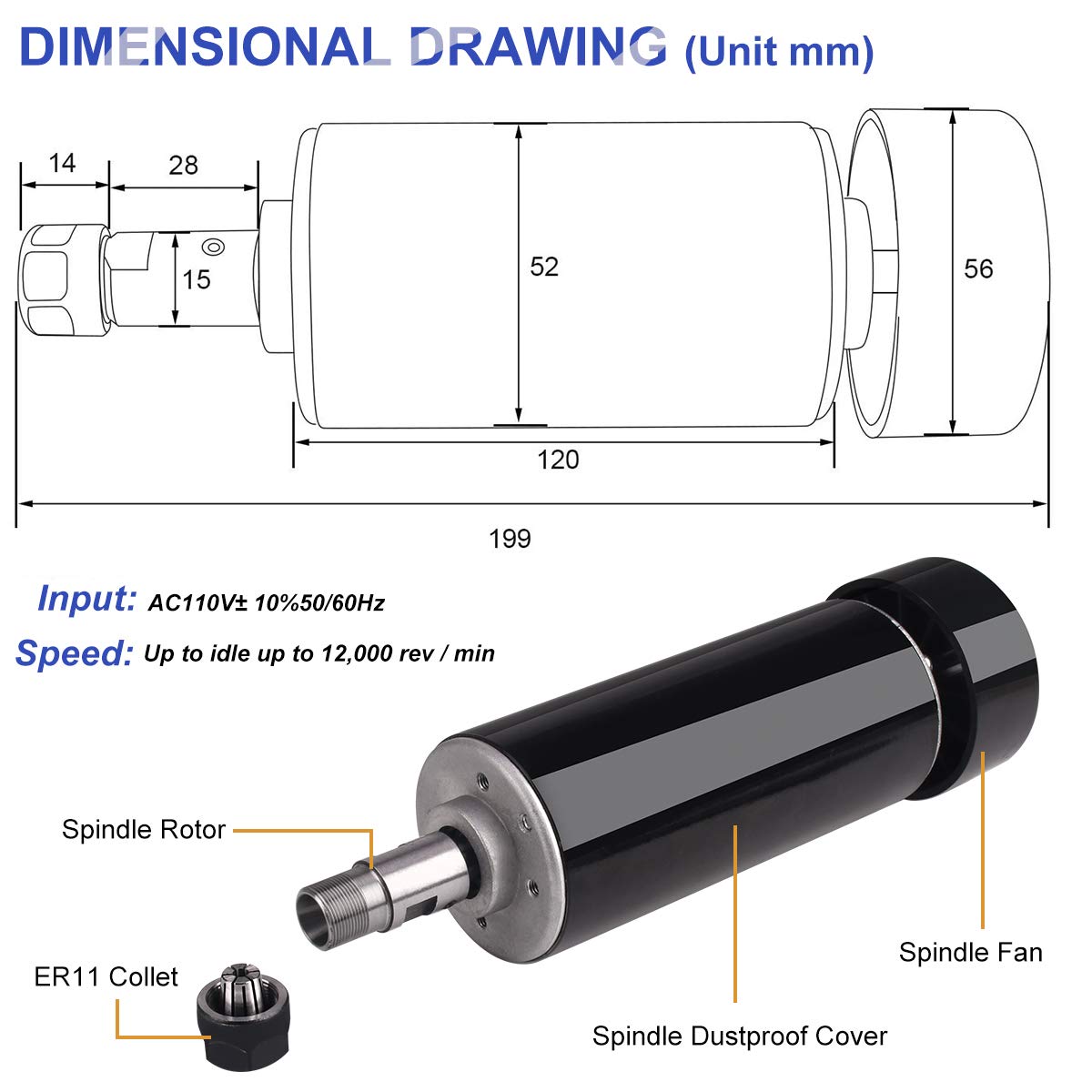

🛠️【500W CNC Spindle motor】- Operating voltage: 100VDC, Power: 500W, Input: AC110V, Speed: Up to idle up to 12,000 rev / min, Torque: 5000G/CM. Insulation resistance:> 2 megohms, Dielectric strength: 400V. Motor Length: 200MM, High precision spindle run out 0.01-0.03.

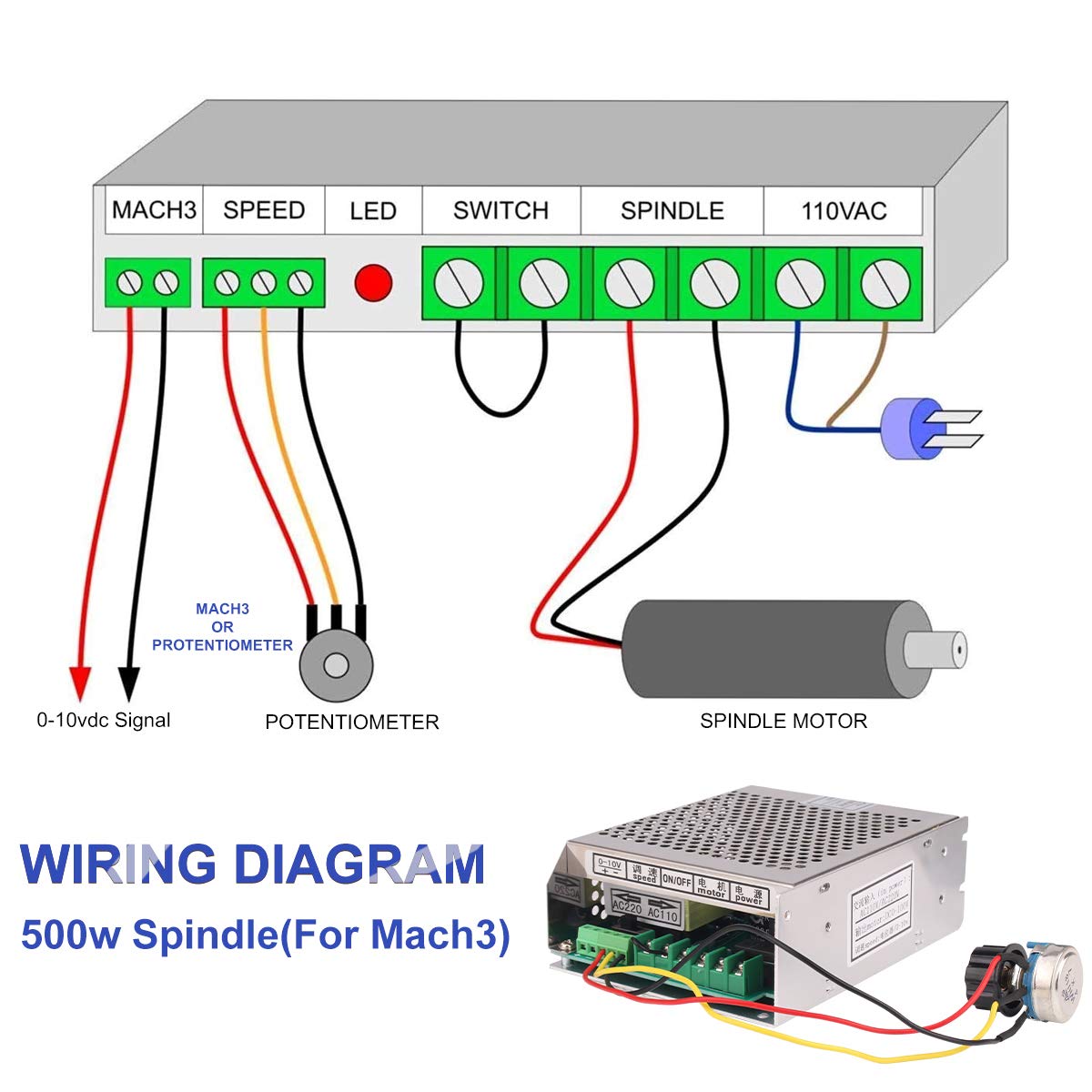

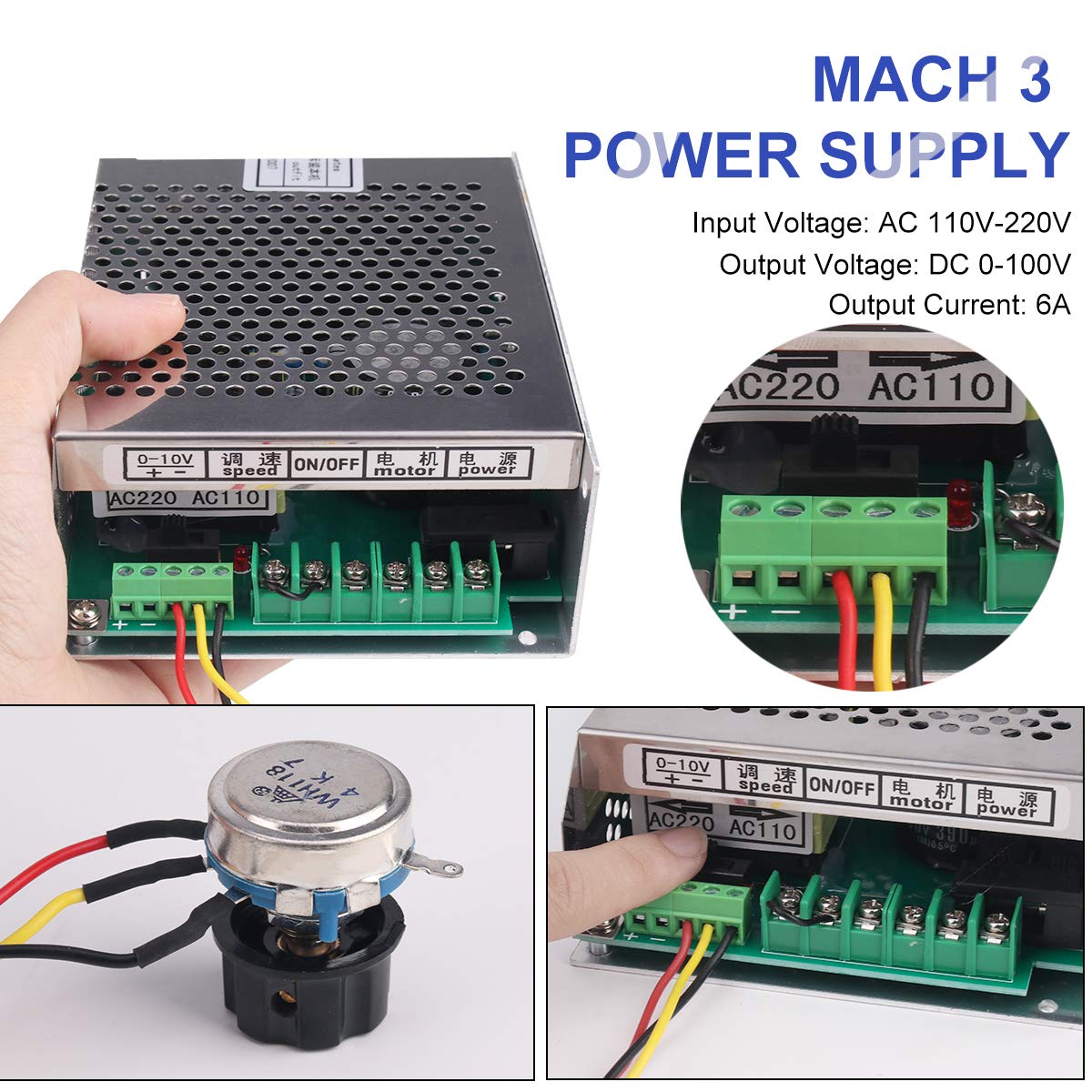

🛠️【Speed Power Switch】- Input voltage: AC110V/220V, 50/60Hz. Output current peak: 6A. Output voltage: DC0-100V. Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard medium, no conductive metal particle.

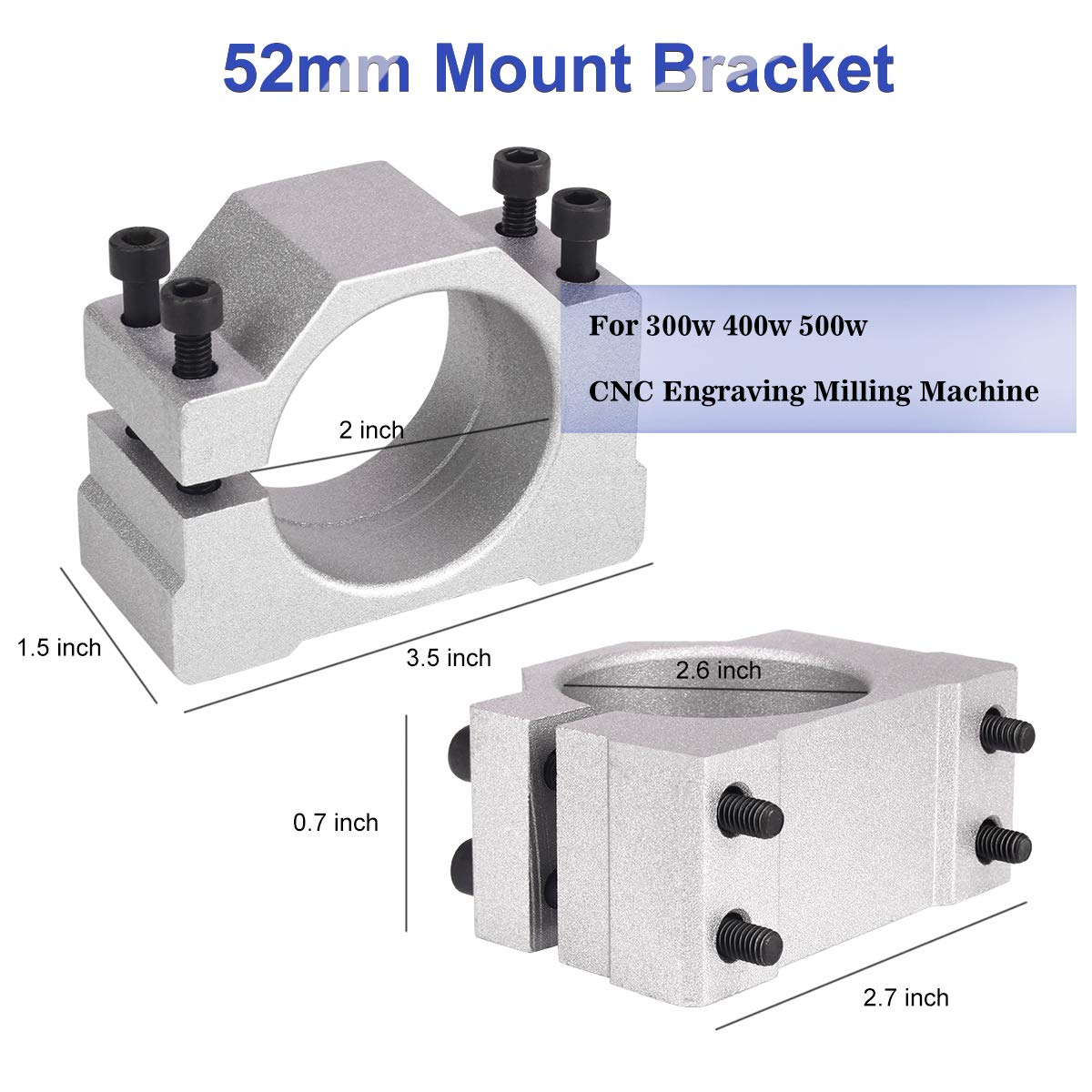

🛠️【 52mm Mount Bracket】- Made of high quality cast aluminum, this spindle motor bracket clamp is strong and durable. Diameter: 52mm, Chuck portion length: 45MM, Chuck portion diameter: 16mm.

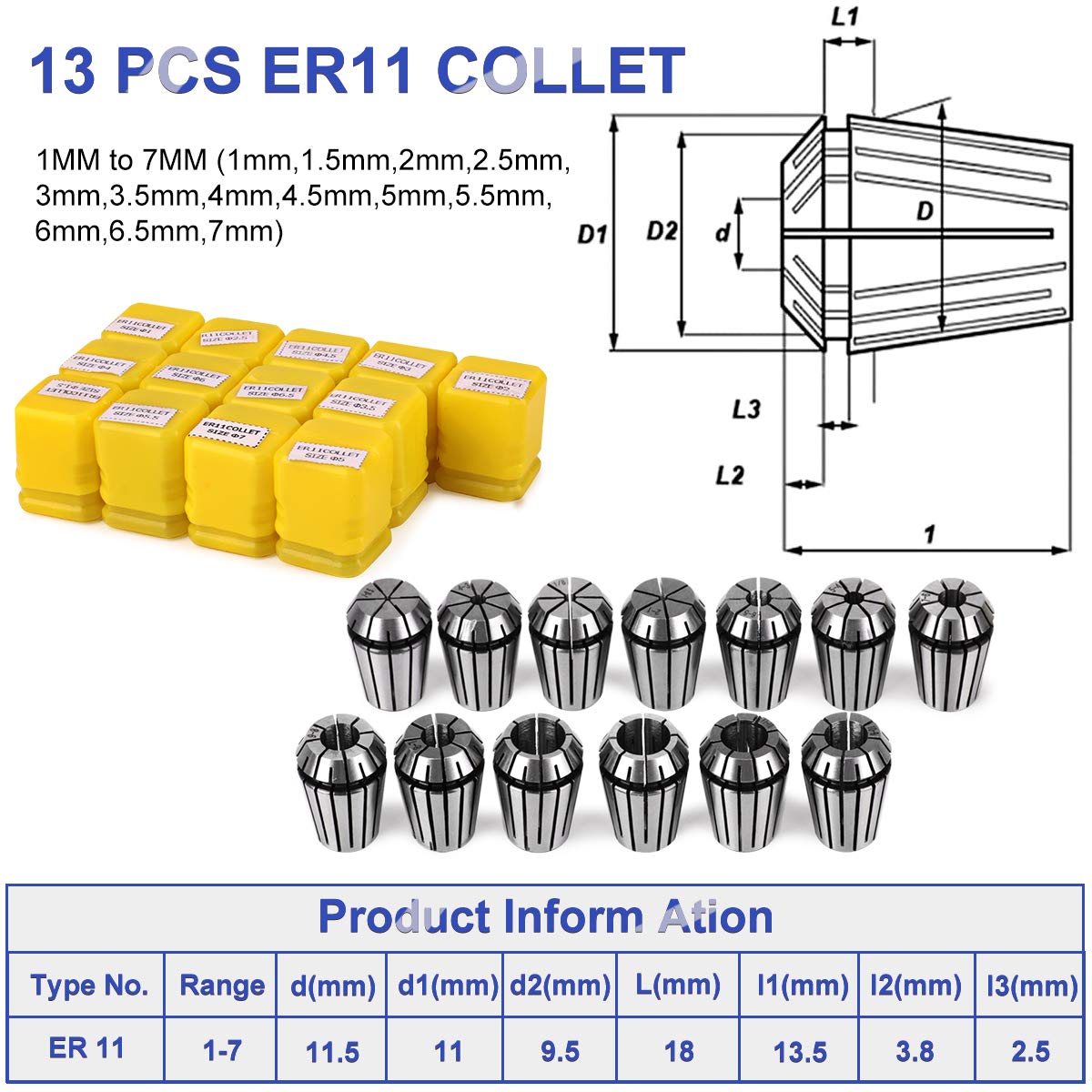

🛠️【ER11 Collet Chuck】- 13Pcs ER11 Collet Set Gripping Range: 1MM to 7MM(1mm,1.5mm,2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm). Run-out tolerance 0.01mm. For CNC milling Lathe Tool & Work holding Engraving machine.
