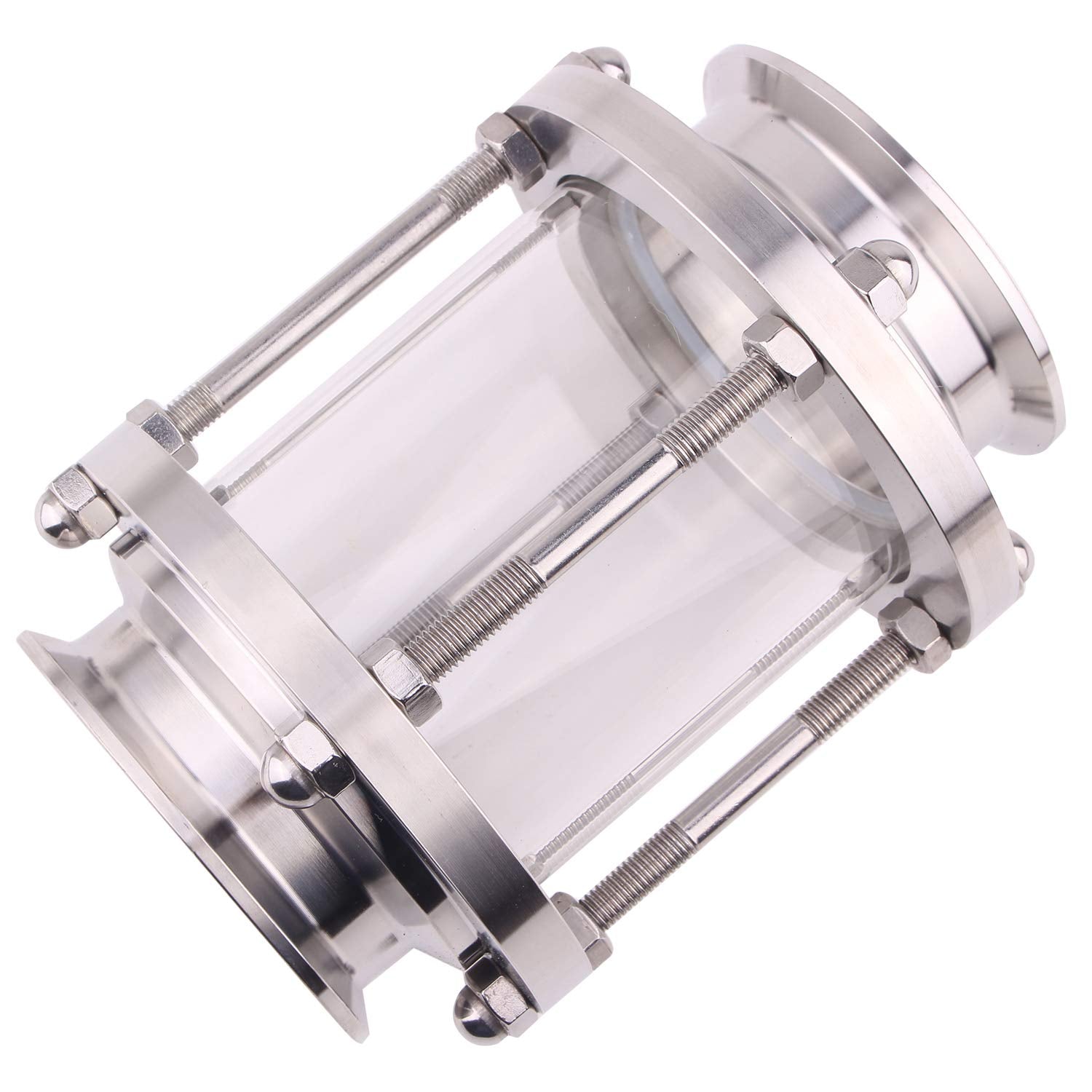

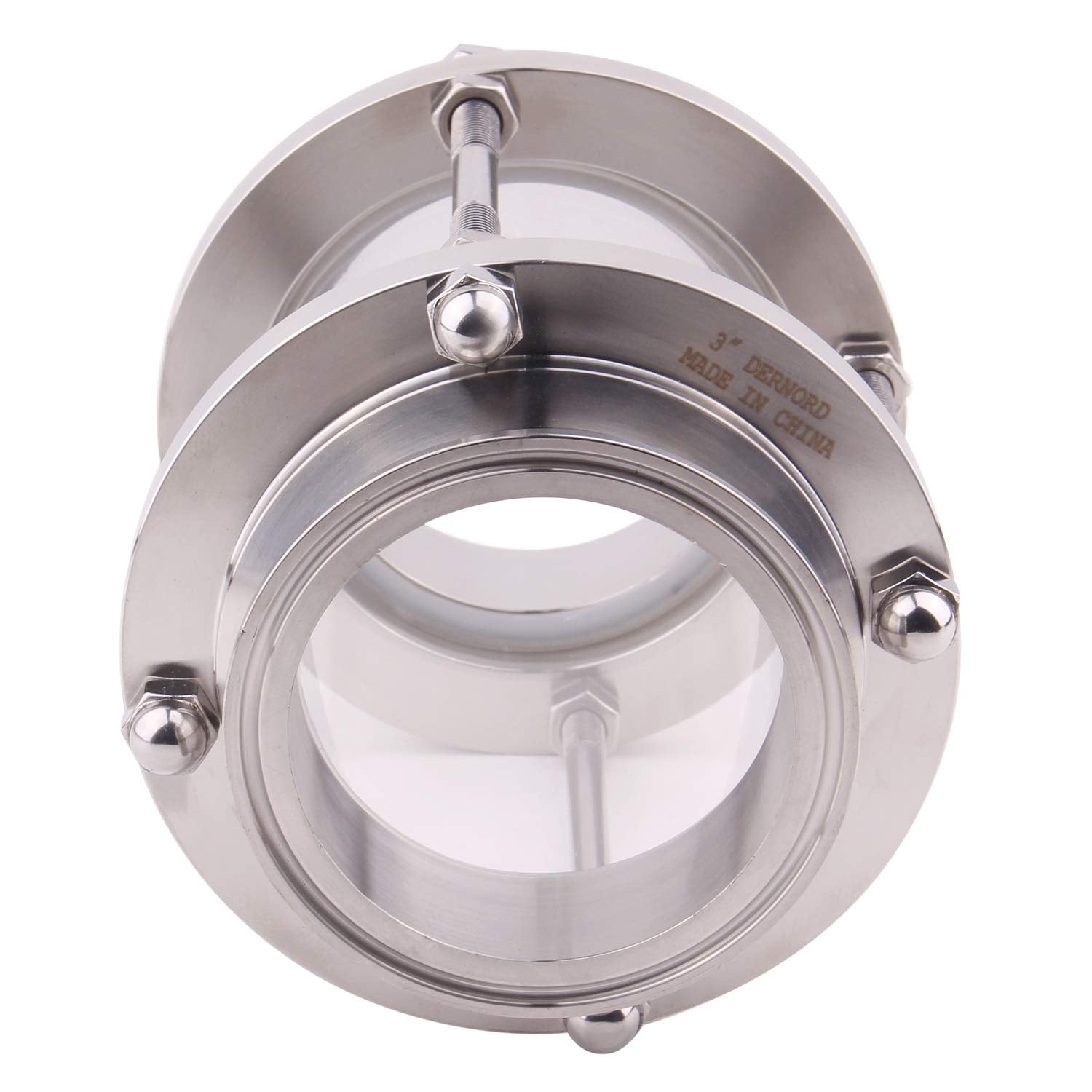

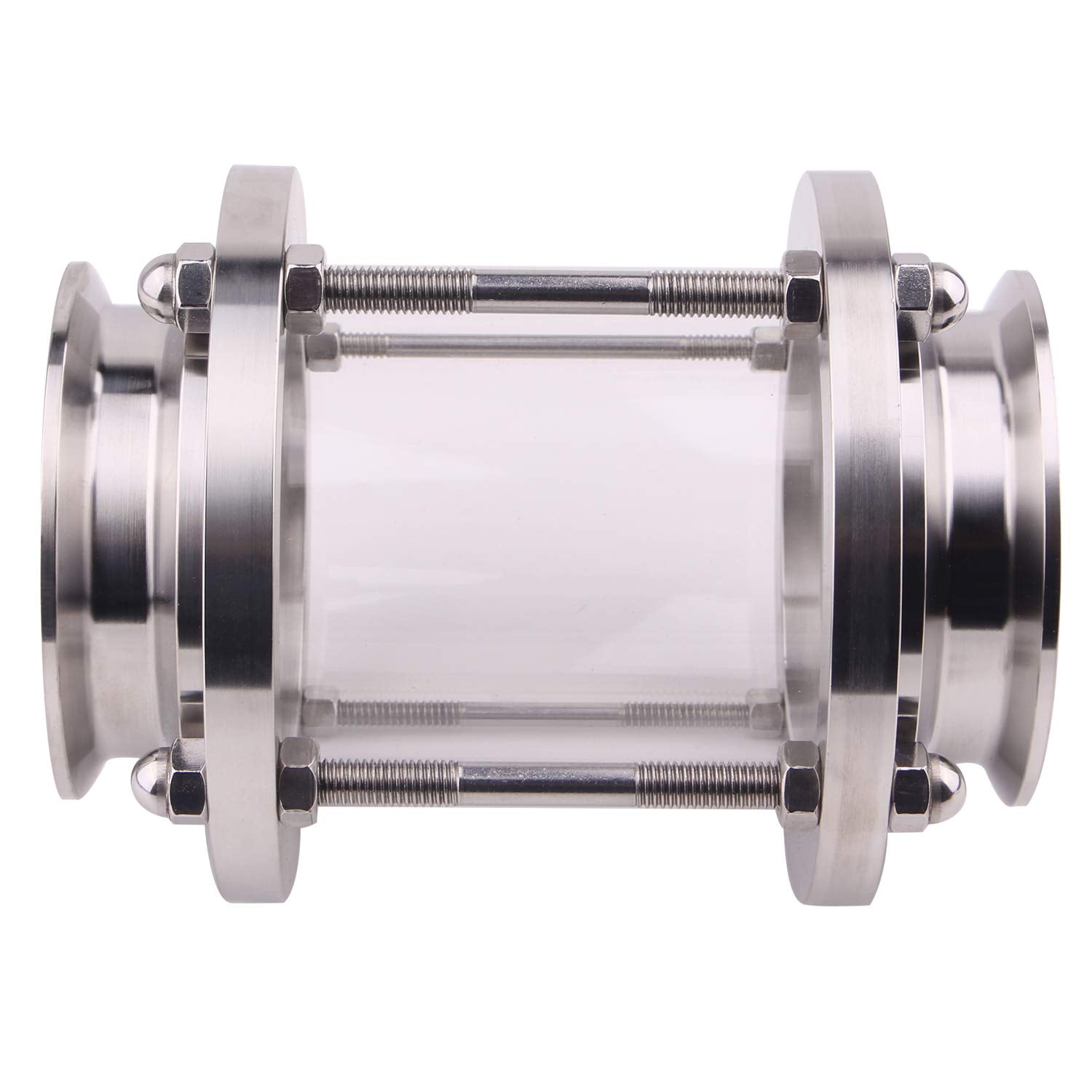

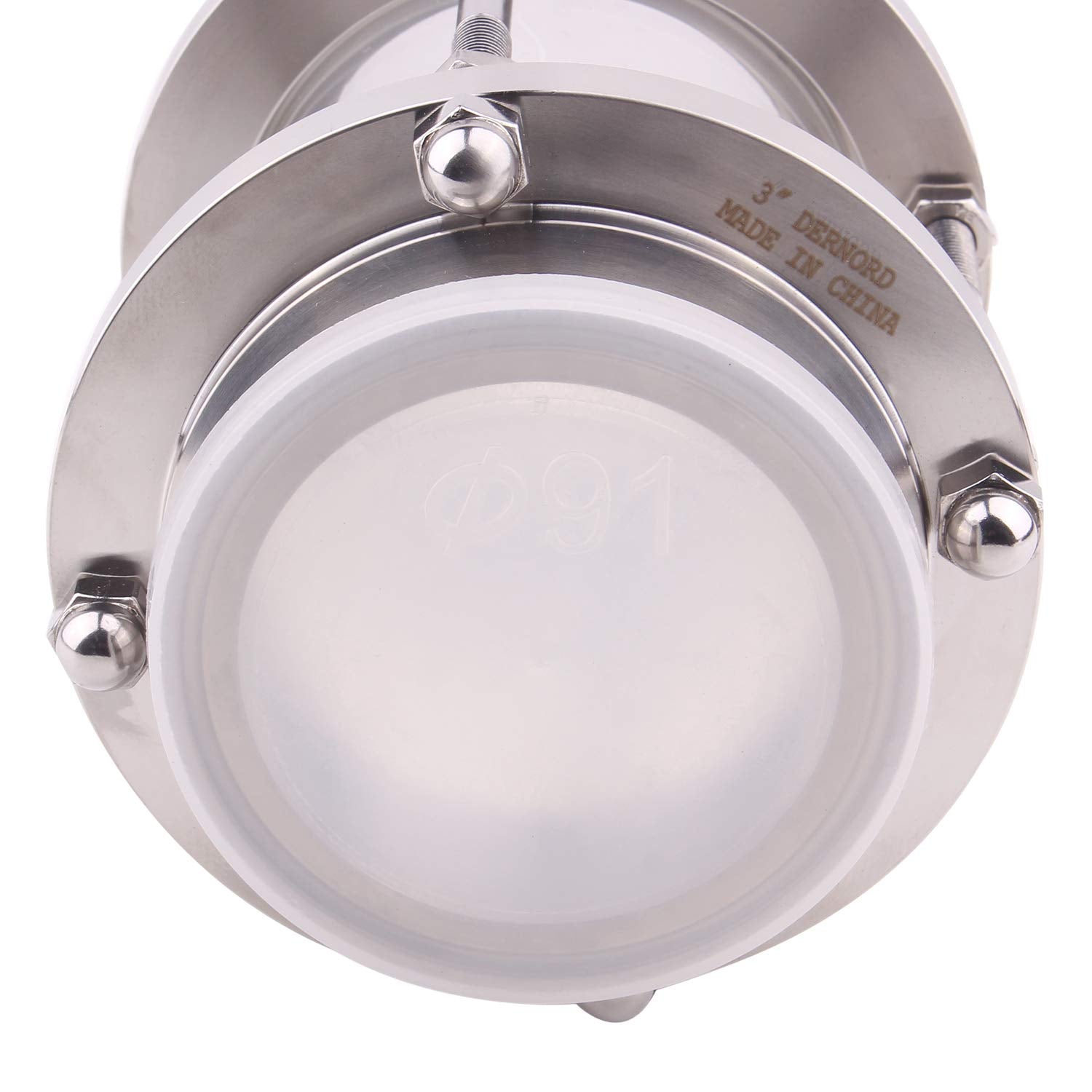

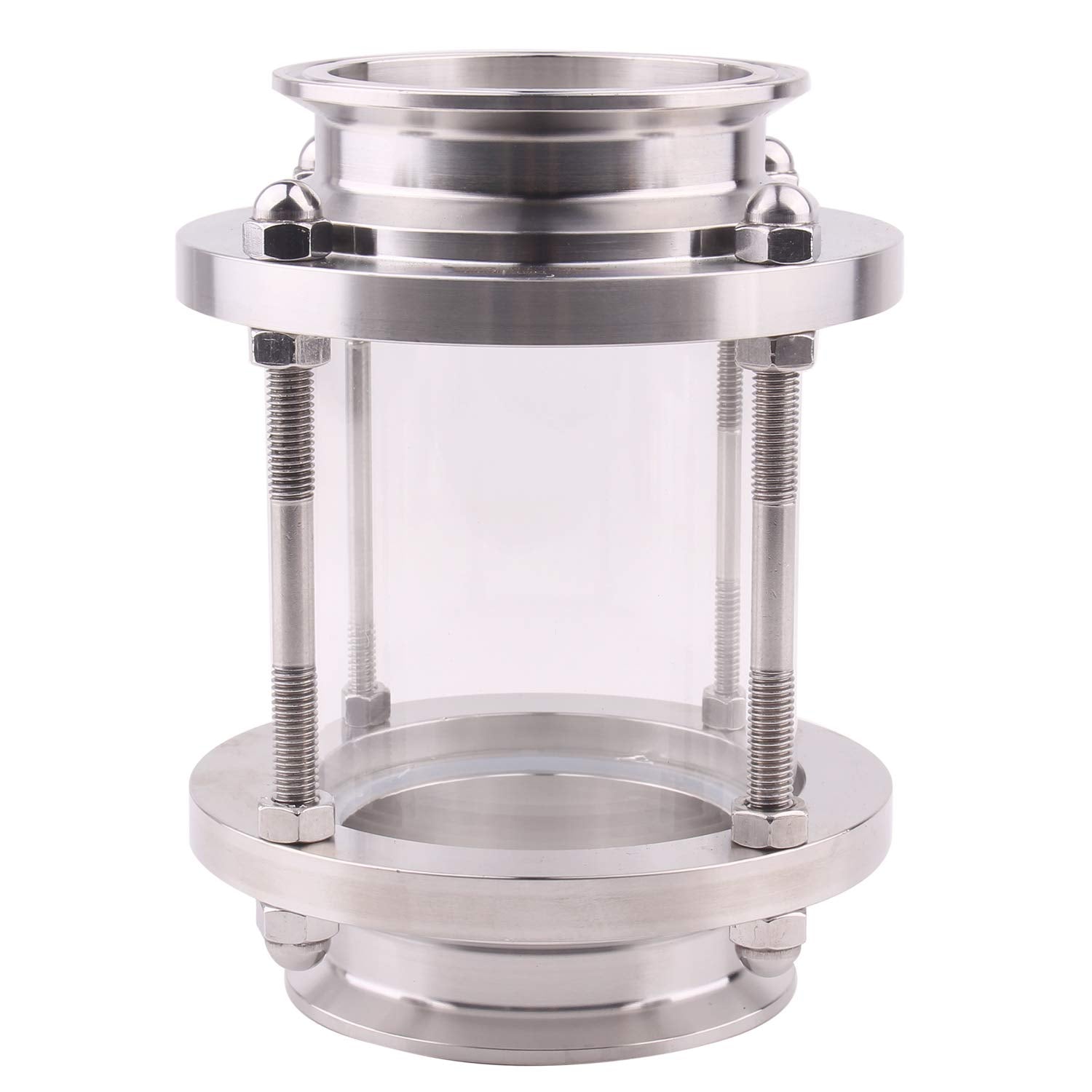

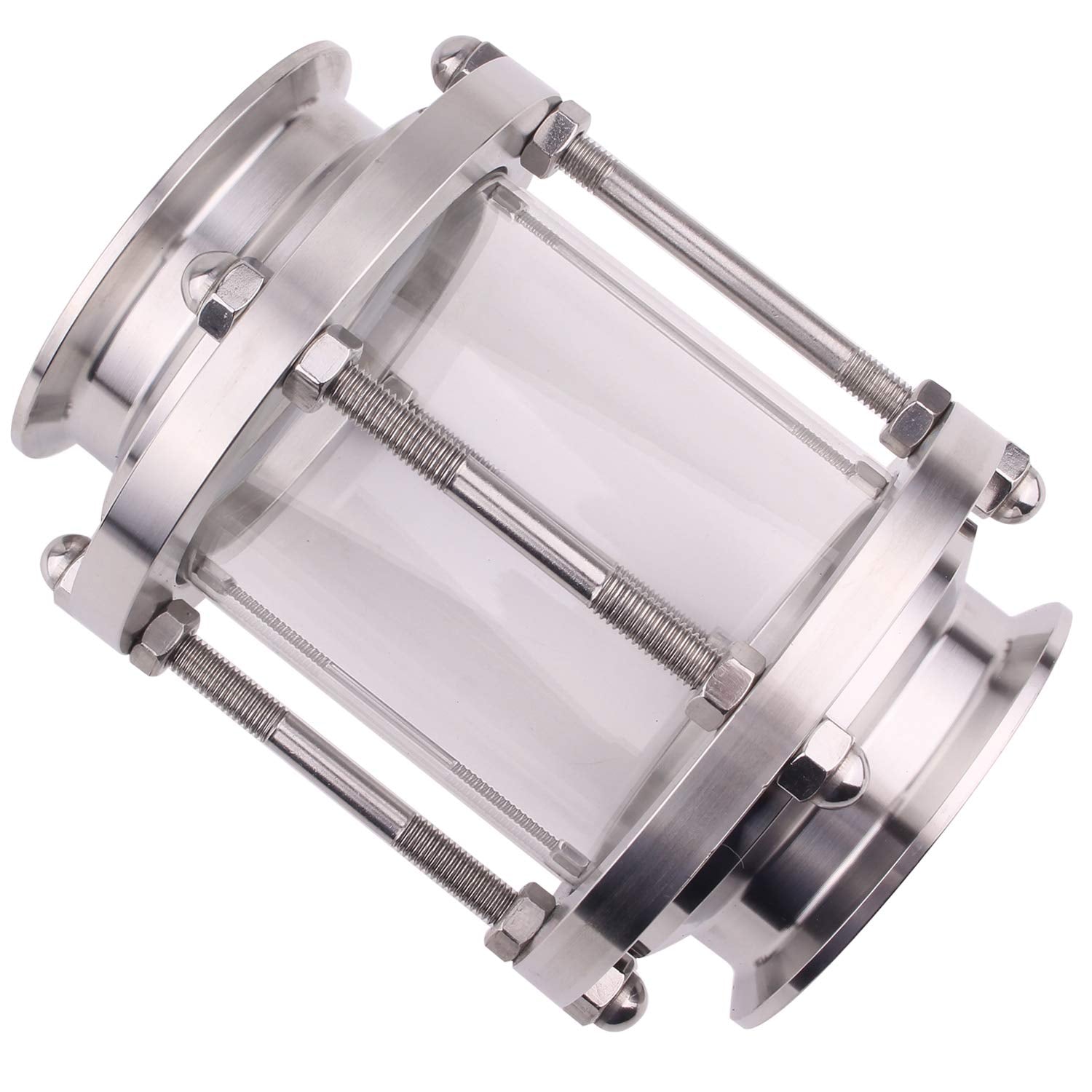

DERNORD In-Line Sight Glass with Clamp End,Flow Sanitary Straight Sight Glass SUS316 3 Inch Tri Clamp Type (Flow Pipe OD 76MM)

Brand: DERNORD

Color: Silver

Features:

• In-light Sight Glass Flow Pipe OD:76MM, Ferrule OD:89MM, Fits Tri-clamp:3"
• Max Pressure: 120 PSI,Max Temperature: 300 Fahrenheit
• In-line Sight Glass with Clamp End, SUS316 body material
• Full bore design,Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position
• The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries

model number: DERNORD-648

Part Number: DERNORD-648

Package Dimensions: 7.7 x 5.6 x 5.5 inches
