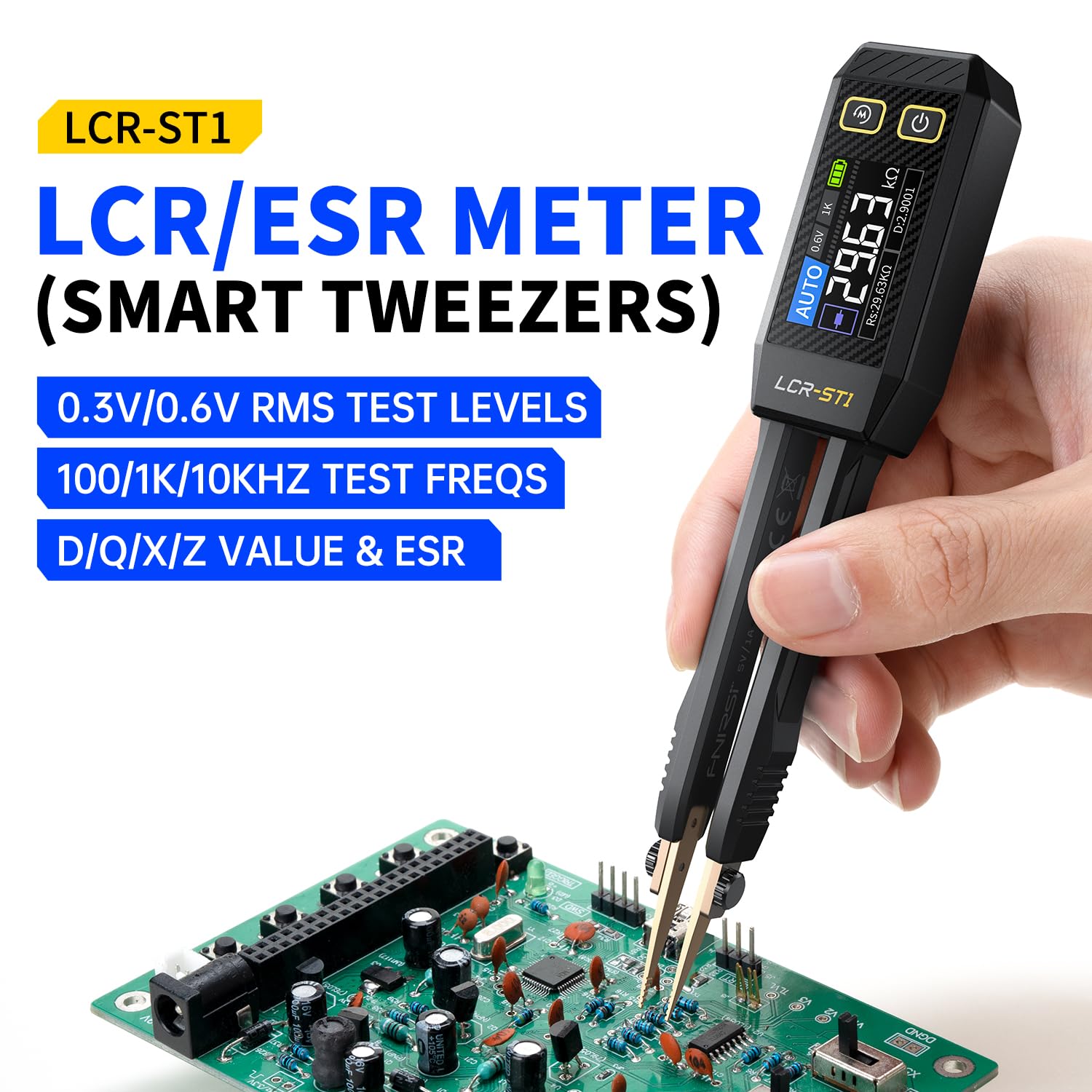

【LCR Tweezer Tester】The FNIRSI LCR-ST1 is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes

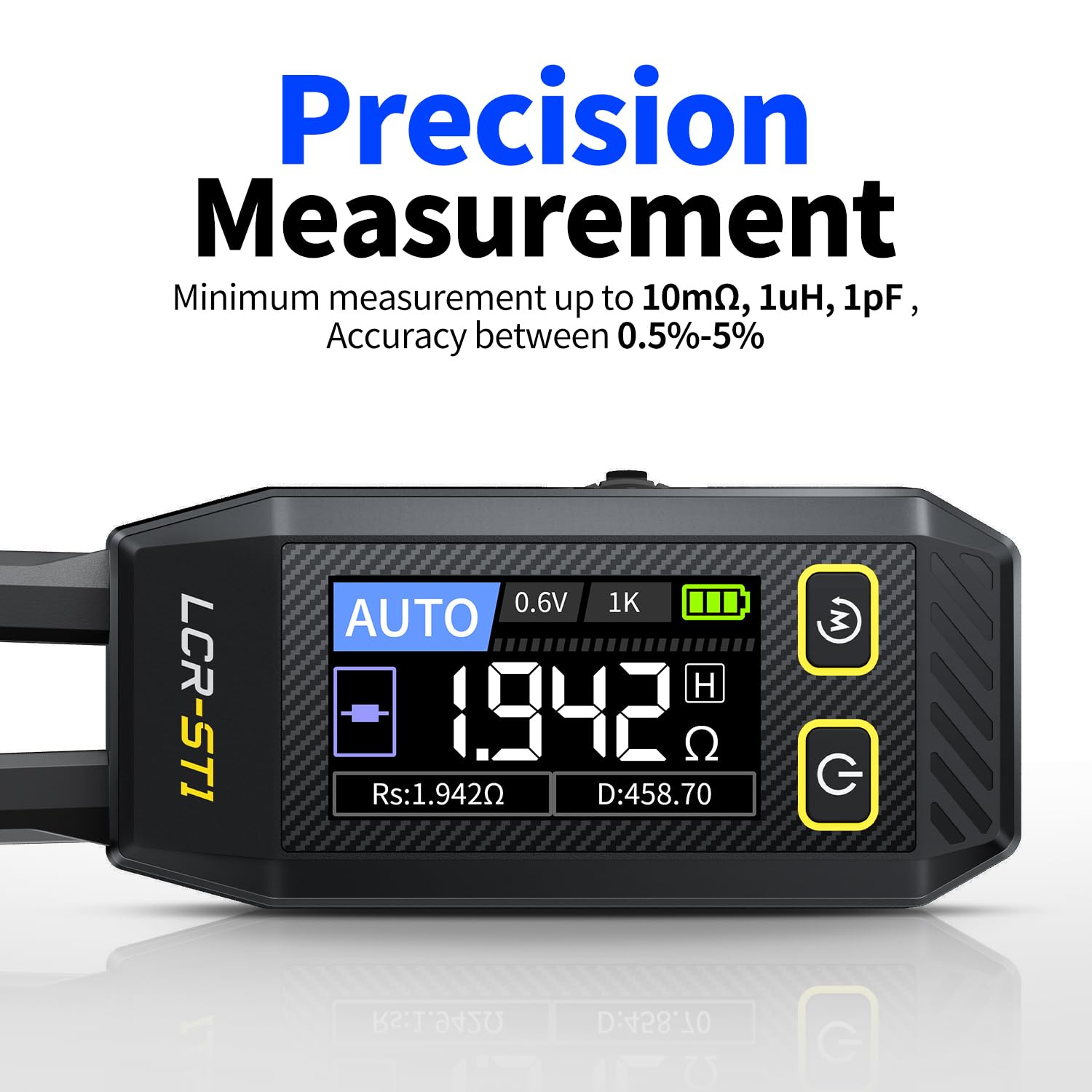

【Measurement Range】3 test frequencies – 100 Hz, 1 kHz, 10 kHz. 2 test voltage - 0.3 Vrms, 0.6 Vrms. R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H

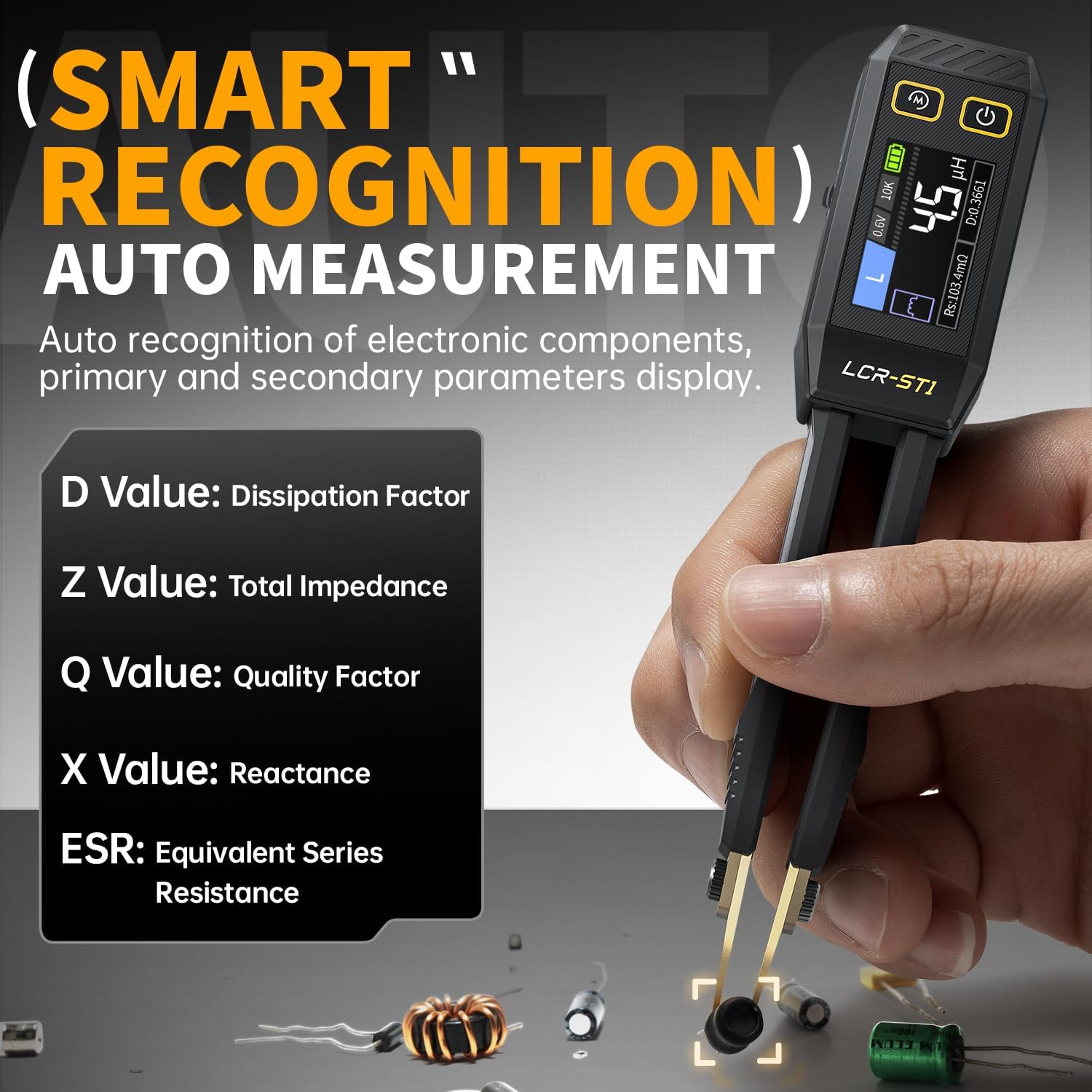

【Multiple functions】D, Z, Q, R, ESR value reading. Auto recognition of elecronic components, primary and secondary parameters display. 1.14'' HD color display, is easy to operation

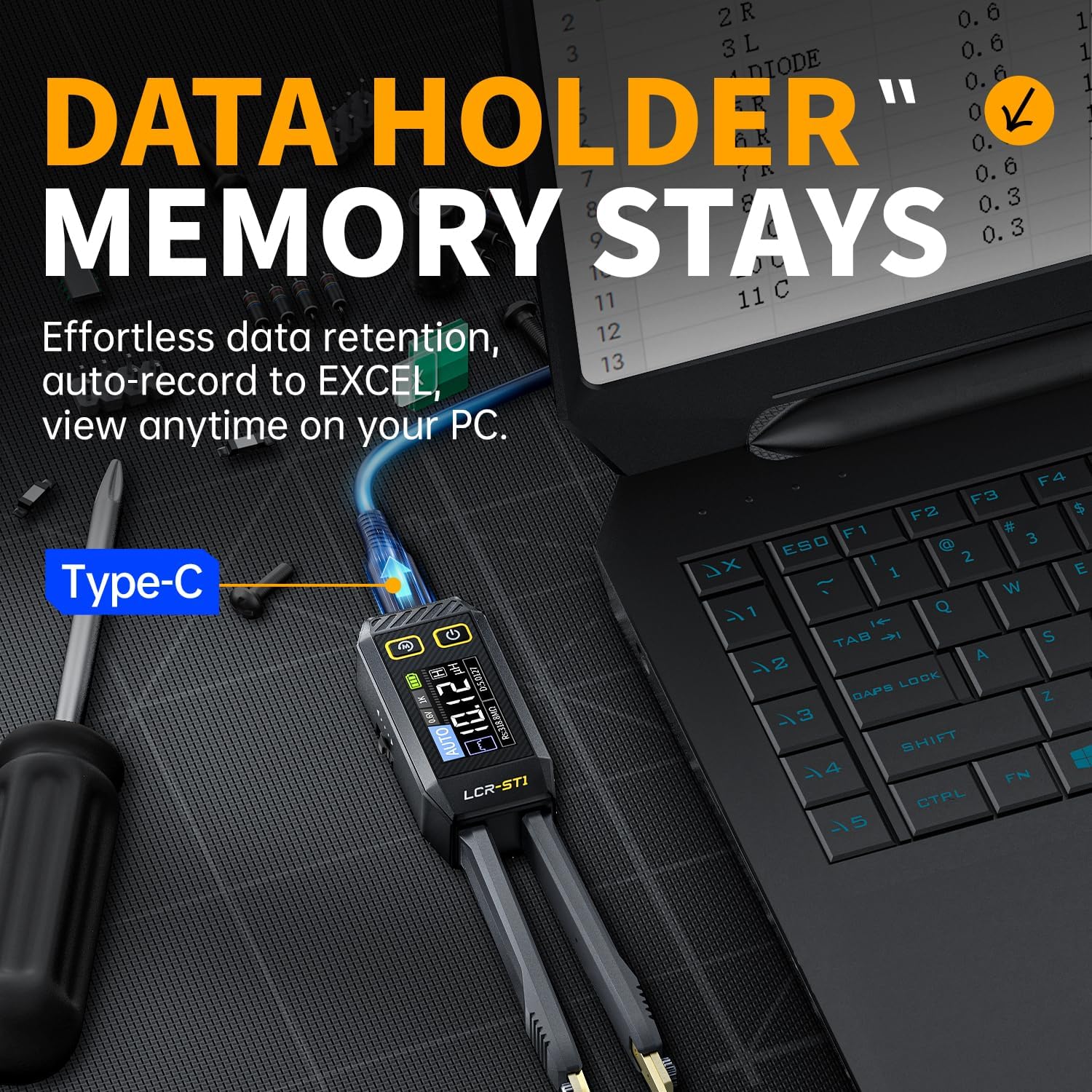

【Data Storage and Export】The LCR tester can automatically save the test records. And you could connect the tester to your PC and transfer all the data to PC via EXCEL

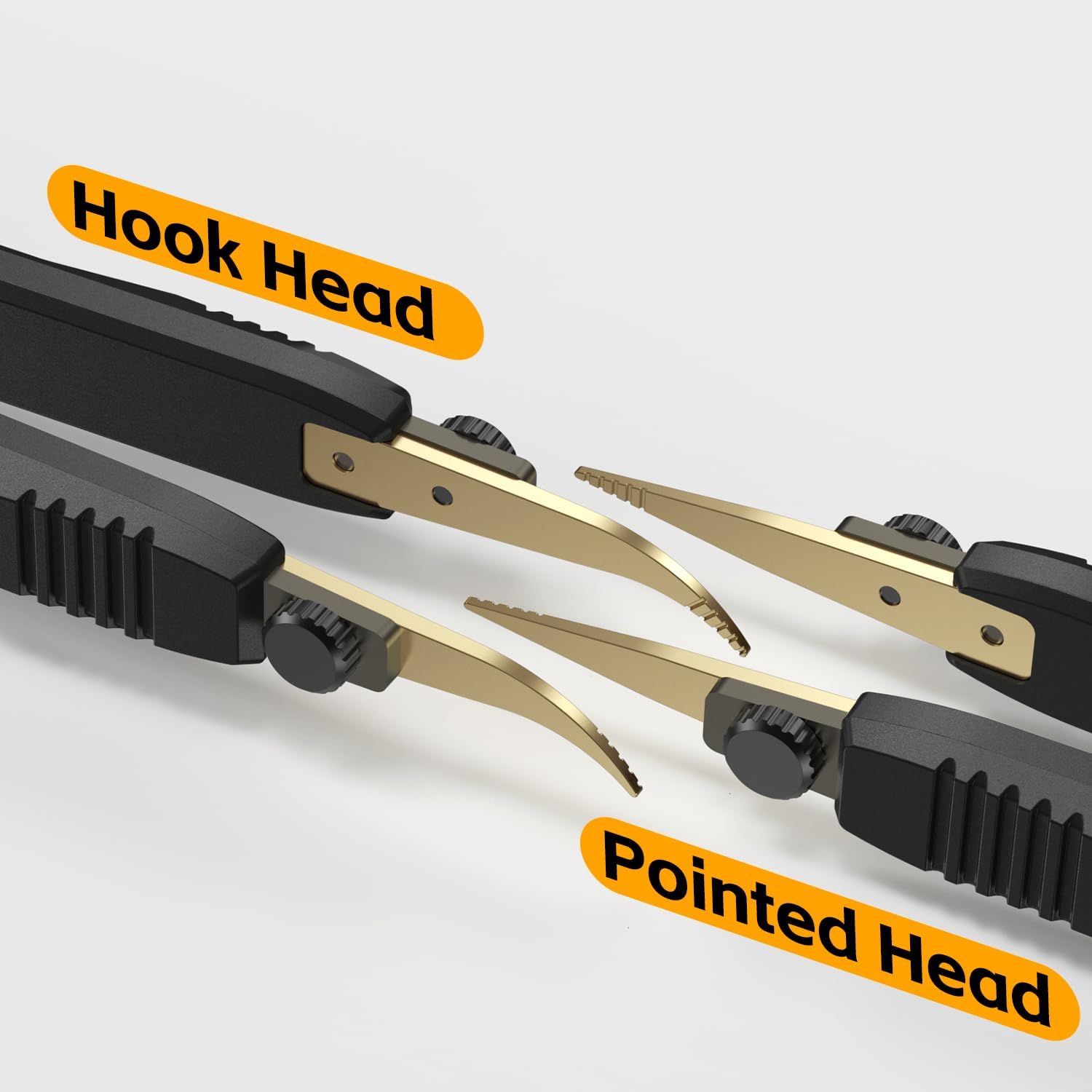

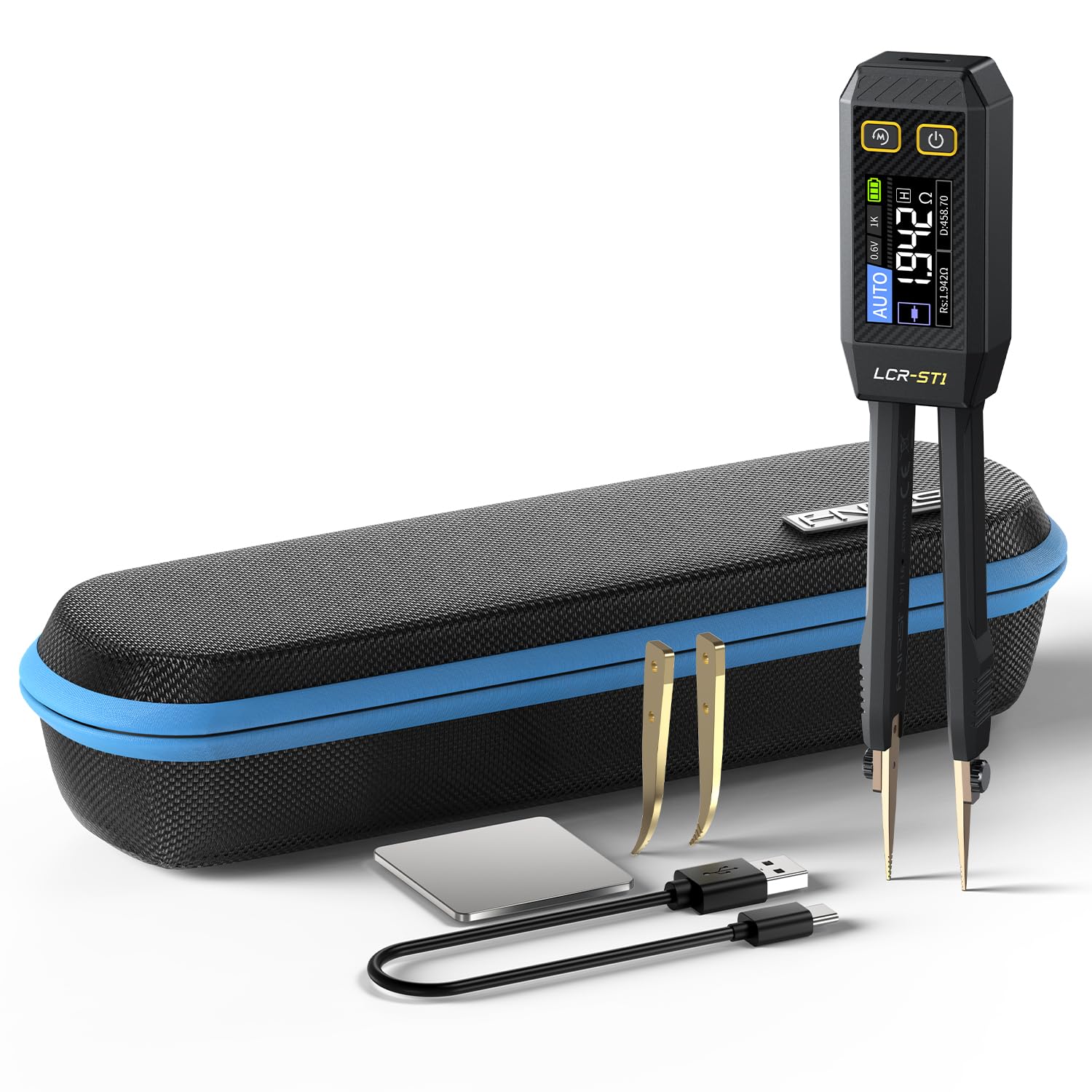

【2 Types of Tweezer Heads】With pointed head and hook head, it is convenient to test different types of products. It is equipped with a storage bag and can be charged via a data cable

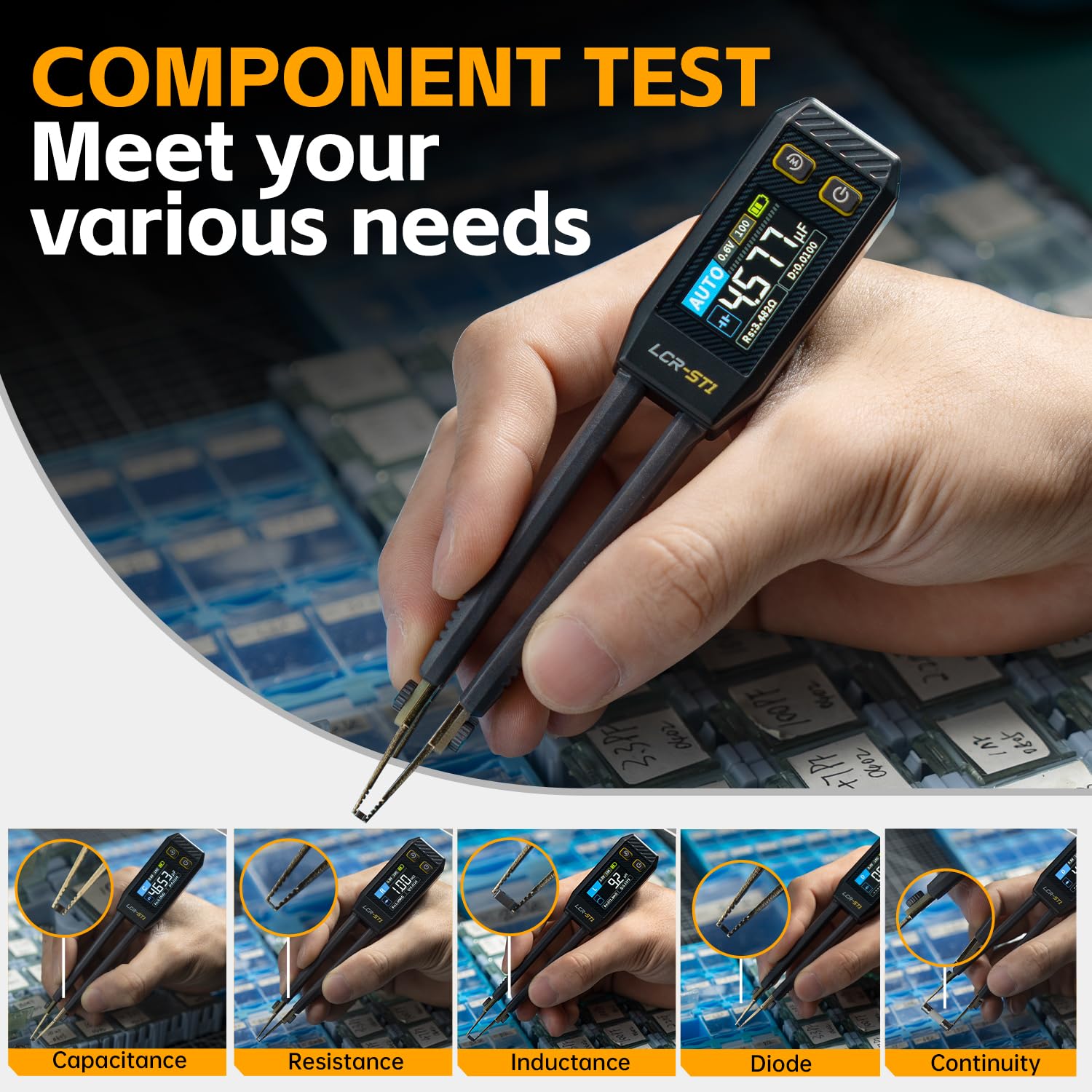

【Wide Application】Quickly detects defective components, perfect for SMD repairs, efficiently locates circuit board faults, and easily recovers parts from used boards
