FNIRSI USB Tester 4-24V 6.5A LCD USB A&C Voltage Current Power Display Multimeter with App Software, Fast Charge Detection Trigger, PD2.0/PD3.0,QC2.0/QC3.0, CNC Metal Shell

Brand: FNIRSI

Color: blue

Features:

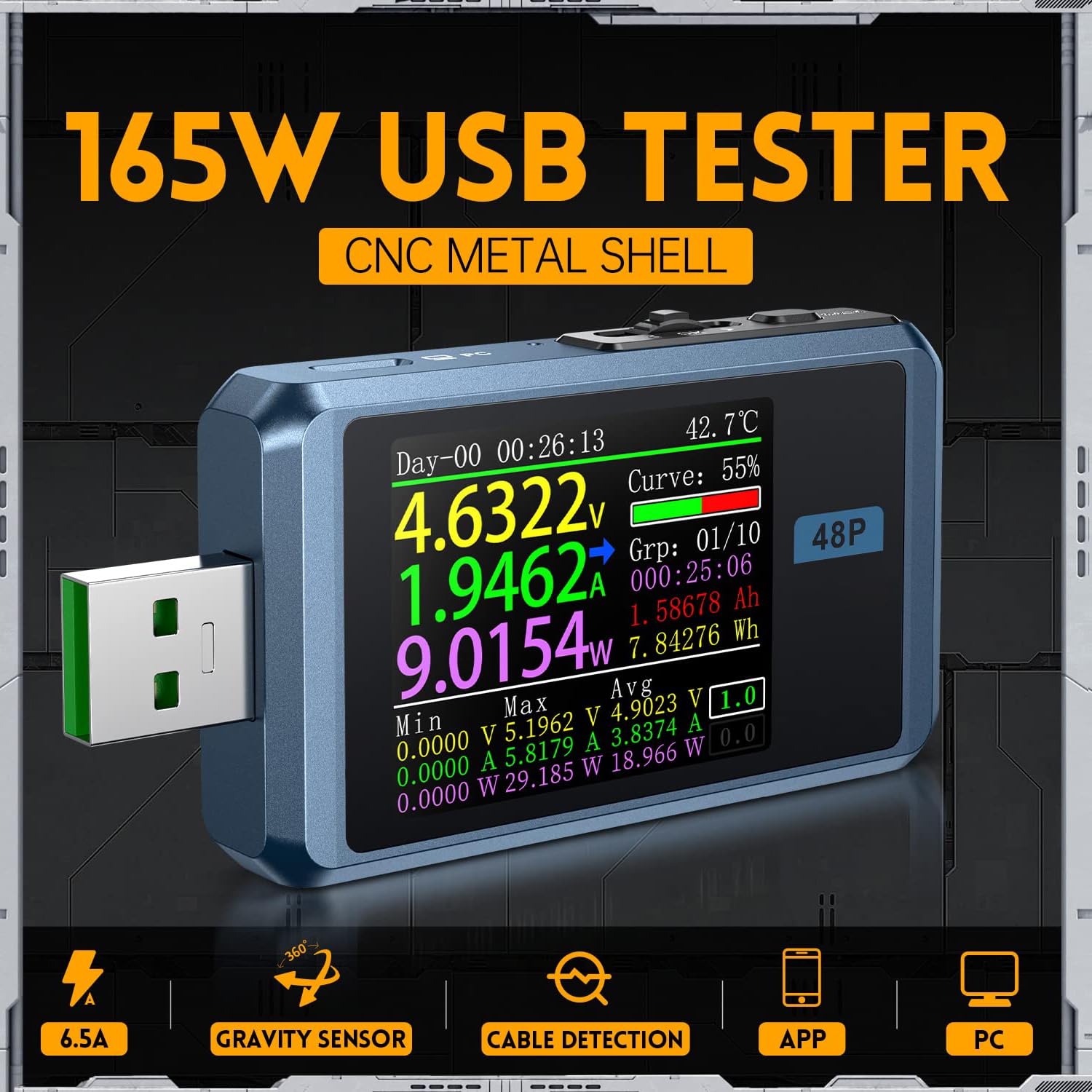

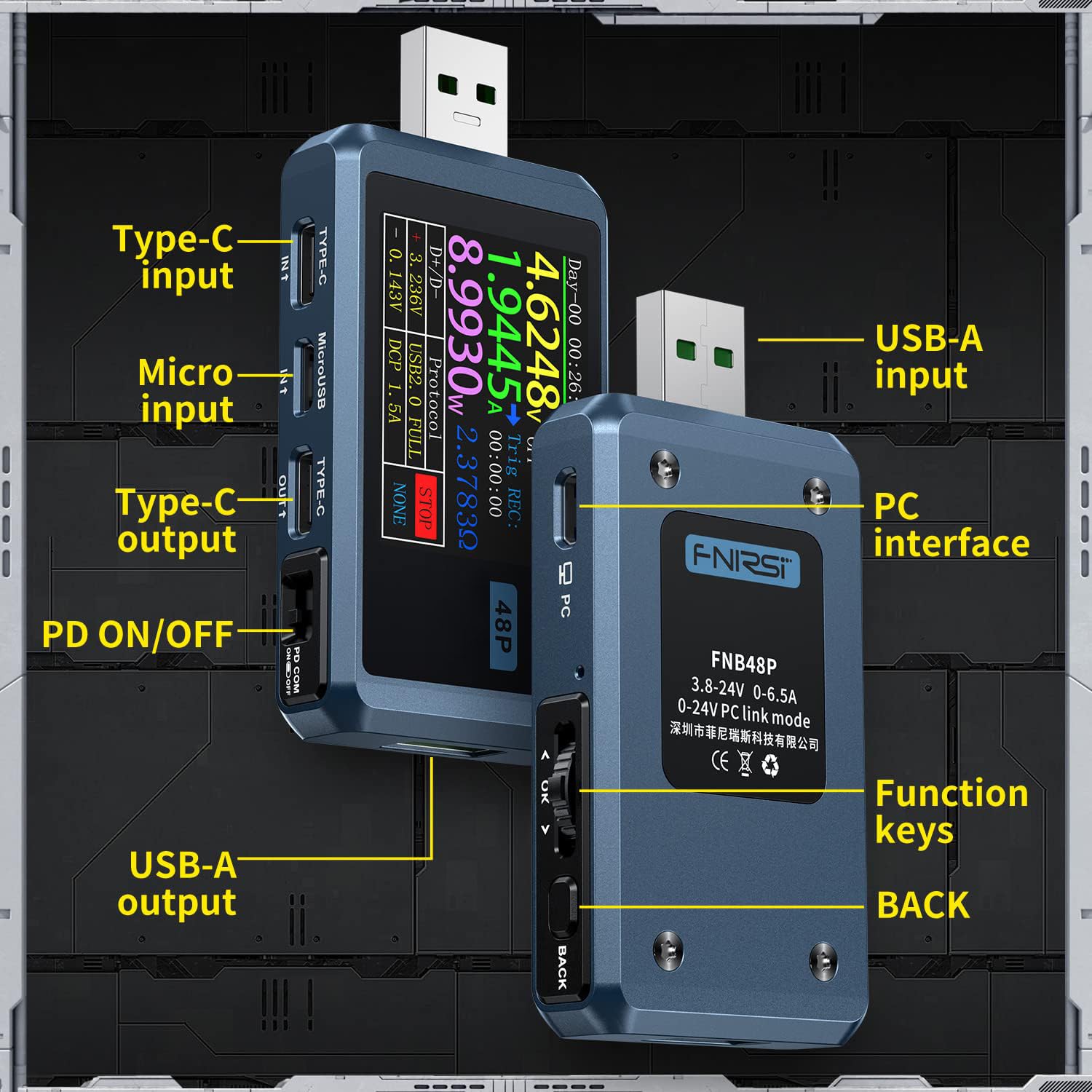

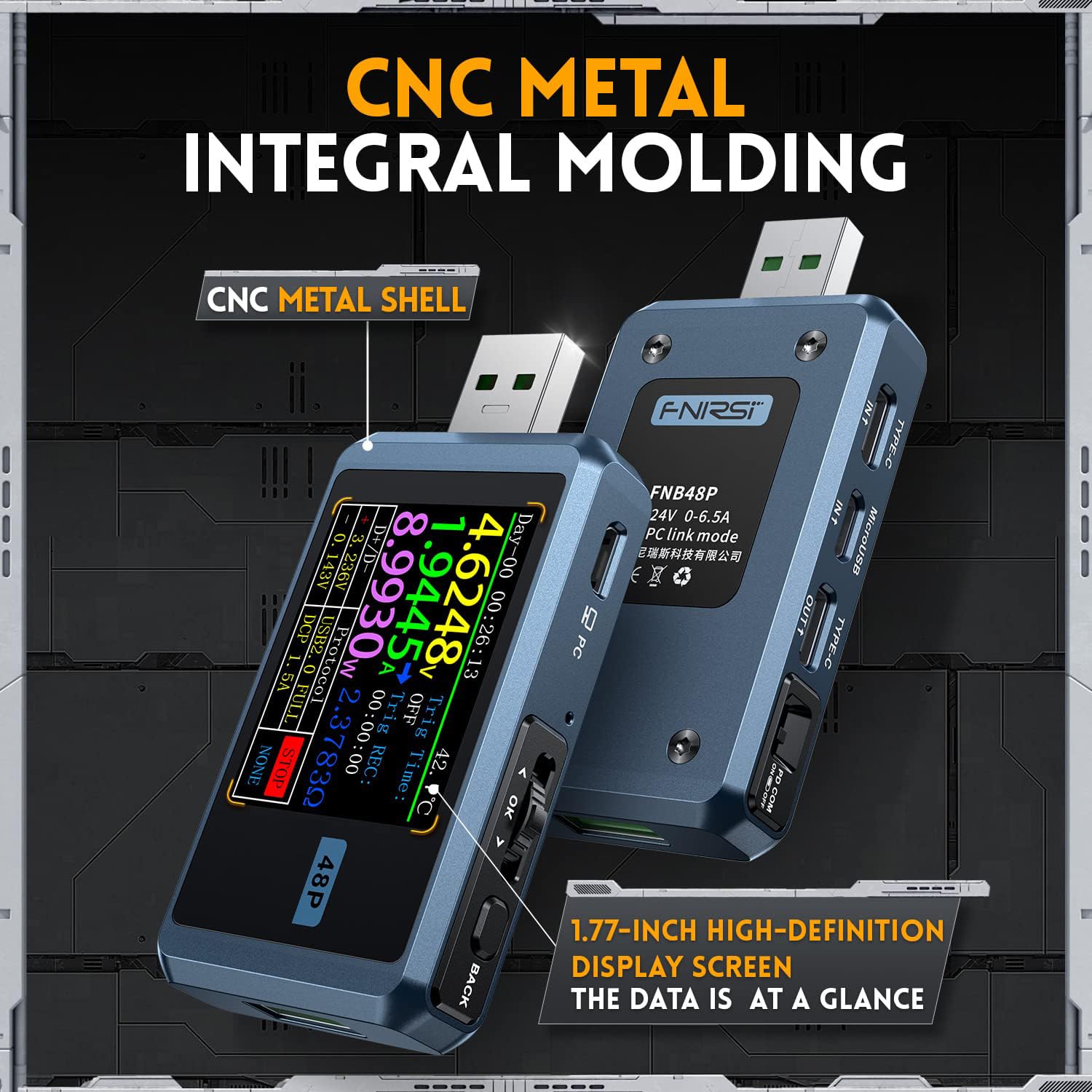

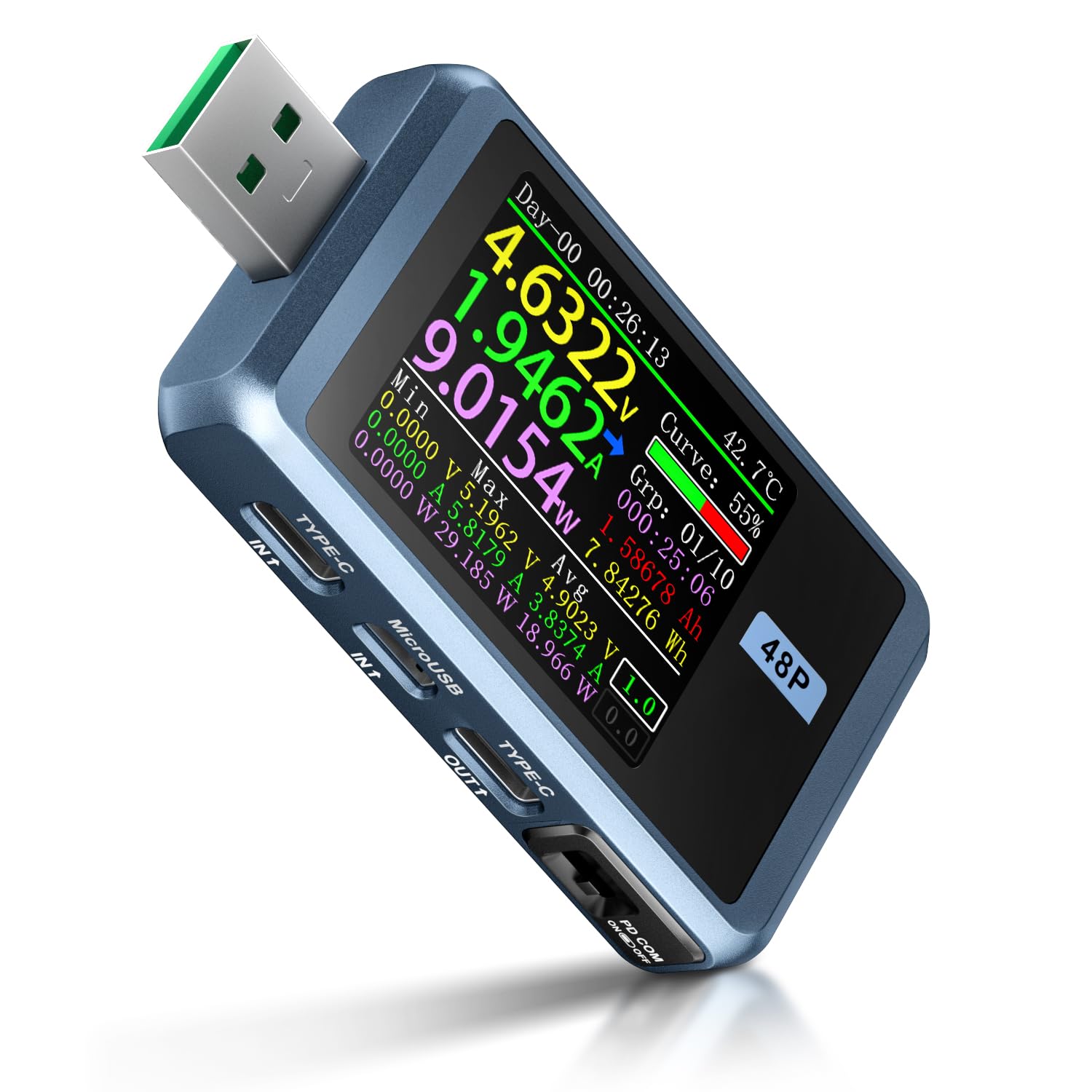

• 【Updated Designed USB Tester】FNIRSI FNB48P USB tester has a 1.77-inch full-color ultra-wide viewing angle TFT LCD display and APP software, integrated USB-A, Micro-USB, Type-C interface. Gravity sensor, automatically switch the display direction

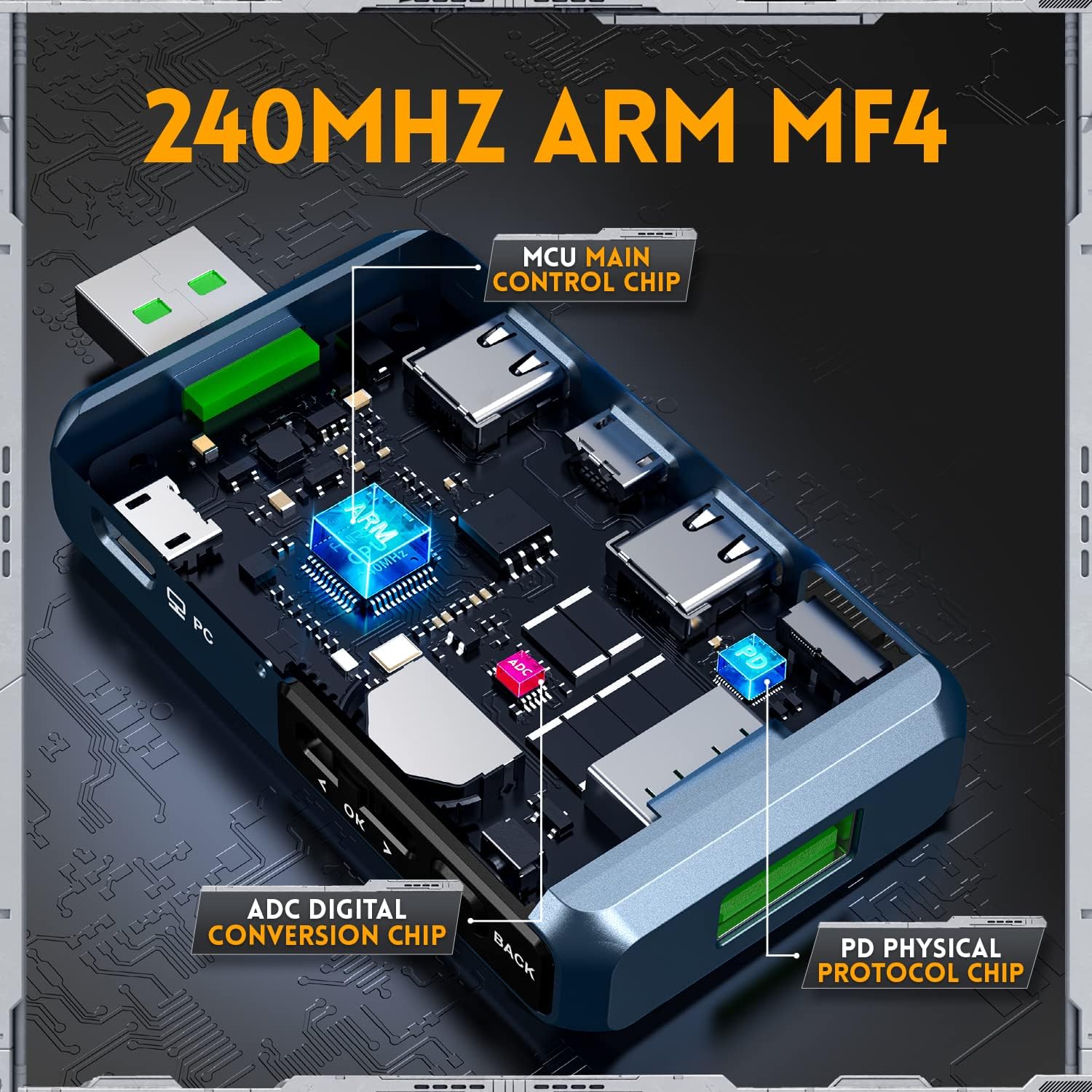

• 【Multifunction USB Digital Tester】FNB48P uses external 16-bit ADC, PD protocol physical chip. It can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers

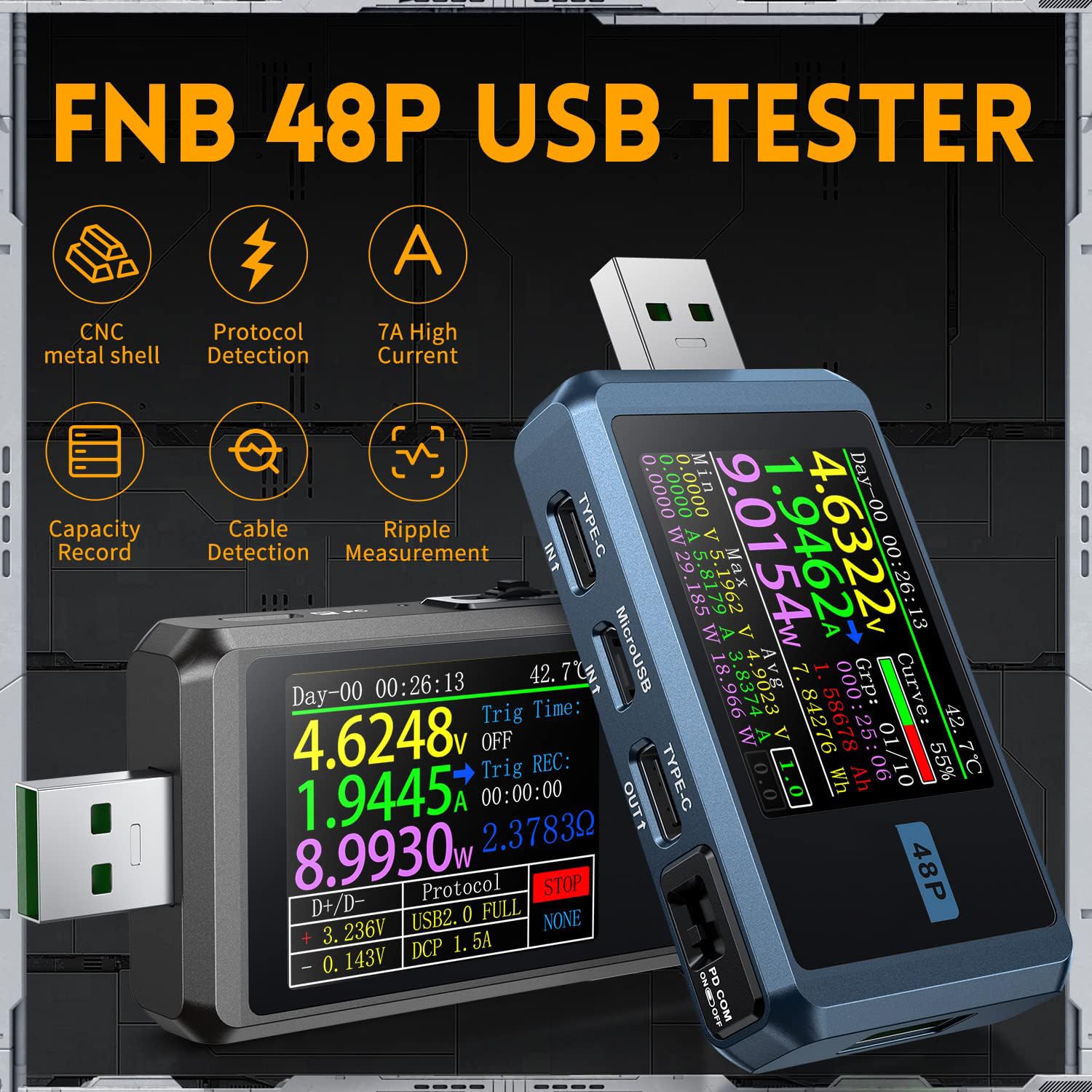

• 【Fast Charge Protocol Trigger Detection】FNB48P supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger

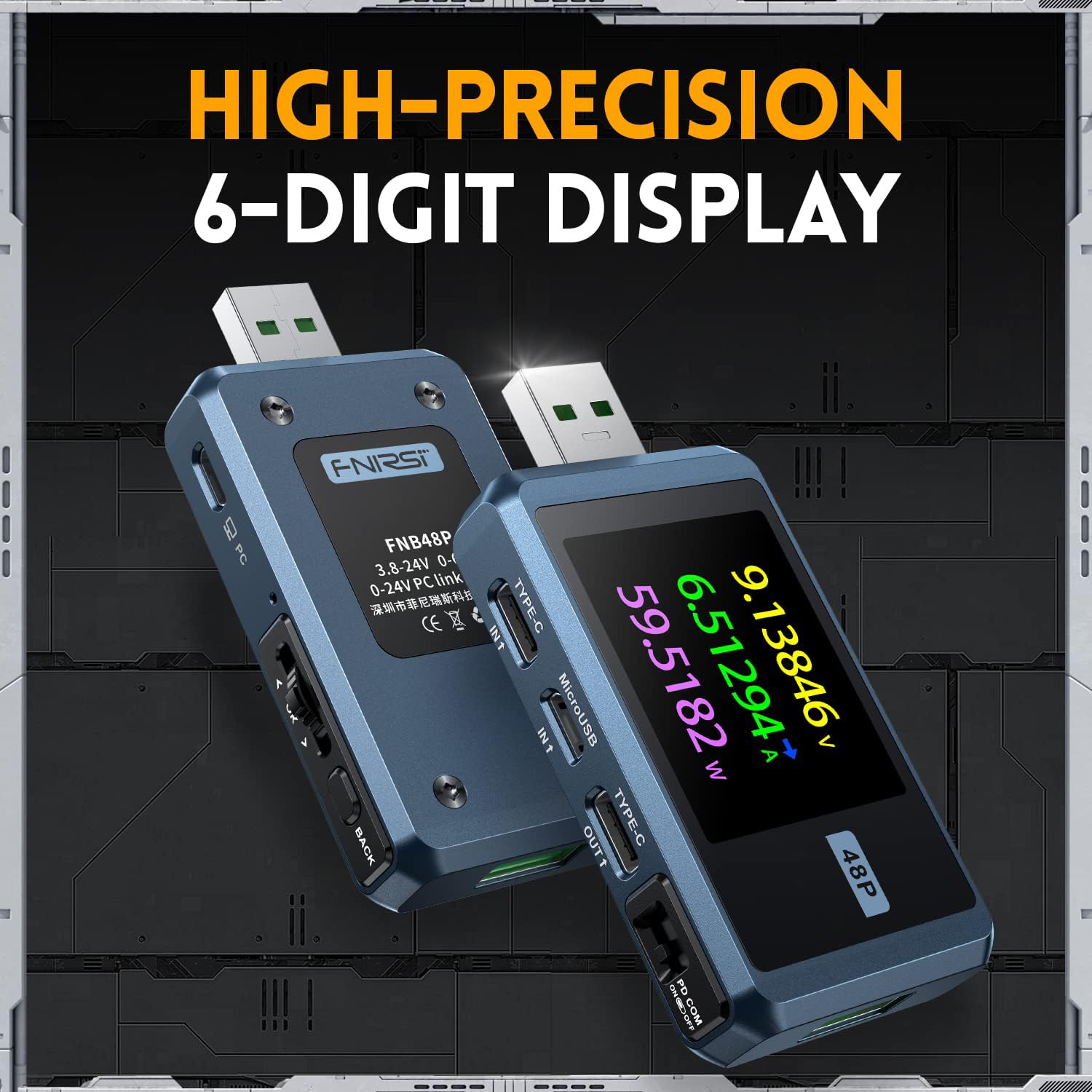

• 【Parameter Detection and Recording】The highest six-digit display of voltage, current and power, the highest resolution is 0.00001 (V/A/W). 10 sets of switchable capacity, power and time statistics. 1 set of voltage and current curve records
• 【Other detection functions】The internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
• 【Widely Use】It can be used to measure the power supply or power consumption such as USB interfaces, mobile phone chargers, and U disks.Support low waveform drawing, 2sps->100sps sampling rate. Support high ripple drawing up to 3.2M sps sampling rate

model number: FNB48P

Part Number: FNB48P

Package Dimensions: 4.6 x 3.3 x 1.0 inches
