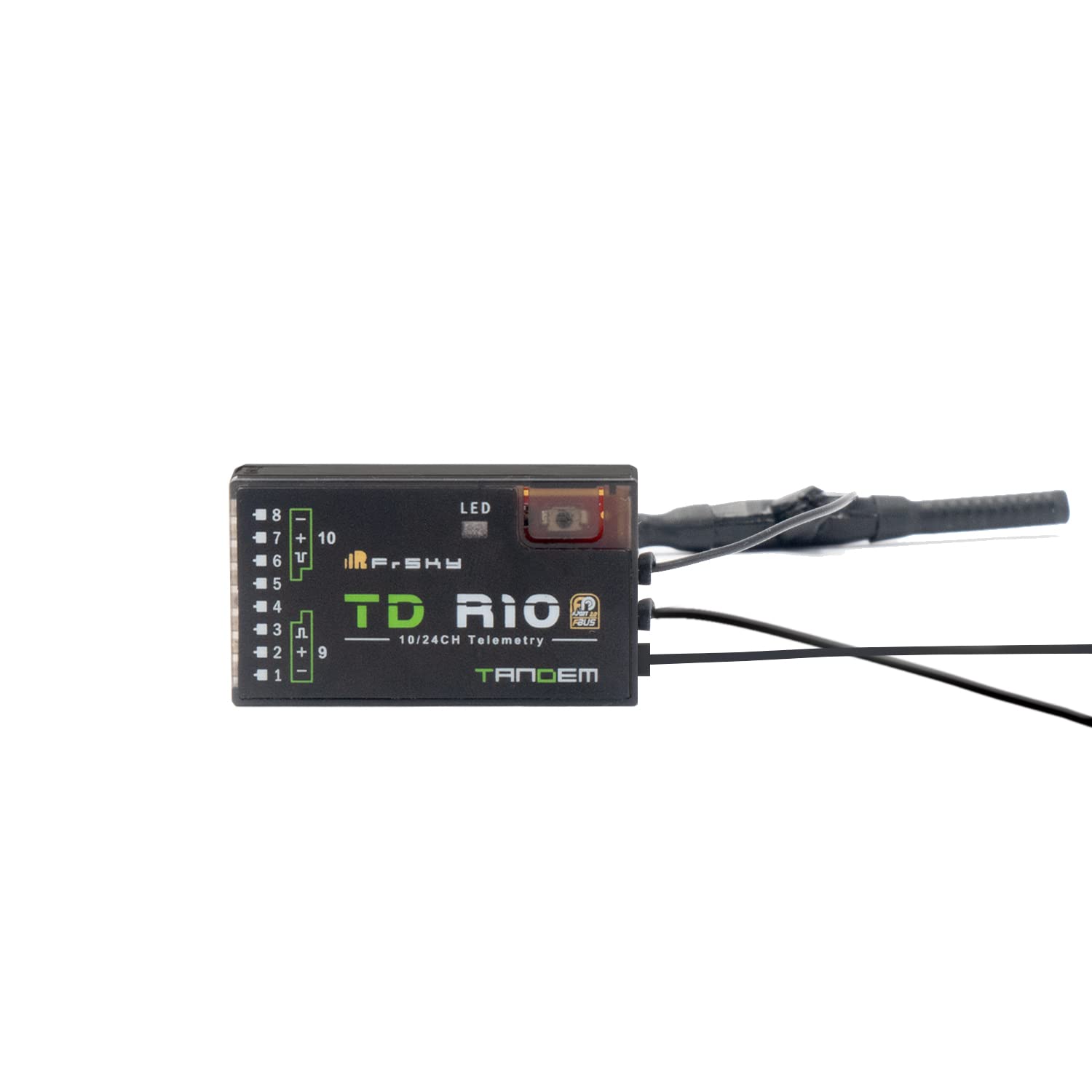

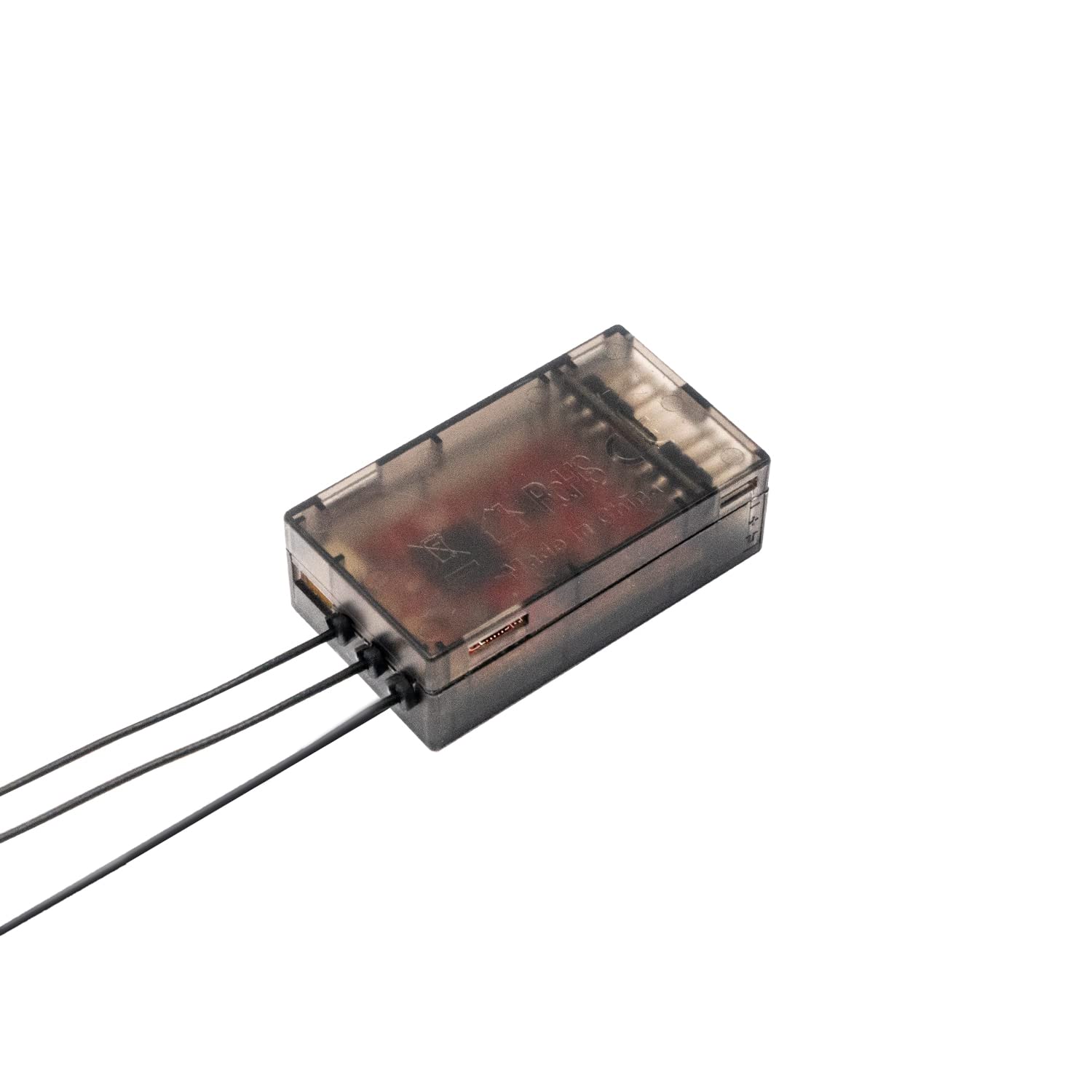

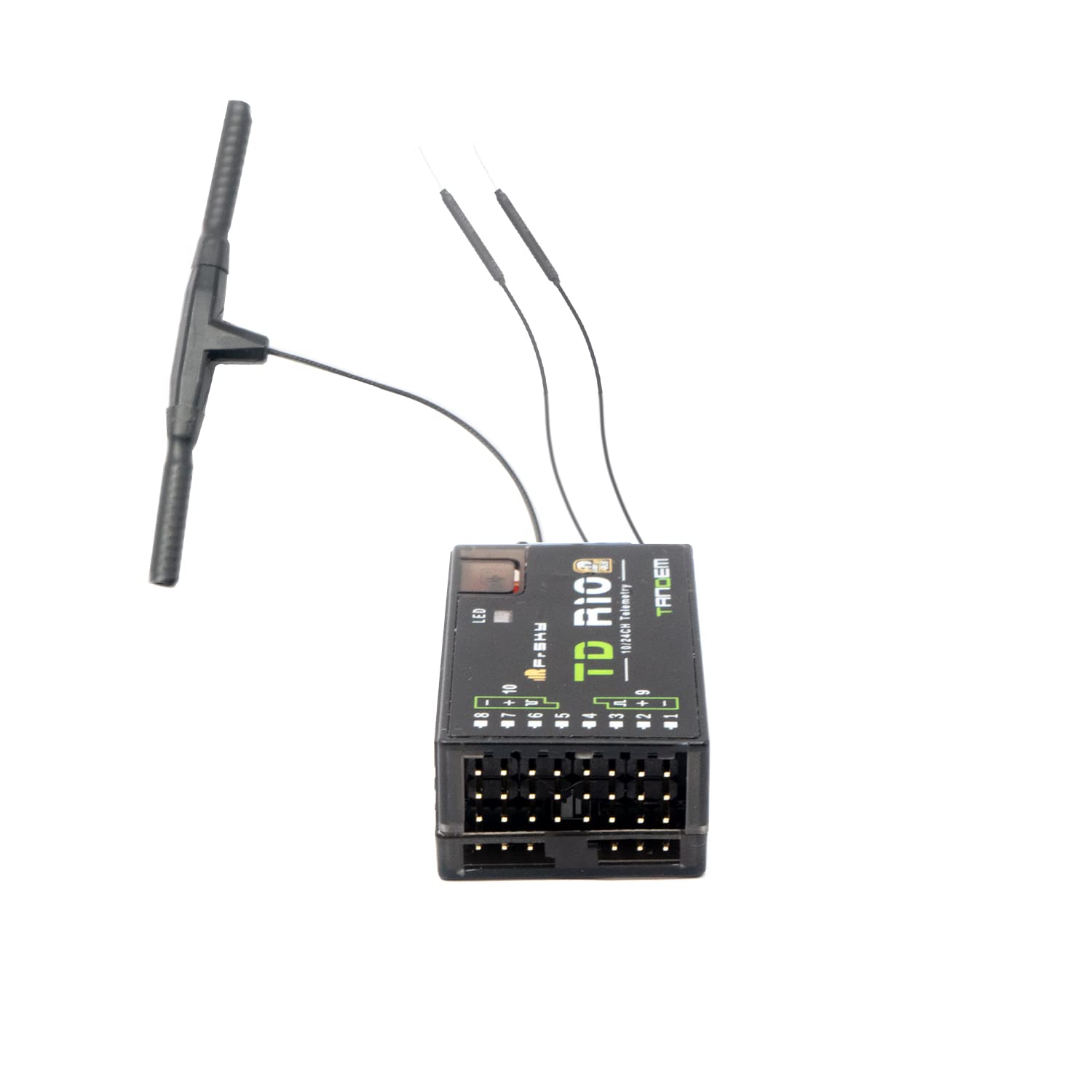

FrSky TD R10 Triple Antenna Compatible with 900Mhz and 2.4Ghz 10 Channel Low Latency Signal and Long-Range Receiver

Brand: FrSky

Color: black

Features:

• Simultaneous working dual-band TD mode Triple antenna design for multi-directional coverage Black Box function Built-in voltage sensor
• 4ms Race Mode with Telemetry Long control range (up to 50KM – 100KM) Over-The-Air (OTA) FW update
• Supply current range（every single port） ◦ Instantaneous current:5A ◦ Continuous current:3A 10 Configurable Channel Ports ◦ CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In ◦ CP2-10: PWM / SBUS Out / FBUS / S.Port
• Frequency: 2.4GHz & 900MHz Dimension: 46.5*26.3*14.7mm (L*W*H) Weight: 16.6g Operating Voltage: 3.5-10v DC Operating Current: ≤180mA@5V
• Compatibility: Tandem series transmitter & TD protocol capable RF module Triple 2.4G/900M Antenna ◦ 2* External 2.4G antenna (IPEX1) ◦ 1* External 900M antenna (IPEX1)

Binding: Electronics

model number: 03022021

Part Number: 03022021

Package Dimensions: 4.1 x 3.0 x 1.3 inches
