JRready ST6385-20-50 Red Heat Shrink Butt Splice Connector 26-20 AWG (M81824/1-1 Equivalent), Waterproof Non Insulated Butt Connectors with Copper Splice Connectors and PVDF&PE Heat Shrinkable Tubes

Brand: JRready

Color: 20#Red-50Sets

Features:

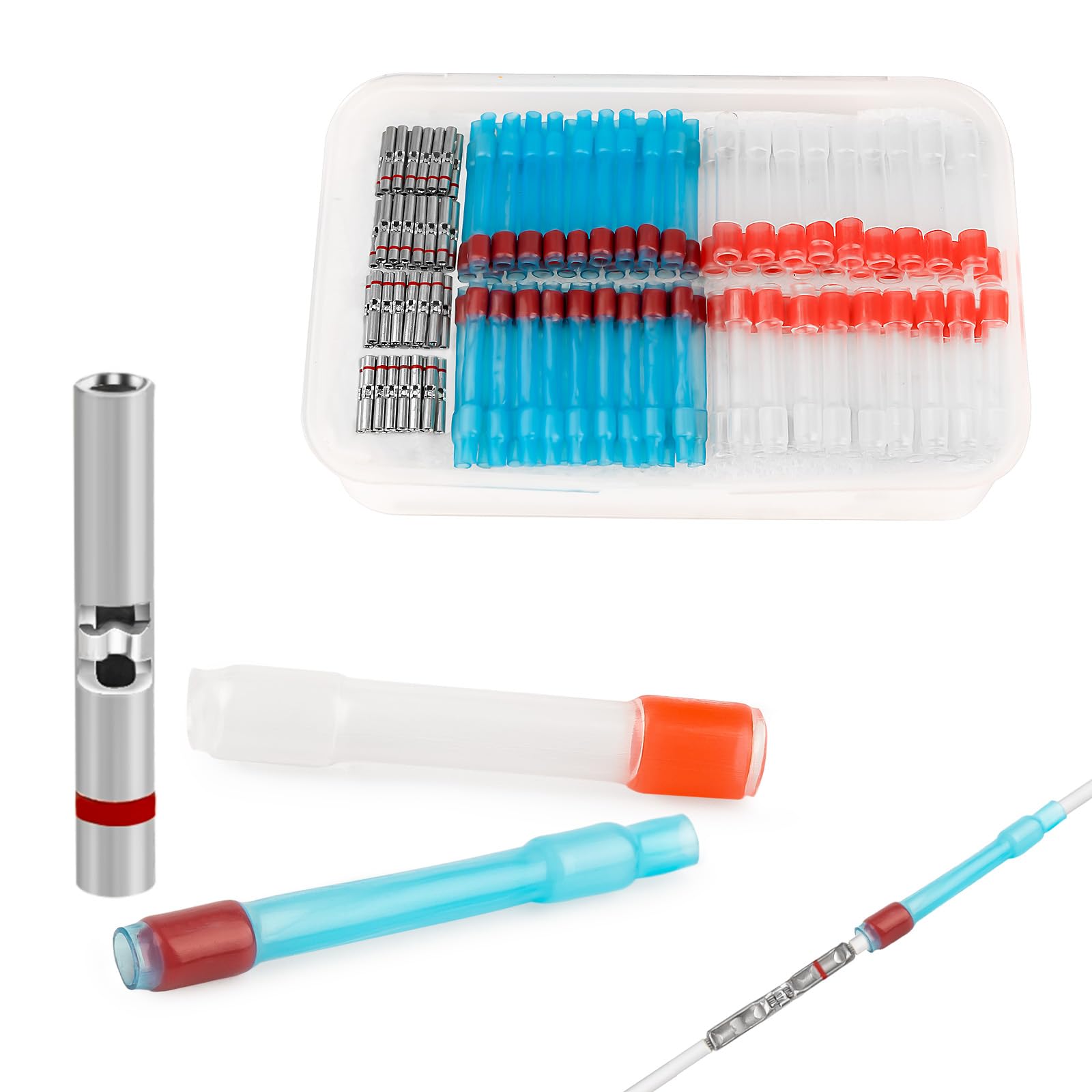

• Packaging Includes: The butt wire splice kit contains 50 pcs red copper splice connectors (26-20 AWG), 50 pcs PVDF insulation sleeves, and 50 pcs PE insulation sleeves.

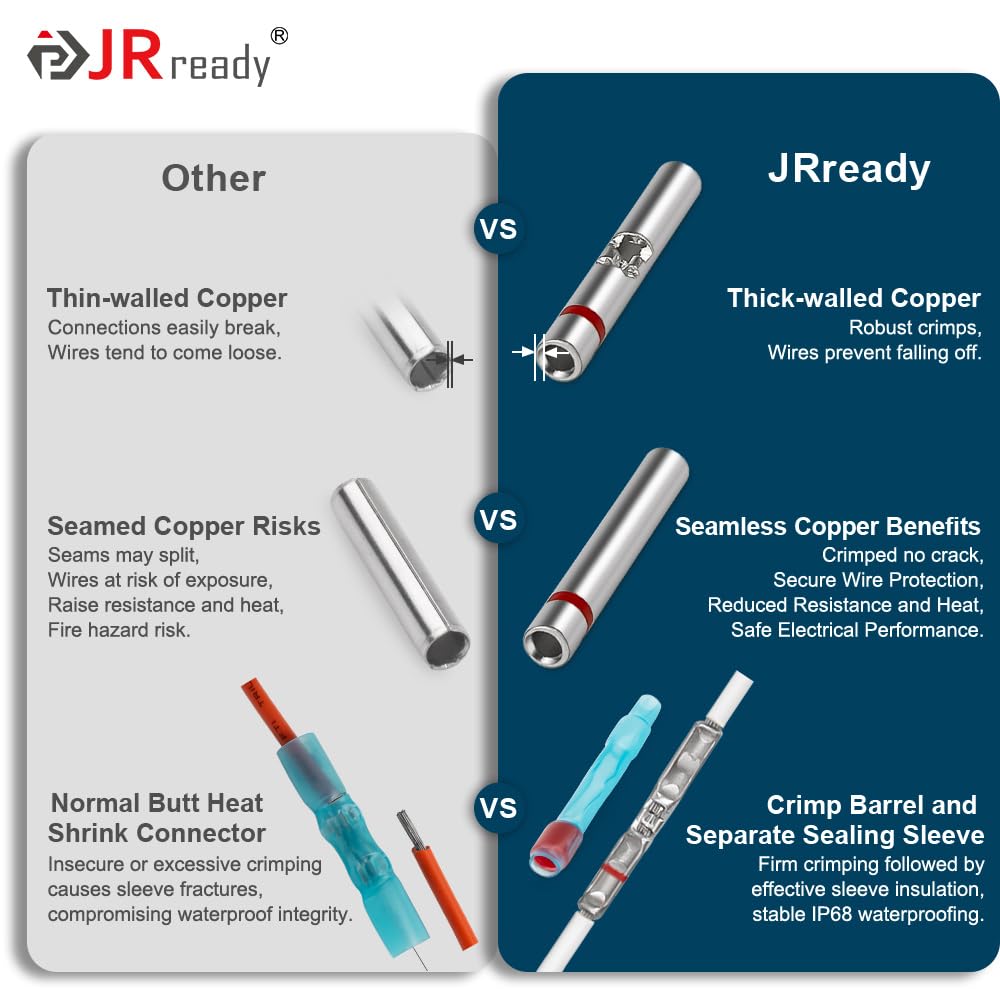

• Durably Built: This butt splice connectors kit includes 50 pcs of copper splice connectors suitable for 26-20 AWG (M81824/1-1). Crafted from robust seamless copper tubes with a 99.9% pure copper structure for excellent conductivity, and processed with a special heat treatment, they ensure secure, crack-free crimping. The butt wire splice connectors also feature a clear window design for easy wire inspection.

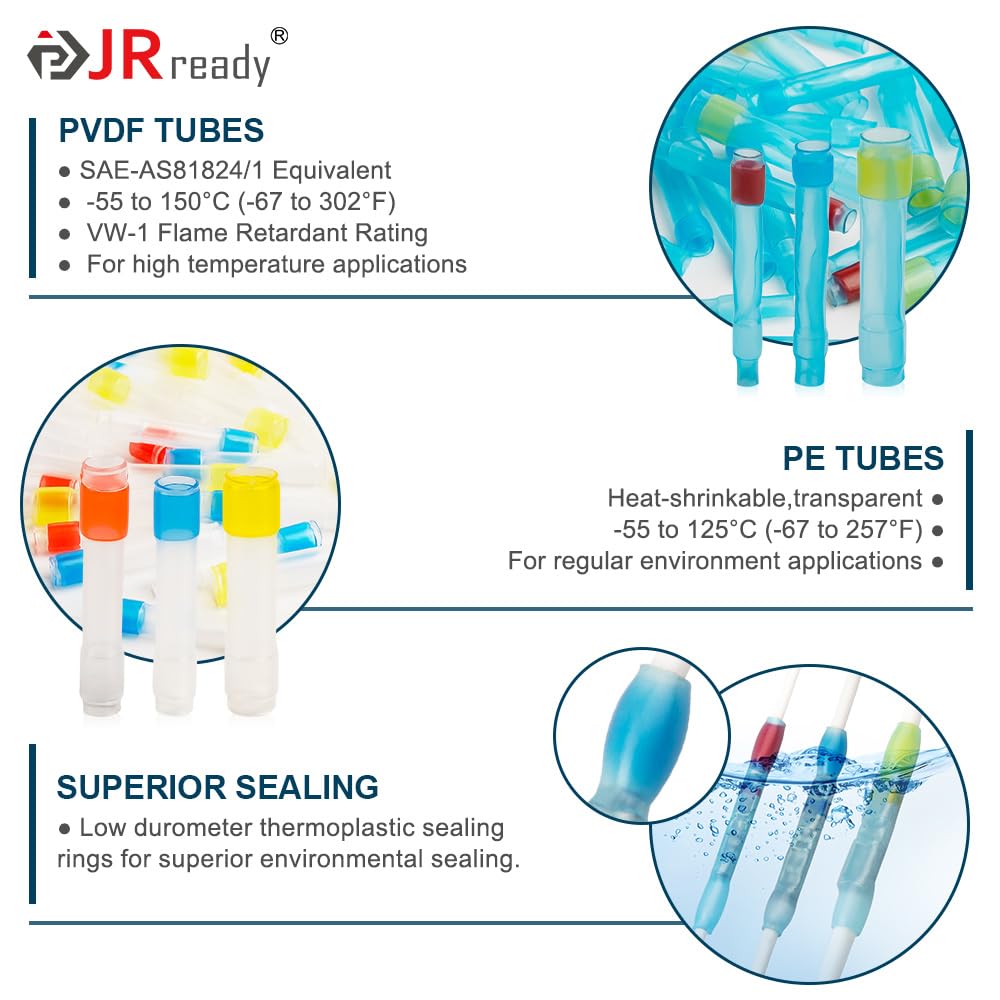

• High-Temperature Insulation: The PVDF Insulation Sleeve, equivalent to M81824/1, can withstand temperatures ranging from -67°F to 302°F (-55°C to 150°C). Transparent and heat-shrinkable, it facilitates effortless terminal observation. It features hot melt adhesive ends for IP68 waterproof sealing, and the PVDF Insulation Sleeve boasts a VW-1 flame rating.Suitable for cable jacket applications with a maximum temperature resistance of 275°F（135°C).
• PE Insulation Sleeve: Additionally, we provide 50pcs PE Insulation Sleeves suitable for temperatures from -67°F to 257°F (-55°C to 125°C). These sleeves offer reliable protection,suitable for cable jacket applications with a maximum temperature resistance of 176°F（80°C).

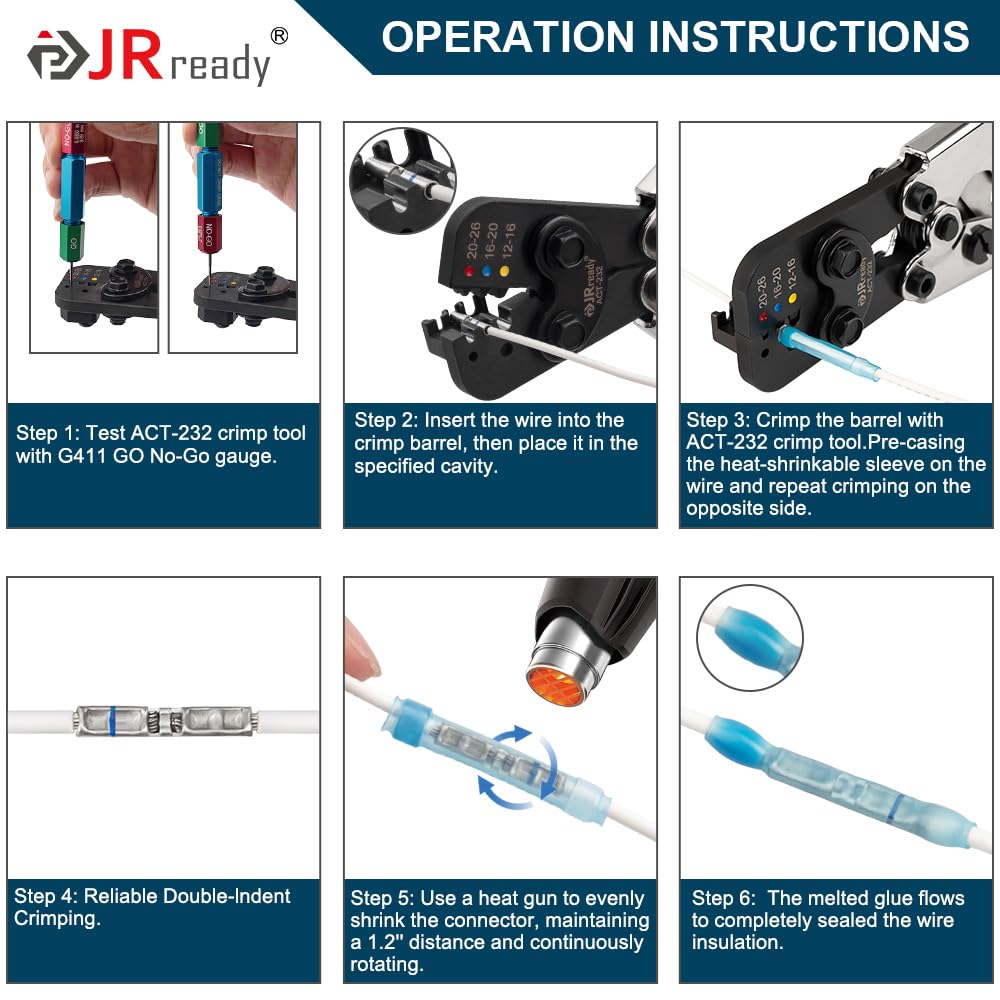

• Specialized Crimp Tool: The ACT-232 hand crimp tool(Equivalent to TE's AD-1377), is ideal for environmental sealing splices (sizes 12, 16, and 20). Its double-indent crimping ensures secure connections without wire slippage, making it a reliable choice for your crimping needs.
• Superior Connections: The JRready MIL but connector kit, which is smaller and lighter, represents the superior choice for wire connections. These compact and lightweight connectors, when paired with insulation sleeves and heat-shrink sealing, provide outstanding waterproof performance for your wire connection requirements.

model number: ST6385-20-50

Part Number: ST6385-20-50

Package Dimensions: 4.7 x 3.0 x 1.3 inches
