K-Type Thermocouple Wire AWG 24 Solid w. High Temperature Fiberglass Insulation up to 700 Degree C or 1300 F - 10 Yard roll

Brand: MICC

Color: Yellow

Features:

• K-type Thermocouple wire for making thermocouple or extension wire, up to 1292 F (700 C)
• Chromel / Alumel type K thermocouple wire with Standard Accuracy (whichever is greater): +/- 2.2C or +/- .75%
• The wires are AWG 24 (0.51 mm) in diameter

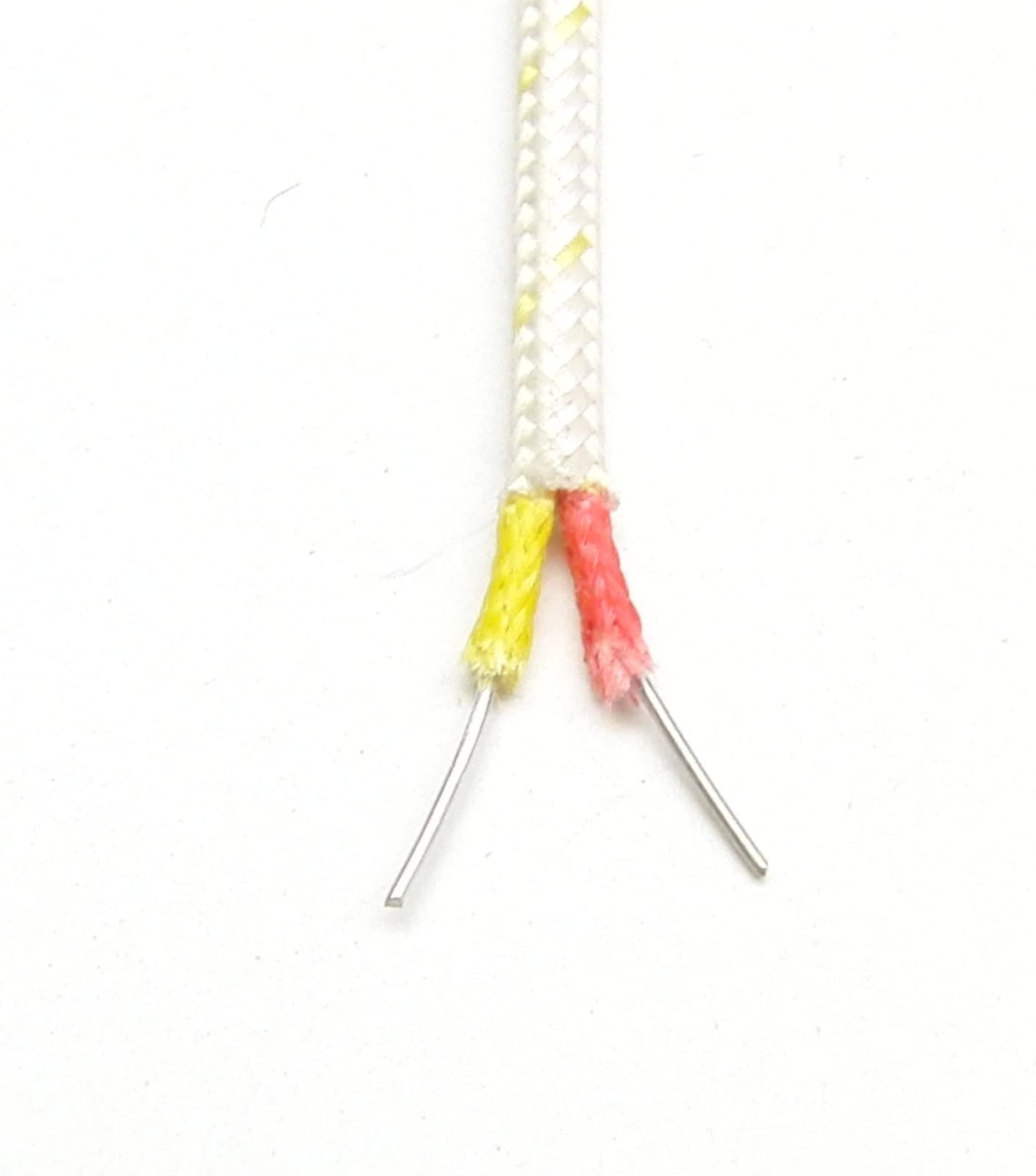

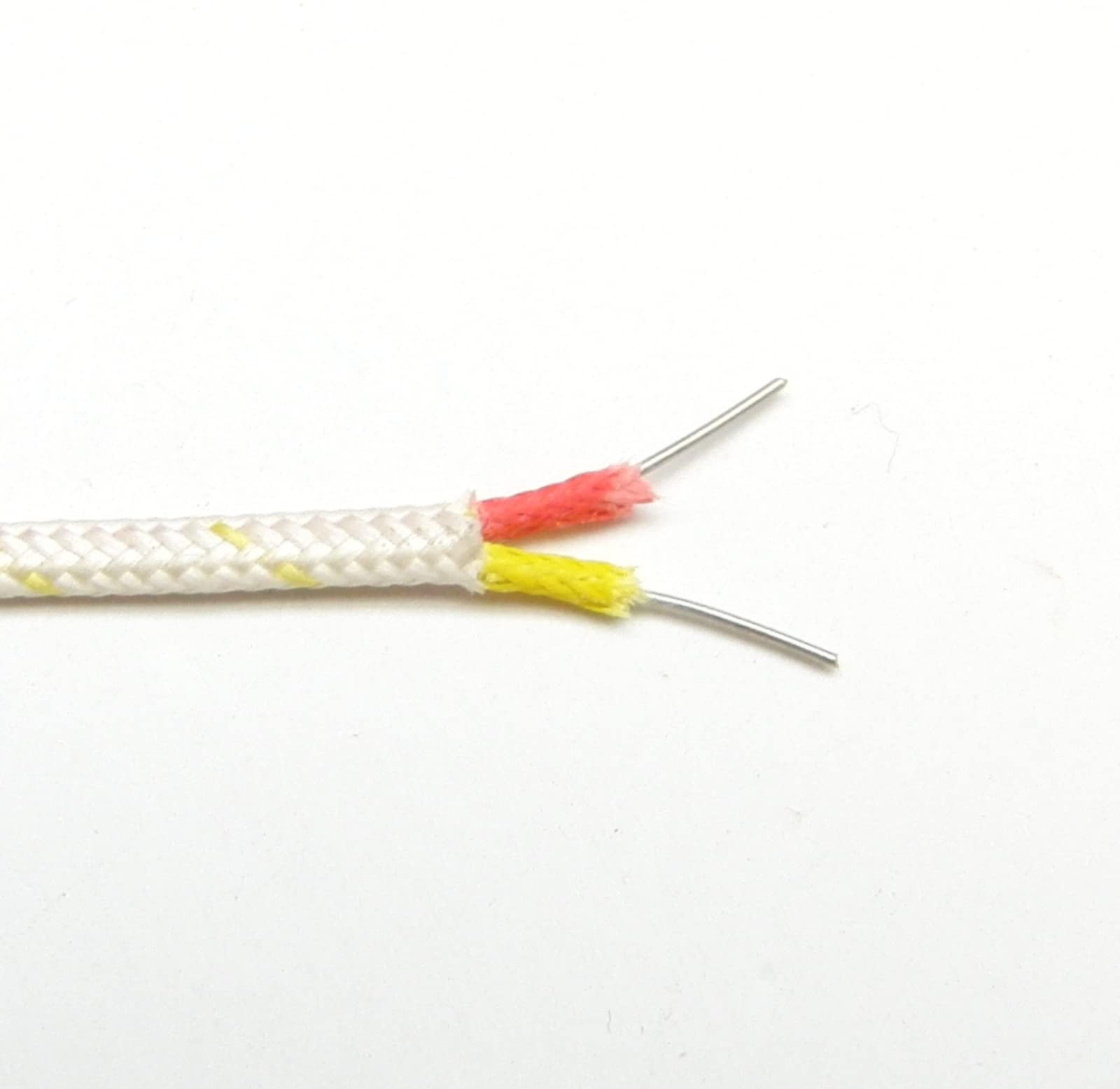

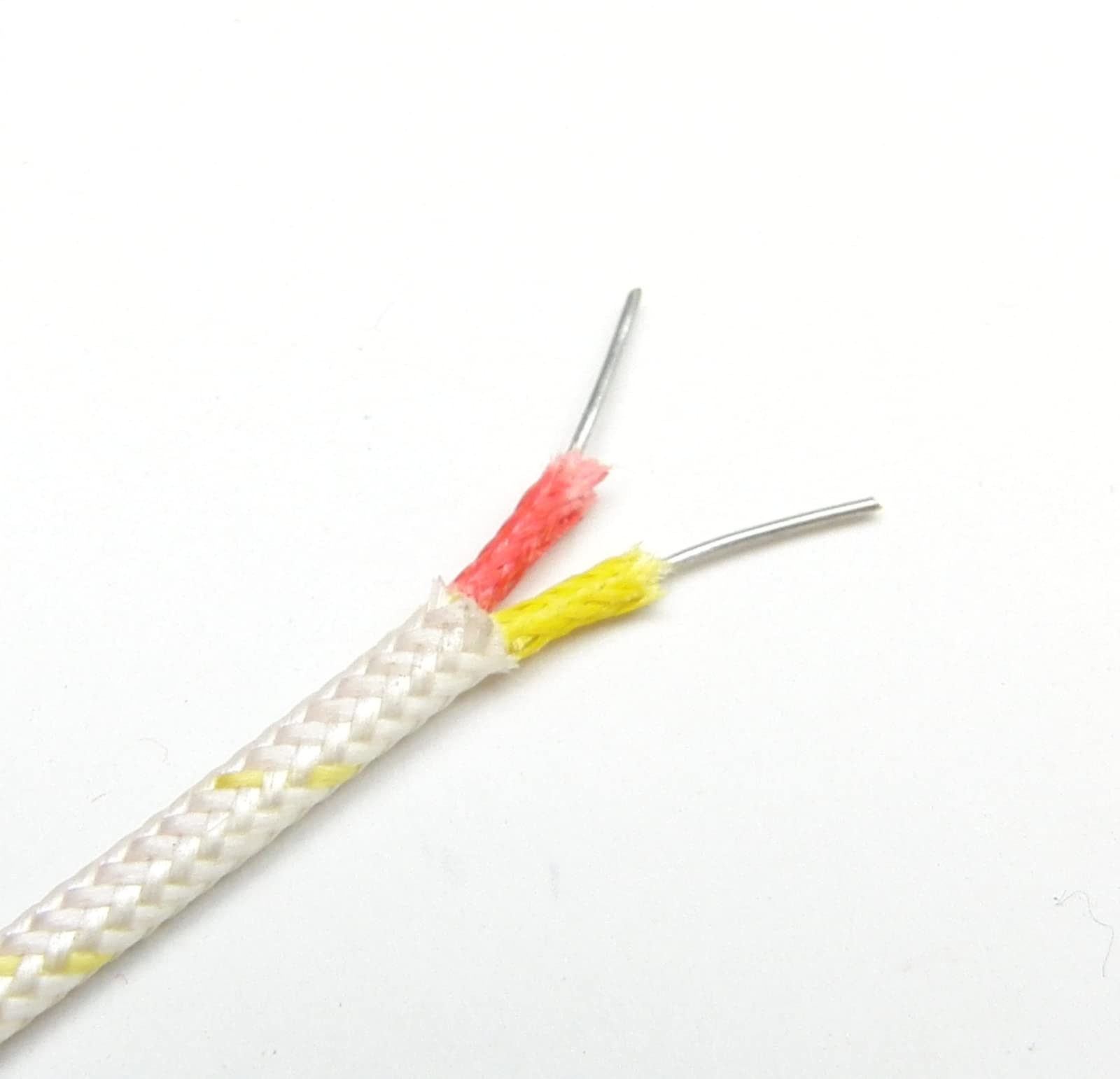

• ANSI color coded braided high temperature fiberglass insulation, red = -, yellow = +

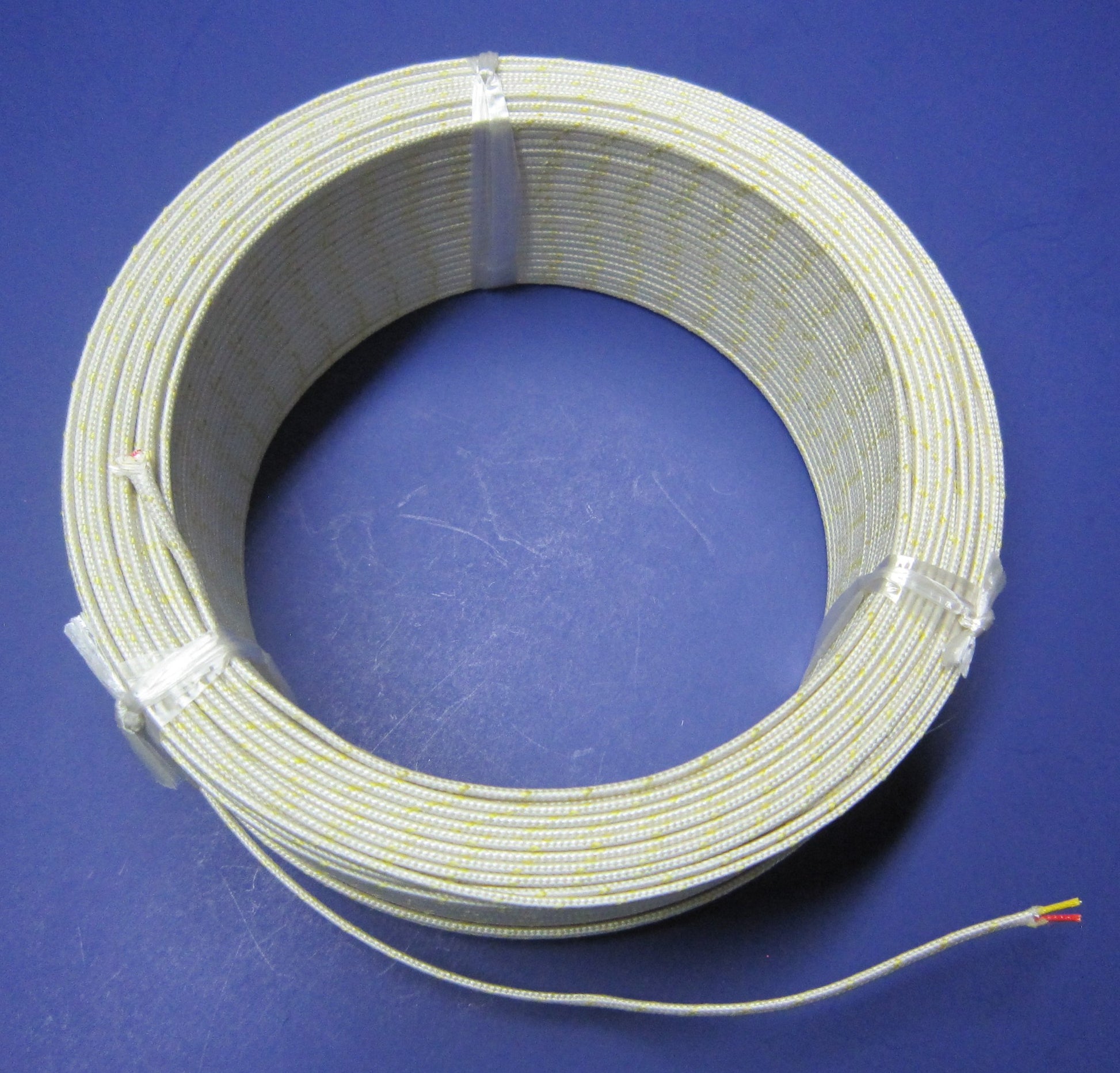

• Sold in 10 yard precut rolls

model number: K-AWG-24-Solid-HT-FG-10yd-roll

Part Number: K-AWG-24-Solid-HT-FG-10yd-roll

Details: This is a high temperature k-type thermocouple wire with yellow braided high temperature fiberglass insulation, which is good up to about 700 degree C Celsius or 1292 degree F Fahrenheit. This HT k-type thermocouple wire can be used to make your own thermocouples for a wide range of applications, or to make your own extension wire. It is useful to make a hook up wire to connect thermocouples to your digital oven or kiln controller. The chromel / alumel thermocouple wire is made to standard thermocouple specifications. It is sold in 10 yard rolls. It is useful for higher than normal temperature measurement, to about 1300 F, when ceramic insulation is not needed.

EAN: 0708828922947

Package Dimensions: 9.1 x 6.0 x 0.8 inches
