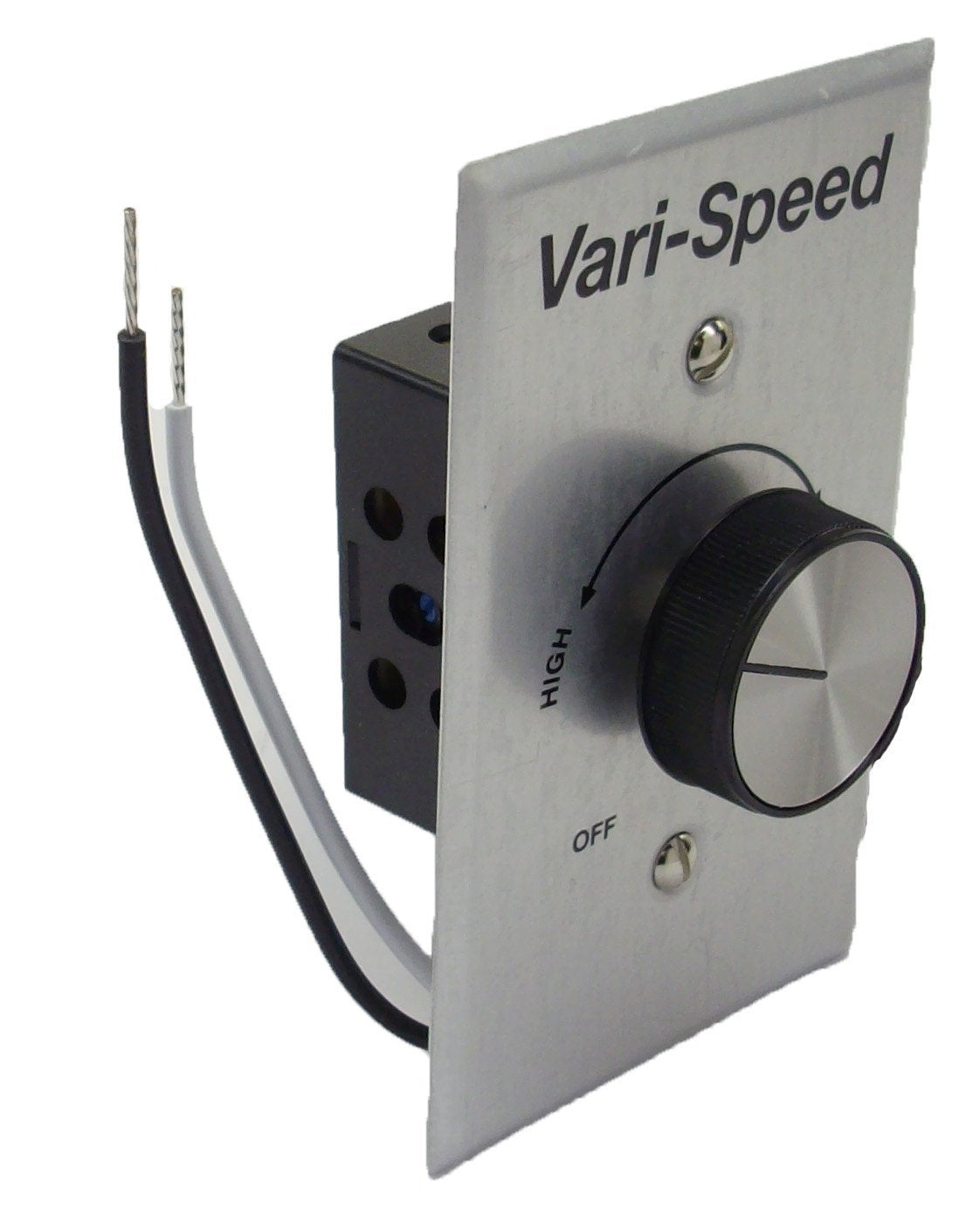

KB Electronics Model KBWC-18K (UL) Variable Speed Fan Control, Wall Mount, Rated 8.0 Amps @ 120 VAC for use with Shaded Pole and PSC Motors

Brand: KB ELECTRONICS

Color: Original version

Features:

• Designed for Standard 2" x 4" Electrical Wall Box
• 8.0 Max amps 115 Volts; UL & CSA Approved
• Not to be used with Capacitor Start or Capacitor Run Motors
• Applications: Fans, Blowers, Fireplace Blowers, Attic Fans, Humidifiers, Ventilators

model number: H9011

Part Number: H9011

Details: Control provides infinite variable speed for shaded pole and PSC motors. Max amps means that the rated motor name plate amperage can not exceed this rating or you will damage the control and motor. Motor must be run with sufficient torque to prevent stalling - A motor not turning will burn up Motor must have fan blade installed on shaft (direct drive) to cool motor. Not to be used with gear motors. Controls that have been installed are not returnable.

EAN: 0024822090117

Package Dimensions: 5.2 x 3.2 x 3.1 inches
