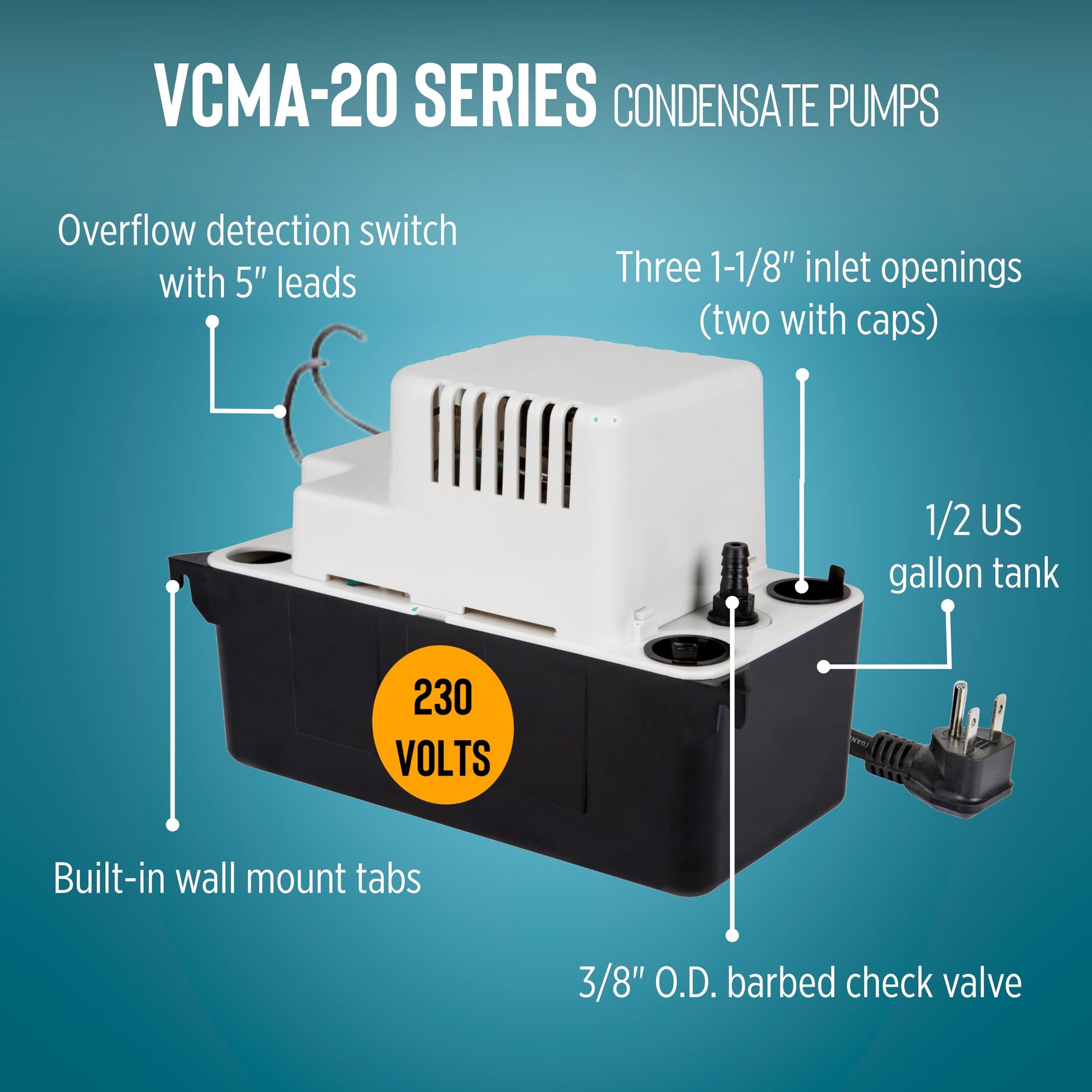

AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers

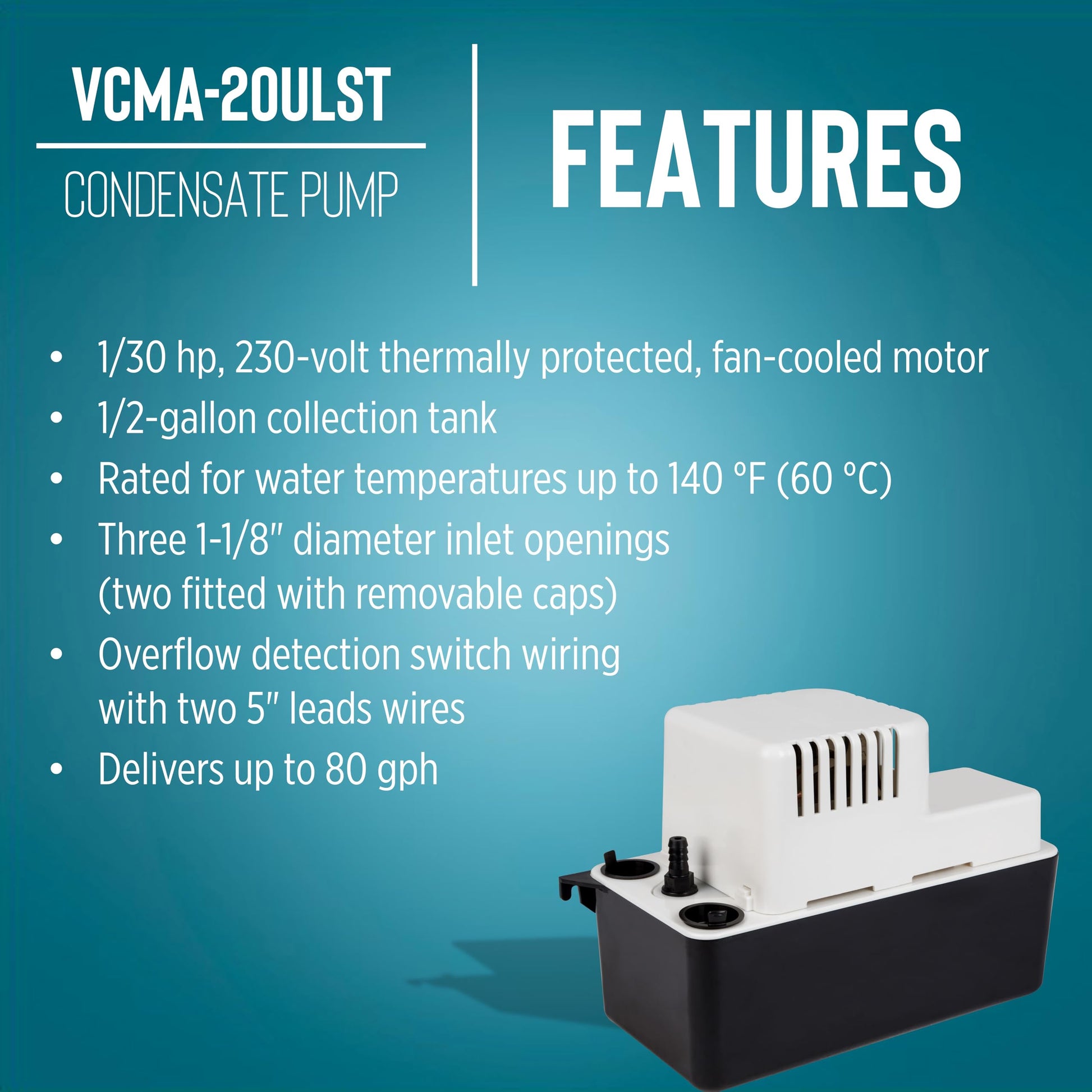

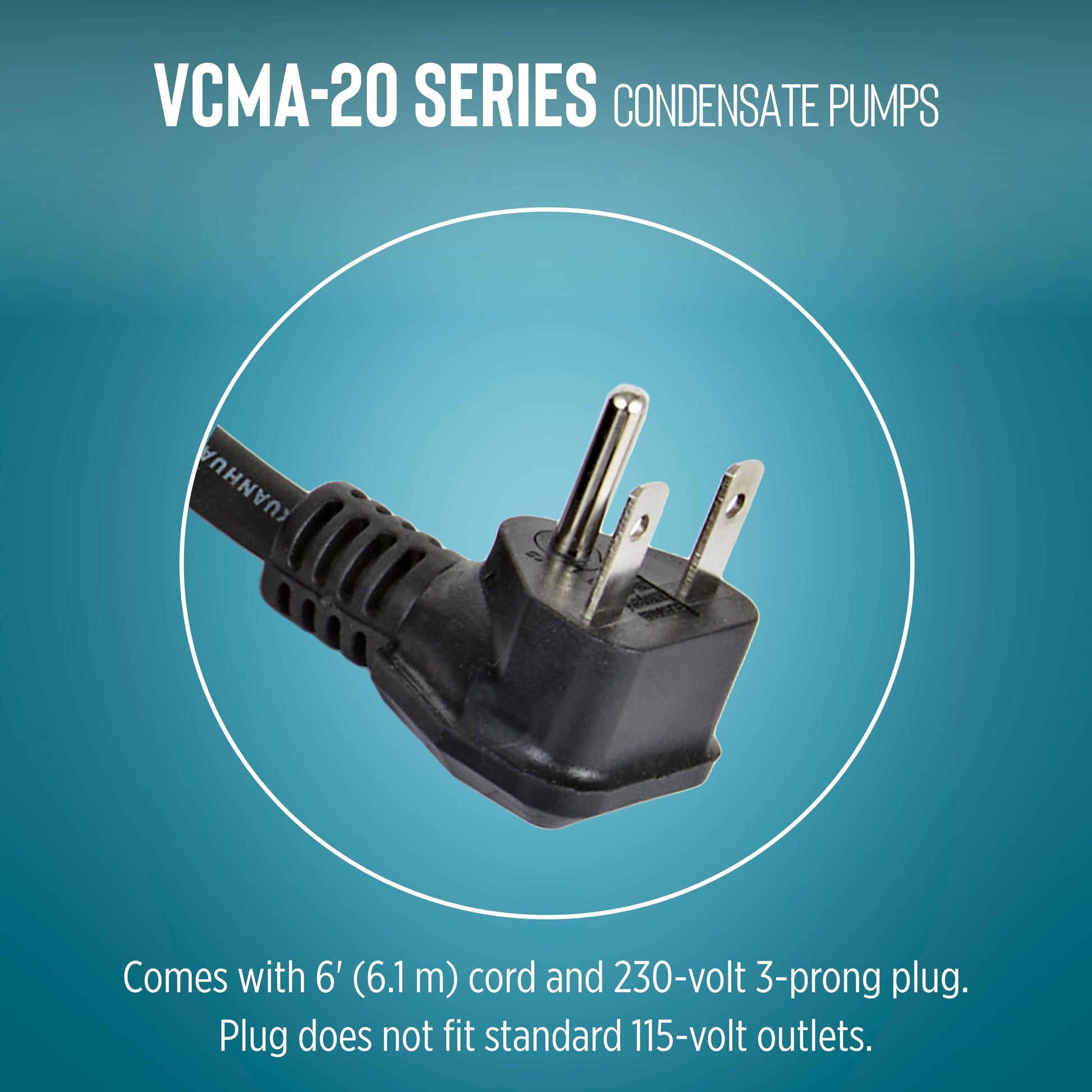

HIGH PERFORMANCE MOTOR: 1/30 HP, 0.5 Amps, 75 Watts, 230 Volts, 60 Hz, thermally protected, fan-cooled motor; CSA listed in the USA and Canada; note: 230V plug does not fit standard wall outlets
BUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standards

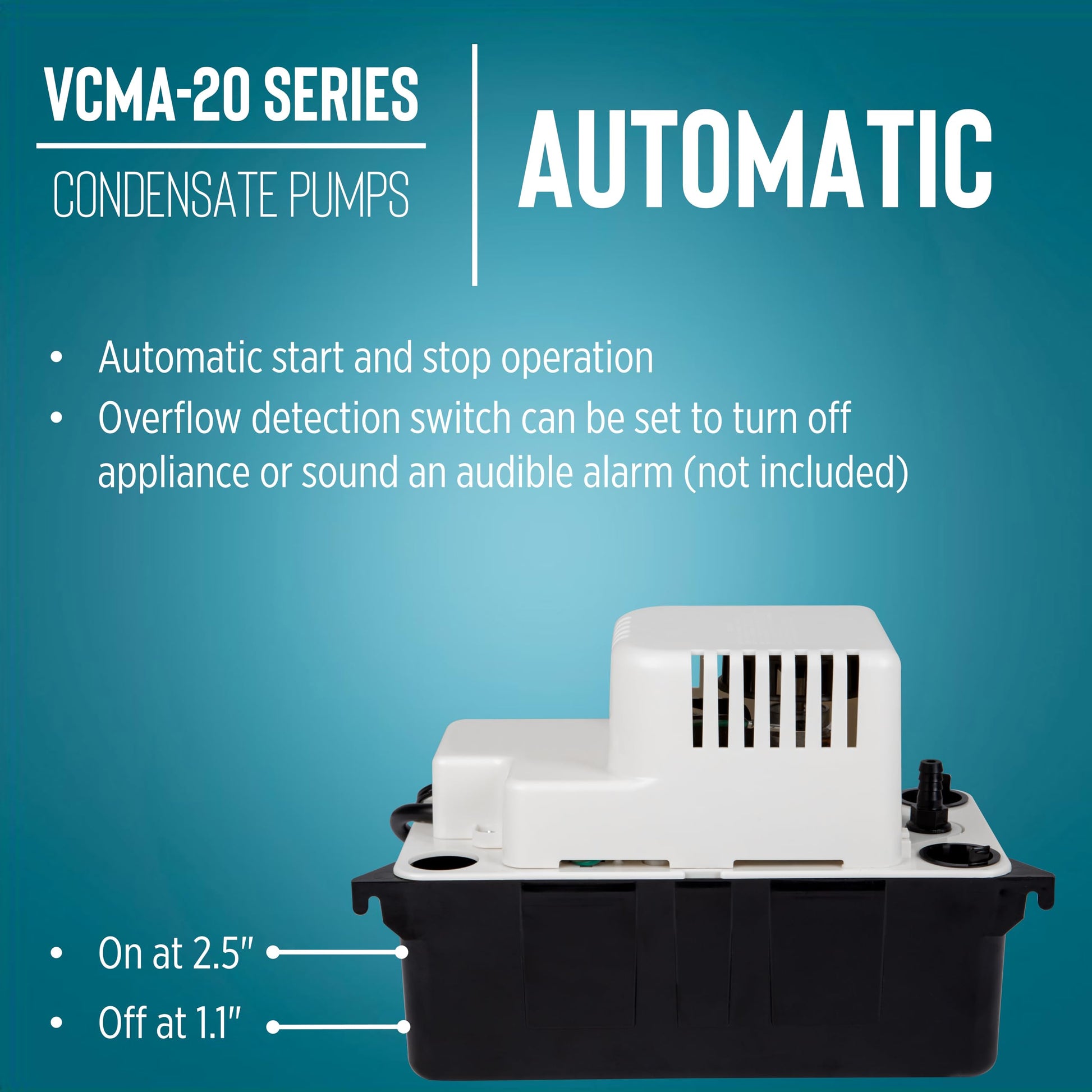

INCLUDES SAFETY SWITCH, 20-FT VINYL TUBING AND CHECK VALVE: safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow

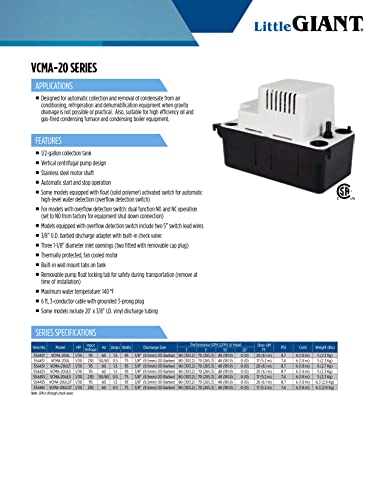

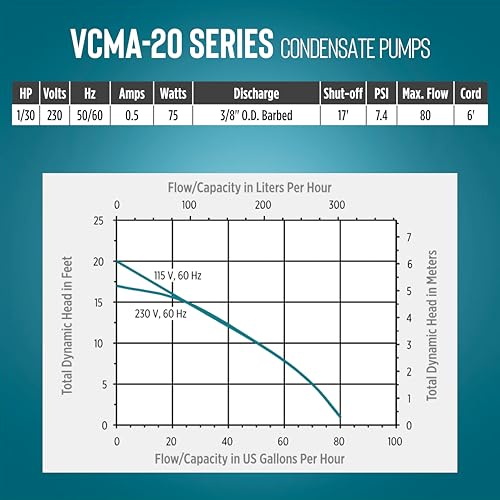

SPECIFICATIONS: 3/8-inch OD barbed discharge, 80 GPH at 1-ft head, 17-ft shut-off, max 7.4 PSI, 3 drain holes, 6-ft cord with 230V plug; 140 F max water temperature; safety switch; 20-ft. tubing
Binding: Tools & Home Improvement
model number: 554461
Part Number: 554461

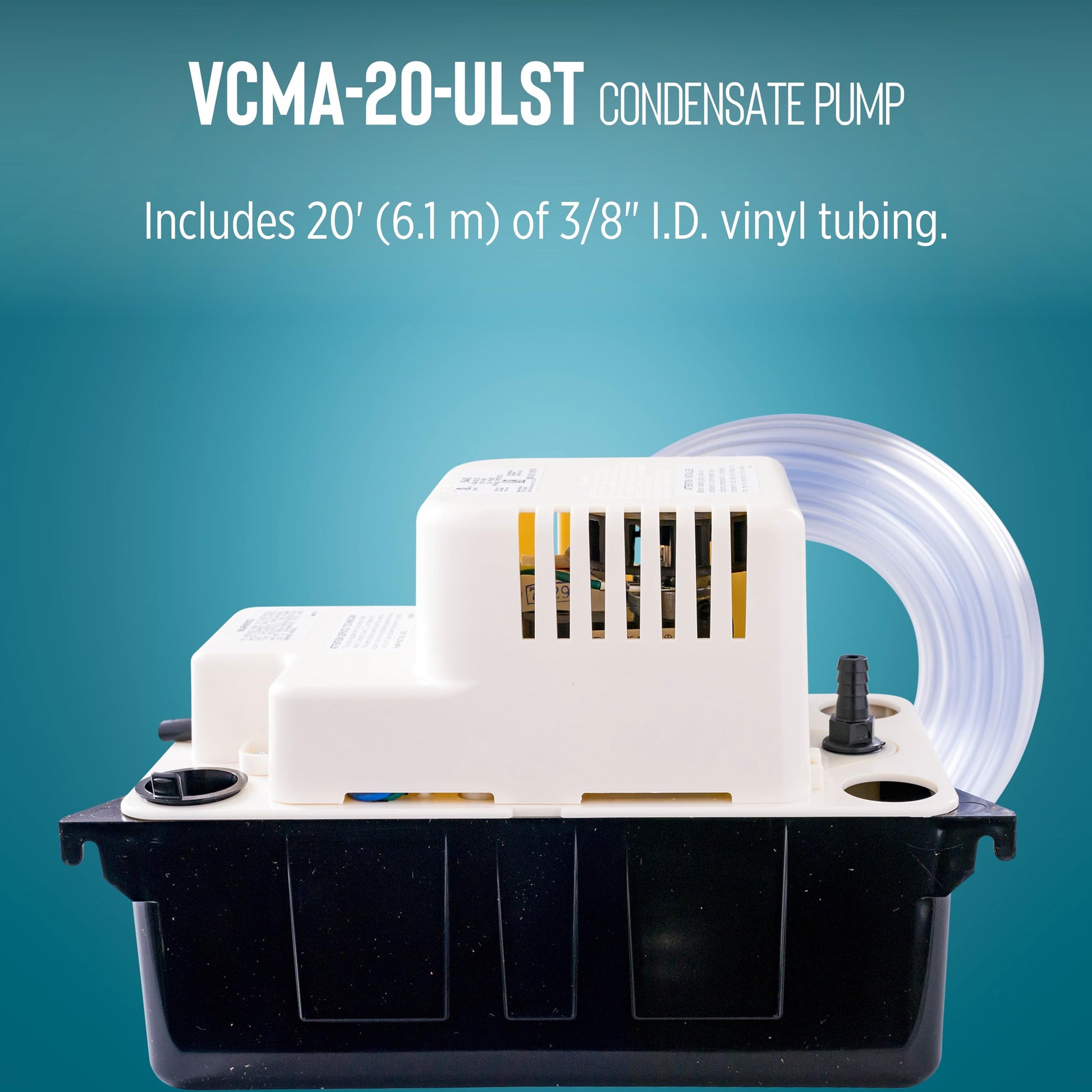

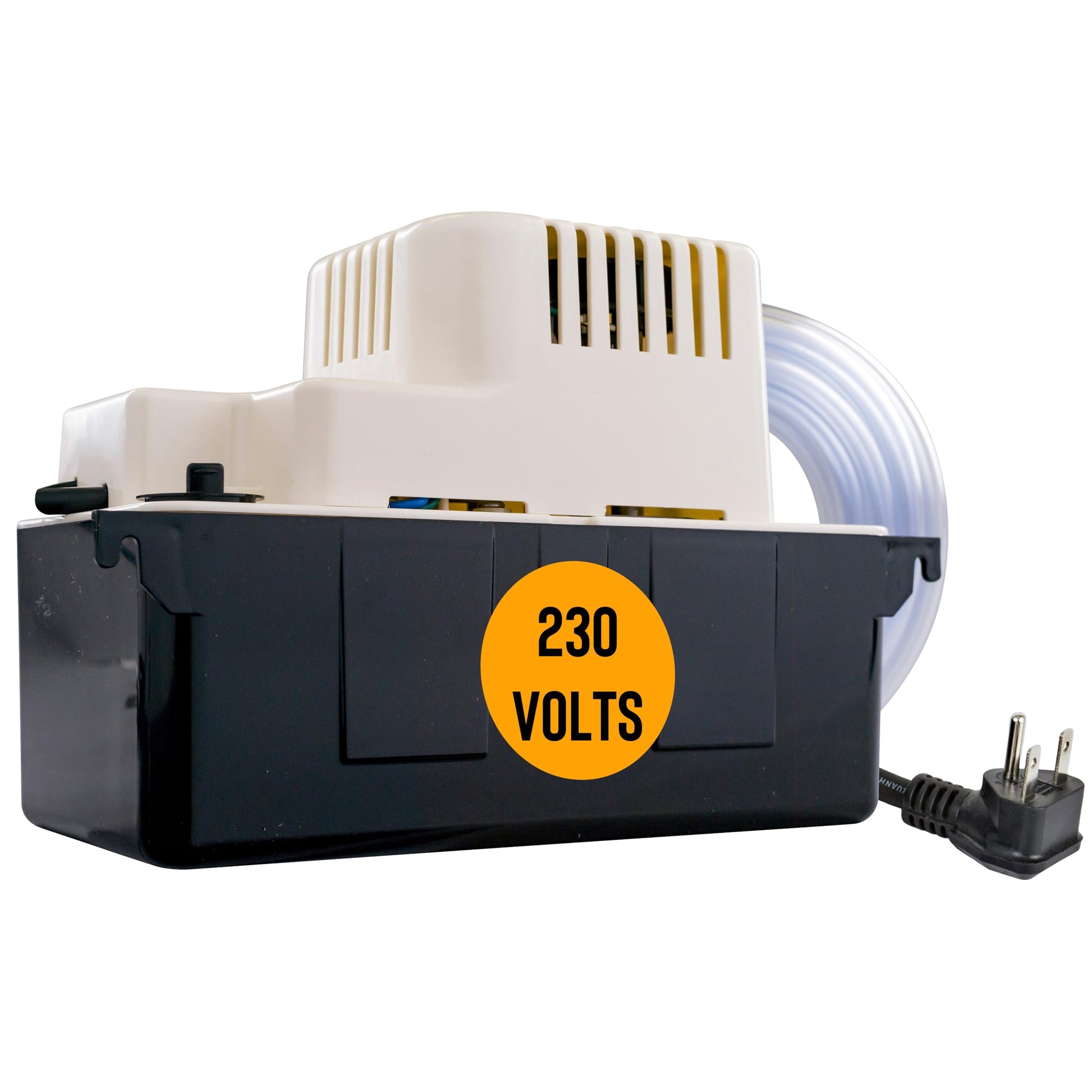

Details: The Little Giant 230 Volt, 1/30 HP VCMA-20ULST is ideal for removing condensate from HVAC equipment including air conditioners, de-humidifiers, condensing boilers, and high-efficiency oil or gas-fired furnaces. This unit is comes with a safety switch that can be wired to the appliance to turn the appliance off or can be wired with an audible alarm (not included). 20-ft. of 3/8-inch I.D. vinyl discharge tubing included. This pump comes with a 230 Volt plug; does not fit standard 115-volt wall outlets.
