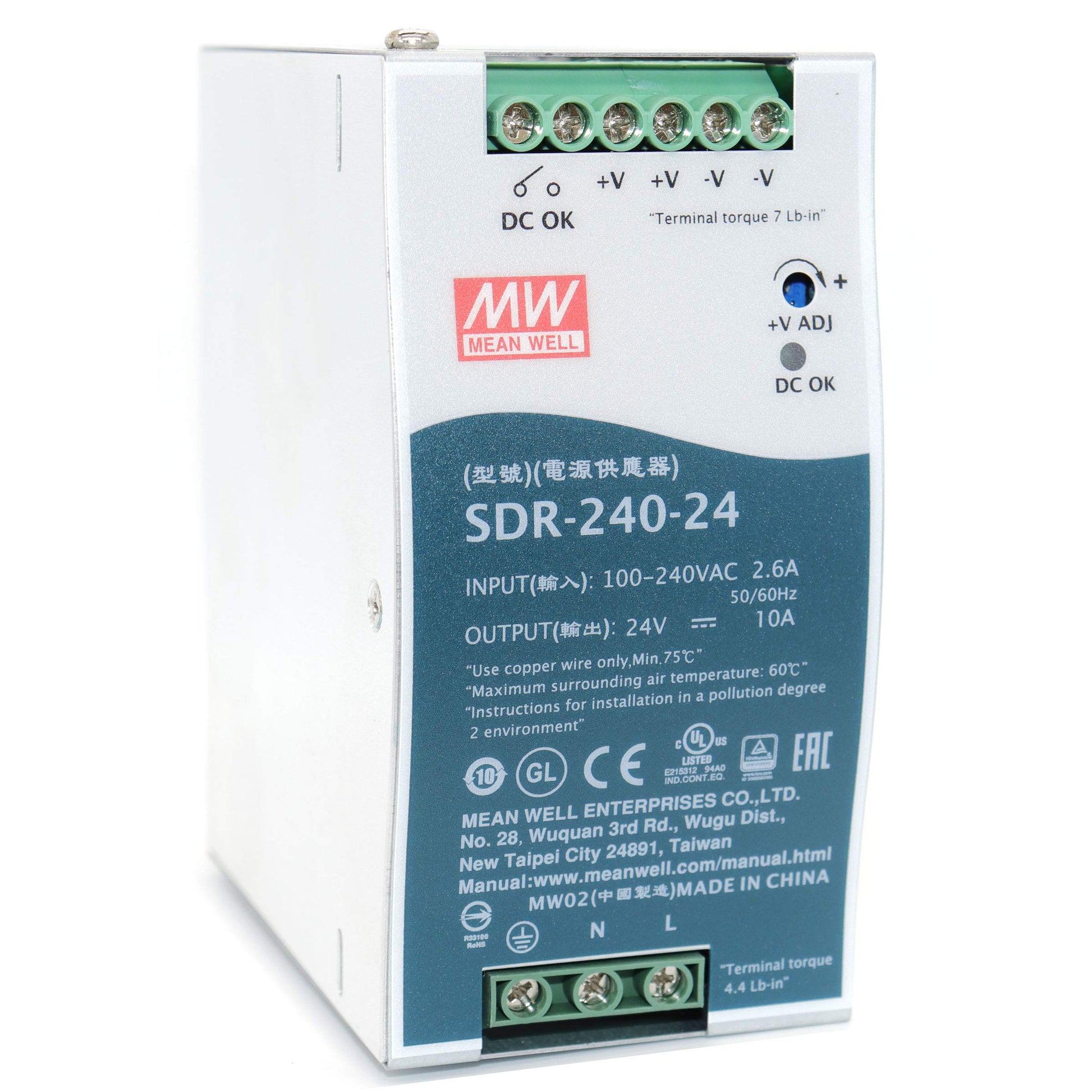

Mean Well SDR-240-24 240W 10A 24VDC Single Output DIN Rail Power Supply with PFC Function (SDR Series High Efficiency UL 508 Approved)

Brand: MeanWell

Features:

• DIN Rail 240Watt 24V Power Supply, Can be Installed on DIN rail TS-35/7.5 or 15
• High Efficiency 94% and Low Power Dissipation, Built-in DC OK Relay Contact
• 150% Peak Load Capability with Build-In PFC Function, PF>0.93
• Protections: Short circuit / Overload / Over voltage / Over temperature
• UL508 approved, EN61000-6-2(EN50082-2) Industrial Immunity Level

Binding: Personal Computers

model number: SDR-240-24

Part Number: SDR-240-24

Details: This SDR-240-24 AC to DC power supply from MEAN WELL converts an alternating current source to a direct current supply.
It has a voltage of 24 V and maximum output power of 240 W.
This part's single output can handle a current up to 10 A.
This part has a temperature range of -25 °C to 70 °C.
EU RoHS: Compliant
Package Height: 125.2mm

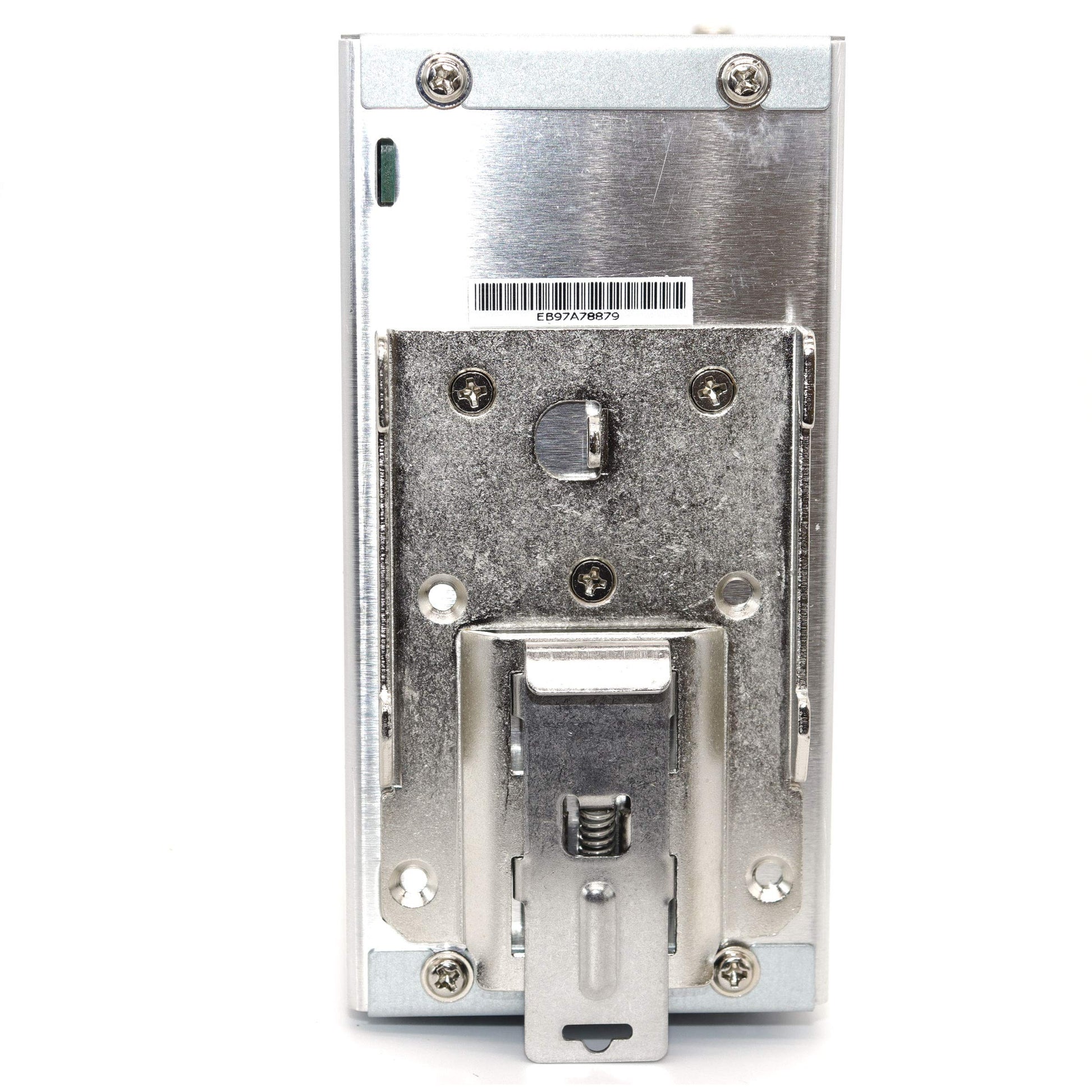

Mounting: DIN Rail
PCB changed: 9
Package Width: 113.5mm
Package Length: 63mm
Type: Regulated Style: DIN Rail
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 10
Output Power (W): 240
Minimum AC Input Voltage (V): 88
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 124
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 1%
Maximum Input Current (A): 2.6(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 94(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: No
Ripple & Noise: 100mV(Max)
Medical: No
Minimum Operating Temperature (°C): -25
Maximum Operating Temperature (°C): 70
Product Weight (g): 1030
Pin Count: 9
Please download the specification for more details.
About the quotation for batch order, please contact with the seller directly.

EAN: 0645312123216

Package Dimensions: 6.2 x 6.1 x 3.9 inches
