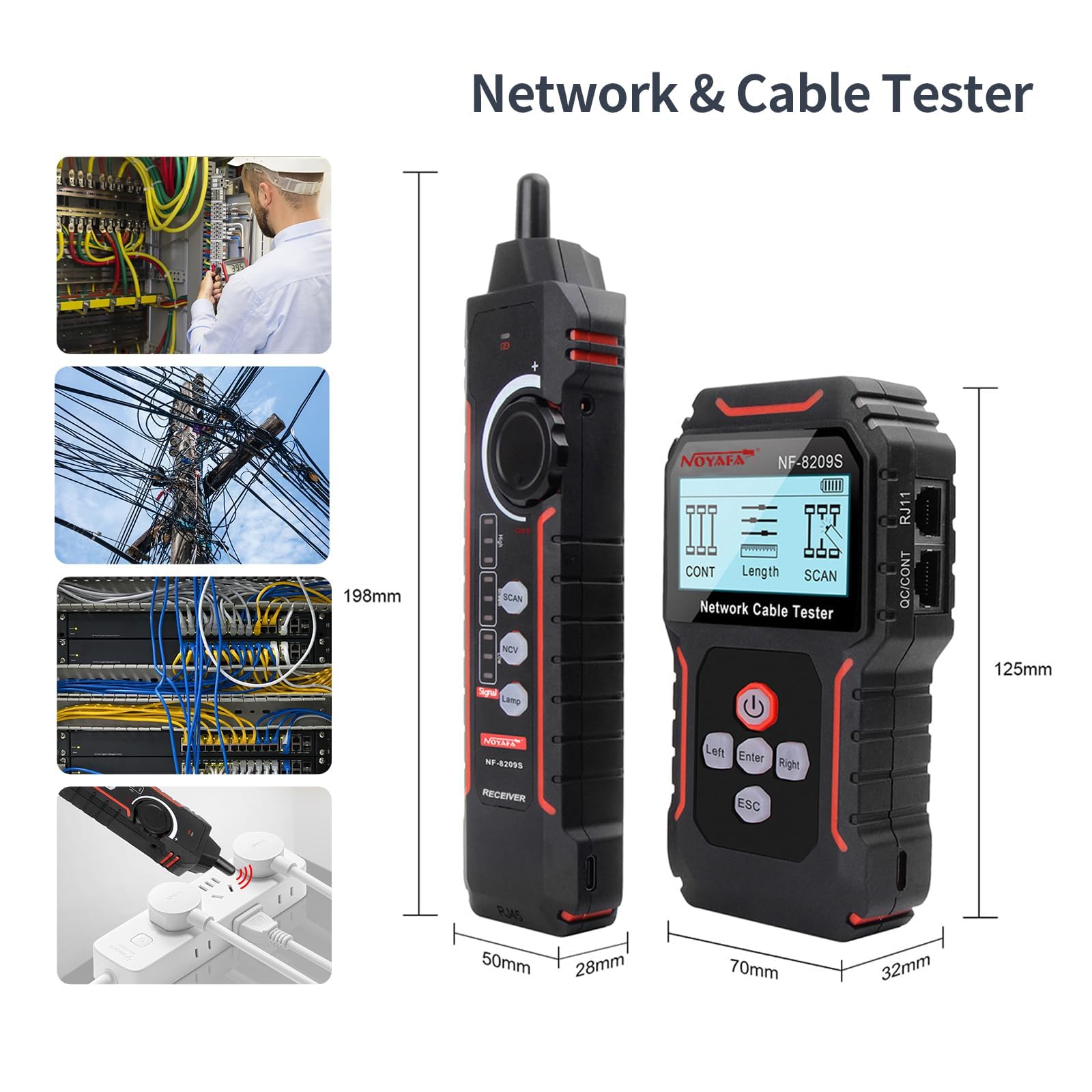

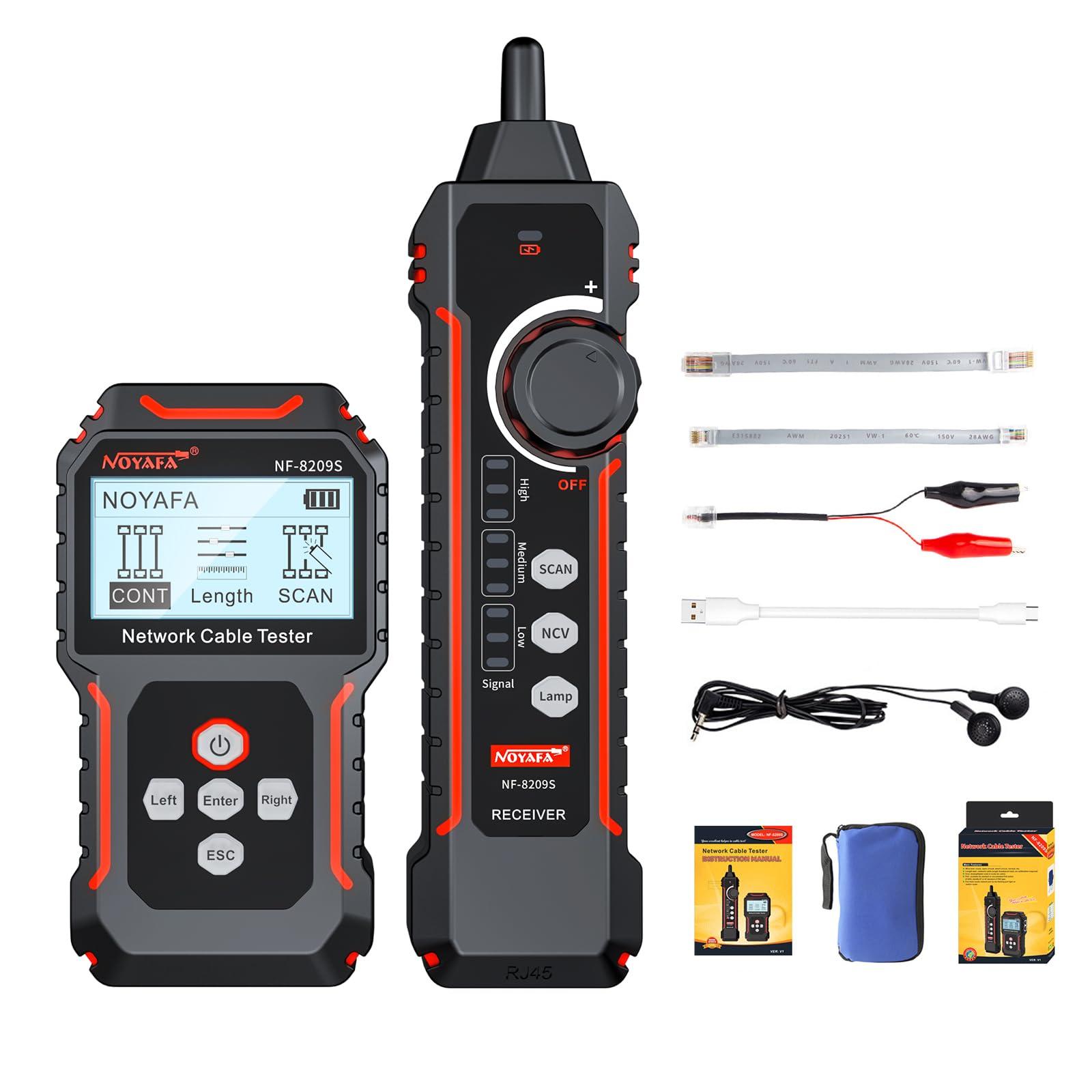

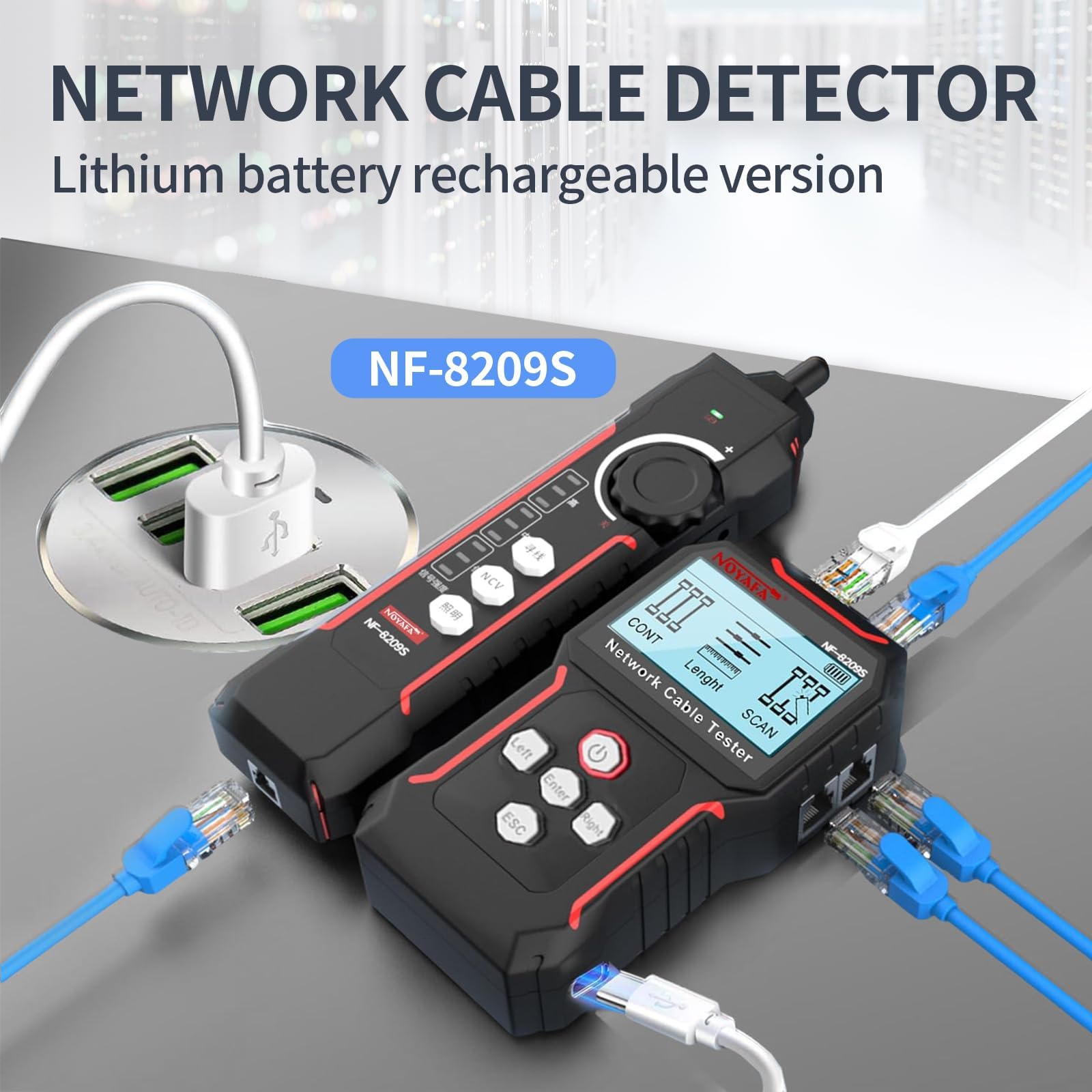

NOYAFA NF-8209S Network Cable Tester, Ethernet Cable Tester with PoE,NCV,Cable Length Test,Port Flashing,Multi-Function Trouble-Free Line Scan Mode,CAT5,CAT6 Line Tracer,LAN Network Cable Tracer Kits

Brand: NOYAFA

Color: Black

Features:

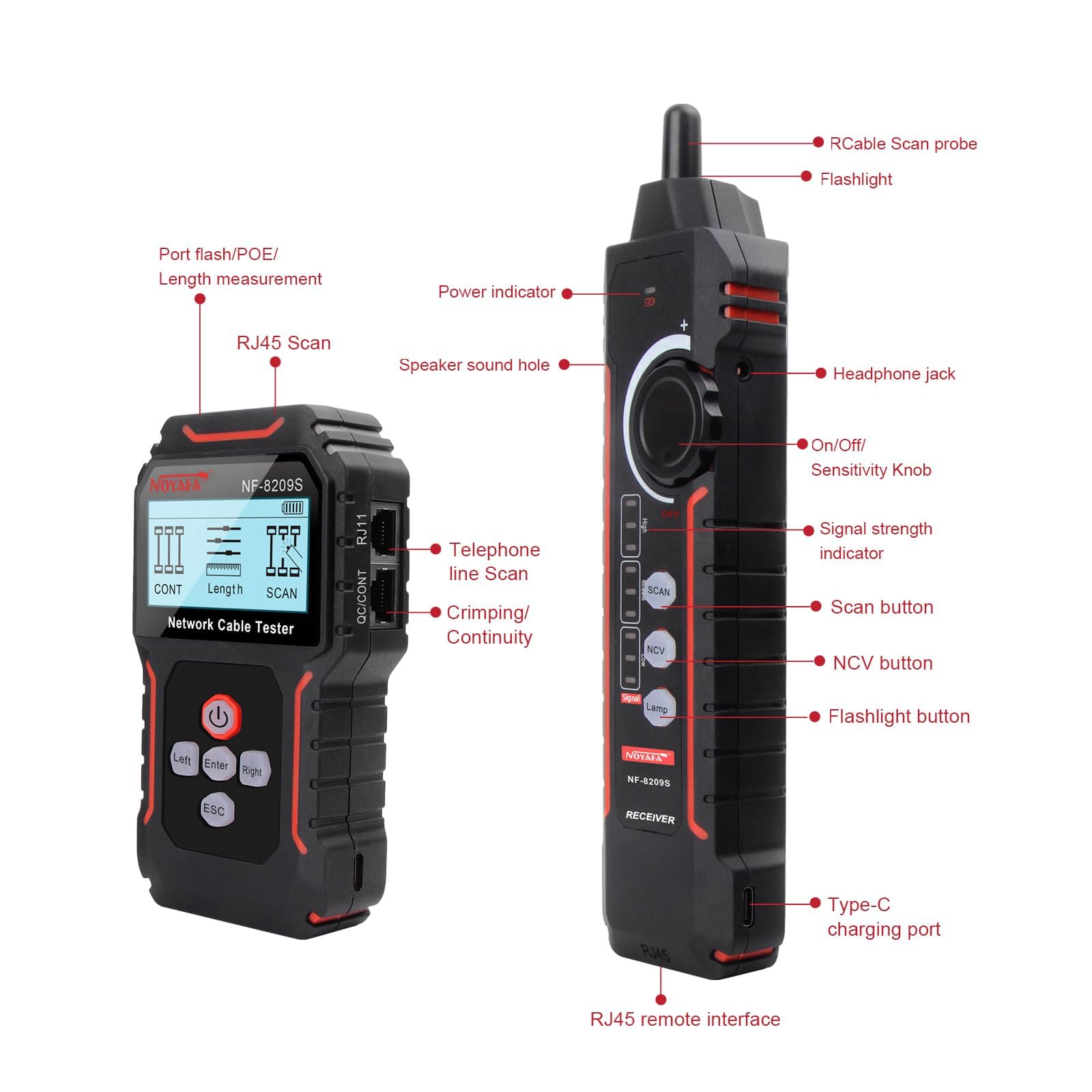

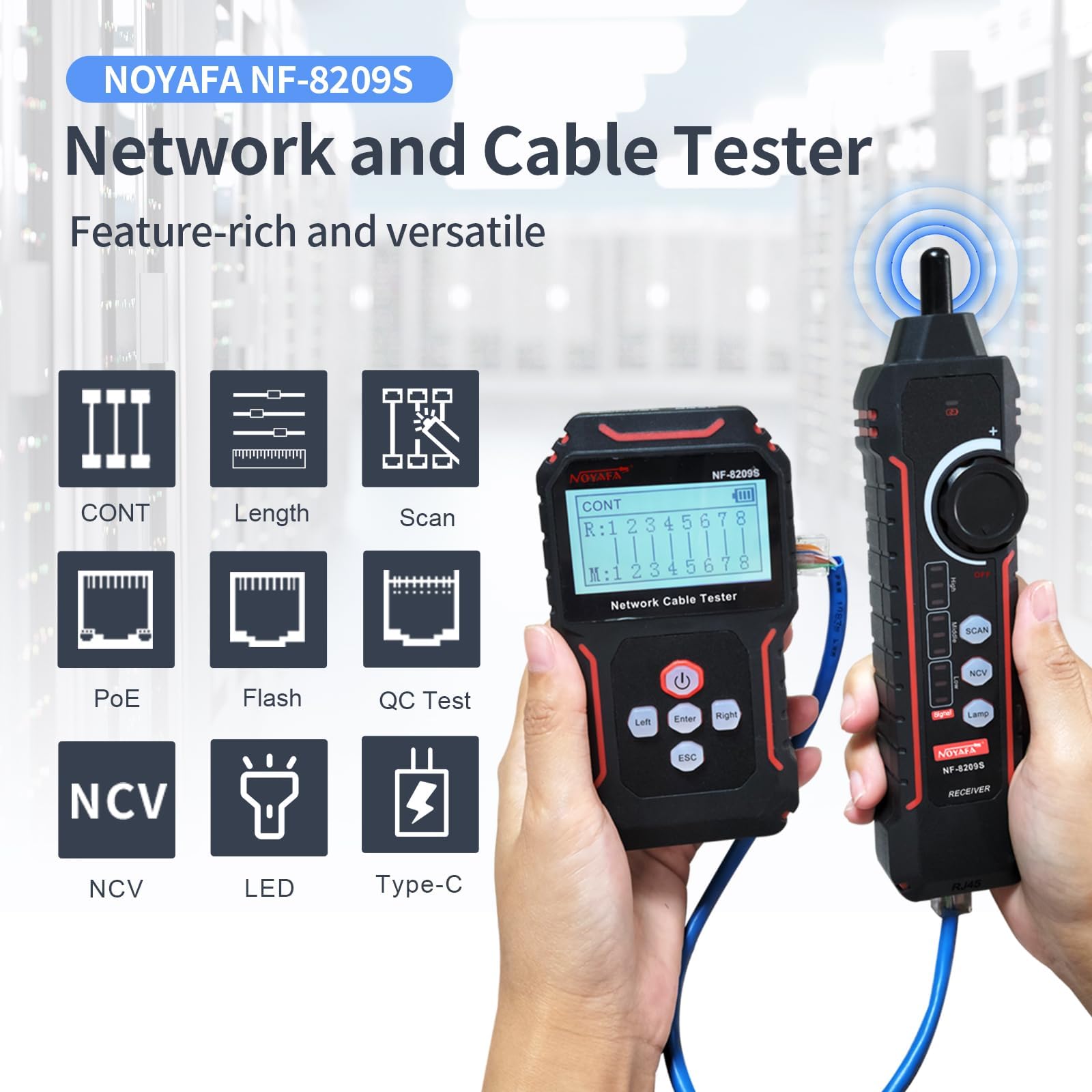

• 【Multi-function design】NOYAFA NF-8209S multi-function network cable tester, integrated with Ethernet poe tester, CONT, power function, line voltage detection, port line tracing, loopback test and LED lighting function. Equipped with RJ45 remote interface. Suitable for CAT5, CAT5e CAT6, CAT6A, CAT7 cables, suitable for tracer, underground telephone line finder, home maintenance, realize one machine for multiple uses, easy to carry, meet your testing needs
• 【Digital Cable Scan】NF-8209S Ethernet Cable Tester and Tracer is an upgraded version of the classic NF-8209 Ethernet Cable Tester, using a new generation of chips and more accurate sensor technology, which can combine the network audio generator and probe into one, and can provide AC filter and analog signal and digital mode to trace the cable. It has three cable tracking modes to choose from, Normal Mode/Anti-interference Mode/PoE Mode
• 【POE NCV Test】 NF-8209S Ethernet tester determines which pins are supplying power and detecting voltage, determines the PSE type (according to /af standard), and detects whether there is AC voltage (50V-1000V). Test the physical status of STP and UTP network cables

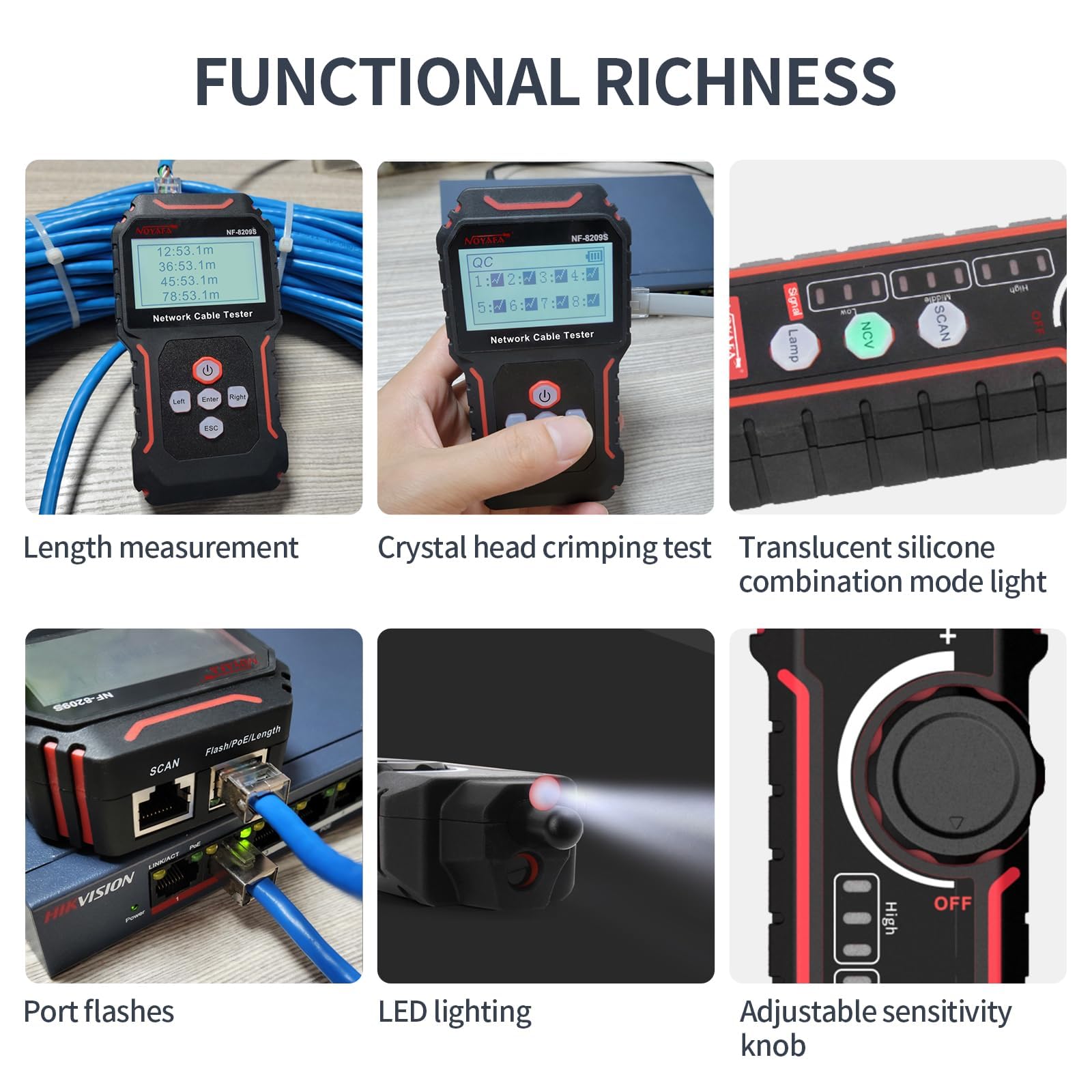

• 【Port Flashing】 NF-8209S anti-interference cable finder locates the network port by the flashing of the port indicator light on the hub/switch and the hub flashing, and quickly finds the network cable on the switch/router. It can be used for 10M/100M/1000M hubs/switches, and adds a wire pressing function test to test whether the crystal head is pressed well

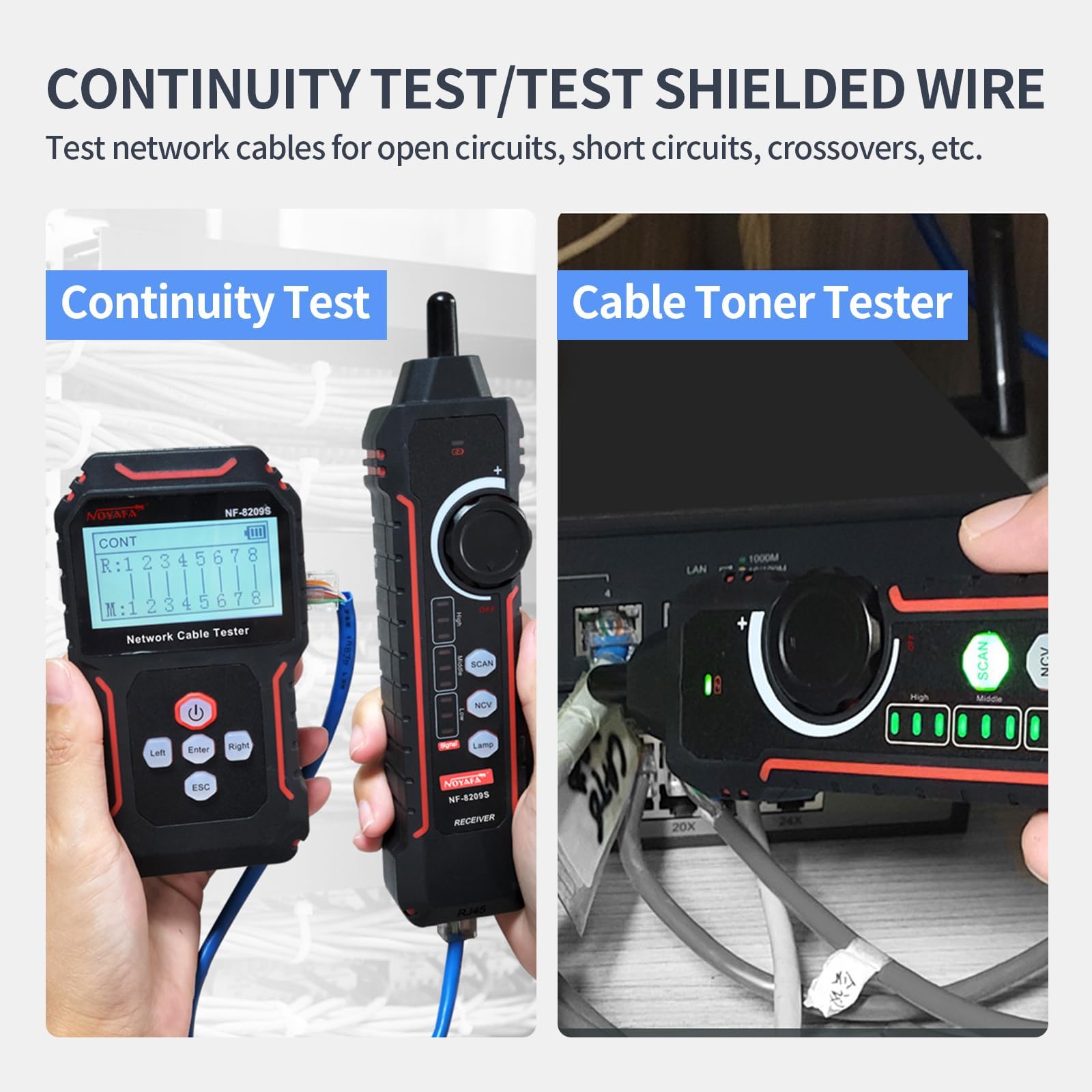

• 【Cable Length Test and LED Light】NOYAFA MF-8209S Network Cable Tester supports LED light, you can use it in low-light or dark environments to turn on the light. No calibration is required to accurately measure the cable length, the range is 1-500m. Cable crossover, short circuit and open circuit can be detected. If you have any questions about using the product or need suggestions, please feel free to contact us. We will reply you within 24 hours

model number: NYF-NF8209S

Part Number: NOYAFA

Package Dimensions: 10.6 x 6.5 x 2.0 inches
