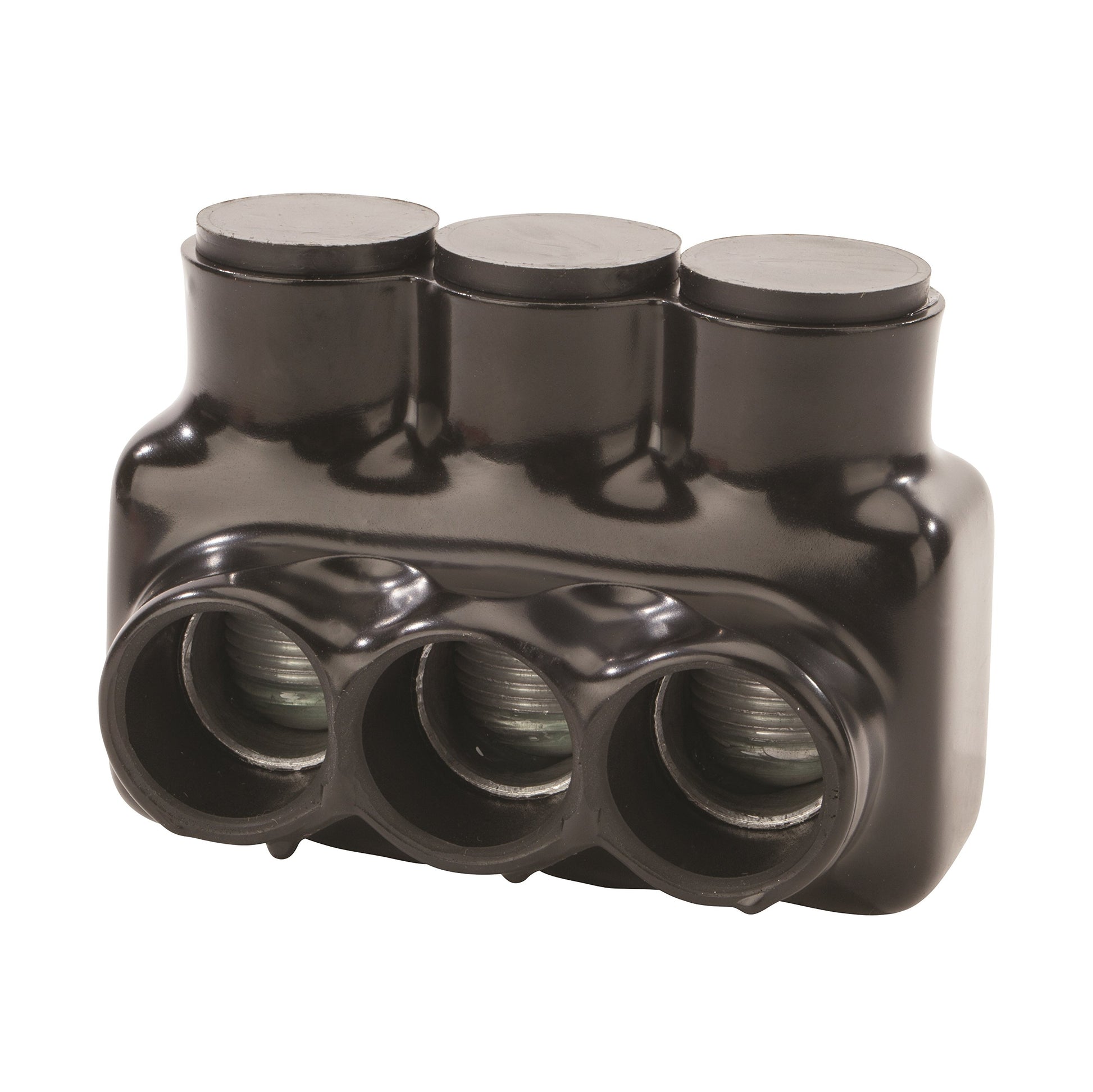

NSi IPLD500-3B Polaris Insulated Multi-Cable Connector Block, Black

Brand: NSI

Color: Black

Features:

• Dual-Sided Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 500 MCM and 4 AWG
• Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
• Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
• Pre-filled Oxide Inhibitor: All 3 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
• Full Product Line: Polaris matches your application with multiple UL-listed parallel configurations across a range of gauges and number of ports

Binding: Tools & Home Improvement

model number: IPLD500-3B

Part Number: IPLD500-3B

Details: The Polaris IPLD500-3B 3-Port Dual-Sided Connector provides the simplest solution for forming a secure connection between up to three conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 500 MCM - 4 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional uninsulated connector options using just a hex key and torque wrench. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, which is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion, chemicals and UV rays. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered pressure screws. The IPLD500-3B connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 430 and 350 respectively. Polaris pre-insulated connectors are available in a range of port numbers and configurations to fit the needs of any job, including UL-listed parallel configurations. Polaris: the original pre-insulated connector and still the brand most asked for by name.

EAN: 0662381955098

Package Dimensions: 6.6 x 5.1 x 3.1 inches
