SharkBite 3/4 Inch EB45 Direct Pressure Regulating Valve, Push to Connect Brass Plumbing Fittings, PEX Pipe, Copper, CPVC, PE-RT, HDPE, 23808-0045

Brand: Cash Acme

Color: Brass

Features:

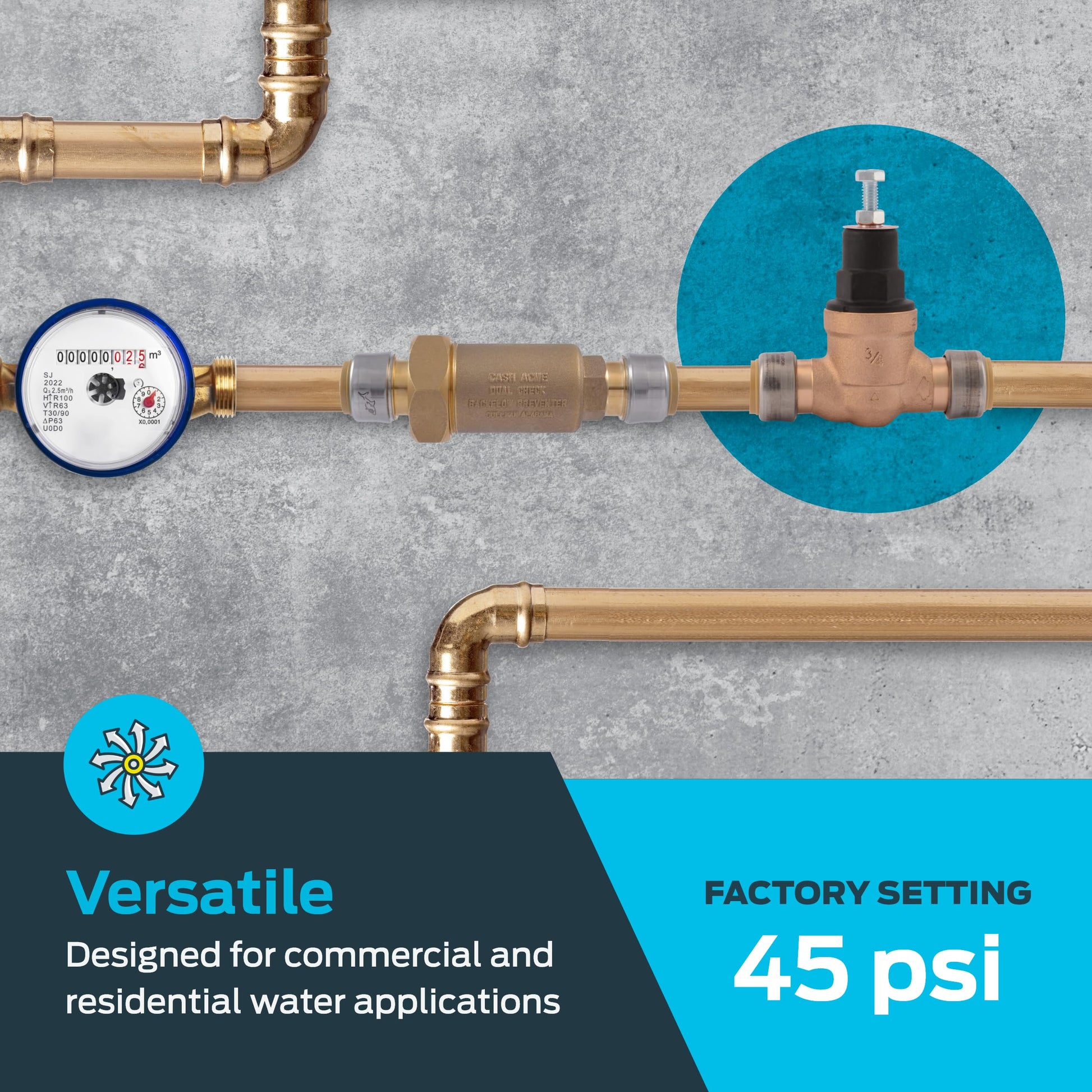

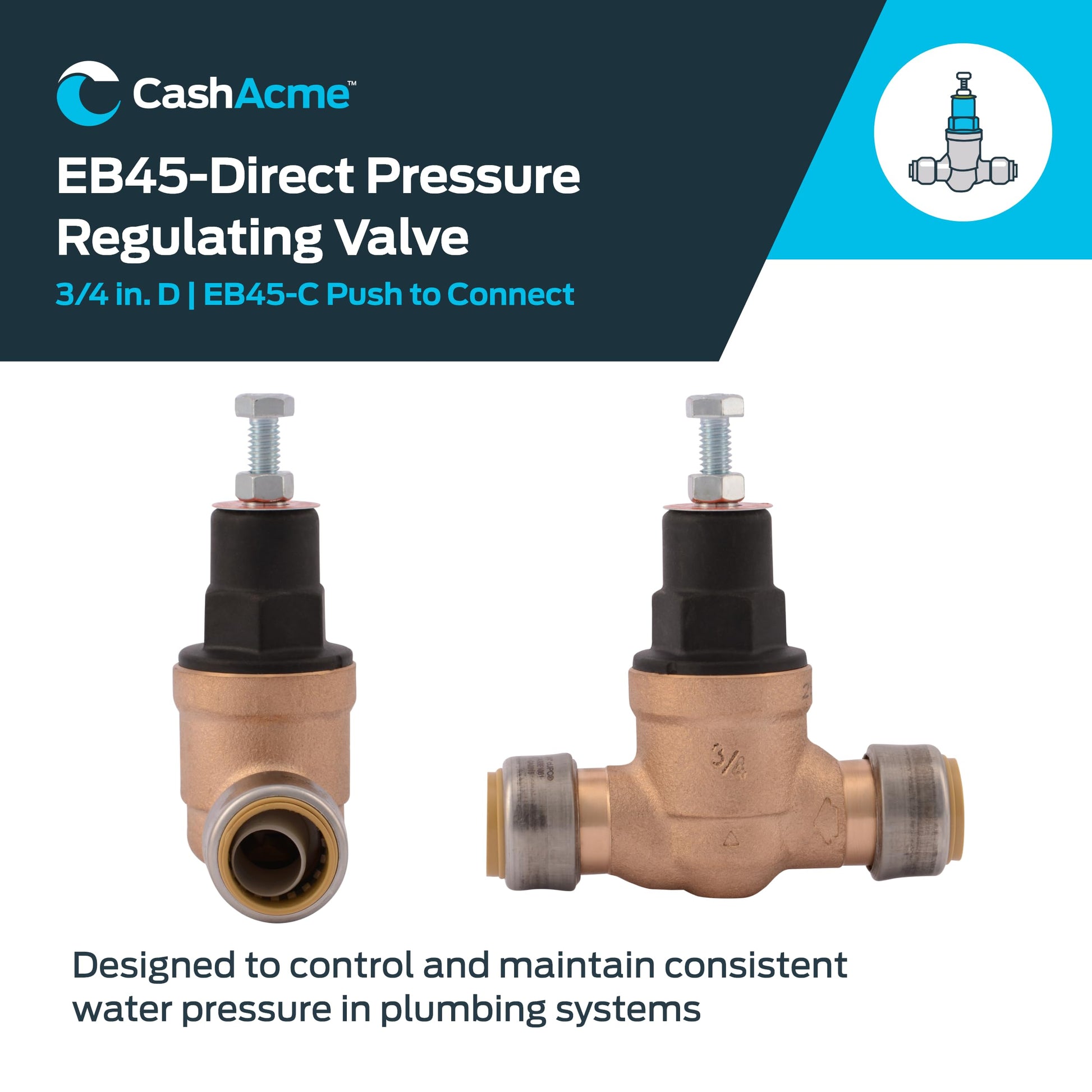

• CASH ACME WATER PRESSURE REGULATOR: The Cash Acme Direct Pressure Regulating Valve (PRV)is designed to reduce incoming water pressure as well as prevent pressure surges to protect plumbing components

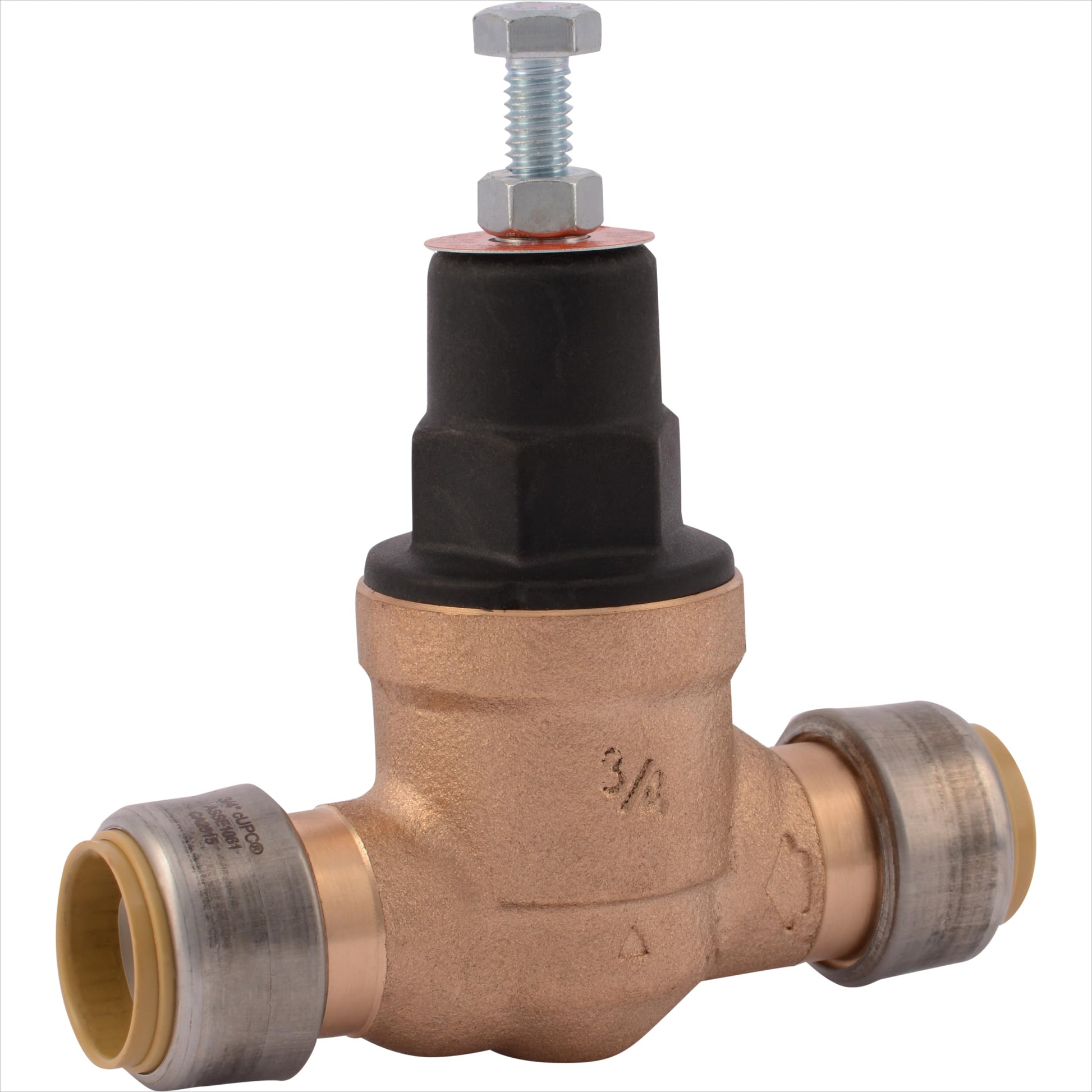

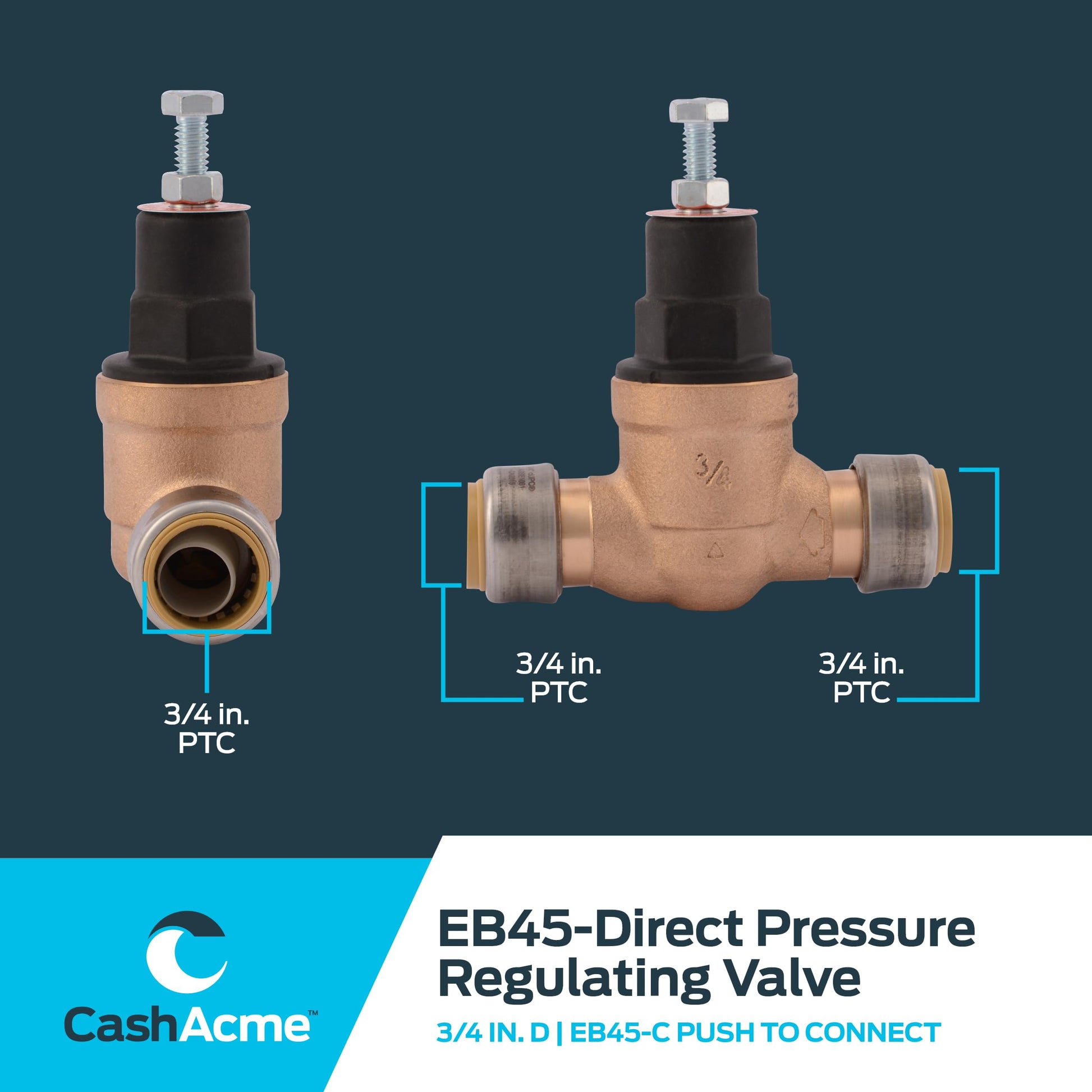

• DESIGN: This compact, inline 3/4 in. push fit direct SharkBite pressure regulating valve features EB45’s tamper-resistant design that lets you lock in the desired system pressure
• MATERIAL: This regulating valve is made from brass, stainless steel and durable polymer components to withstand corrosion, compliant with NSF/ANSI 372 for safe use in potable water systems, meeting all drinking water regulations
• EASY TO USE: Just insert the pipe, and the stainless steel teeth grip tightly while the O-ring compresses for a secure, leak-free seal. Easily disassemble using SharkBite disconnect clip (included)

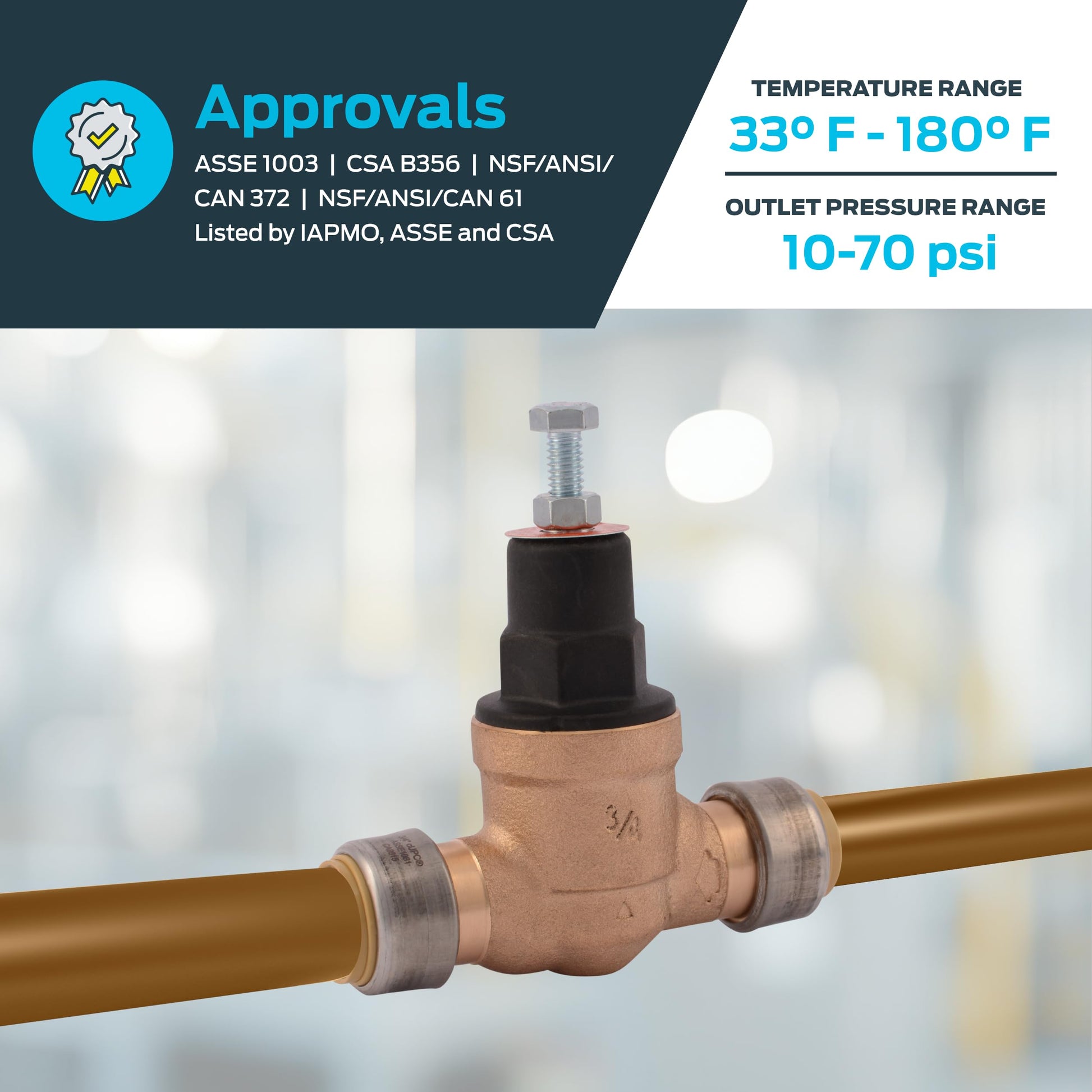

• RATING: The water pressure reducer valve is rated to 45 PSI and is easily adjustable between 10 to 70 PSI; Suited for either cold or hot (to 180 degrees F) water service

Binding: Tools & Home Improvement

Release Date: 12-03-2017

model number: 23808-0045

Part Number: 2466388

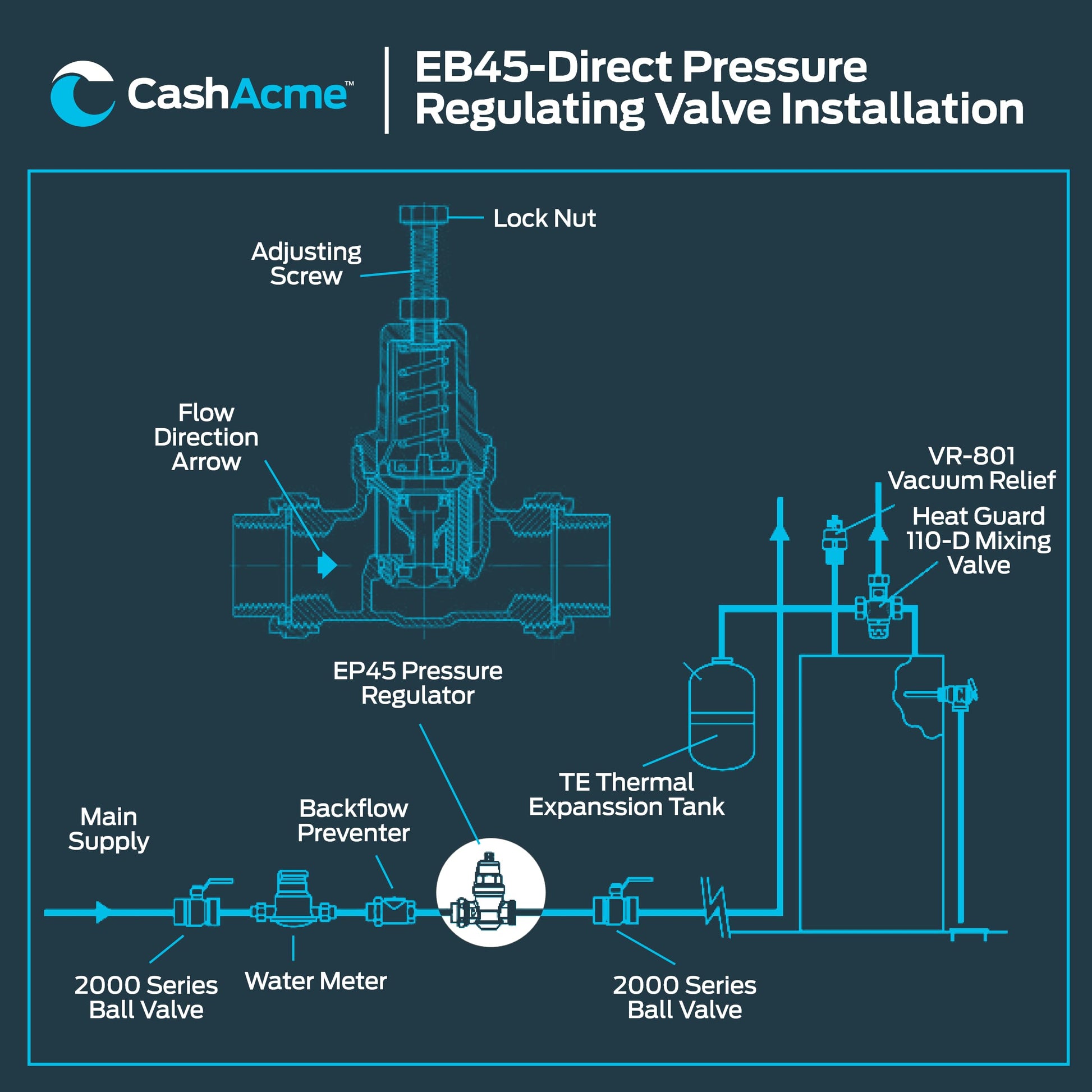

Details: Keep water pressure regulated in any commercial or residential setting with this direct pressure regulating valve. This pressure-regulating valve helps to regulate downstream pressure in commercial and residential water applications and features a patented half-cartridge design that enables servicing without having to remove the valve body. This water pressure regulating valve features an innovative push-to-connect design which allows for quick and easy installation and does not require any additional tools. Ideal for use in tight spaces, this pressure regulator can be installed on wet lines. The water pressure regulator is rated to 45 PSI, easily adjustable between 10 to 70 PSI, and is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe.

EAN: 0697285238084

Package Dimensions: 5.7 x 5.1 x 2.3 inches
