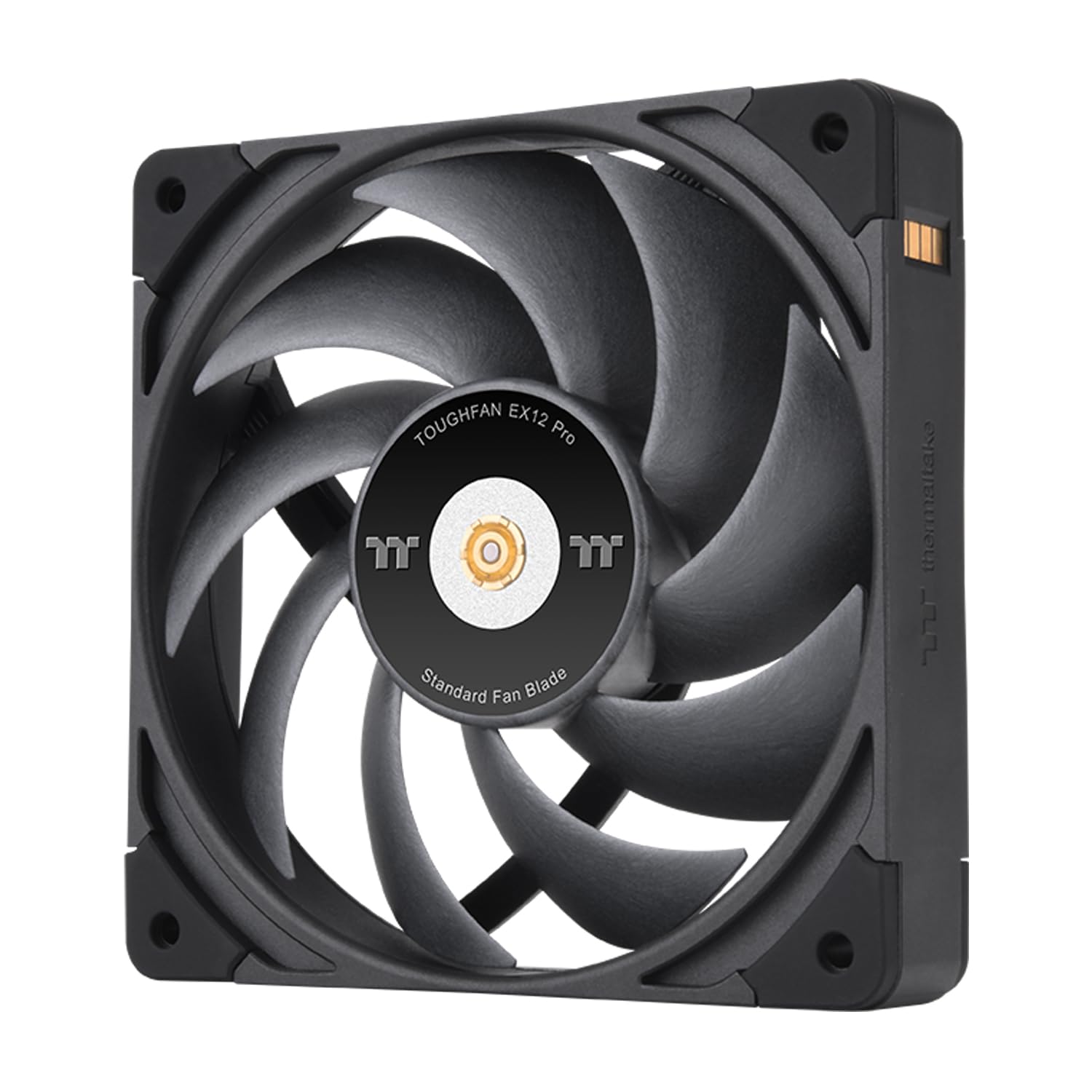

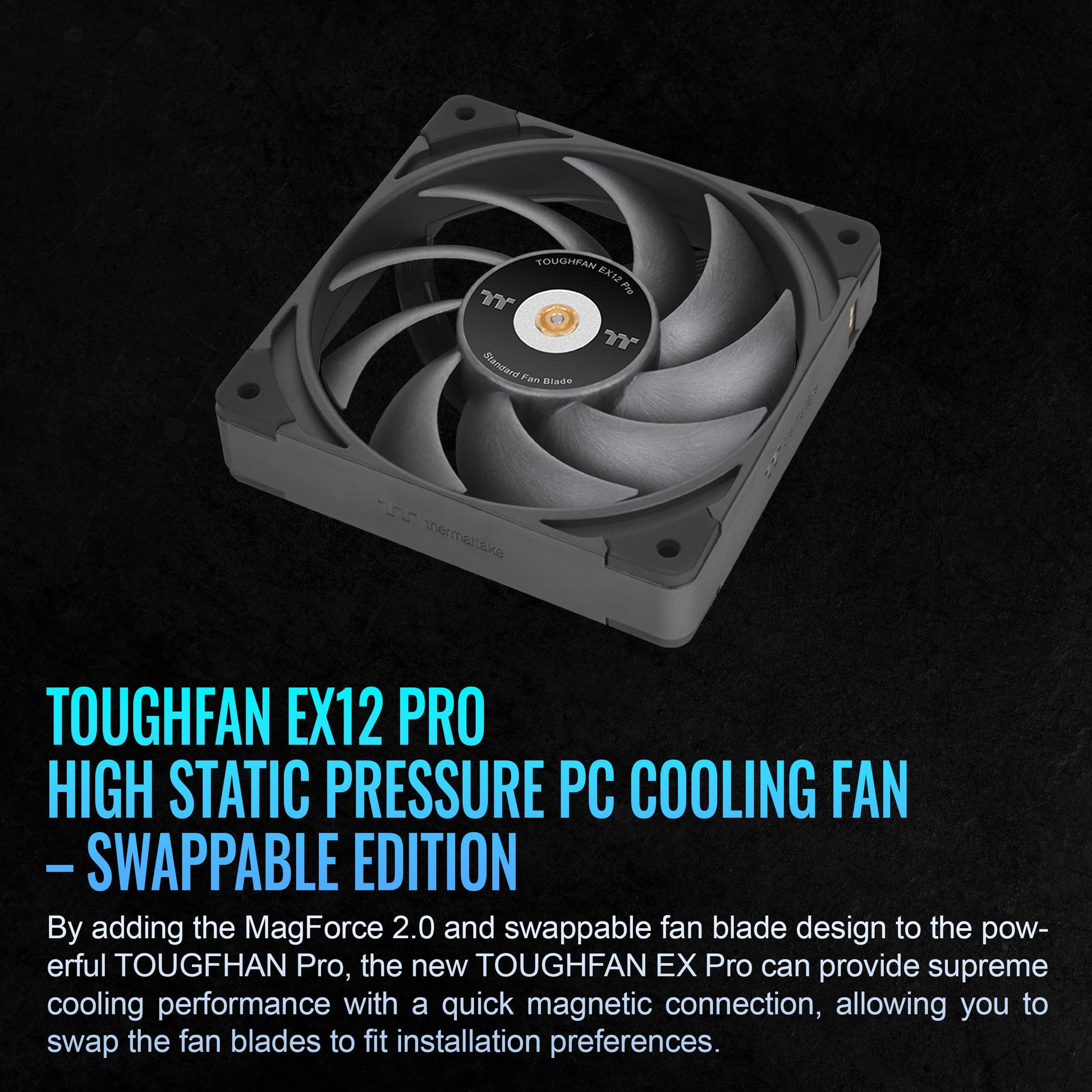

Thermaltake TOUGHFAN EX12 Pro PC Cooling Fan, Magnetic Connection, Swappable Fan Blade, PWM Controlled 500~2000 RPM, Air Flow 70.8 CFM, 120mm Case/Radiator Fan (3 Pack) CL-F171-PL12BL-A

Brand: Thermaltake

Color: Black

Features:

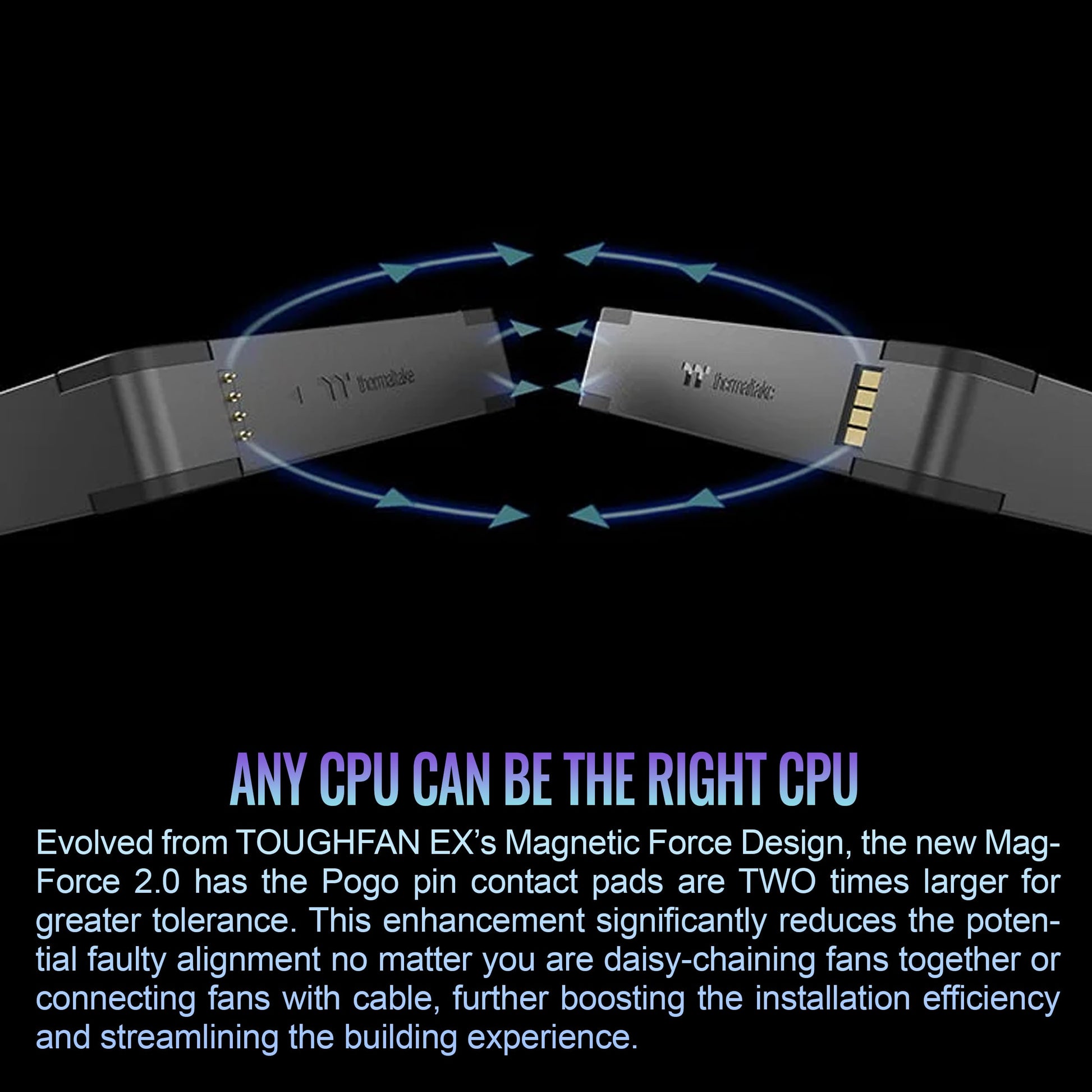

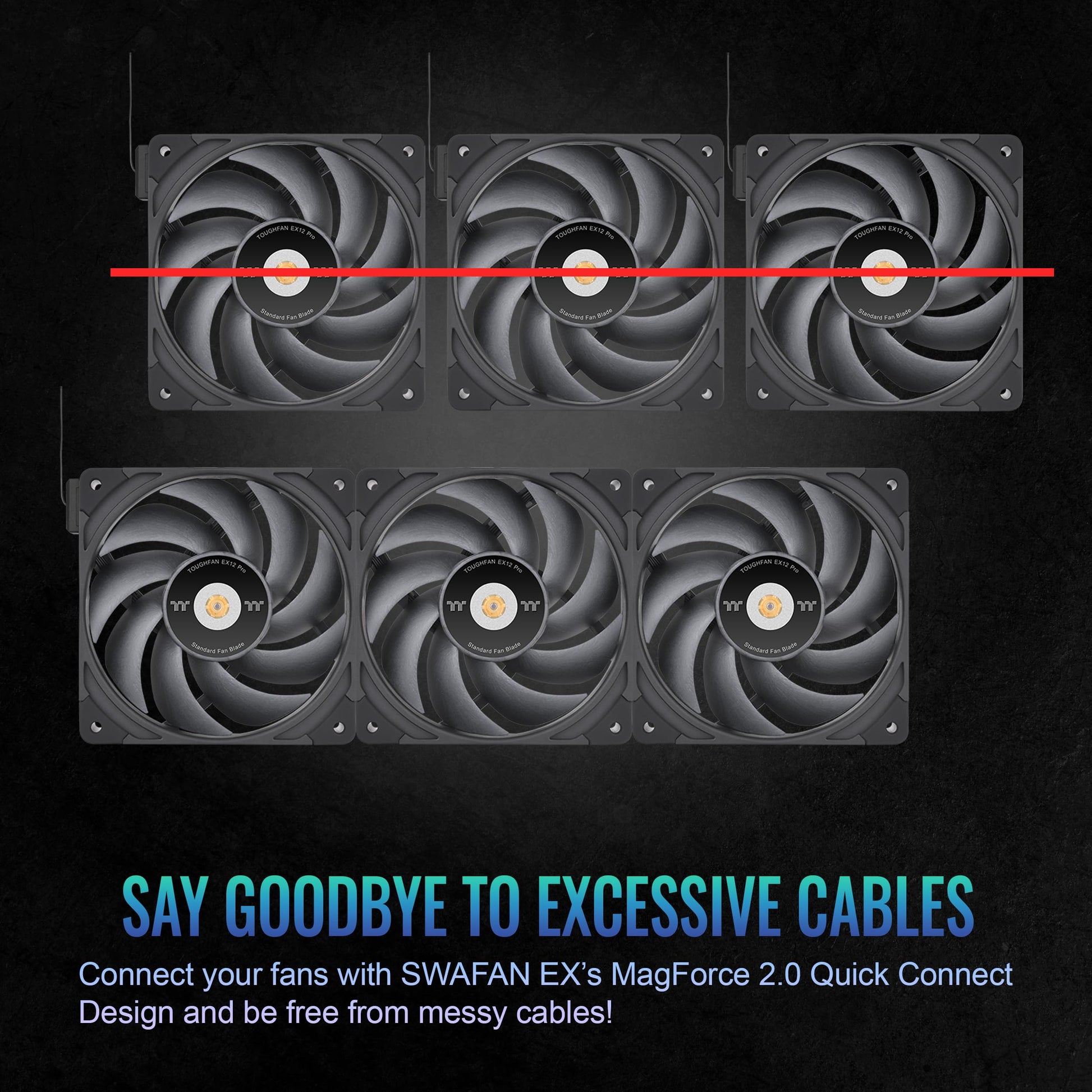

• MagForce 2.0, a new Magnetic Connection Design for optimized fan daisy-chaining

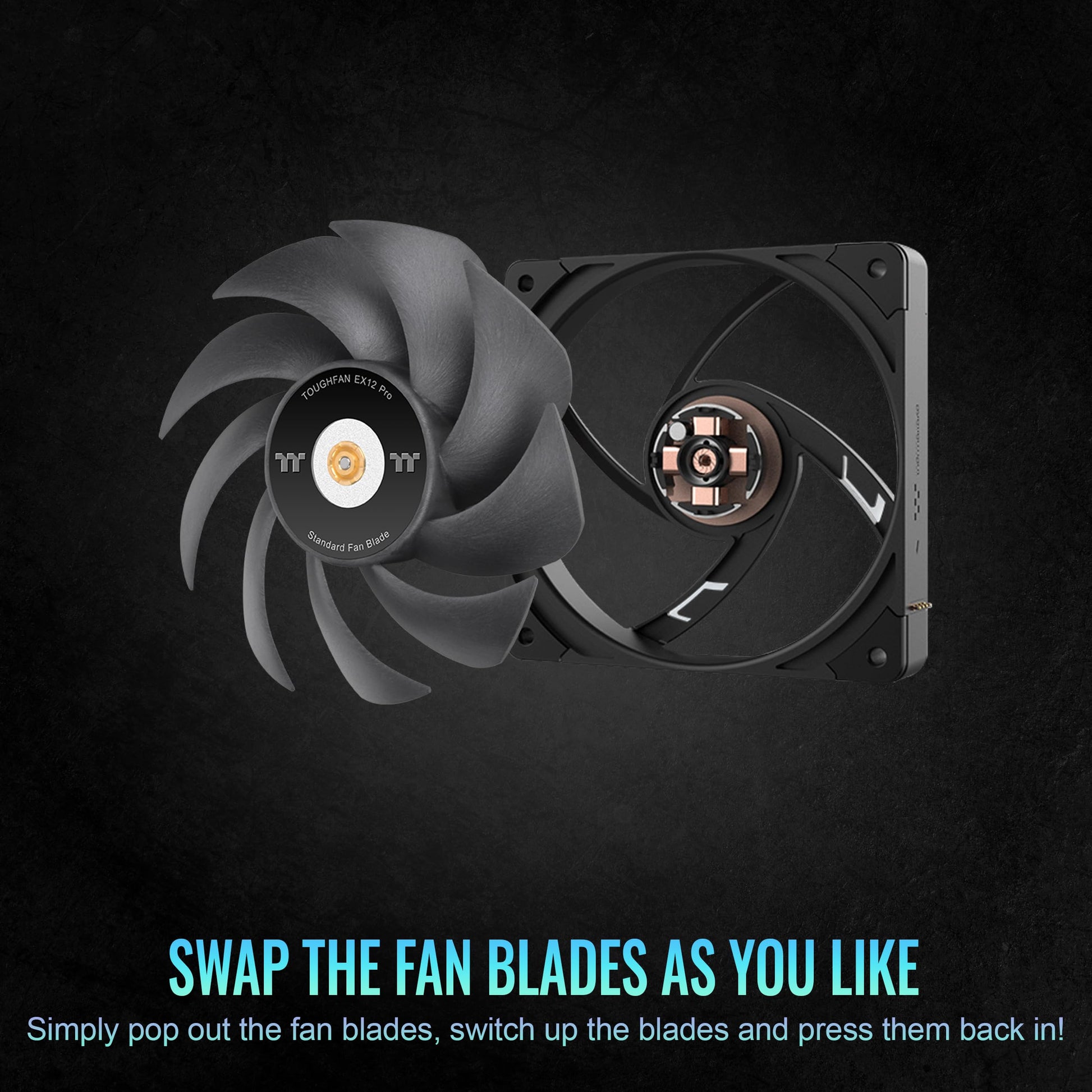

• Swappable Fan Blade Design (includes 3 additional reverse fan blades)
• PWM Controlled Fan with a maximum speed of 2000 RPM
• Specially Engineered Fan Blade for unparalleled performance
• Features LCP material fan blade to lower vibration

Binding: Tools & Home Improvement

Release Date: 21-03-2024

model number: TOUGHFAN EX12 Pro

Part Number: CL-F171-PL12BL-A

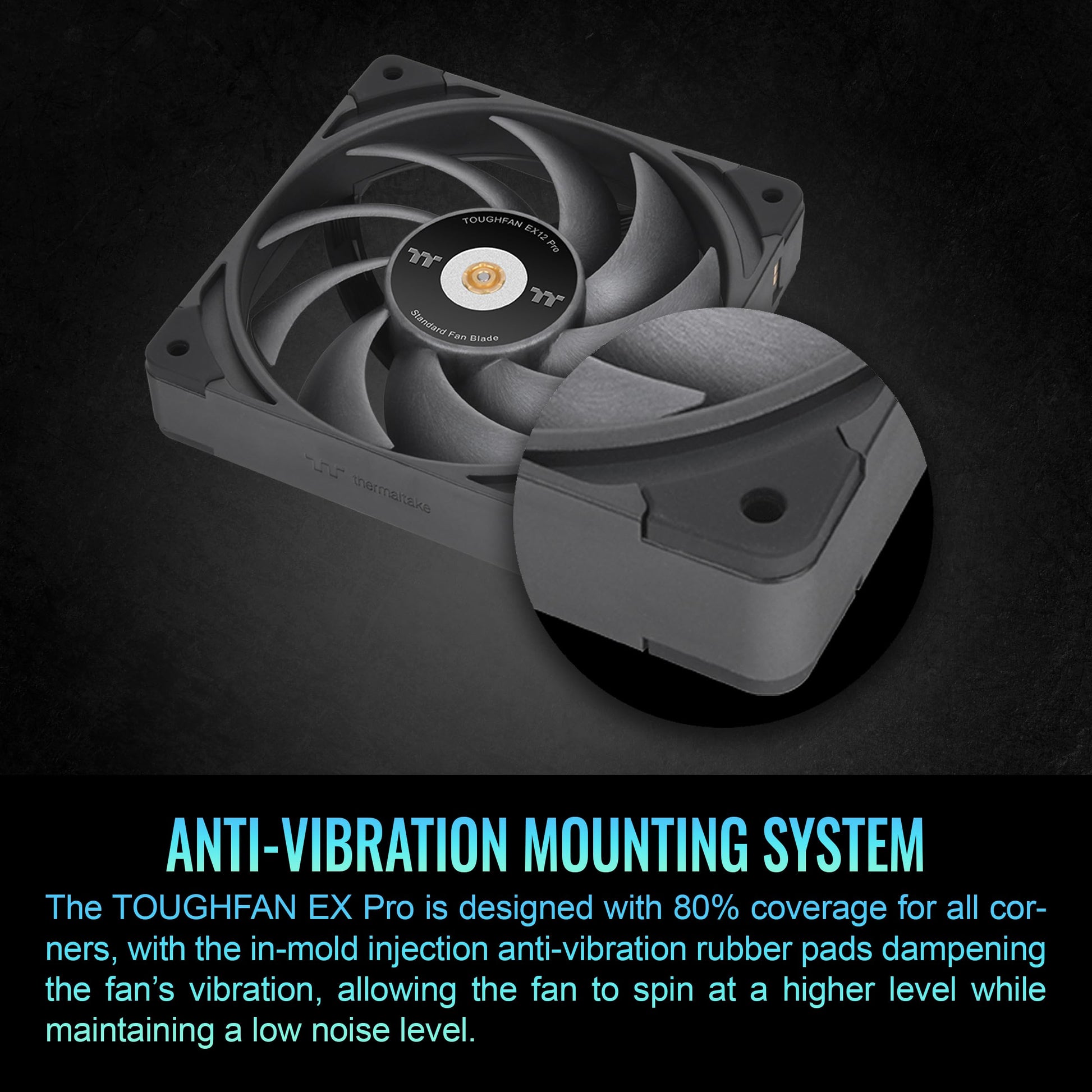

Details: The TOUGHFAN EX Pro combines MagForce 2.0 and the swappable fan blade design for superior cooling performance and convenient installation. MagForce 2.0 features larger Pogo pin contact pads, reducing faulty alignment during fan connection and enhancing installation efficiency. The swappable fan blade design makes the fan blades easily removable and washable, allowing them to always face forward. The TOUGHFAN EX Pro incorporates specially engineered fan blades from liquid crystal polymer, providing superior cooling performance. The standard fan blades can provide 3.19 mmH2O static pressure and 70.8 CFM airflow, while the reverse fan blades offer 2.6 mmH2O static pressure and 64.21 CFM airflow. Additionally, with 80% coverage for all corners, the anti-vibration rubber pads support higher spin levels with reduced noise. •P/N: CL-F171-PL12BL-A •DIMENSION: 120 x 120 x 25 mm •INTERFACE: 2510-4P •STARTED VOLTAGE: 6 V •RATED VOLTAGE: 12 V •RATED CURRENT: 0.17 A •POWER INPUT: 2.04 W •FAN SPEED: PWM 500~2000 R.P.M •MAX AIR PRESSURE: Standard Fan Blade : 3.19 mm-H2O(one fan) Reverse Fan Blade : 2.60 mm-H2O(one fan) •MAX AIR FLOW: Standard Fan Blade : 70.8 CFM(one fan) Reverse Fan Blade : 64.21 CFM(one fan) •NOISE: tandard Fan Blade : 22.6 dB-A(one fan) Reverse Fan Blade : 29.8 dB-A(one fan) •BEARING TYPE: Hydraulic Bearing •LIFE EXPECTATION: 40,000 hrs,25℃ •OTHER: Fan Frames x 3 ; Standard Fan Blade x 3 (Pre-installed) ; Reverse Fan Blade x 3 Cable x 3

EAN: 0841163091746

Package Dimensions: 6.9 x 6.7 x 6.0 inches
