USB Tester 4-28V 7A LCD USB A&C Voltage Current Power Tester Multimeter, Fast Charge Detection Trigger Capacity Ripple Measurement, PD2.0/PD3.0,QC2.0/QC3.0

Brand: FNIRSI

Color: multi-color

Features:

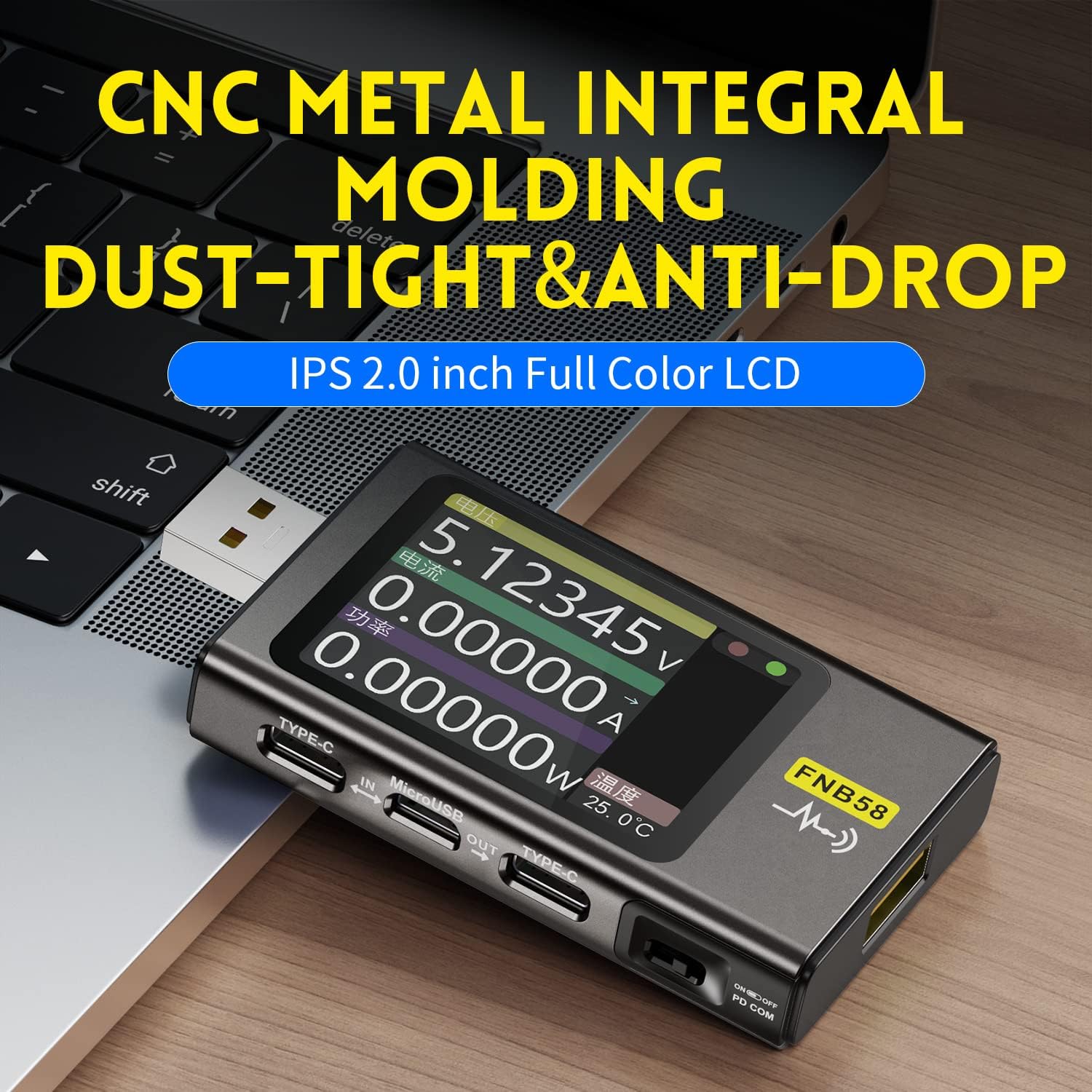

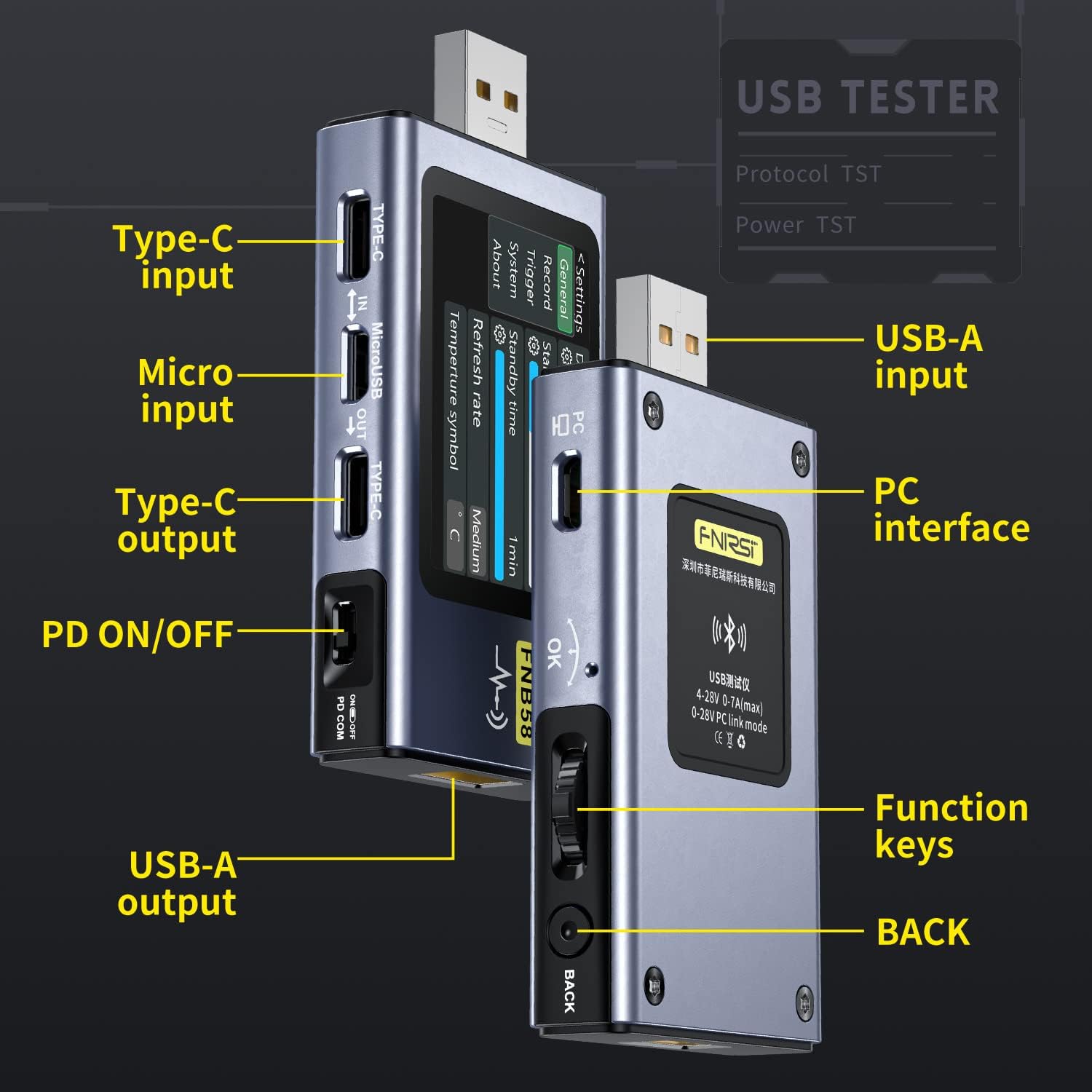

• 【LCD Display USB Tester】FNIRSI FNB58 has a 2.0-inch TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a USB voltage andcurrent detection meter and a mobile communication terminal fast charging trigger with gravity sensor
• 【Multifunction USB Digital Tester】FNB58 uses external 16-bit ADC, PD protocol physical chip. FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers

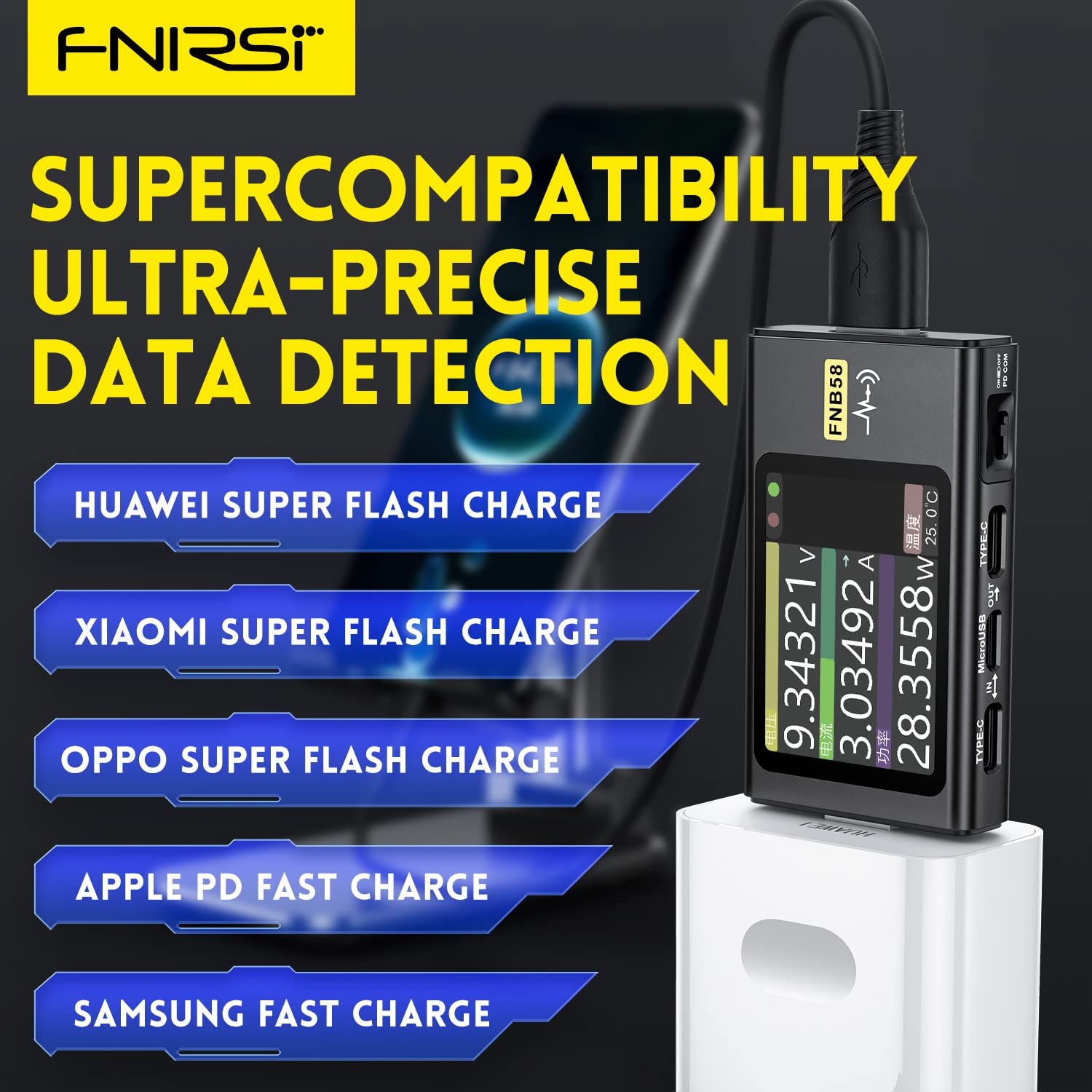

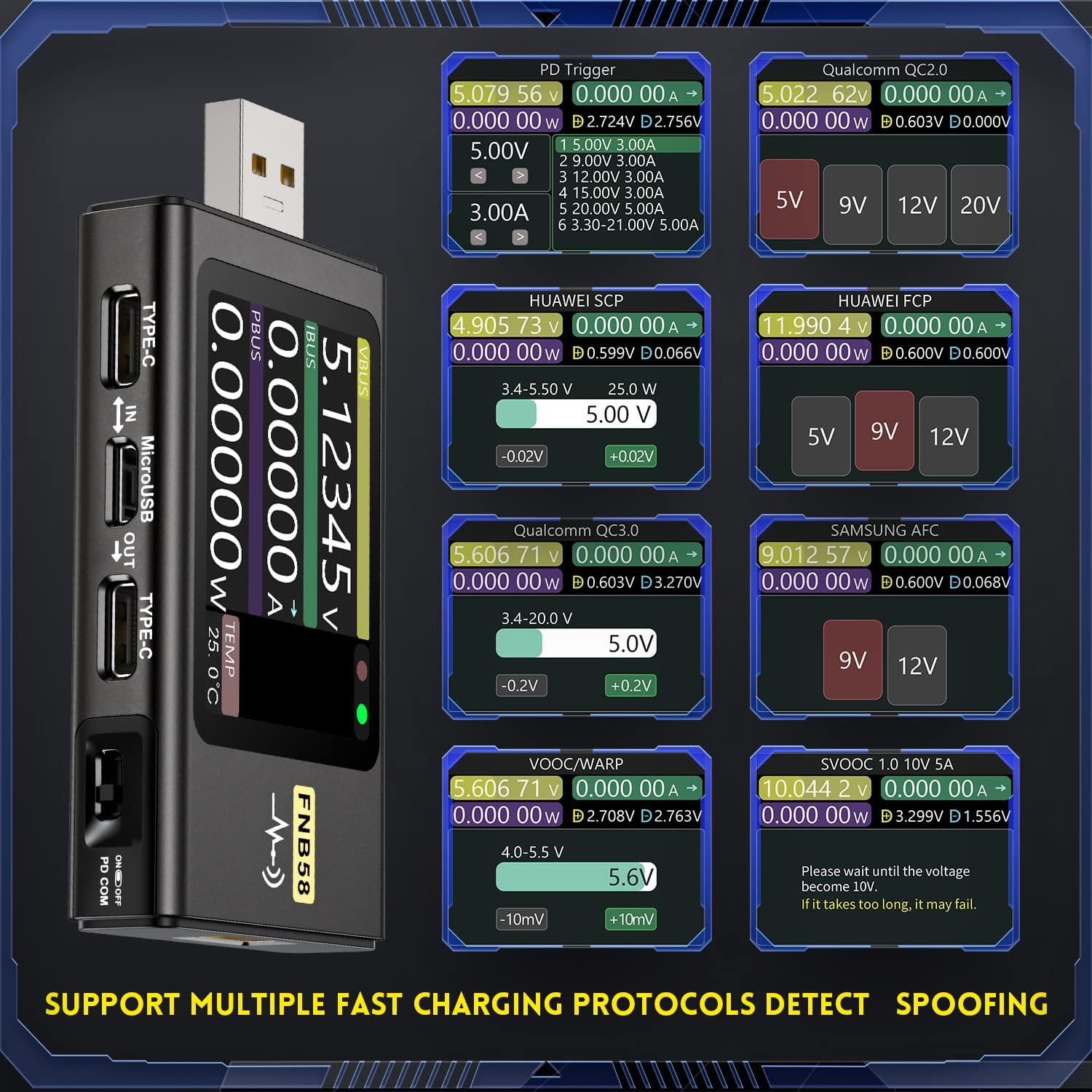

• 【Fast Charge Protocol Trigger Detection】FNB58 supports QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion
• 【Parameter Recording】The highest six-digit display of voltage, current and power. 10 sets of switchable capacity, power etc. Support low-speed waveform drawing, 2 sps-100 sps sampling rate. Support high-speed ripple drawing, up to 4 M sps sampling rate
• 【USB tester detection function】The resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
• 【Note】To support environmental protection and reduce paper use, the FNB58 does not include a printed manual. You can access the manual, firmware updates, and app information via the QR code provided in the packaging

model number: FNIRSI-FNB58-bp

Part Number: FNIRSI-FNB58-bp

Package Dimensions: 7.0 x 3.3 x 0.9 inches
