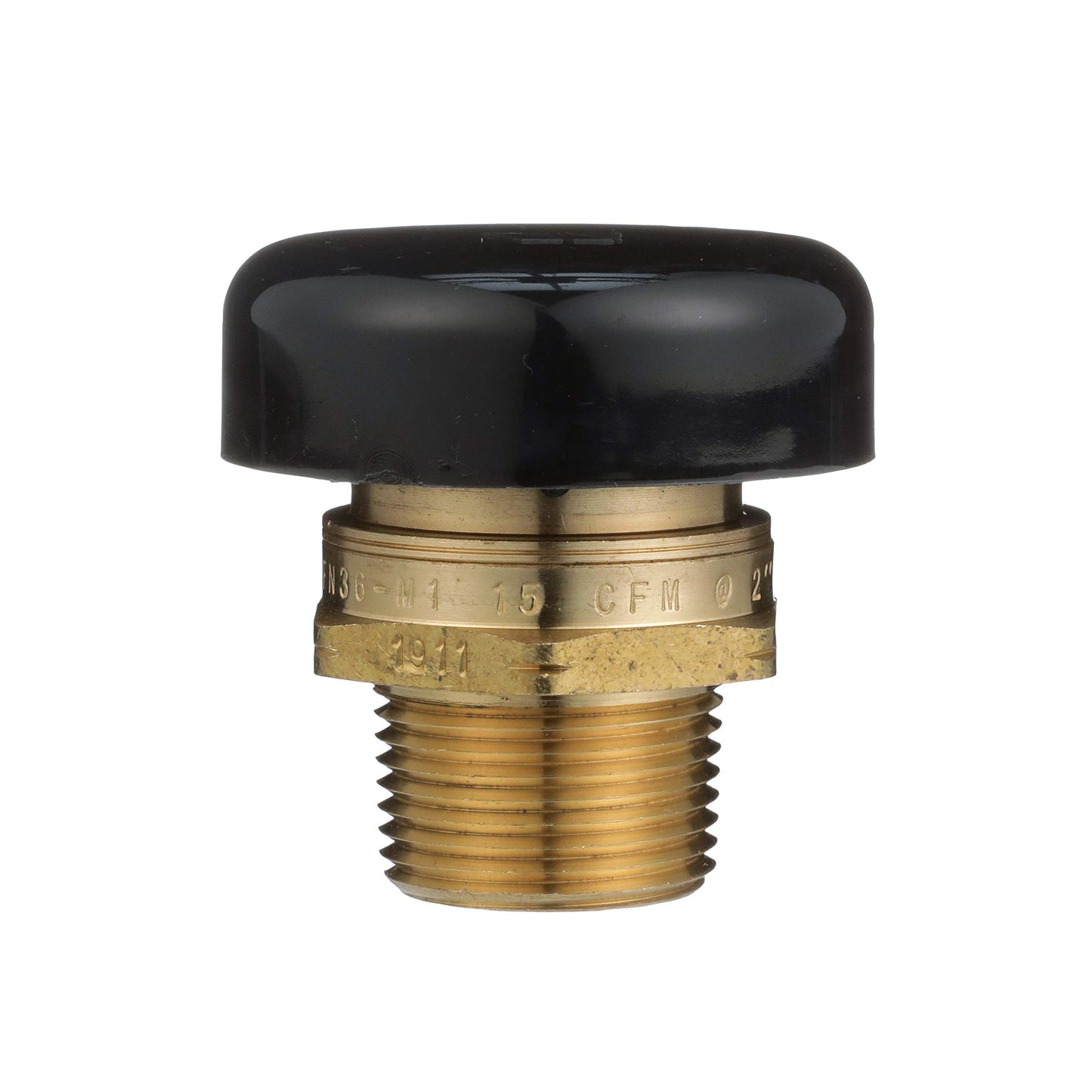

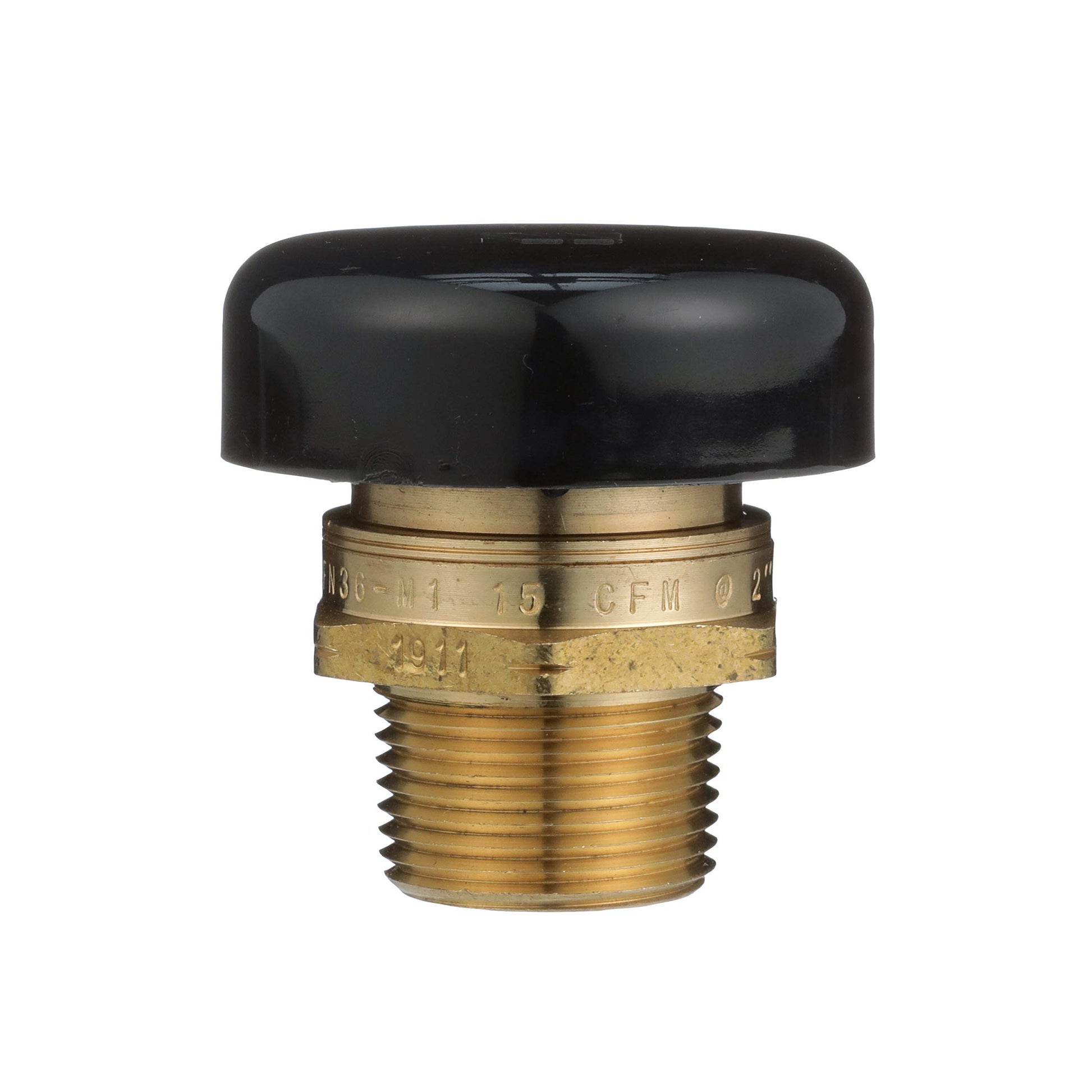

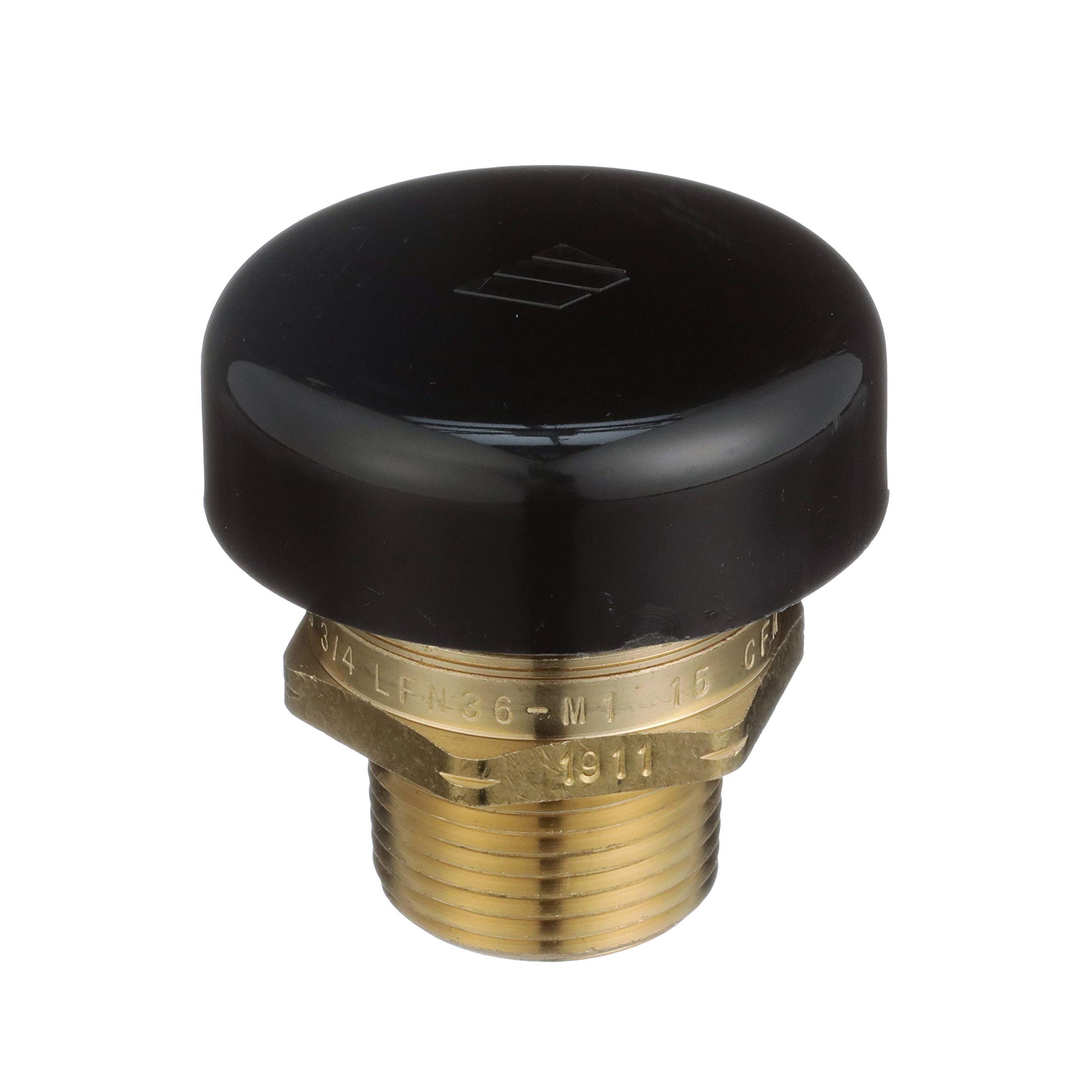

Watts LFN36-M1 Water Service Low Profile Vacuum Relief Valve for Water and Heater Tanks, 3/4 inch

Brand: Watts

Features:

• Used in water heater and water tank applications to automatically allow air to enter into the piping system to prevent vacuum conditions that could siphon the water from the system and damage water heater or water tank equipment
• It is suitable for low pressure steam and water service, and is ideal for use in domestic water heaters and supply tanks, table top heaters, jacketed steam kettles, unit heaters, low pressure steam systems, and steam coil heaters
• This valve is lead free has a brass body, low profile design with a protective cap and is tested and rated to ANSI Z21.22, and is CSA certified
• Maximum Working Pressure: 200psi (13.8 bar), maximum steam pressure: 15psi (103 kPa) and maximum temperature 250 degrees
• Vacuum relief valves are NOT designed or approved as back siphonage backflow preventers

Binding: Tools & Home Improvement

model number: Watts LFN36-M1

Part Number: 556031

Details: The LFN36-M1 vacuum relief valve is used in water heater and water tank applications to automatically allow air to enter into the piping system to prevent vacuum conditions that could siphon the water from the system and damage water heater or water tank equipment. It is suitable for low pressure steam and water service, and is ideal for use in domestic water heaters and supply tanks, table top heaters, jacketed steam kettles, unit heaters, low pressure steam systems, and steam coil heaters. It is NOT designed or approved as back siphonage backflow preventers. This valve is lead free has a brass body, low profile design with a protective cap and is tested and rated to ANSI Z21.22, and is CSA certified.

EAN: 0098268450415

Package Dimensions: 2.6 x 2.6 x 2.6 inches
