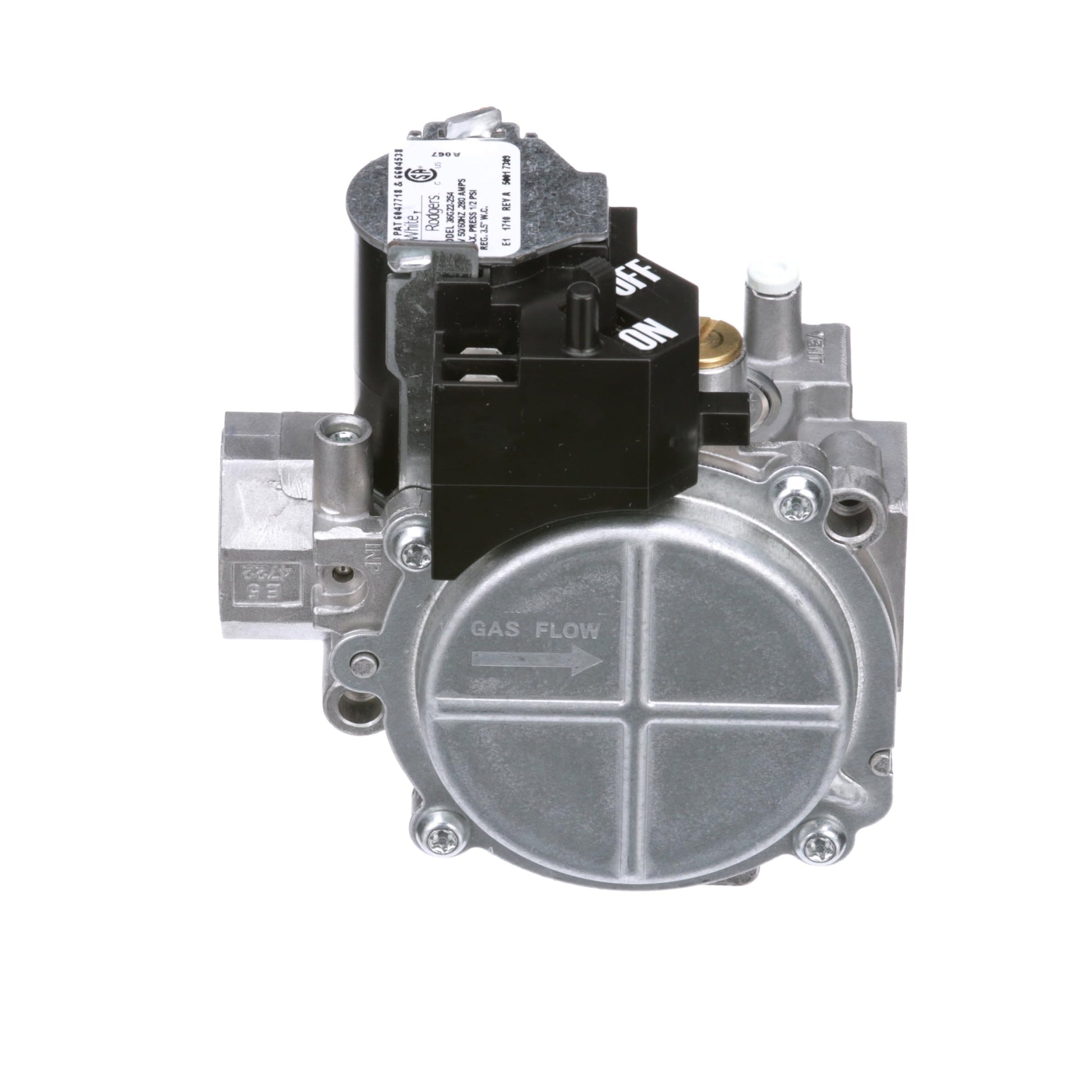

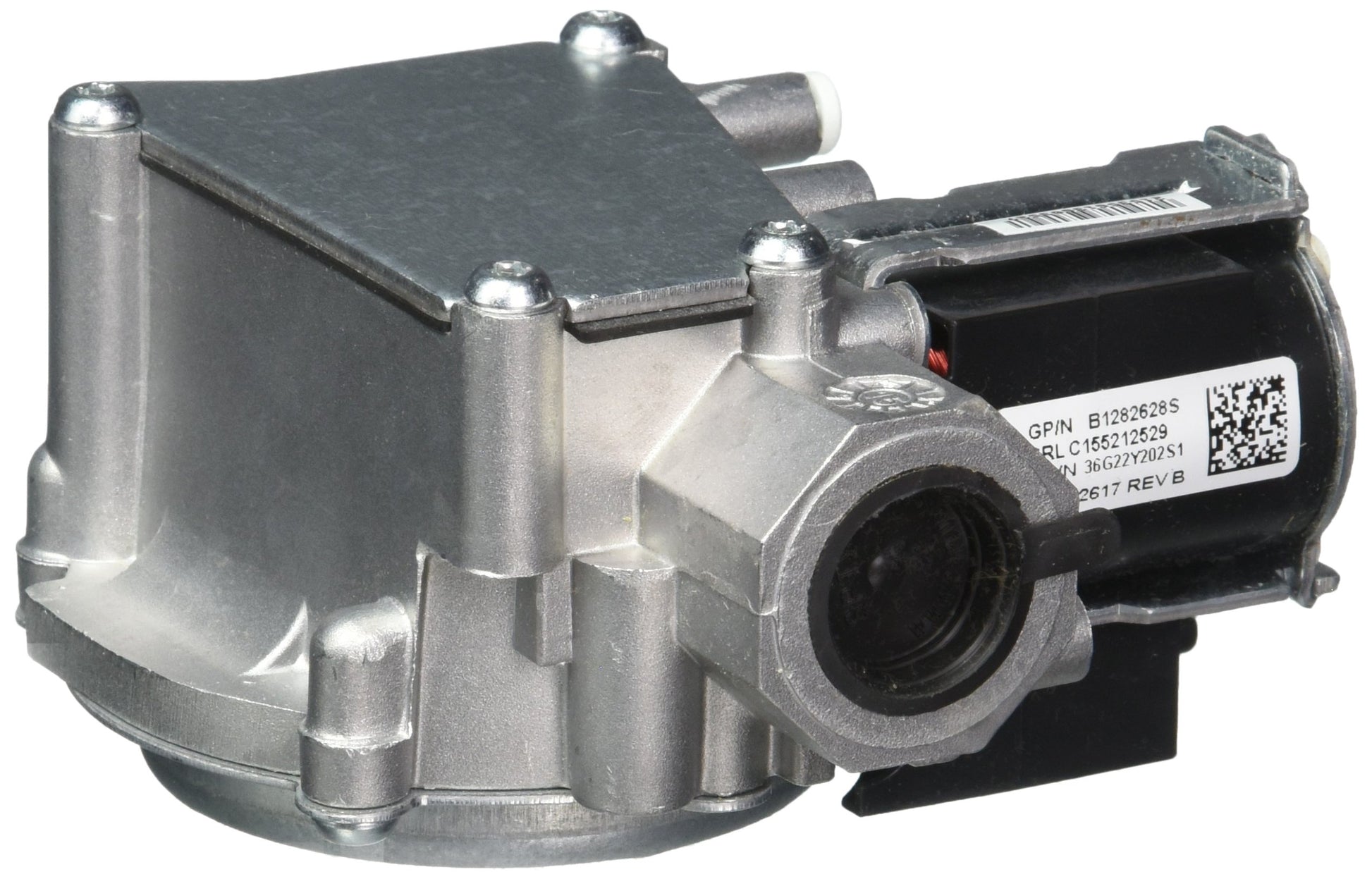

White-Rodgers 36G22-254 36G/36J Series Gas Valves

Brand: White-Rodgers

Color: Steel

Features:

• Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
• Fast open, single models
• Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
• Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
• Mounts in any position including upside down

Binding: Automotive

Release Date: 14-06-2017

model number: 36G22-254

Part Number: 36G22-254

Details: Goodman direct replacement HSI/DSI gas valve, 24 VAC, straight thru, 1/2" x 1/2" NPT, fast opening, inlet/outlet pressure taps, regulator setting 3.5 in wc at 110,000 BTU/Hr, inlet/outlet filters, two 1/4 in male spade terminals, pressure tap towers, mounting holes for 8-32 thread forming screws, service replacement valve for Goodman p/n 0151m0013, B1282628s, B12826-28, B1282614, B12826-14, White-Rodgers 36g22y-202, & Honeywell VR8215S1214.

EAN: 0786710549274

Package Dimensions: 4.7 x 4.3 x 3.2 inches
